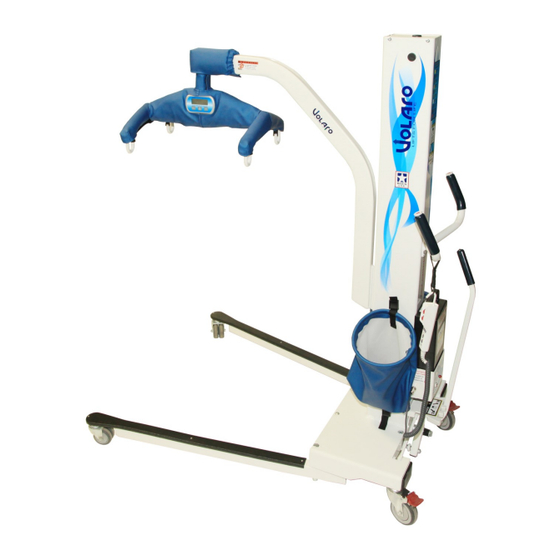

- Page 1 Volaro Series 4 Lift PC450/HD450 Operator’s Manual SMT Health Systems 1380 Legion Road Detroit Lakes, MN 56501 800-725-7761 www.patientlift.com 3/2019...
-
Page 2: Safety Notes
The Volaro Sling Sizing Chart (page 7) is designed only to suggest which resident will safely fit into the sling based on their size and weight. NOTE: Lifts are designed to “transfer” a resident, not “transport” them. PARTS & SERVICE SMT Health Systems Phone: (218) 847-3386 Toll Free: (800) 725-7761 Toll Free Fax: (888) 385-2345 Email: sales@smthealthsystems.com... - Page 3 Does the individual Does the individual weigh less have moderate upper than the maximum capacity of body strength and the SMT Full Body Lift? ability to follow simple commands? Does the individual Contact Full Body Lift weigh less than the Safety Recommended.
- Page 4 Mechanical Operation 1. 12 v Power Pac 2. Power Pac Level Indicator - Red Light 3. Power Pac Charger Base 4. Handle Up and Down Switches 5. Remote Up and Down Switches 6. Circuit Breaker 7. Plastic Plug for Manual Override 8.
- Page 5 PC450/HD450 Specification Sheet 450 LBS Lifting Capacity—PC450 • 700 LBS Lifting Capacity—HD450 • (NOTE: Base on HD450 is 5” wider in both open and closed positions) Non-Arcing Lift Beam • Thrust Bearing Mounted Hanger • Spring Retainer Clips • Vinyl Safety Padding •...
- Page 6 Volaro Lift Slings DL201S: DIVIDED LEG SLING H301S: HAMMOCK SLING The divided leg sling offers comfortable The hammock sling offers comfortable support for per- support for patients/residents in transfers. sons who may be amputees or who may be more com- The divided leg sling is also available fortable in this style.
- Page 8 Selecting the Style and Size of Sling to be Used: The first step is to select the Style of sling to be used. The most common sling is the divided leg sling (shown). This sling is designed to be removed from the person after they have been transferred into their wheelchair.
- Page 9 Lifting from Bed to Chair using the Divided Leg Sling: When transferring from bed to chair just reverse the steps in the previous instructions. Roll the person to their side and lay the folded sling behind them. Align the bottom of the back of the sling by the tailbone.
-
Page 10: Mechanical Operation
Mechanical Operation (Operation Corresponds with the View on Page 4) Power Pacs: This lift is powered by a 12VDC removable power pac located at the back of the lift. The power pac fits either way in the lift and charger box. This is to make it easy to remove and replace the power pac. NOTE: Power pac removal is your emergency stop feature. - Page 11 25 Lbs. Failure to use a precision weight may cause the scale to display an inaccurate weight. Using a certified weight is the method preferred. 25 Lb certified weights are available from SMT Health Systems.
- Page 12 SMT Volaro 12V Power Pac Charging Charging Procedure (Note: if there is no power pac in the charger, the GREEN light will be on.) 1) The lift has a RED power pac indicator light located on the box that will come on when the power pac is low.
- Page 13 VOLARO CHARGER SPECIFICATIONS Bulk Charge Current 1.5 Amps Bulk Charge Voltage Range 10-14 Volts Absorption Mode Current 1.5 - .5 Amps Absorption Mode Voltage Range 14.0 - 15.0 Volts Float Voltage 13.6 - 13.8 Volts AC Voltage In 115 - 130 VAC Power In 30 Watts WEIGHING WITH ELECTRONIC SCALE (optional)
- Page 15 ITEM PART # DESCRIPTION HD Frame Assembly PC Frame Assembly Mast & Base Plate Assembly PC4003A Leg Assembly 70635 Notch Plate (SN prior to A4000 uses # PC45020) 10015-1 Power Box Assembly (Does not include circuit board 10011-2.) 2293 Rear Caster Mount Cap PC45022 Safety Limit Switch 2196 / LT2046...
- Page 16 ITEM PART # DESCRIPTION PC45057 Upper Circuit Board Mount (Dual Display Only) 2743 Scale Power pac Box (Dual Display Only) 2791 Scale Circuit Board (Dual Display Only) PC45060 Load Cell (Dual Display Only) PC45031-1 Non-scale adaptor (Dual Display Only) 2087 Counter Balance Spring 35022-1 Mast Brush Holder (Older gray models only)
- Page 17 Circuit Board Wiring Diagram Positive up to Switch Small Green Positive Power Large Red Negative Power Large White Positive to Switch 2 Small Red Safety Switch Small Purple Up Thumb Switch & Remote 2 Small Black Motor Large Black Motor Large Red NOTE: Do not pull plug out by wires, this could loosen/damage them.
- Page 18 2. Scale is out of calibration Calibrate scale 3. Display is blank 1. Power to scale is not turned on 1. Turn scale on 2. 9v battery is bad 2. Replace battery 3. Scale is damaged 3. Call SMT Support...
- Page 19 Volaro PC450/HD450 General Procedure Guide for Training This form is intended as a guide to help you develop a procedure sheet that will fit your specific application in your facility. It is recommended that everyone be in-serviced by the manufacturer’s in-service video before operating any mechanical lift.
- Page 20 Yes No 16. Roll resident onto center of sling. Pull legs on sling along each side and wrap inside thigh close to groin area. Crisscross straps through the holes before hooking to the lift. 17. Raise head of bed slightly. 18.
- Page 21 Check the condition of all slings. If you are in doubt of its operational ability to safely lift a • person, then discard the sling and order a new sling. SMT recommends replacing slings after 2 years of use. Check to see that strap retainer flapper and spring are working.
- Page 22 Volaro Lift Items To Inspect 1. Hanger: Full Body Lift 11. Remote Strap Retainer Springs Switches Attaching Hardware Strain Relief Bearings Curly Cord Vinyl 13. Casters 2. Nuts and Bolts Brakes Check All Nuts and Bolts ...
- Page 23 Copy and use this form for Each Lift. Lift Inspection must be done Monthly. (sling included) Model Serial # Date Checked By: Repairs Needed Completed SMT Health Systems www.patientlift.com sales@smthealthsystems.com 800-725-7761...
-
Page 24: Product Warranty
Product Warranty PC450/HD450 YEA R YEA R YEA R Limited Limited Limited Parts Slings Main Structure Casters Manufacturer's Defects Main Integrity and Welds of: • • • Hand Control - Frame • Power Pac - Base • Spring Retainer Clip - Legs •...
