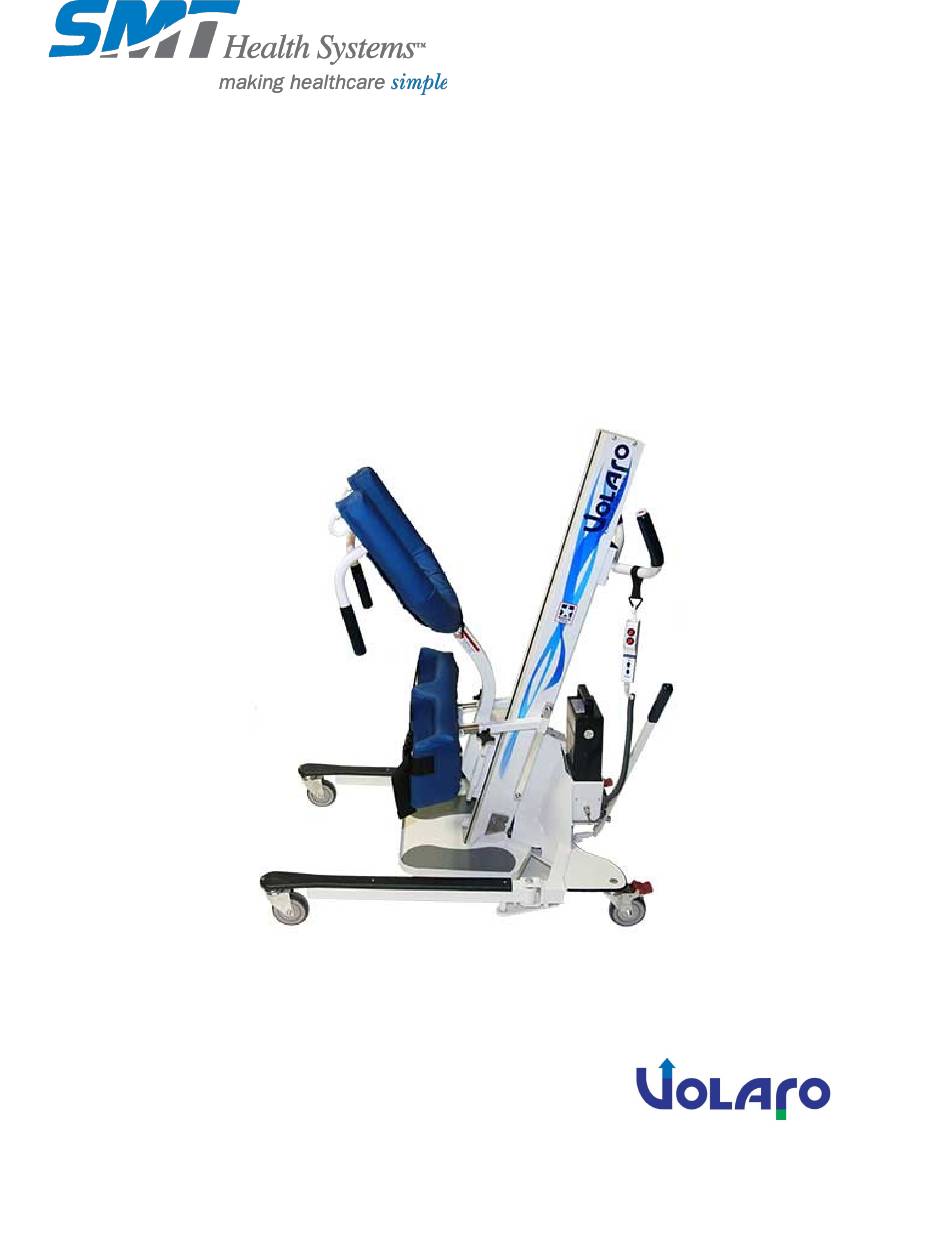

- Page 1 Volaro Series 4 Stand PA600 Operator’s Manual SMT Health Systems 1380 Legion Road Detroit Lakes, MN 56501 800-725-7761 www.patientlift.com...
-
Page 2: Safety Notes
?) is designed only to suggest which resident will safely fit into the sling based on their size and weight. NOTE: Lifts/Stands are designed to “transfer” a resident, not “transport” them. PARTS & SERVICE SMT Health Systems Phone: (218) 847-3386 Toll Free: (800) 725-7761 Toll Free Fax: (888) 385-2345 Email: sales@smthealthsystems.com... - Page 3 Does the individual Does the individual weigh less have moderate upper than the maximum capacity of body strength and the SMT Full Body Lift? ability to follow simple commands? Does the individual Contact Full Body Lift weigh less than the Safety Recommended.
- Page 4 400 LB Lifting Capacity 500 LB Lifting Capacity Heavy Duty Model Non-Arcing Lift Beam Urethane Sling Retainer Clips Vinyl Safety Padding Metal Case Batteries with Cushion Grip Handles, 12VDC 12Amp./Hr. Gel Cell 12VDC Ball-Screw Actuator with 1” Diameter ...
- Page 6 Volaro Stand Slings BX-100: Blue Max Sling The sling offers comfortable support for patients/residents during transfers as well 10026-1: Seat/Thigh Strap The seat/thigh strap is designed for use with the SLING during a transfer to mini- mize pressure around the torso. Volaro Sling Laundering Instructions The sling material and webbing are made of nylon.
-
Page 8: General Recommendations
The Volaro Series 4 Stand may also be modified to be used as a walking device. Because the Volaro Stand was designed as an assistive device, it requires more advanced motor skills than a traditional lift such as our Volaro Lift-Series 4 or 5. - Page 9 supported. If you have a VOLARO “WRIST ASSIST”, just hang the Wrist Assist from the “J” hook and do the same. With the VOLARO Stand, the person being transferred does need some body strength. We encourage anyone being lifted with the VOLARO Stand Lift to use their legs and arms as the lift is doing its work.
-
Page 10: Mechanical Operation
Mechanical Operation (Operation Corresponds with the View on Page 4) Power Pacs: This lift is powered by a 12VDC removable power pac located at the back of the lift. The power pac fits either way in the lift and charger box to make it easy to remove and replace the power pac. NOTE: Power pac removal is your emergency stop feature. - Page 11 SMT Volaro 12V Power Pac Charging Charging Procedure (Note: if there is no power pac in the charger, the GREEN light will be on.) 1) The lift has a RED power pac indicator light located on the receptacle that will come on when the power pac is low.
- Page 12 VOLARO STAND-PA600/PA600S PA600 EXPLODED VIEW...
- Page 13 PA600 PARTS LIST...
- Page 14 Circuit Board Wiring Diagram Positive up to Switch Small Green Positive Power Large Red Negative Power Large White Positive to Switch 2 Small Red Safety Switch 2 Small White Up Thumb Switch & Remote 2 Small Black Motor Large Black Motor Large Red NOTE: Do not pull plug out by wires, this could loosen/damage them.
- Page 15 Volaro Series 4 Stand PA600 Troubleshooting and Maintenance Guide Problem Cause Solution Lift Lift won’t go up or down. 1. Dead power pac. Switch power pac or charge power pac. Power pac is not making con- Replace if defective. nection.
- Page 16 Volaro PA600 General Procedure Guide for Training This form is intended as a guide to help you develop a procedure sheet that will fit your specific application in your facility. It is recommended that everyone be in-serviced by the manufacturer’s in-service video before operating any mechanical lift.
- Page 17 Yes No 16. Fasten the safety belt and pull it snug. 17. Using proper body mechanics, assist the resident’s legs to the edge of the bed while you stabilize the upper body. (ask for assistant if needed) 18. Move the lift towards the resident and show them where to place their hands and feet. Assist their feet flat onto the foot board.
-
Page 18: Every Day
Check the condition of all slings. If you are in doubt of its operational ability to safely lift a • person, then discard the sling and order a new sling. SMT recommends replacing slings after 2 years of use. Check to see that strap retainer flapper and spring are working. - Page 19 Volaro Stand Items To Inspect 1. Y-Beam Stand Lift 12. Remote Strap Retainer Springs Switches Vinyl Strain Relief Curly Cord 2. Nuts and Bolts 13. Casters Check All Nuts and Bolts Brakes 3. Leg Adjuster Handle ...
- Page 20 Copy and use this form for Each Lift. Lift Inspection must be done Monthly. (sling included) Model Serial # Date Checked By: Repairs Needed Completed SMT Health Systems www.patientlift.com sales@smthealthsystems.com 800-725-7761...
-
Page 21: Product Warranty
Product Warranty PC450/HD450 YEA R YEA R YEA R Limited Limited Limited Parts Slings Main Structure Casters Manufacturer's Defects Main Integrity and Welds of: • • • Hand Control - Frame • Power Pac - Base • Spring Retainer Clip - Legs •...
