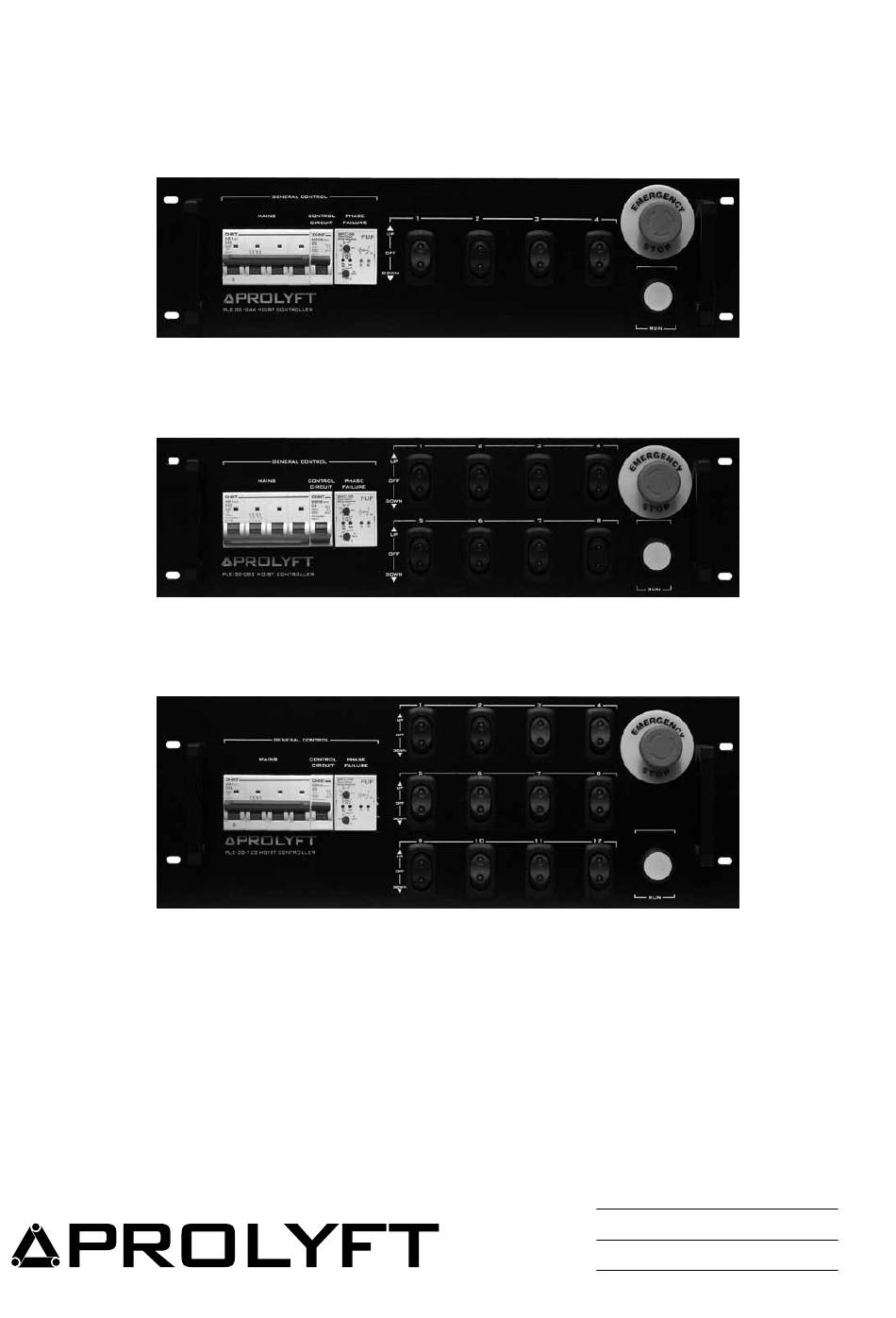

USER MANUAL PROLYFT CONTROLLERS

FOR DiRECT CONTROLLED HOiST

PLE-30-044

PLE-30-083

PLE-30-123

Should you have any questions or have problems with this

product, please call Prolyft at +31 (0)594 85 15 15

Before using the controller hoist,

fill in the information below:

Model No.

Purchase Date

Service point

Table of Contents

Need help?

Do you have a question about the PLE-30-044 and is the answer not in the manual?

Questions and answers

Summary of Contents for Prolyft PLE-30-044

Page 1 FOR DiRECT CONTROLLED HOiST PLE-30-044 PLE-30-083 PLE-30-123 Should you have any questions or have problems with this product, please call Prolyft at +31 (0)594 85 15 15 Before using the controller hoist, fill in the information below: Model No. Purchase Date...
Page 2: Table Of Contents
CONTENT SYSTEM DESCRIPTION LIMITATIONS OF USE INDENTIFICATION ELECTRICAL CONNECTIONS DO’S AND DON’TS PLE-30-044 4-WAY FOR DIRECT CONTROLLED HOIST • PICTURE • FUNCTIONAL DESCRIPTION • WIRING DIAGRAM PLE-30-083 8-WAY FOR DIRECT CONTROLLED HOIST • PICTURE • FUNCTIONAL DESCRIPTION • WIRING DIAGRAM PLE-30-123 12-WAY FOR DIRECT CONTROLLED HOIST •...
Page 3: System Description
ELECTRICAL CONNECTIONS All controllers can be daisy linked to create a multi channel con- Prolyft can supply a full range of cabling to make your system troller. By means of cable, article code: PLA-35-001 work. Cabling should comply with the applicable standards.
Page 4 USER MANUAL PLE-30 DIRECT CONTROLLED HOIST PiCKLE FOR LOW VOLTAgE CONTROL MAX. CABLE LENgTH in Meters LiFTiNg CAPACiTY 1,5mm2 cords 2,5mm2 cords Wire Colour / EU Function PROLYFT HOiST 400V/50hz 230v/60hz 400V/50hz 230v/60hz Brown 110Vac 250KG Grey 500 KG Black...
Page 5: Do's And Don'ts
Do’s Don’ts • Use the controller within the technical scope of the FEM class of • Never connect a Prolyft controller to a power source other than the Prolyft hoist. Longer operating time could severely damage specified on the unit.

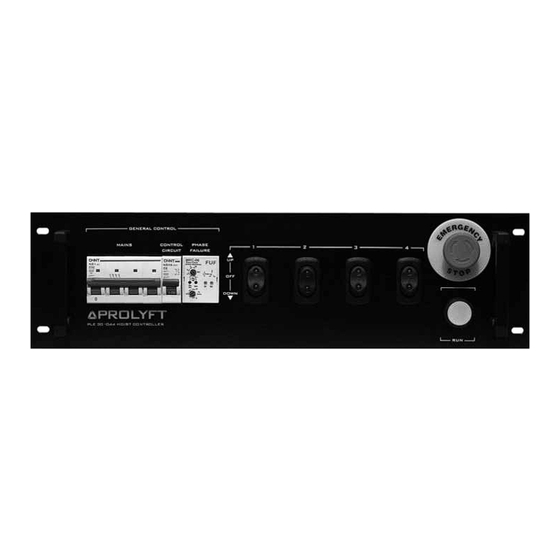

Page 6: Ple-30-044 4-Way For Direct Controlled Hoist
USER MANUAL PLE-30 DIRECT CONTROLLED HOIST PLE-30-044 FUNCTIONAL DESCRIPTION: Measure the main power supply to be sure the operating 4-WAY FOR DIRECT CONTROLLED HOIST voltage is correct and all the phases are present Release the emergency button by turning it anti-clockwise...
Page 7: Wiring Diagram
USER MANUAL PLE-30 DIRECT CONTROLLED HOIST Electrical plan for all controllers manufactured before july 2010 whith serial number 0000 til 0034 which need to be operated with remote handset PLE-30-043U pages 7 of 18 ©Prolyte Products Group 2009 Prolyte has made every effort to ensure the accuracy of this manual. No liability will be accepted for errors. Prolyte reserves the right to change or alter their products or manuals without prior notice.
Page 8 USER MANUAL PLE-30 DIRECT CONTROLLED HOIST pages 8 of 18 ©Prolyte Products Group 2009 Prolyte has made every effort to ensure the accuracy of this manual. No liability will be accepted for errors. Prolyte reserves the right to change or alter their products or manuals without prior notice.
Page 9: Ple-30-083 8-Way For Direct Controlled Hoist
USER MANUAL PLE-30 DIRECT CONTROLLED HOIST PLE-30-083 FUNCTIONAL DESCRIPTION: Measure the main power supply to be sure the operating 8-WAY FOR DIRECT CONTROLLED HOIST voltage is correct and all the phases are present Release the emergency button by turning it anti-clockwise Connect the controller to the power supply and switch it on using the main switch Connect power cords to each of the hoists to be operated.
Page 10: Wiring Diagram
USER MANUAL PLE-30 DIRECT CONTROLLED HOIST Electrical plan for all controllers manufactured before july 2010 whith serial number 0000 til 0034 which need to be operated with remote handset PLE-30-043U pages 10 of 18 ©Prolyte Products Group 2009 Prolyte has made every effort to ensure the accuracy of this manual. No liability will be accepted for errors. Prolyte reserves the right to change or alter their products or manuals without prior notice.
Page 11 USER MANUAL PLE-30 DIRECT CONTROLLED HOIST pages 11 of 18 ©Prolyte Products Group 2009 Prolyte has made every effort to ensure the accuracy of this manual. No liability will be accepted for errors. Prolyte reserves the right to change or alter their products or manuals without prior notice.
Page 12: Ple-30-123 12-Way For Direct Controlled Hoist
USER MANUAL PLE-30 DIRECT CONTROLLED HOIST PLE-30-123 FUNCTIONAL DESCRIPTION: Measure the main power supply to be sure the operating 12-WAY FOR DIRECT CONTROLLED HOIST voltage is correct and all the phases are present Release the emergency button by turning it anti-clockwise Connect the controller to the power supply and switch it on using the main switch Connect power cords to each of the hoists to be operated.
Page 13: Wiring Diagram
USER MANUAL PLE-30 DIRECT CONTROLLED HOIST pages 13 of 18 ©Prolyte Products Group 2009 Prolyte has made every effort to ensure the accuracy of this manual. No liability will be accepted for errors. Prolyte reserves the right to change or alter their products or manuals without prior notice.
Page 14 USER MANUAL PLE-30 DIRECT CONTROLLED HOIST pages 14 of 18 ©Prolyte Products Group 2009 Prolyte has made every effort to ensure the accuracy of this manual. No liability will be accepted for errors. Prolyte reserves the right to change or alter their products or manuals without prior notice.
Page 15: Phase Failure Protector
PHASE FAiLURE This document describes the phase failure protector inside the Prolyft PLE 30 and 40 series controllers Phase Failure - When all phases are present and in correct order LED no: 1 (On) and LED no: 2 (Out) are lighten ON - When phases are not in correct order LED no: 1 (On) and LED no: 3 (Phs Seq.) are lighten ON.
Page 16: Guarantee
8) The guarantee excludes any other services or indemnities. 1) Prolyft controllers are delivered with a one-year guarantee. The repairs covered by the guarantee are carried out, as a rule, 2) If for a reason outside the control of the vendor, the delivery is in the workshops of the vendor or authorised agent.
Page 17: 1-Way Handheld Diagram
USER MANUAL PLE-30 DIRECT CONTROLLED HOIST 1-WAY HANDHELD Motor cable: 5 m. PLA-30-05 10 m. PLA-30-10 20 m. PLA-30-20 Power input Power cable: 5 m. PLA-32-05 10 m. PLA-32-10 20 m. PLA-32-20 pages 17 of 18 ©Prolyte Products Group 2009 Prolyte has made every effort to ensure the accuracy of this manual.
Page 18: 2-Way Handheld Diagram
USER MANUAL PLE-30 DIRECT CONTROLLED HOIST 2-WAY HANDHELD Motor cable: 5 m. PLA-30-05 10 m. PLA-30-10 20 m. PLA-30-20 PLE-30-020 Power input Power cable: 5 m. PLA-32-05 10 m. PLA-32-10 20 m. PLA-32-20 pages 18 of 18 ©Prolyte Products Group 2009 Prolyte has made every effort to ensure the accuracy of this manual.
Page 19: 4-Way Basic Diagram
USER MANUAL PLE-30 DIRECT CONTROLLED HOIST 4-WAY BASIC pages 19 of 18 ©Prolyte Products Group 2009 Prolyte has made every effort to ensure the accuracy of this manual. No liability will be accepted for errors. Prolyte reserves the right to change or alter their products or manuals without prior notice.
Page 20: 8-Way Basic Diagram
USER MANUAL PLE-30 DIRECT CONTROLLED HOIST pages 20 of 18 ©Prolyte Products Group 2009 Prolyte has made every effort to ensure the accuracy of this manual. No liability will be accepted for errors. Prolyte reserves the right to change or alter their products or manuals without prior notice.
Page 21: 12-Way Basic Diagram
USER MANUAL PLE-30 DIRECT CONTROLLED HOIST pages 21 of 18 ©Prolyte Products Group 2009 Prolyte has made every effort to ensure the accuracy of this manual. No liability will be accepted for errors. Prolyte reserves the right to change or alter their products or manuals without prior notice.
