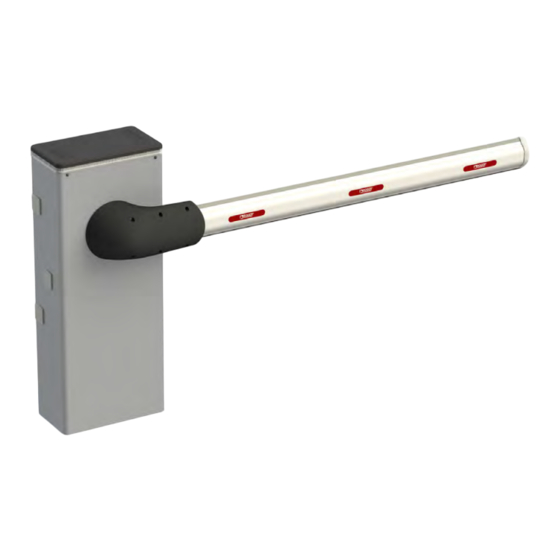

Roger Technology BIONIK8 Instruction And Warning Book

Automatic barrier brushless
Hide thumbs Also See for BIONIK8:

Advertisement

Quick Links

Barriera automatica Brushless
Automatisierung für Schranke Brushless
Barrière automatique Brushless
Barrera automática Brushless
Barreira automática Brushless
EN -
Instruction and warnings for the installer
DE -
Anleitungen und Hinweise für den Installateur
FR -
Instructions et avertissements pour l'installateur
ES -
Instrucciones y advertencias para el instalador
PT -
Instruções e avisos para o instalador
IS194 Rev.00 17/10/2018
BIONIK8
Automatic barrier Brushless
IT -
Manuale di installazione

Advertisement

loading
Need help?

Need help?

Do you have a question about the BIONIK8 and is the answer not in the manual?

Questions and answers

Related Manuals for Roger Technology BIONIK8

Summary of Contents for Roger Technology BIONIK8

  • Page 1 IS194 Rev.00 17/10/2018 BIONIK8 Barriera automatica Brushless Automatic barrier Brushless Automatisierung für Schranke Brushless Barrière automatique Brushless Barrera automática Brushless Barreira automática Brushless IT - Manuale di installazione EN - Instruction and warnings for the installer DE - Anleitungen und Hinweise für den Installateur...

  • Page 2: Table Of Contents

    AVVERTENZE GENERALI CONSIGNES GÉNÉRALES DE SÉCURITÉ DICHIARAZIONE DI CONFORMITÀ DÉCLARATION DE CONFORMITÉ DESTINAZIONE D’USO Destination d’utilisation LIMITI DI IMPIEGO Limites d’emploi DESCRIZIONE DEL PRODOTTO DESCRIPTION DU PRODUIT DIMENSIONI DIMENSIONS CONTENUTO DELL’IMBALLO CONTENU DE L’EMBALLAGE CARATTERISTICHE TECNICHE CARACTÉRISTIQUES TECHNIQUES INSTALLAZIONE TIPO INSTALLATION TYPE 10 RIFERIMENTI E ACCESSORI 10 REFERENCES ET ACCESSOIRES...

  • Page 3: General Safety Precautions

    This installation manual is intended for qualified personnel only. ROGER TECHNOLOGY cannot be held responsible for any damage or injury due to improper use or any use other the intended usage indicated in this manual. Installation, electrical connections and adjustments must be performed by qualified personnel, in accordance with best practices and in compliance with applicable regulations.

  • Page 4: Standard Dimensions

    For line voltages of 115V. 6 STANDARD DIMENSIONS MAX = 8000 All measurements are expressed in mm unless otherwise indicated. 7 PACKAGE CONTENT COMPLETE BIONIK8 BARRIER CABINET WITH INTEGRATED CONTROL UNIT HEAD COMPLETE WITH DIFFUSER AND FLASHING LAMP UNIT ACCESSORIES...

  • Page 5: Typical Installation

    8 TECHNICAL CHARACTERISTICS BI/008 BI/008/115 POWER SUPPLY 230 Vac - 50 Hz ±10% 115 Vac 60 Hz ±10% MOTOR POWER SUPPLY 0 ÷ 36 Vdc 0 ÷ 36 Vdc POWER CONSUMPTION 0 ÷ 18 A 0 ÷ 18 A POWER MOTOR 300 W 300 W TORQUE...
  • Page 6 10 REFERENCES AND ACCESSORIES 15 16 17 18 Code Description Code Description Carbon steel barrier assembly cabinet with anti-corrosion Fixed support with rubber, NOT-adjustable, with provision BAFS/03 treatment, painted. of a bolt. Aluminium boom support base, die-cast, with anti-corrosion BAFS/02 Fixed support with rubber, adjustable, telescopic.

  • Page 7: Installing Base Plate

    (fig. 2). • Installation on existing surfaces. Place the base plate on the surface and trace the positions of the fastener points. Drill the surface and insert 6 adequately sized expansion anchor bolts (purchased separately). BIONIK8...

  • Page 8: Installation

    11.3 Installing the barrier NOTE: the barrier is configured by default for installation on the right hand side (viewed from inspection hatch side). • Undo and remove the washers and nuts from the anchors on the base plate (fig. 3). •...

  • Page 9: Installation

    11.4 Selecting direction of aperture BIONIK barriers are configured by default for installation on the INSTALLATION ON right hand side (seen from the inspection hatch side). THE RIGHT INSTALLATION OF THE LEFT Whenever corrective actions are carried out, pay the utmost attention when releasing, locking or moving the internal mechanical parts.
  • Page 10 12 INSTALLING THE BOOM IMPORTANT: The BIONIK8 barrier is supplied with two 4.1 m booms (D1 and D2). WARNING!: to avoid damaging the surface of the components, it is recommended to place them on a stable and soft surface. • Unlock the barrier (see chapter 23).
  • Page 11 12.3 Installation procedure 1. Insert the connector M1 on the boom D1 by half of its length (375 mm), fig. 11. 2. Fasten the boom to the connector using the 10 self-drilling screws [L] included, 5 above and 5 under, along the boom axis, at a distance of 60 mm apart, fig. 11. 3.
  • Page 12 13 INSTALLING AND ADJUSTING THE SPRING For choosing the most suitable configuration, the booms are understood as complete with shock-resistant rubber and LED strips. BI/008 with boom up to 8 m The adjustable fixed end rest with integrated magnet BAFS/05 must be used. The adjustable fixed end rest with integrated magnet BAFS/05 must be used.
  • Page 13 13.1 Installation and adjustment of the balancing unit • The balancing unit is composed of a linkage lever, a slider [CU] and a spring unit. • The linkage lever has two 4 mm pitch toothed windows, on which the [CU] slide will be fit. •...
  • Page 14 13.3 Spring unit installation 1. Unlock the barrier (see chapter 23) and move the boom into the completely open vertical position. 2. Fasten the spring unit SP/85/AS/02 to the linkage lever using the screws included (fig. 17), according to the opening direction and in the position that allows the correct movement of the barrier.
  • Page 15 13.4 Spring adjustment 1. Adjust the spring tensioning by loosening the nuts [A] as indicated in fig. 19. 2. By moving upward the fastening cross bar [B], the spring tensioning increases; vice versa, by moving it downward, the tensioning decreases. 3.
  • Page 16 14 ADJUSTING MECHANICAL STOP Figure 21 shows the mechanical stop on a barrier installed on the RIGHT hand side. For barriers installed on the LEFT, perform the mirror images of the procedures illustrated. • Unlock the barrier (see chapter 23). •...
  • Page 17 16 CONNECTING PHOTOCELLS G90/F4ES photocells may be installed on both sides of the barrier at two different heights: (50 cm or 100 cm). • Disconnect from mains electricity and from battery power (if applicable). • Open the inspection hatch, turning the key clockwise by 90°. •...
  • Page 18 17 ELECTRICAL CONNECTIONS All electrical connections must be made with the unit disconnected from mains power and, if applicable, battery power. See the CTRL controller manual for instructions on making connections and programming. Before connecting to electrical power, ensure that the mains power specifications on the identification plate match the mains power supply used.
  • Page 19 19 INSTALLING THE BI/BLED/8 LED FLASHING LIGHT (fig. 26-27) The BI/BLED/8 flashing lamp unit is factory supplied already pre-installed in the head [A], packaged separately inside the BIONIK package. 1. Insert the connector [B] in the LIGHT terminal of the control unit. 2.
  • Page 20 • Check that the boom is balanced correctly as indicated in chapter 13. ROGER TECHNOLOGY is the exclusive proprietor holder of all rights regarding this • Check that there are now plants within the radius of action of the boom which publication.
  • Page 22 ROGER TECHNOLOGY Via S. Botticelli 8 • 31021 Bonisiolo di Mogliano Veneto (TV) • ITALIA P.IVA 01612340263 • Tel. +39 041.5937023 • Fax. +39 041.5937024 info@rogertechnology.com • www.rogertechnology.com...
