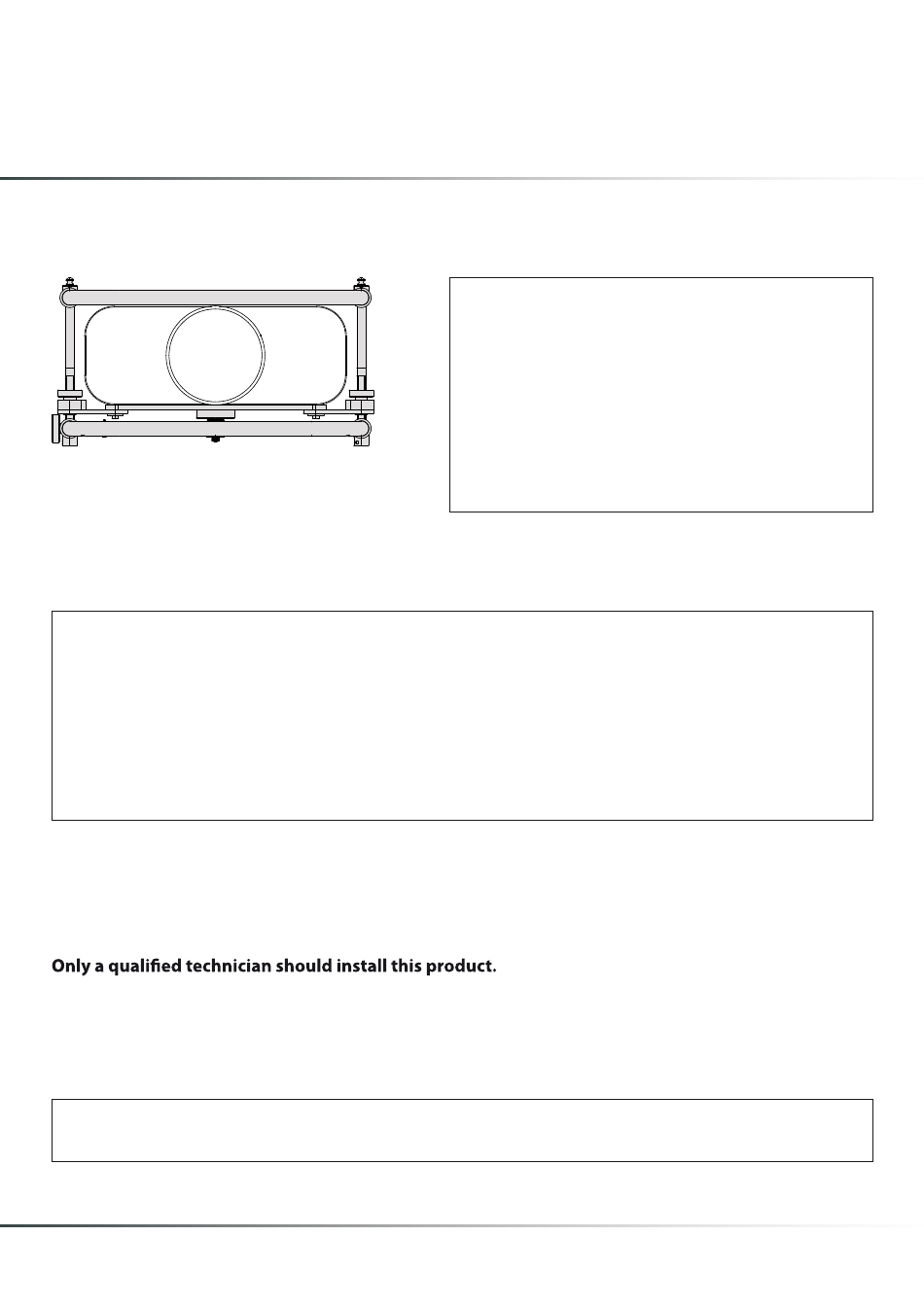

INSTALLATION MANUAL
ET-PFD350
For projectors:
3 Chip: PT-DZ13K
PT-DS12K
PT-DW11K
PT-DZ10K
PT-DZ8700
PT-DS8500
PT-DW8300
Read these instructions carefully before installing the ET-PFD350 projector frame.
Please also read the product manual of the specific projector carefully.
These instructions must always be handed over to the installing person.
1 Chip: PT-DZ870
PT-DW830
PT-DX100
PT-DZ770
PT-DW740
PT-DX810
PT-RZ670
PT-RW630
PT-D6000
PT-DZ680
PT-D5000
PT-DW640
PT-DX610
PT-DZ6710
PT-DZ6700
PT-DW6300
2
3
4
5
6
6
7
8
Advertisement
Related Manuals for Lang ET-PFD350
Summary of Contents for Lang ET-PFD350
-
Page 1: Table Of Contents
PT-DW740 PT-DZ6710 PT-DS8500 PT-DX810 PT-DZ6700 PT-DW8300 PT-RZ670 PT-DW6300 Read these instructions carefully before installing the ET-PFD350 projector frame. Please also read the product manual of the specific projector carefully. These instructions must always be handed over to the installing person. -
Page 2: Important Safety Notice
IMPORTANT SAFETY NOTICE Dear customer, Thank you for choosing the ET-PFD350 projector frame for Panasonic DLP® projectors. This instruction booklet provides you with all the necessary operating information that you may require. It will help you to get the best performance out of this new product. We hope you will be pleased with your Panasonic projector frame. -
Page 3: Product Description
PRODUCT DESCRIPTION Parts name Image/Drawing Purpose Finished assembly diagram Frame Used for projector installation. Screws (M6x20) x 7 Screws and Used for securing washers the projector into the frame. Flat washers (M6) x 14 For tandem assemblies, another separate frame is required. -
Page 4: Installing The Projector In The Frame
INSTALLING THE PROJECTOR IN THE FRAME Place the frame on the projector so that it is The screw holes are marked as follows: aligned with the screw hole positions. 6 screws 7 screws 5 screws (Make sure that the forward/back direction is = PT-DZ870 = PT-DZ13K = PT-DX810S... -
Page 5: Securing The Projector In The Frame
SECURING THE PROJECTOR IN THE FRAME Please use the enclosed steel wire 3 Chip to secure the projector in the frame by drawing the wire around the securing bar (1) of the projector as shown in image 1. 1 Chip Fix both end latches with the enclosed 3 Chip carabiner. -
Page 6: Installing Tandem Projections
INSTALLING TANDEM PROJECTIONS female bolt locking pin male bolt Place the upper framed projector on top of the lower framed projector. Make sure the four male location bolts enter into the correspondent female location bolts. To secure, draw the locking pin through both bolts. -
Page 7: Adjustment Options
ADJUSTMENT OPTIONS Using the adjusting screws to the left and right you can adjust the position of the projector by approximately ve degrees. You can lower or lift the front left or right corner. adjusting screws By turning the single round adjustment screw, placed on the side of the frame, you can move the back of the projector to the left or to the right by approximately ve degrees. -
Page 8: Dimensions & Weight
DIMENSIONS & WEIGHT Weight: 11,00kg 630 mm / 24.80 inches 235 mm / 9.25 inches 339.6 mm / 13.37 inches 651.75 mm / 25.65 inches... - Page 11 Made in Germany by Sager Metallbearbeitung www.lang-ag.com 03/17...
