3 Installation

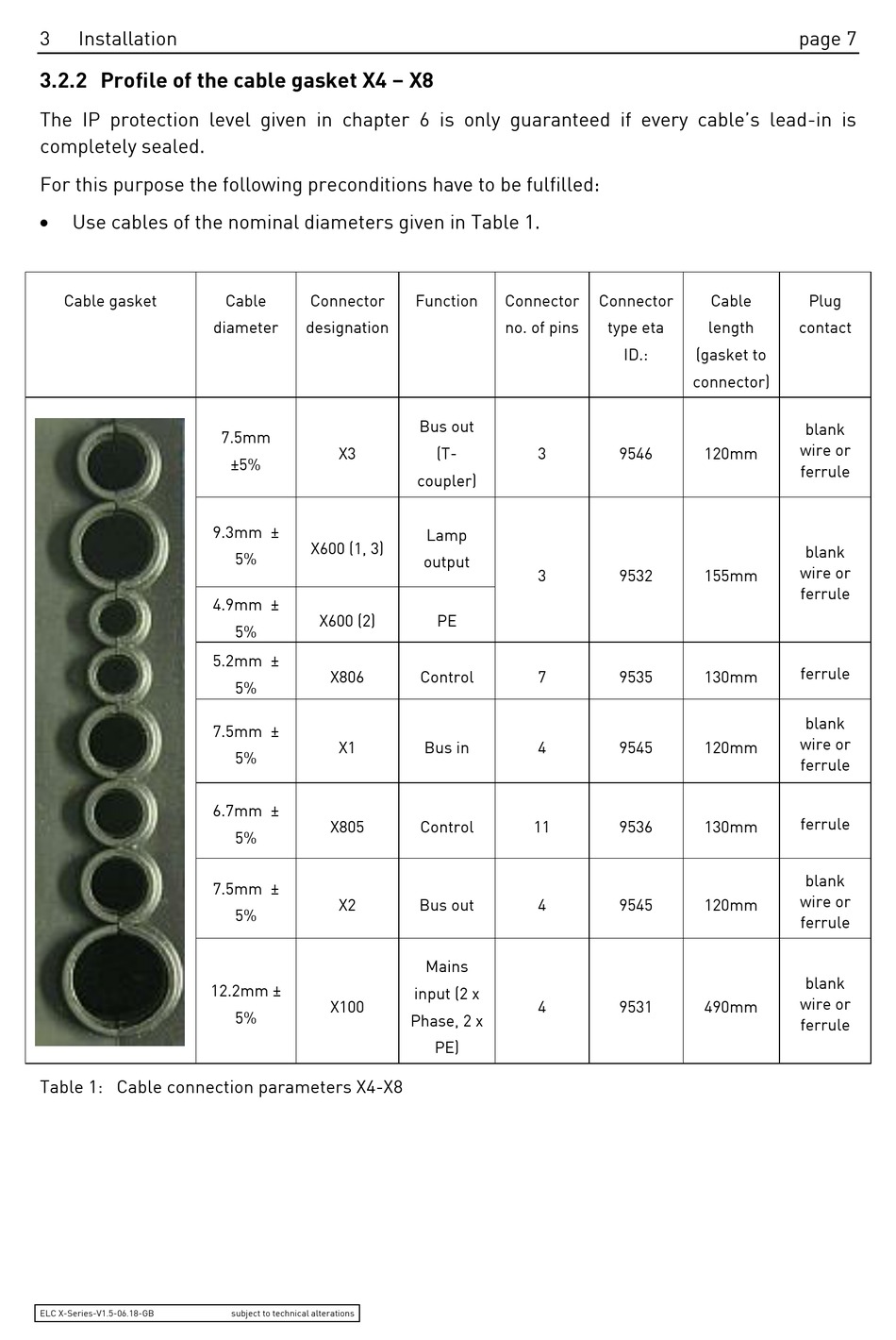

3.2.2 Profile of the cable gasket X4 – X8
The IP protection level given in chapter 6 is only guaranteed if every cable's lead-in is
completely sealed.
For this purpose the following preconditions have to be fulfilled:
Use cables of the nominal diameters given in Table 1.

Cable gasket
Table 1: Cable connection parameters X4-X8
ELC X-Series-V1.5-06.18-GB
Cable Connector
diameter designation
7.5mm
X3
±5%
9.3mm ±
X600 (1, 3)
5%
4.9mm ±
X600 (2)
5%
5.2mm ±
X806
5%
7.5mm ±
X1
5%
6.7mm ±
X805
5%
7.5mm ±
X2
5%
12.2mm ±
X100
5%
subject to technical alterations
Function Connector
no. of pins
Bus out
(T- 3
coupler)
Lamp
output
3
PE
Control 7
Bus in 4
Control 11
Bus out 4
Mains
input (2 x
4
Phase, 2 x
PE)
Connector Cable
type eta length
ID.: (gasket to
connector)
9546 120mm
9532 155mm
9535 130mm
9545 120mm
9536 130mm
9545 120mm
9531 490mm
page 7
Plug
contact
blank
wire or
ferrule
blank
wire or
ferrule
ferrule
blank
wire or
ferrule
ferrule
blank
wire or
ferrule
blank
wire or
ferrule
