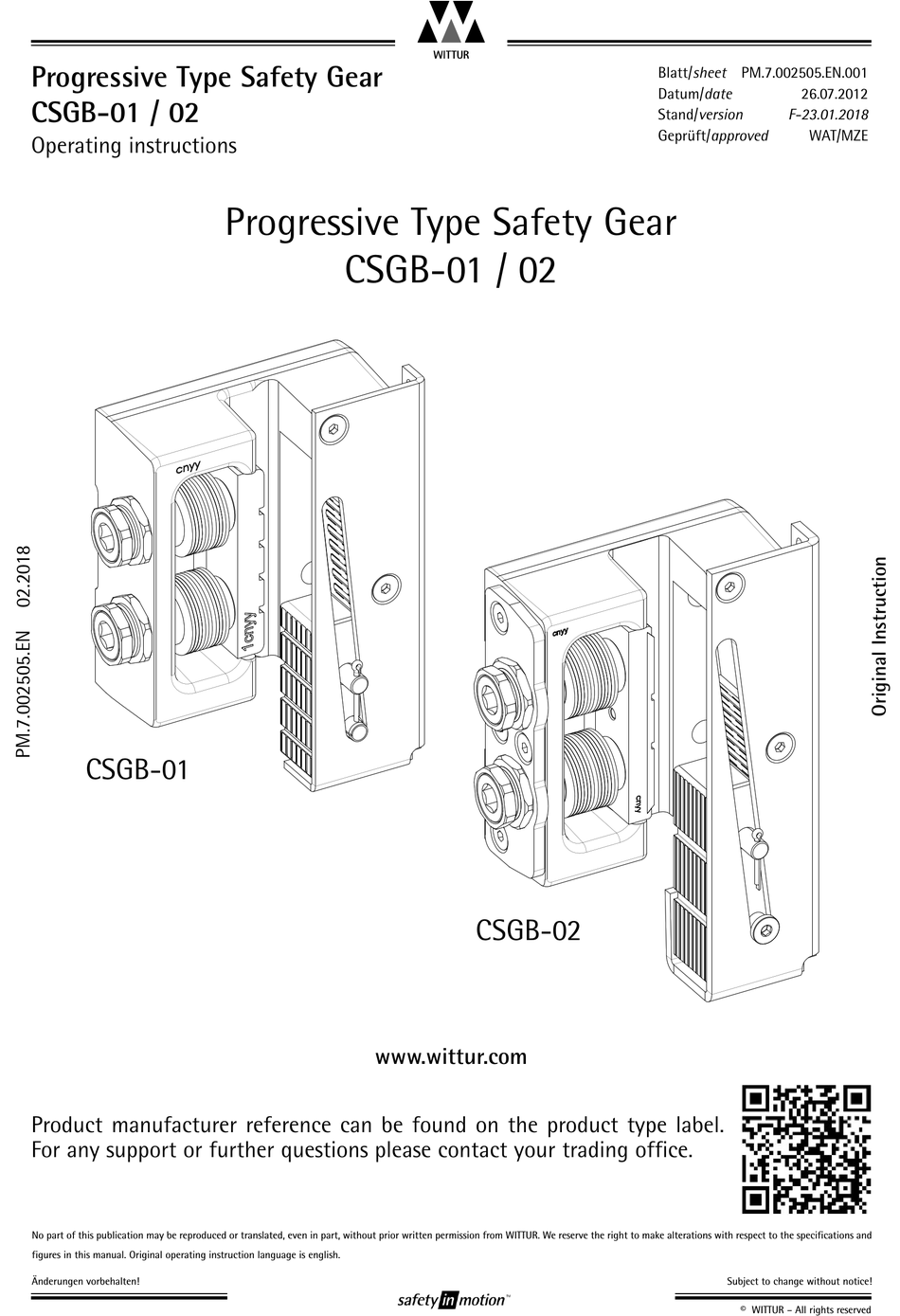

Progressive Type Safety Gear
CSGB-01 / 02
Operating instructions
CSGB-01
Product manufacturer reference can be found on the product type label.
For any support or further questions please contact your trading office.
No part of this publication may be reproduced or translated, even in part, without prior written permission from WITTUR. We reserve the right to make alterations with respect to the specifications and
figures in this manual. Original operating instruction language is english.
Änderungen vorbehalten!
Progressive Type Safety Gear
CSGB-01 / 02
www.wittur.com
CSGB-02
Blatt/ëÜÉÉí PM.7.002505.EN.001
Datum/Ç~íÉ
26.07.2012
Stand/îÉêëáçå
c OPKMNKOMNU
Geprüft/~ééêçîÉÇ
WAT/MZE
Subject to change without notice!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CSGB-01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WITTUR CSGB-01

Summary of Contents for WITTUR CSGB-01

  • Page 1 For any support or further questions please contact your trading office. No part of this publication may be reproduced or translated, even in part, without prior written permission from WITTUR. We reserve the right to make alterations with respect to the specifications and figures in this manual.

  • Page 2: Table Of Contents

    Progressive Type Safety Gear Blatt/ëÜÉÉí PM.7.002505.EN.002 Datum/Ç~íÉ 26.07.2012 CSGB-01 / 02 Stand/îÉêëáçå ` MSKNNKOMNR Geprüft/~ééêçîÉÇ WAT/MZE Operating instructions `çåíÉåí m~ÖÉ 1 General information prior to installation .......003 Description and functions .

  • Page 3: General Information Prior To Installation

    WAT/MZE Operating instructions General information prior to installation Description and functions The operating range is defined as follows: CSGB-01/02 is a combination of disk springs and Type CSGB-02 braking elements, which are activated by a mova- CSGB-01 ble tripping wedge. The braking force is adjusta- ble by the disk spring assembly.

  • Page 4: Liability And Guarantee

    This refers especially to the corresponding accident ed in these operating instructions. prevention rules. The WITTUR guarantee may be voided if parts Important safety advice and danger warnings are other than those described in these instructions emphasized with the following symbols: are installed.

  • Page 5: Preparation

    Progressive Type Safety Gear Blatt/ëÜÉÉí PM.7.002505.EN.005 Datum/Ç~íÉ 26.07.2012 CSGB-01 / 02 Stand/îÉêëáçå 26.07.2012 Geprüft/~ééêçîÉÇ WAT/MZE Operating instructions Advice for when working on Before starting installation work: safety components Only properly trained personnel may carry Safety gears are classified as safety components. It...

  • Page 6: Content Of Supply

    Progressive Type Safety Gear Blatt/ëÜÉÉí PM.7.002505.EN.006 Datum/Ç~íÉ 26.07.2012 CSGB-01 / 02 Stand/îÉêëáçå ` MSKNNKOMNR Geprüft/~ééêçîÉÇ WAT/MZE Operating instructions Content of supply After delivery, check the safety gear for damage and for full delivery of parts. The content of sup- ply covers:...

  • Page 7: Name Plate, Designation, Identification

    Progressive Type Safety Gear Blatt/ëÜÉÉí PM.7.002505.EN.007 Datum/Ç~íÉ 26.07.2012 CSGB-01 / 02 Stand/îÉêëáçå a MTKMQKOMNS Geprüft/~ééêçîÉÇ WAT/MZE Operating instructions Name plate, designation, identification The safety gear identification indicators are located on the safety gear. The data on the name plate must be com- pared with ordering and the project docu- ments.

  • Page 8: Installation And Adjustment

    Progressive Type Safety Gear Blatt/ëÜÉÉí PM.7.002505.EN.008 Datum/Ç~íÉ 26.07.2012 CSGB-01 / 02 Stand/îÉêëáçå ^ MOKMRKOMNP Geprüft/~ééêçîÉÇ WAT/MZE Operating instructions Installation and adjustment Fastening of the safety gear To fasten the safety gear the in the delivery inclu- ded srews and bushings must be used. If this is not...

  • Page 9: Alignment Of The Safety Gear

    Blatt/ëÜÉÉí PM.7.002505.EN.009 Progressive Type Safety Gear Datum/Ç~íÉ 26.07.2012 CSGB-01 / 02 Stand/îÉêëáçå ` MSKNNKOMNR Geprüft/~ééêçîÉÇ WAT/MZE Operating instructions Alignment of the safety gear The safety gear has to be well aligned in accor- dance to the guide rail. The alignments have to be done inplicit-...

  • Page 10: Mounting To The Car Frame

    Blatt/ëÜÉÉí PM.7.002505.EN.010 Progressive Type Safety Gear Datum/Ç~íÉ 10.07.2012 CSGB-01 / 02 Stand/îÉêëáçå B-20.05.2015 Geprüft/~ééêçîÉÇ WAT/MZE Operating instructions Mounting to the car frame 1) Fix first safety gear housing to the car frame 4) Slide synchronization tube into both activation shafts (left and right)

  • Page 11: Gripping Wedge Synchronization And Adjustment

    Progressive Type Safety Gear Blatt/ëÜÉÉí PM.7.002505.EN.011 Datum/Ç~íÉ 26.07.2012 CSGB-01 / 02 Stand/îÉêëáçå ` MSKNNKOMNR Geprüft/~ééêçîÉÇ WAT/MZE Operating instructions Gripping wedge synchronization and adjustment After installation of the car frame and the guides, the correct centering and adjustment of the safe- ty gear in accordance to the rails has to be done.

  • Page 12: Function Testing

    The entire lift travel path should be slowly trav- The operating force of the optional elled (in inspection mode) before the functions WITTUR synchronization is 200N - 250N. tests. Attention should be paid to the clearance of This force can not be adjusted on site.

  • Page 13: Static Functions Test

    Progressive Type Safety Gear Blatt/ëÜÉÉí PM.7.002505.EN.013 Datum/Ç~íÉ 26.07.2012 CSGB-01 / 02 Stand/îÉêëáçå ` MSKNNKOMNR Geprüft/~ééêçîÉÇ WAT/MZE Operating instructions • Check the tripping force of the overspeed gov- ernor F This force must be at least twice as high as the force measured on the safety gear syn- chronization.

  • Page 14: Dynamic Functions Test

    Progressive Type Safety Gear Blatt/ëÜÉÉí PM.7.002505.EN.014 Datum/Ç~íÉ 26.07.2012 CSGB-01 / 02 Stand/îÉêëáçå b 23.05.2016 Geprüft/~ééêçîÉÇ WAT/MZE Operating instructions Dynamic functions test Nobody should be in the lift car, on the car • If the car does not stop after 1-2 seconds close roof or in the lift shaft when carrying out the brake immediately.

  • Page 15: Gripping Test For Counterweight Safety Gear

    Progressive Type Safety Gear Blatt/ëÜÉÉí PM.7.002505.EN.015 Datum/Ç~íÉ 26.07.2012 CSGB-01 / 02 Stand/îÉêëáçå b OPKMRKOMNS Geprüft/~ééêçîÉÇ WAT/MZE Operating instructions Gearless elevator: • Switch the main power OFF. Open the machine brake manually and let the car accelerate to • Drive the counterweight down with nominal the tripping speed of the overspeed governor.

  • Page 16: Checking Safety Gear, Car And Counterweight And Returning The Elevator To Normal Drive

    Progressive Type Safety Gear Blatt/ëÜÉÉí PM.7.002505.EN.016 Datum/Ç~íÉ 26.07.2012 CSGB-01 / 02 Stand/îÉêëáçå ` MSKNNKOMNR Geprüft/~ééêçîÉÇ WAT/MZE Operating instructions Gearless elevator: • Remove test weights (if applicable). • Switch the main power OFF. Open the machine brake manually and let the counterweight •...

  • Page 17: Braking Mark

    Progressive Type Safety Gear Blatt/ëÜÉÉí PM.7.002505.EN.017 Datum/Ç~íÉ 26.07.2012 CSGB-01 / 02 Stand/îÉêëáçå b OPKMRKOMNS Geprüft/~ééêçîÉÇ WAT/MZE Operating instructions Braking mark 4.3.1 Measuring of braking mark 4.3.2 Check of braking mark “s” The braking mark is measured on the side of the Read the minimum and maximum tolerated brake tripping wedge.

  • Page 18: Tolerated Gripping Distances

    Progressive Type Safety Gear Blatt/ëÜÉÉí PM.7.002505.EN.018 Datum/Ç~íÉ 26.07.2012 CSGB-01 / 02 Stand/îÉêëáçå b OPKMRKOMNS Geprüft/~ééêçîÉÇ WAT/MZE Operating instructions 4.3.3 Tolerated gripping distances The following tables are showing the tolerated Intermediate test speed values must be gripping distance depending on test method and rounded up and down.
  • Page 19 Progressive Type Safety Gear Blatt/ëÜÉÉí PM.7.002505.EN.019 Datum/Ç~íÉ 26.07.2012 CSGB-01 / 02 Stand/îÉêëáçå c OPKMNKOMNU Geprüft/~ééêçîÉÇ WAT/MZE Operating instructions Light Car: P/Q = 0,6-0,8; b=40-50% Tolerated brake distance Method A Method B Method C1/C2 vtest Min. Max. Min. Max. Min. Max.
  • Page 20 Progressive Type Safety Gear Blatt/ëÜÉÉí PM.7.002505.EN.020 Datum/Ç~íÉ 26.07.2012 CSGB-01 / 02 Stand/îÉêëáçå c OPKMNKOMNU Geprüft/~ééêçîÉÇ WAT/MZE Operating instructions Medium Car: P/Q = 0,81-1,2; b=40-50% Tolerated brake distance Method A Method B Method C1/C2 vtest Min. Max. Min. Max. Min. Max.
  • Page 21 Blatt/ëÜÉÉí PM.7.002505.EN.021 Progressive Type Safety Gear Datum/Ç~íÉ 10.07.2012 CSGB-01 / 02 Stand/îÉêëáçå c OPKMNKOMNU Geprüft/~ééêçîÉÇ WAT/MZE Operating instructions Heavy Car: P/Q = 1,21-2,0; b=40-50% Tolerated brake distance Method A Method B Method C1/C2 vtest Min. Max. Min. Max. Min. Max.

  • Page 22: Maintenance And Inspection

    Maintenance and inspection The lift installation must be immediately taken out of use should any damage or The progressive type safety gear CSGB-01 is basi- irregularities arise which could possibly cally maintenance free. The whole installation is impair operational safety.

  • Page 23: General

    Progressive Type Safety Gear Blatt/ëÜÉÉí PM.7.002505.EN.023 Datum/Ç~íÉ 26.07.2012 CSGB-01 / 02 Stand/îÉêëáçå ` MSKNNKOMNR Geprüft/~ééêçîÉÇ WAT/MZE Operating instructions 5.1.1 General 5.1.3 Cleaning of guide rails When sliding guides shoes are used, clean Any dust or dirt on the guide rails can have influ-...

  • Page 24: Operational Life Time Of The Safety Gears

    1,01 ... 2,00 turer only). • repairs are carried out only in pairs and are Tab. 2: Operational life time CSGB-01 checked before return. Operation of the system without the safe- Test Methode No. of v g [m/s] ty gear, even for short periods of time, is (acc.

  • Page 25: Disposal Of Waste

    6-6,5 mm 259316 Rope clip DIN1142 rope diam. 7-8 mm 256349 DIN1142 rope diam. 9-11 mm 252042 Compl. Synchron. incl. synchr-rod, contact, lifting lever, spring, ..CSGB-01 1005632A01 CSGB-02 1005632A02 Spring CSGB-01 0904515P01 CSGB-02 1018373P01 Änderungen vorbehalten! Subject to change without notice!
  • Page 26 Progressive Type Safety Gear Blatt/ëÜÉÉí PM.7.002505.EN.026 Datum/Ç~íÉ 10.07.2012 CSGB-01 / 02 Stand/îÉêëáçå c 23.01.2018 Geprüft/~ééêçîÉÇ WAT/MZE Operating instructions As a rule: the safety gear itself must not be taken apart or altered in any way! This also applies to repairs.
