Assembly of the bottom frame A-01 Assembly of the bottom frame A-01

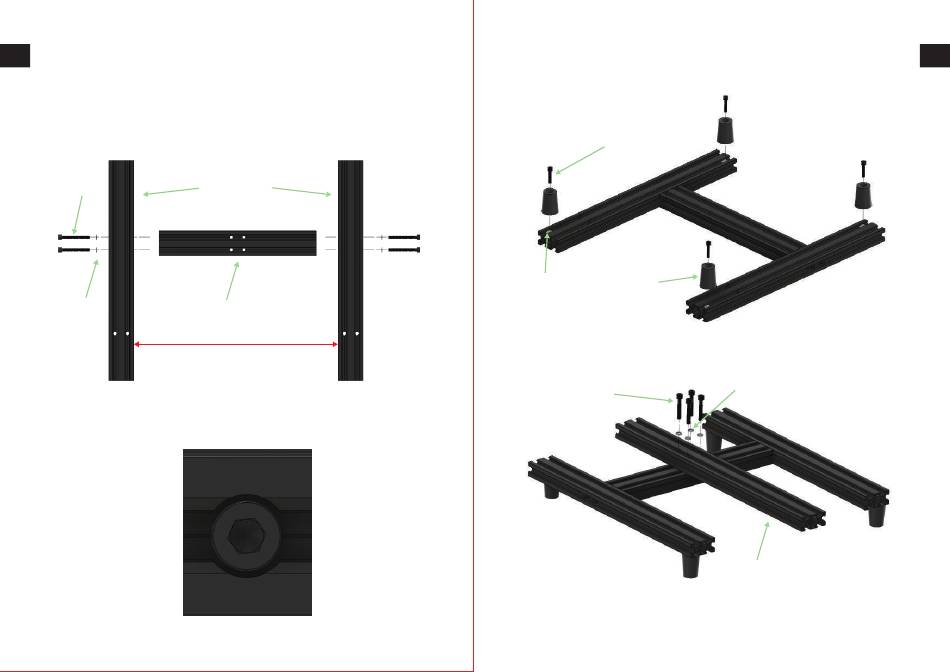

Line up the extrusions as in picture and fasten those together using
M4x45 bolts and M5 spring washers. The parts needed for this
assembly are found from A-01 bag and A-01 slot.
4 x M4x20 bolt
2x20x40 350mm
4 x M5x45 bolt
4 x T-nut
4 x rubber foot
4 x M5 spring washer
20x40 250mm extrusion
_ +
250mm
4 x M5 spring washer
4 x M5x30 bolt
Give special attention for right orientation of the profiles and the
round slots. Those round slots are meant to countersunk bolts so
that bolt head will be hidden.
20x40 250mm extrusion
