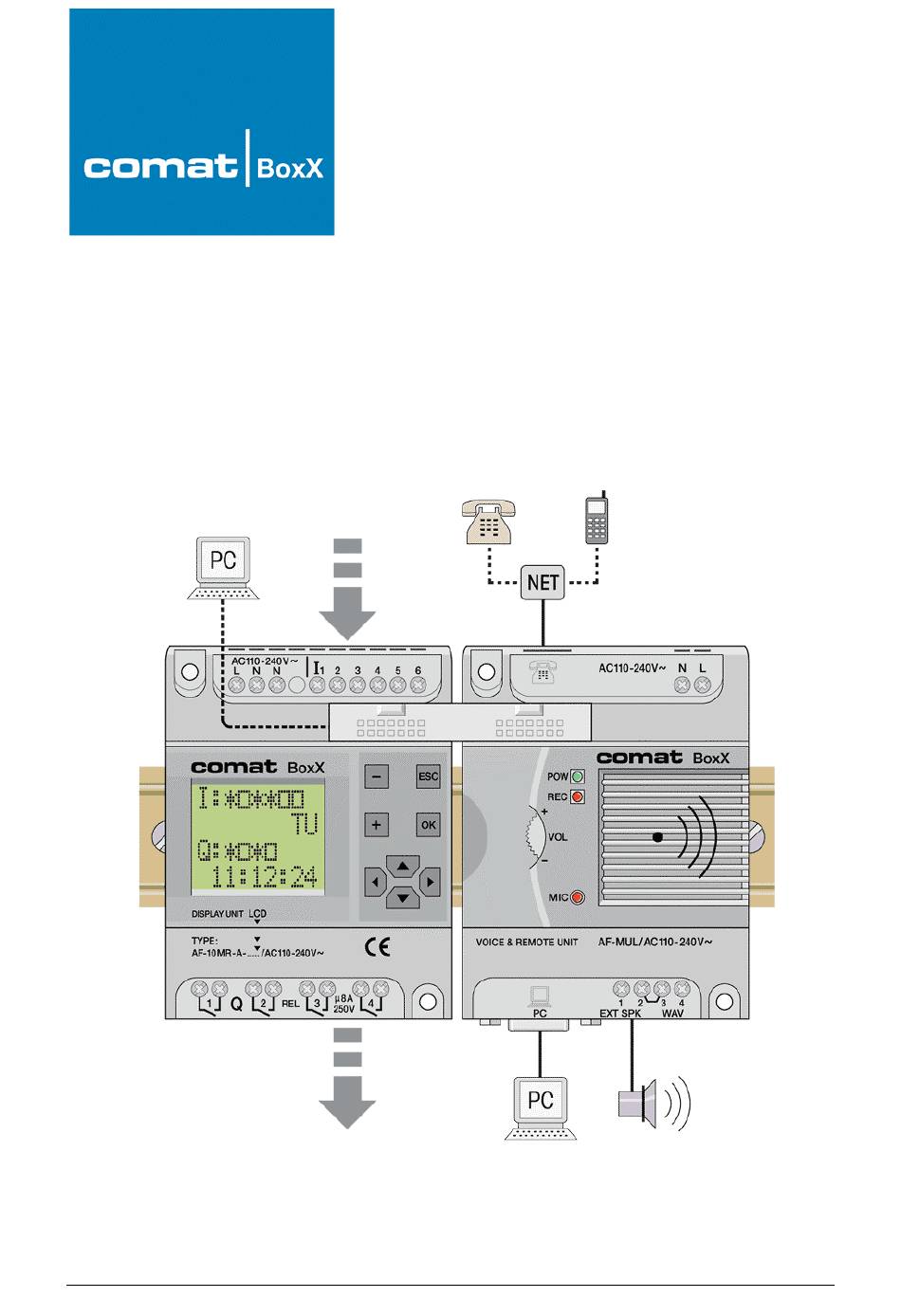

- Page 1 Programming Manual Quick II Comat AG Bernstrasse 4 CH-3076 Worb Tel. +41 (0)31 838 55 77 www.comat.ch info@comat.ch Fax +41 (0)31 838 55 99 Ba Quick BoxX / 2.2004 E...
- Page 2 Preface Preface Quick II is a programming software for a Comat BoxX controller. Quick II is required to carry out the programming and simulation of the Comat BoxX on a computer. It can implement the preparation of a control program (function diagram) for Comat BoxX.
-
Page 3: Table Of Contents
3.1.4 Menu View .......................... 20 3.1.5 Menu Options ........................22 3.1.6 Menu Help........................... 23 3.1.7 Menu Edit ..........................24 3.1.8 Menu Search........................25 3.1.9 Menu Comat BoxX operation ..................... 25 3.1.10 Menu Window........................26 CHAPTER IV 27 Quick II 4.1 Editing Window ......................... 27 4.1.1 Open a new file........................ - Page 4 5.6.1 CW 5.7 Audio / Tel.-Function Blocks ..................... 71 5.7.1 PLAY (It is necessary to connect AF-MUL to the Comat BoxX) ........71 5.7.2 MR (It is necessary to connect AF-MUL to the Comat BoxX)........... 72 5.7.3 Tel (In combination with Voice & Remote Unit AF-MUL) ..........73...
- Page 5 7.2 Two connection methods for Comat BoxX remote programming and monitoring....90 7.2.1 Connect Modem with AF-C232 and AF-M232 cables ............90 7.2.2 Connection between Comat BoxX and voice module AF-MUL via Modem ..... 91 CHAPTER VIII 93 Programming operation on Comat BoxX panel ................93 8.1 Edit a new program ........................
-
Page 6: Chapter I
Chapter 1 General Chapter I General 1.1 System Requirement Pentium II 266, Pentium III or Pentium IV processor-based personal computer Windows 98/ME/2000/XP or Windows NT 4,0 64MB RAM Memory 100MB free storage capacity on the hard disk 1.2 Installation of Quick II The installation of Quick II is very simple. - Page 7 Click <Next> to enter the Set Installation Path Setting dialogue Box, as shown in Fig. 1.5. Click <Browse>, and you can modify the current installation path (the original installation path is C:\Programm Files\Comat BoxX\Quick II) to your desired installation path. Programming Manual Quick II / 2.2004 E...
- Page 8 Chapter 1 General Fig. 1.5 Installation Path Selection window Click <Next>, it will enter the next step of installation and enter the Setup Type window for selecting installation type, If <Typical> option is selected, the Quick II normal program will be installed. If <Compact>...
- Page 9 Set your desired program set name on the Set Up Program Set Name window as shown in Fig. 1.7 (the original name is Comat BoxX). When setup is completed click <Next> with the left mouse button, installation of the program components will start, as shown in Fig. 1.8.
- Page 10 Chapter 1 General Fig. 1.9 Setup Finished window Programming Manual Quick II / 2.2004 E...
-
Page 11: Uninstallation
Chapter 1 General 1.3 Uninstallation Under the Windows Window, click <Start> <Program> <Comat BoxX> and <Uninstall Quick II> Fig. 1.10 Uninstall window When a Remove Window, as shown in Fig. 1.11, appears, removal can be done. Click the <Next> button to complete the removal. -
Page 12: Start Of The Program
For Quick II, the operating methods of pull-down Instruction Tools and Quick buttons are adopted. All function blocks are directly distributed in the window. Using a mouse with Windows operation, you can perform; creating and editing, simulation running and monitoring of a Comat BoxX program quickly. -
Page 13: Language
Fig. 1.16 Comat BoxX Logical Diagram Editing Window Comat BoxX Logical Diagram Editing window is as shown in Fig. 2.3. In this Editing Window, you can click the desired block in the block library on the left to draw the Logical Function Diagram and set the block property. -
Page 14: Main Functions
1.7 Main functions Editing function The first function of Quick II is programming for Comat BoxX on a computer. Through the Logical Function Editing window of Quick II, you can edit your desired Comat BoxX programs using various function blocks of Comat BoxX. -
Page 15: Programming Rules
Edit Comat BoxX function program During editing of Comat BoxX function program, special attention must be paid to some programming rules, the application of the intermediate relays and how to use Comat BoxX's operation key panel with LCD. 4.The outputs of the function blocks can not be connected together. -
Page 16: Programming Rules
Rule 5: At power-on and initialisation of Comat BoxX (at the instant of power-on), the intermediate relay (M) and output port (Q) are all in logical 0 status. Their later status will be determined by the program. Rule 6: It is not allowed to connect two outputs together (only allowed for CW blocks). -
Page 17: Intermediate Replay
The intermediate relay is a very important bridge in Comat BoxX programming. The intermediate relay of Comat BoxX is similar to that in a relay control system. They can store some intermediate status and then transfer it to a block, requiring this status for input. -
Page 18: Operation Instructions
Operation instructions 3.1 Function instructions When Quick II is used to edit Comat BoxX programs, some basic operations including file management, opening and closing of the Tool Bar and Status Bar access to Help information are completed by using pull-down menu under File, Controller, Communication, View, Option and Help. -
Page 19: Menu Controller
Chapter 3 Operation instructions 3.1.2 Menu Controller With this function it is possible to read a program from the Comat BoxX into the Quick II programming software for editing and simulation on the PC. Fig. 3.2 Controller Instruction Menu 3.1.3 Menu Communication The configuration function is used to select the communication port to set up a connection between the computer and the BoxX. -
Page 20: Menu View
The following icons can be displayed with Toolbar in the edit window. Controller Toolbar Symbol Function Symbol Function Write: Run: Write program to Comat BoxX Run Comat BoxX Diagnosis: Diagnose Comat BoxX, Monitor: Monitor Comat BoxX System Information running status... - Page 21 Chapter 3 Operation instructions Accessories Toolbar Is used to open the Function Block library. Standard Toolbar Symbol Function Symbol Function New: Copy: New file Copy blocks or connections Open: Paste: Open existing file Paste blocks or connections Save: Print: Save active file Print file Frame: Read:...
-
Page 22: Menu Options
Change Comat BoxX Time Modify current time of BoxX Winter – Summer Time Set automatic switch over of summer/winter time Change Comat BoxX Addr Setup address of Comat BoxX Set Password Change password Set Voice Module Type Select MUL recording time... -
Page 23: Menu Help
Chapter 3 Operation instructions Schematic Page Size Sets Schematic Window size Set Print Label Data Schematic labelling Note: All functions of the Voice Module AF-MUL are explained in the „Voice Module AF-MUL User Manual”. 3.1.6 Menu Help Fig. 3.7 Help Instruction Menu Instruction name: Function:... -
Page 24: Menu Edit
Chapter 3 Operation instructions 3.1.7 Menu Edit The menu Edit contents all functions to edit the function blocks. Fig. 3.8 Edit Instruction Menu Instruction name: Function: Undo Not available Redo Not available Cut the contents in the area highlighted with the cursor Copy Copy the contents highlighted with the cursor Paste... -
Page 25: Menu Search
Comat BoxX Menu Instruction name: Function: PC -> Comat BoxX Write the program edited on the computer to Comat BoxX Comat BoxX -> PC Read the program existing in Comat BoxX to the computer Diagnosis of Comat BoxX Shows Comat BoxX diagnosis parameter... -
Page 26: Menu Window
Chapter 3 Operation instructions 3.1.10 Menu Window This instruction is mainly used for arranging of multiple opened windows. When more than two windows are opened, they can be arranged with this instruction. Fig. 3.11 Windows Instruction Menu Instruction name: Function: Cascade Windows arranged to overlap Tile... -
Page 27: Chapter Iv
Fig. 4.1. Fig. 4.1 Open a new file 1. Controller type options are provided in the left box and you can select your desired Comat BoxX type by clicking it with the left mouse button: 6 inputs and 4 outputs (AF-10..) - Page 28 Chapter 4 Quick II A new file appears (Fig. 4.3). On the left side are the inputs, on the right side the outputs. Fig. 4.3 Edit Window for new file BoxX / Type Inputs Outputs AF-10..I1 – I6 Q1 – Q4 AF-20..
-
Page 29: Open An Existing File
Chapter 4 Quick II 4.1.2 Open an existing file To open a file, click the <Open> option under the Function List or the respective icon on the Toolbar with the left mouse button. Fig. 4.4 Open an existing file Click to open the dialogue box. Fig. -
Page 30: Size Of Schematic Window
Chapter 4 Quick II 4.1.3 Size of schematic window To set the size of the active schematic window, select <Schematic Page Size> in the Option menu. Fig. 4.6 Schematic Page Size Fig. 4.7 Select file You may use this window to set the window size according your specific requirement. The right and bottom edge limits are indepently set with the custom function. -
Page 31: Inputs And Outputs
Chapter 4 Quick II 4.1.4 Inputs and Outputs On the left side of the schematic window are the Input squares I1 – I6 resp. I1 – I12. The output terminals Q1 – Q4 resp. Q1 – Q8 are located on the right hand side of the schematic window. -
Page 32: Save A File
Chapter 4 Quick II 4.1.5 Save a file Click <Save> or <Save as> under the Function List with the left mouse button or click the respective Icon on the Toolbar. A dialogue box appears, in which you can set the path and file name for save. Fig. -
Page 33: Zoom
Chapter 4 Quick II 4.1.6 Zoom The zooming function allows enlarging or reducing of the schematic window. The following functions are available. 150% 100% (standard setting) Fig. 4.11 Zoom Programming Manual Quick II / 2.2004 E... -
Page 34: Edit Function Diagram Program
Chapter 4 Quick II 4.2 Edit Function Diagram Program 4.2.1 Place Blocks The desired block can be directly selected from the Block Library on the left of the Edit window and dropped in the Edit in box with the mouse. Fig. -
Page 35: Edit Block Properties
Chapter 4 Quick II 4.2.2 Edit Block Properties Different blocks have different properties, which may be set according to the control requirements. Select a function block in the Function Diagram Editing window and click the right mouse button. An Edit Function List appears, as shown in Fig. 4.13. Then select Properties in the function list. Or you may double click the said function block directly with the left mouse button. -
Page 36: Link
Chapter 4 Quick II 4.2.3 Link After the blocks required for plotting the whole Function Diagram are placed and their properties are setup, it is necessary to establish links according to the logical control relations so as to make a complete function diagram. - Page 37 Chapter 4 Quick II 2. Indirect link Move the cursor to the start point of the connect line (it means that any input or output of a block), its shape will change into a reticule (+), click the left button of the mouse, and move the cursor to another point in the schematic window and click the left button again.
-
Page 38: Copy Function Blocks And Links
Chapter 4 Quick II Fig. 4.18 Modify number 4.2.4 Copy Function Blocks and Links You may copy Function Blocks including their links and insert the entire circuit on an other position in the schematic window. Procedure: 1. Click with the left mouse button the top left edge of the circuit you like to copy and pull the window frame over the entire circuit. -
Page 39: Delete Block Or Link
Chapter 4 Quick II 4.2.6 Delete Block or Link When you want to delete unnecessary blocks or wrong links, the operation steps are as follows: Select the link or block to be deleted with the mouse. Press <Delete> key on the keyboard, or click the right mouse button and select the <Delete> option, thus the link or block is deleted. -
Page 40: Print
Chapter 4 Quick II 4.3 Print Print file Operating methods for files printing: Click the <Print> option under the File Menu or the Print icon with the left mouse button. Fig. 4.20 Print file The following window will appear. Fig. 4.21 Print settings You can choose between two different printing methods: •... - Page 41 Chapter 4 Quick II Please set all other necessary parameters before printing. This are: - Printer selection - Page size The following window appears after all printing options are set. Fig. 4.22 Printing Click <Print> to start printing. Note: You will receive best printing results with paper size A4 landscape. Programming Manual Quick II / 2.2004 E...
-
Page 42: Simulation Operation
The operating method is as follows: To activate Simulation, Click the <Simulation> option under <Instruction Comat BoxX> <Operation> Menu and then Start with the left mouse button, as shown in Fig. 4.23, or directly click the icon in the Tool Bar. -
Page 43: Boxx Settings (Option Menu)
Setting date and time Click OK to confirm your setting. Note: Please note that this function is only active after the Comat BoxX and the PC are linked together via the com port and after completion of communication set up. (Refer to chapter 4.6). -
Page 44: Winter- / Summertime
Chapter 4 Quick II 4.5.2 Winter- / Summertime The following window allows activation of automatic summer- / wintertime adjustment. The respective dates and time are pre-programmed in the BoxX. Please select the first year in which the automatic time adjust is required and then select the last active year of the automatic time adjustment. -
Page 45: Change Boxx Password
Please note that the password for the Voice Module AF-MUL is identical to the password of the controller. Note: Please note that this function is only active after the Comat BoxX and the PC are linked together via the com port and after completion of communication set up. (Refer to chapter 4.6). -
Page 46: Read And Write The Program
When the program is edited and has been proved through the simulation test to meet your control requirements, the Com. port of the computer can be connected with Comat BoxX directly through the programming interface or through a modem and the interface. In this way, remote and local communication between the computer and Comat BoxX will be realised so that programs can be uploaded to and downloaded from Comat BoxX. - Page 47 If the communication link is still not established, a Prompt window will pop up for you to select another modem or communication port. Click <PC -> Comat BoxX> option under the Comat BoxX Operation Menu with the mouse, as shown in Fig. 4.26.
-
Page 48: Read Program From Comat Boxx
Fig. 4.32 Read Program 4.7 Monitoring Quick II allows not only to simulate a program but also to monitor the running program on the Comat BoxX. Click the <Monitoring> icon to supervise the program. Programming Manual Quick II / 2.2004... -
Page 49: General Description Of Function Blocks
Chapter V General description of Function Blocks Comat BoxX adopts the function block programming method. 20 function blocks are configured in total, and each block can achieve a specific control function independently, e.g. time-delay ON, time- delay OFF, setting switch time, counter function, etc. -
Page 50: General Function Block (Gf)
5.1 General function block (GF) There are 6 general function blocks in total as listed in the following table: Overview of general Function Blocks Line diagram Comat BoxX Function block Function Series connection of NO contacts Parallel connection of NO... - Page 51 Chapter 5 General description of Function Blocks Logical frame of AND: 5.1.2 OR Parallel connection of a certain number The symbol of OR is of NO contacts, is shown in the shown as function block electrical line diagram as follows: below: This function block is called OR, because the status for at least one of inputs I1 or I2 or I3 is „1“...
- Page 52 Chapter 5 General description on Function Blocks Programming Manual Quick II / 2.2004 E...
-
Page 53: Not
Chapter 5 General description of Function Blocks 5.1.3 NOT The phase inverter is indicated in The symbol of NOT is shown as the line diagram as follows: function block below: This function block is called NOT. The output Q is always inverse from input I1. I1 = „1“... -
Page 54: Nor
Chapter 5 General description on Function Blocks 5.1.5 NOR Parallel connection of a certain The symbol of NOR is number of NC contacts, which is shown as function block shown in the line diagram as follows: below: Only when all the input of NOR function blocks are at a low potential (status 0), the output will be closed (status 1). -
Page 55: Time-Function Blocks
Chapter 5 General description of Function Blocks 5.2 Time-Function blocks Overview of Time-Function Blocks Function Representation Function block (ON time delay) (OFF time delay) MPLR (Single pulse time relay) (Pulse relay) (Clock pulse generator) (Hold ON time delay relay) Programming Manual Quick II / 2.2004 E... -
Page 56: Dpr (On Time Delay)
Chapter 5 General description on Function Blocks 5.2.1 DPR (ON time delay) Comat BoxX Symbol Signal Description Input The time delay T is started with TRG input. Q remains „1“ as long as TRG is „1“. TRG = „0“ - „Q“ = „0“. -
Page 57: Ddr (Off Time Delay)
Chapter 5 General description of Function Blocks 5.2.2 DDR (Off time delay) Comat BoxX Symbol Signal Description Input With TRG status „1“, Q becomes „1“ immediately. EN (TRG) Descending edge of TRG starts the time delay T. Input Input R (Reset) sets Q to „0“ immediately also if time T has not elapsed. -
Page 58: Mplr (Single-Pulse Time Relay)
Chapter 5 General description on Function Blocks 5.2.3 MPLR (Single-pulse time relay) Comat BoxX Symbol Signal Description Input The leading edge of Input TRG activates the single pulse relay. Output Q becomes „1“ for the time T. Input Reset the single-pulse time relay. -
Page 59: Plr (Pulse Relay)
Chapter 5 General description of Function Blocks 5.2.4 PLR (Pulse relay) Comat BoxX Symbol Signal Description Input Each trigger input (TRG) steps output ON and OFF. Input Output Q is reset with R (Reset input). R has a priority over TRG. -
Page 60: Cpg (Clock On Time Generator)
Chapter 5 General description on Function Blocks 5.2.5 CPG (Clock on time generator) Comat BoxX Symbol Signal Description Input Makes clock pulse generator ON and OFF with Input EN (Enable). Input Sets Output Q to „0“. Input R (Reset). Parameter T is the time length of output ON and OFF (pulse and pause). -
Page 61: Rpr (Hold On Time Delay Relay)
Chapter 5 General description of Function Blocks 5.2.6 RPR (Hold on time delay relay) Comat BoxX Symbol Signal Description Input Timer for ON time delay is started with input TRG (Trigger). Input Timer for ON time delay is reset to „0“ via input R. -
Page 62: Set Relay / Reset Relay (Rs)
P0 – P9 represent the 0 – 9 buttons of a telephone. RS block can receive two-tone telephone signals (Mobile phone) and can be used for remote controlling the Comat BoxX (* key + number). Programming Manual Quick II / 2.2004 E... -
Page 63: Counter - Function Blocks
5.4 Counter - Function blocks Function Representation Function block (Up-counter) (Down-counter) 5.4.1 UCN (Up-counter) Comat BoxX Symbol Signal Description Input Input R has priority over other inputs. With R, the counter is reset to „0“ and output Q is reset simultaneously. -
Page 64: Dcn (Down-Counter)
Chapter 5 General description on Function Blocks 5.4.2 DCN (Down-counter) Comat BoxX Symbol Signal Description Input R has a priority over other inputs, with R the counter is reset to „0“ and output Q is reset simultaneously to „0“. Input... -
Page 65: Analogue Input Block
Note: Only AF-10MR-D; AF-10MT-D; AF-10MT-GD; AF-20MR-D; AF-20MT-D; AF-20MT-GD, type Comat BoxXs have this function (analogue inputs). This function is used in the input block for analogue signals. The AN Function block is used for the comparison between input signal 1 and input signal 3. -
Page 66: Clock Switch Function Block
General description on Function Blocks 5.6 Clock switch function block Function Representation Function block (Clock switch) 5.6.1 CW Comat BoxX Symbol Signal Description ON / OFF ON (T1) is the switch-on time. OFF (T2) is the switch-off time. Parameter Options for date system of week system. - Page 67 Chapter 5 General description of Function Blocks 2. Range of T1 and T2 You can set T1, T2 anytime from 00:00:00 to 23:59:59. If you set T1 or T2 at 24:00:00, it means that there is no time set to elapse. There is no switching time set if range of T1 and T2 is set to 24:00.
- Page 68 Chapter 5 General description on Function Blocks 3. Examples of switching Setting condition Time Output status Only ON time (ON) is Before reaching the set time Keeping the original status programmed At / when reaching the set time Only OFF time (OFF) is Before reaching the set time Keeping the original status programmed...
- Page 69 In the case only OFF time is set without ON time (for example to be OFF at 05:00 every day from Monday to Thursday), Comat BoxX can turn OFF the output at 05:00 every day from MO – TH. ON time may depend on other factors (the original status will be maintained for Friday, Saturday and Sunday).
- Page 70 Chapter 5 General description on Function Blocks 7. Programming with LCD panel When the week system (W) is selected, only the setting for T1 and T2 is required. Function D is in this case meaningless and remains “20000000”. T1 is always ON. T2 is always OFF.
-
Page 71: Audio / Tel.-Function Blocks
98 voice sections in total. This function is applicable where voice prompt is required. Example: Set up Comat BoxX together with the Voice & Remote unit AF-MUL, use the connector bridge AF- BC delivered with the AF-MUL. Connect to power supply. -
Page 72: Mr (It Is Necessary To Connect Af-Mul To The Comat Boxx)
Chapter 5 General description on Function Blocks 5.7.2 MR (It is necessary to connect AF-MUL to the Comat BoxX) Comat BoxX Symbol Signal Description When ON = „1“ record the voice sections. The option range of this input is: I1 – I12; Q1 – Q8; HI; LO; M00 – M126; X. -
Page 73: Tel (In Combination With Voice & Remote Unit Af-Mul)
This control requires two-tone telephone signals (P0 – P9) to drive the RS relay. The periphery devices are driven by the output of the RS relay. When Comat BoxX receives P0 – P9 signals of an incoming call, it is possible to control the Comat BoxX from a remote location. - Page 74 3. The system now accepts control signals from your P0 - P9 phone keys. The Comat BoxX confirms execution of the required task with a pre-recorded voice. Of course it is necessary to program the RS with the function and related signals for the key P0 –...
-
Page 75: Chapter Vi
Block. The Input and Output blocks are only used to graphically represent the input and output ends of Comat BoxX, without any actual functions. The key parts are the Logical Block and Function Block, the combination of which realises several types of Comat BoxX control. -
Page 76: Block Library Operation
Chapter 6 Block Library 6.1 Block Library Operation 1. Click <LOG>, <FUN>, <IN>, <OUT> buttons used for selecting block types that will be displayed in the Block Library Frame. 2. Move the cursor to the desired block and select it by clicking on it. Fig. -
Page 77: General Property
Chapter 6 Block Library 6.2 General Property Fig. 6.2 Setup of General Property The settings of General property mainly include: a) Comment: For filling of a comment string, no more than 20 characters. b) Middle Relay: For setting of the Intermediate Relay connected with the current block. If the Intermediate Relay is set up, the other blocks can no longer use this Intermediate Relay, which means that usage of a Middle Relay is unique. -
Page 78: Blocks With Timers
Chapter 6 Block Library 6.3 Blocks with timers All of the blocks with timers, such as MPLR, DPR, DDR, CPG, RPR have timing function: MPLR Simple pulse CPG Clock generator On delay RPR On delay resetable Off delay Their Block Properties Setup Dialogue Box is as shown in Fig. 6.3. Fig. -
Page 79: Properties Of Rs Relay
Chapter 6 Block Library 6.4 Properties of RS relay The dialogue box of RS relay properties setting is as shown in Fig. 6.4. Fig. 6.4 Setting Properties for RS Relay Special input: Please refer to general properties for X, HI and LO. P0 – P9 indicate the tone dial impulse input of 0 –... -
Page 80: Blocks With Counters
Chapter 6 Block Library 6.5 Blocks with counters Blocks with counters include UCN (up counter) and DCN (down counter), whose Properties Setup Dialogue Box is as shown in Fig. 6.5. Number of counts: Setup of the number of the counters, in the range of 1 – 999999. The properties of General Blocks shall be referred to for other settings. -
Page 81: Setup For Analogue Block An
Chapter 6 Block Library 6.6 Setup for Analogue Block AN Fig. 6.6 Setup of Property of Analogue Block Comment: Users can add letters of explanation in this bar. Special input: HI, LO, X, LM. If X has been selected, this said port can be connected to Input port. If LM has been selected, it means that this said port can be set to a fixed digital value. -
Page 82: Properties Of Dw (Clock Switch Block)
Chapter 6 Block Library 6.7 Properties of DW (Clock Switch Block) The Setup dialogue box is as shown in Fig. 6.7. Clock setup: In this setting, the status of output can be regularly changed. Two options, date style and week style, are provided to meet the particular requirements of users. Fig. - Page 83 Chapter 6 Block Library Week style: If Week style is selected, and the Set Time bottom is clicked, the frame of setting time will be on and you can set up to 127 intervals for the time switch. Please note that you should set the time according to a time sequence.
- Page 84 Chapter 6 Block Library Fig. 6.9 Setting Time Date style: If <Date Style> is selected, click the <Setup Date> button. As the Setup Date frame appears, the date and time can be set, as shown in Fig. 6.10. Fig. 6.10 Setting Block Property for DW Clock You can key in a new time or make changes through the keyboard in this box.
- Page 85 2) In the case of multiple records, the said block will be divided into multiple blocks when it is written to Comat BoxX and you can view the number of blocks used by the current program in the State Bar of the Function Graph Edit Window.
-
Page 86: Properties Of Voice Broadcasting And Recording Blocks And Of Tel Block
Chapter 6 Block Library 6.8 Properties of Voice Broadcasting and Recording Blocks and of TEL Block The Setup Properties dialogue box of Voice Broadcasting Block and of TEL Block and Voice Record in a Block is as shown in Fig. 6.12. Setting Output: Set the ports for voice broadcasting and recording. The port here is a memory space oriented at voice storage. - Page 87 Chapter 6 Block Library Property of TEL Block The dialogue box is as shown in Fig. 6.13. Phone code: Telephone number used for dial-up is keyed in here. The * and # functions of the telephone are not supported. The length of the telephone number shall not be longer than 25 digits.
-
Page 88: Animation Blocks
Chapter 6 Block Library 6.9 Animation Blocks The graphs in the In Library and Out Library are only for you to select the input and output devices corresponding to the actual equipment, as shown in Fig. 6.14, so that the simulation run will have a realistic presentation, without any actual logical operation function. -
Page 89: Chapter Vii
Comat BoxX can realise remote programming and monitoring function through a modem. It is therefore possible to monitor or modify the program also from a remote location. Connect Comat BoxX with the connection cable AF-C232 and AF-M232 to a modem as shown in Fig. 7.2. -
Page 90: Two Connection Methods For Comat Boxx Remote Programming And Monitoring
Chapter 7 Remote programming and monitoring via Modem 7.2 Two connection methods for Comat BoxX remote programming and monitoring 7.2.1 Connect Modem with AF-C232 and AF-M232 cables The connection diagram is as follows: Connection of Comat BoxX with PC via telephone network:... -
Page 91: Connection Between Comat Boxx And Voice Module Af-Mul Via Modem
Connect Comat BoxX and AF-MUL with the special connection bridge AF-BC (enclosed with the AF-MUL voice module). Connect the power supply of AF-MUL and Comat BoxX first and plug the telephone line into the “TEL” socket. Use cable AF-RS232 or Modem cable (enclosed with modem) and adapter AF-M232. - Page 92 Chapter 7 Remote programming and monitoring via Modem 7.2.3 Modem Settings In order to allow data transmissions, the modem has to be configured first. The configuration is done by setting the AT instruction codes. This is a example of AT settings for a modem type U.S Robotics: Modem Reset AT&H0 Stop FLOW Control...
-
Page 93: Chapter Viii
Programming operation on Comat BoxX panel 8.1 Edit a new program When this function is selected, Comat BoxX will enter into the Edition Function, selecting as shown in figure 8.1. keys to move the arrow „>“ on the left and press key to select the functions. -
Page 94: Edit An Existing Program (Edit A Program)
Chapter 8 Programming operation on Comat BoxX panel 8.3 Edit an existing program (Edit a program) Select <FAB/Rom> and then select <Rom FAB> on the menu, as shown in Fig. 8.3. Fig. 8.3 Explanation: Line 1: FAB(XXXX) Serial number of your Comat BoxX... -
Page 95: Characters Of The General Function Blocks
Programming operation on Comat BoxX panel 8.5 Characters of the general function blocks When Input Function Blocks are selected, Comat BoxX will automatically help you to define in sequence the numbers of the blocks, beginning with „B“ and display the said numbers in the bottom right corner (e.g. -
Page 96: Set-/Resetrelay Function Block Rs
Chapter 8 Programming operation on Comat BoxX panel 8.7 Set-/Resetrelay function block RS Please refer to chapter8.15 step 2 8.8 Function blocks with counting function include UCN: Up Counter DCN: Down Counter When the PAR is set, the following frame will be shown on the LCD: Fig. -
Page 97: Set The Analogue Block (An)
Chapter 8 Programming operation on Comat BoxX panel 8.9 Set the analogue block (AN) AN block is as follows: The AN function block is used to recognise any analogue inputs. With the AN function block the comparison between input I1 and input I3 will be evaluated. -
Page 98: Parameters For The Clock Switch (Cw)
Chapter 8 Programming operation on Comat BoxX panel 8.10 Parameters for the Clock Switch (CW) If date system D is selected, the following will be displayed on the LCD. Fig. 8.8 Explanation: Line 1: Day: Date system Line 2: D: 20000000 Year;... - Page 99 Chapter 8 Programming operation on Comat BoxX panel After selecting the week system press the key. You will be able to select the timing and the following will be displayed on the LCD: Fig. 8.10 Explanation: Line 1: Week Week system...
-
Page 100: Set The Telephone Block (Tel)
Chapter 8 Programming operation on Comat BoxX panel 8.11 Set the Telephone Block (TEL) When the Telephone Block is selected, the function block Fig. 8.11 will appear. Fig. 8.11 Set the input on the left of the block first. Move the cursor to the output on the right side. Use the keys Press key to confirm. -
Page 101: Insert Function Block (Insert Fb)
Note: If you do not select exit, Comat BoxX will copy a function block (same block number as the previous). In Editing mode, exit is only possible after all inputs and outputs are set. Unused inputs have to be configurated. (Select „X“ for unused inputs.) -
Page 102: Delete Function Block (Delete Fb)
The function block can only be deleted, if a valid number of the function block was entered. 8.14 Delete Program (Clear Prg) This function can be used to delete all the existing programs in the Comat BoxX. 1. In the editor frame (Fig. 8.1), select <Clear Prg> and press key. -
Page 103: Programming Over Lcd Display
The Function Block Diagram for the above example is as follows: Fig. 8.15 Editing of the program function by LCD panel is executed as follows: (In case a user program already exists in Comat BoxX) Step 1: Enter Comat BoxX Editor Frame. - Page 104 Chapter 8 Programming operation on Comat BoxX panel Enter the password, for example 2165 (Password ex-factory is „0001“). Press twice and the first digit value of the password will change to „2“. Press the right moving key and the cursor will move one digit to the right for the second digit of the password to be entered.
- Page 105 Chapter 8 Programming operation on Comat BoxX panel Move the arrow to „RS relay“ with and press Function Block Set Status is now displayed with the cursor at the first input point „R“. The LCD shows the following frame: Fig. 8.21 Press if the cursor points on „R“...
- Page 106 Chapter 8 Programming operation on Comat BoxX panel Note: It is not possible to exit or proceed to the next programming level with keys unless all the links of this block are set (including all I/O links). Also unused inputs have to be set. Select „X“ for unused inputs.
- Page 107 Chapter 8 Programming operation on Comat BoxX panel Press to enter in to the Time Unit Selection Status. The options can be changed with When „min“ appears, press to set the time unit for minutes. The following frame will be displayed on the LCD: Fig.
- Page 108 Chapter 8 Programming operation on Comat BoxX panel Press to move the cursor to the second input parameter and press The second input parameter can now be set. After selecting „X“ with pressing , the input is set to „X“.
- Page 109 Chapter 8 Programming operation on Comat BoxX panel Move the cursor to „RUN“ and press Fig. 8.37 The new program is now written into Comat BoxX. Note: How to read and modify the current program. Press simultaneously to enter the password.
