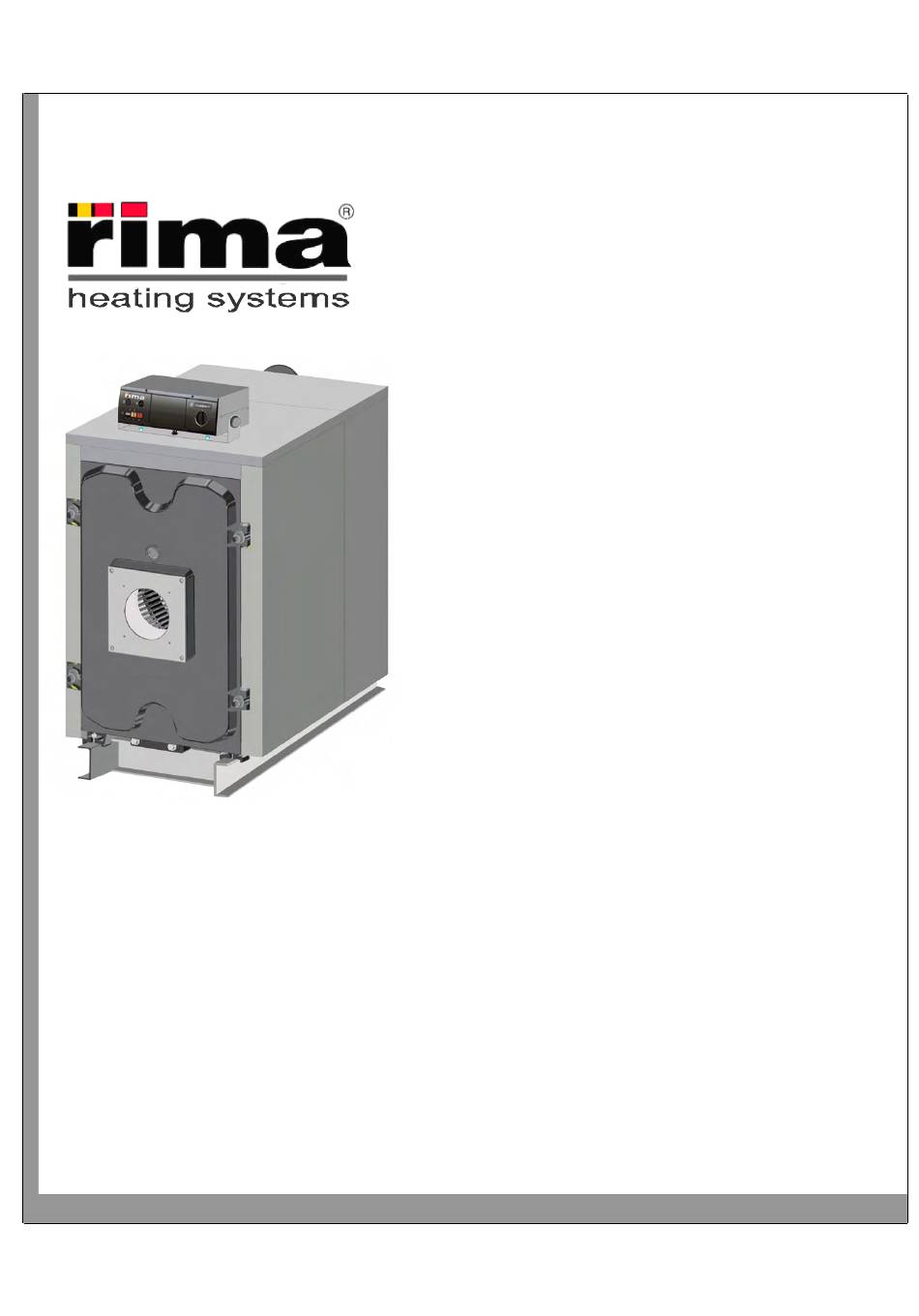

- Page 1 Distribuitor: CALOR SRL Str. Progresului nr. 30-40, sector 5, Bucuresti tel: 021.411.44.44, fax: 021.411.36.14 www.calorserv.ro - www.calor.ro OM SERIES ASSEMBLING MANUAL CAST BODY ASSEMBLING DETAILS CABIN SHEETS ASSEMBLING DETAILS 00 REV. / 2010 - OM...
- Page 2 Please ask for help from producer or sales company technical departments if any questions occur in your mind during installation process. Minimum 2 persons are required for OM series cast iron boilers installation. Do not forget that correctly installed boiler will work properly for long time.
- Page 3 Boiler assembly chassis ( as tooled side looking at back and top ) must be installed on to the concrete platform. Concrete platform must be flat for keeping the boiler in balance. Back section of the boiler must be positioned on to the chassis in upright position.
- Page 4 After installing leakproof isolation rope, axis nipple, o ring to back section it must be installed by sliding the middle section on the chassis. *** The middle section which has thermostat hole must be used as the second middle section before the front section.
- Page 5 Boiler assembly rods must be connected after all sections assembly process is finished. 4 pcs of assembling rods must be connected to the boiler, stabilization holes which are on front and back sections of the boilers. Nuts and bolts must be installed in cross ways and must be screwed in balance.
- Page 6 After installation of boiler input and output adaptors, boiler must be tested for leakage by filling water inside without connecting the front burner door ,for 10 minutes under 9 bars pressure . Test Result : If any leakage is spotted boiler must be repaired by exploring the spot.
- Page 7 After the installation of the turbulators to the passes boiler burner door must be connected to front section. 4 hinges which are conneced to front section, must be connected to the hinge arms on the burner door. Connect M10 x 80 mm hinge bolts according to your desire for opening side according to plumbing connections and boiler room.
- Page 8 *** Selection of section legs and cabin sheet assembly legs is shown in table 2. After connection of cabin sheet assembly legs in both sides of the boiler body, cabin sheet assembly ears on top of the boiler body must be connected to their places. *** If there are no assembling rods on the section which assembly legs and ears will be connected, these...
- Page 9 8 cm body isolation must be prepared according to boiler dimensions and installed on the boiler body. Isolation must be cut around assembling ears connection points. Body insulation must be cut for opening thermostat socket. Isolation must be connected with a stainless steel wire from 2 points to the body for stabilization.
- Page 10 After installation of side cabins control panel must be connected on to the front top cabin sheet. Sayfa - 10...
- Page 11 There are three holes on the front cabin sheet. Thermocouples ( sensors) of the control panel ( thermostat,safety thermostat, thermometer ) must be passed through the middle hole. Control panel must be stabilized to the holes on right and left. After installing sensors edges inside the socket segment must be plugged for preventing the sensor edges to move out.
- Page 12 Back cabin sheet isolation must be installed and back sheet must be connected to the side cabins ( as the open side shows upside ) with cabin connection screws as shown in the picture. ( 4 pcs. for right , 4 pcs. for left and 3 pcs. for the middle connection point.
