COMMUNICATIONS-APPLIED TECHNOLOGY
11250-14 Roger Bacon Drive
Reston, VA 20190
Voice: 800-229-3925
Support: Techsupport@c-at.com
REV.S, 4/10
Setup and Operating Procedures
™
ICRI
™
Incident Commanders' Radio Interface
A Rapidly Deployable, Radio Interoperability Solution
MANUFACTURED BY
COMMUNICATIONS-APPLIED TECHNOLOGY CO., INC.
RESTON, VA.
CAGE CODE: 0EEY2
http://www.c-at.com
If you have any questions, please contact:
C-AT TECHNICAL SUPPORT at 800-229-3925 (voice), 703-471-4428 (fax), or
e-mail to
techsupport@c-at.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ICRI and is the answer not in the manual?

Questions and answers

Related Manuals for COMMUNICATIONS-APPLIED TECHNOLOGY ICRI

Summary of Contents for COMMUNICATIONS-APPLIED TECHNOLOGY ICRI

  • Page 1 ICRI ™ Incident Commanders’ Radio Interface A Rapidly Deployable, Radio Interoperability Solution MANUFACTURED BY COMMUNICATIONS-APPLIED TECHNOLOGY CO., INC. RESTON, VA. CAGE CODE: 0EEY2 http://www.c-at.com If you have any questions, please contact: C-AT TECHNICAL SUPPORT at 800-229-3925 (voice), 703-471-4428 (fax), or e-mail to techsupport@c-at.com...

  • Page 2: Table Of Contents

    APPENDIX B: CONNECTOR PIN-OUT DATA .................30 APPENDIX C: ICRI APPLICATIONS ....................31 APPENDIX D: ICRI CHASSIS ......................33 APPENDIX E: PART NUMBERS FOR ICRI, ACCESSORIES AND CABLES ......34 APPENDIX F: ICRI BOARD ADJUSTMENTS ..................36 APPENDIX G: FCC 15.21 INFORMATION TO USER: ..............38...

  • Page 3: Theory Of Operation

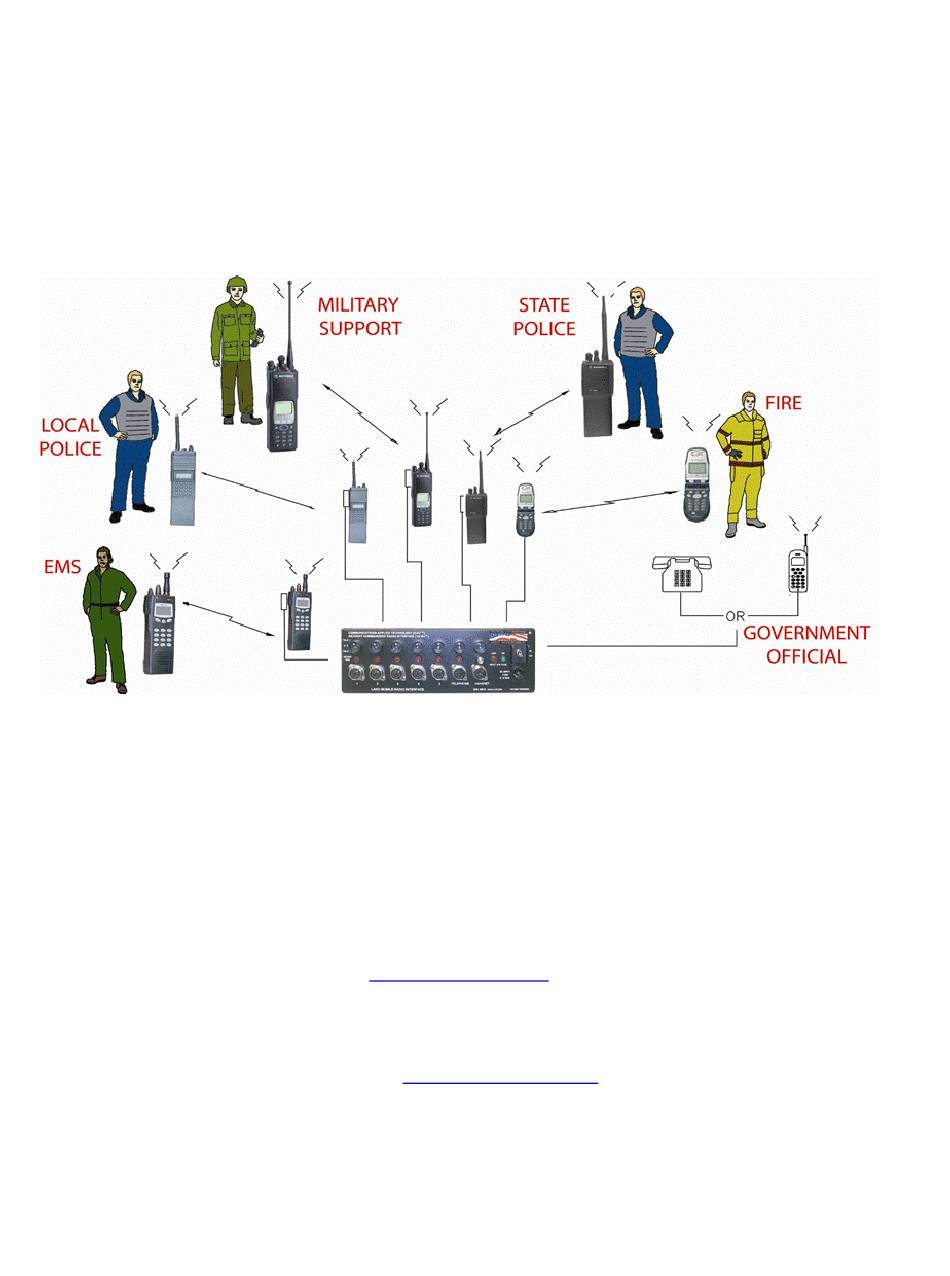

    Military radios, and satellite “phone” and voice-over-IP devices can be linked to the 2-way radios with cables that can be supplied. The ICRI will operate for 24+ hours, with 8 “AA” alkaline batteries (somewhat less in cold weather). It can also be powered by an external battery pack, vehicle-supplied or other DC source, or AC.
