W ashroom Dispenser Service and Parts Manual

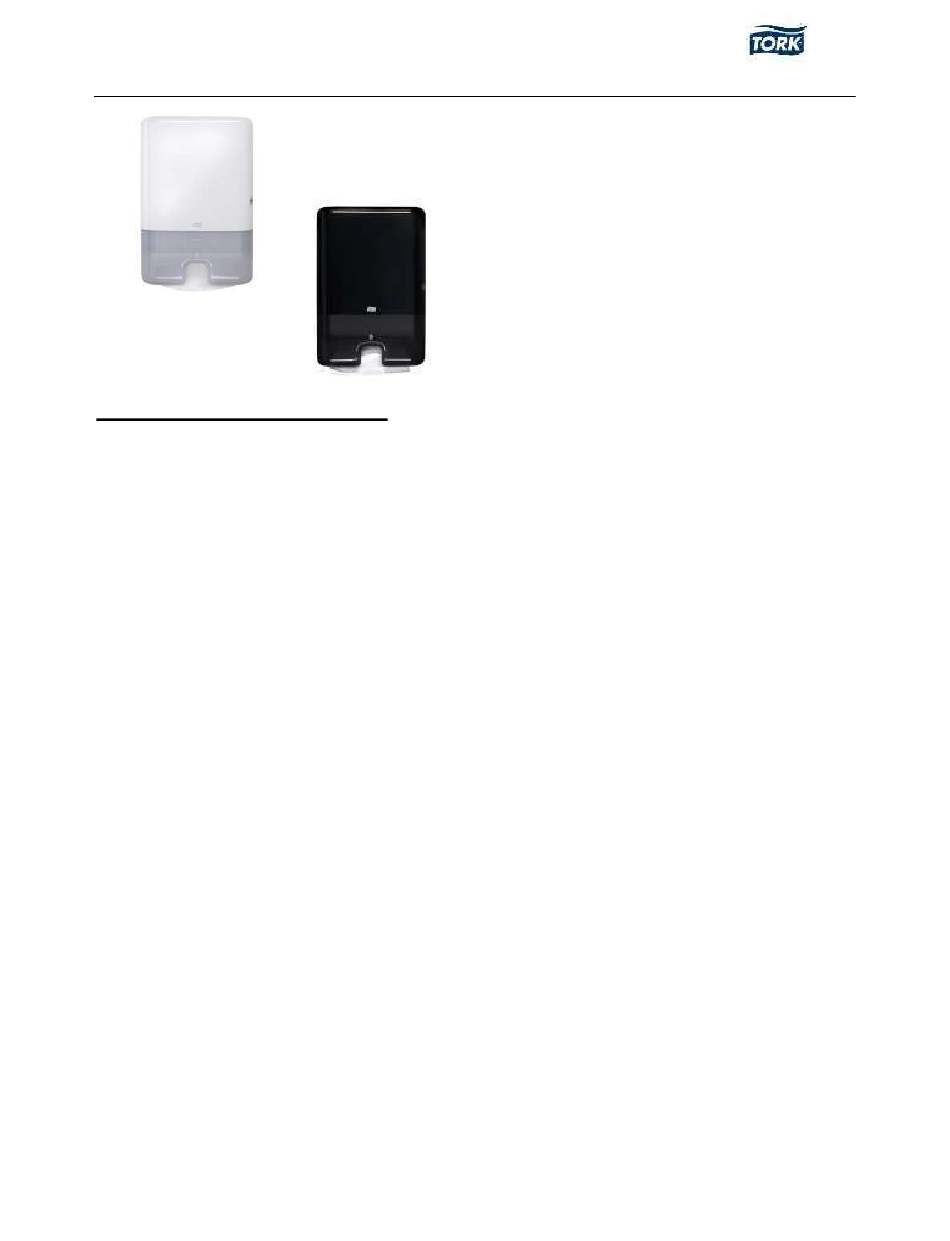

Tork Elevation H2 Xpress Towel Dispenser
552020; 552028
H2 Xpress Towel Product Options:
100297 - Tork Xpress Premium Extra Soft Multifold Hand Towel, 4-Panel
101293 - Tork Advanced Multifold Hand Towel, 3-Panel
Essity Internal
Tork Elevation H2 Xpress Towel
Dispenser (360 capacity):
H2 Xpress System: 552020 (white)
H2 Xpress System: 552028 (black)
Dispenser Dimensions HxWxD Inches (cm):
17.5 x 11.9 x 4.0 (44.4x 30.2 x 10.1 cm)
1 of9
Revision Date: 3-12-18

Advertisement

loading
Need help?

Need help?

Do you have a question about the H2 Xpress and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Tork Elevation H2 Xpress

  • Page 1 W ashroom Dispenser Service and Parts Manual Tork Elevation H2 Xpress Towel Dispenser 552020; 552028 Revision Date: 3-12-18 Tork Elevation H2 Xpress Towel Dispenser (360 capacity): H2 Xpress System: 552020 (white) H2 Xpress System: 552028 (black) Dispenser Dimensions HxWxD Inches (cm): 17.5 x 11.9 x 4.0 (44.4x 30.2 x 10.1 cm)
  • Page 2 W ashroom Dispenser Service and Parts Manual Tork Elevation H2 Xpress Towel Dispenser 552020; 552028 Revision Date: 3-12-18 Parts Part Description Replacement SKU H2 ELEV HOOD (W hite) 225520A H2 ELEV HOOD (Black) 225521A ELEVATION LOCK 205502 (W hite) ELEVATION LOCK...
  • Page 3 Washroom Dispenser Service and Parts Manual Tork Elevation H2 Xpress Towel Dispenser Revision Date: 3-12-18 552020; 552028 Mounting and Filling Instructions Installation instruction sheet and mounting template are provided inside each carton. 1[··- 120cm - x4 3 of9 Essity Internal...
  • Page 4 Washroom Dispenser Service and Parts Manual Tork Elevation H2 Xpress Towel Dispenser Revision Date: 3-12-18 552020; 552028 J!!!$oo -·2 x1.5 -·2 .2.5 4 of9 Essity Internal...
  • Page 5 W ashroom Dispenser Service and Parts Manual Tork Elevation H2 Xpress Towel Dispenser 552020; 552028 Revision Date: 3-12-18 Preventive Maintenance The dispenser should be cleaned any time there is heavy paper dust build-up inside the dispenser. If paper dust is not a problem, approximately every year is a good frequency for cleanings. The following is the recommended procedure to cleaning: 1) Open the dispenser and remove the remaining towels.
  • Page 6 W ashroom Dispenser Service and Parts Manual Tork Elevation H2 Xpress Towel Dispenser 552020; 552028 Revision Date: 3-12-18 Contacting Essity To contact the Essity Quality Coordinator, dial 1-866-722-6659 and press 6. If asked for the date code on the dispenser, see instructions below.
  • Page 7 Washroom Dispenser Service and Parts Manual Tork Elevation H2 Xpress Towel Dispenser Revision Date: 3-12-18 552020; 552028 552020 552028- Tork Elevation H2 Xpress Hand Towel Dispenser Mounting Hole Dimensions (mm) 1&l 1ld Eftdan: Kl ... ---------------- ---------------- -L--+-- ---- 7 of9...
  • Page 8 W ashroom Dispenser Service and Parts Manual Tork Elevation H2 Xpress Interfold Towel Dispenser 552020; 552028 Revision Date: 10-7-15 Recommended Mounting Height (standard access) Bottom of towel dispenser to be located 47.25” (120cm) above finished floor. Recommended Mounting Height (ADAAG Guideline) 4.22.7 Controls and Dispensers.
  • Page 9 High and Low - Side Reach Limits Under 4.4.1, the Elevation H2 Xpress dispenser can be located on any wall surface because it protrudes 4” or less. It will comply with ADAAG regulations as long as it is mounted at the appropriate height for the approach specified above.
