Washroom Dispenser Service and Parts Manual

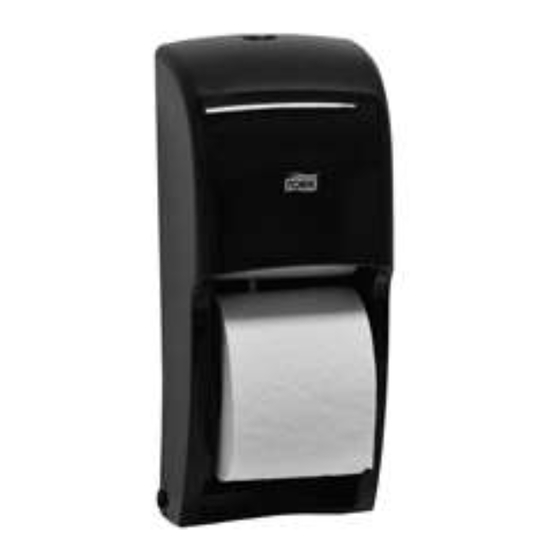

T26 Tork Bath Tissue Roll Dispenser
555620 - 555628
Tork Elevation T26 High Capacity Bath Tissue Dispenser
Table of Contents
General Description & Replacement parts
Product Specifications, Part locations/descriptions .............................................................2
Replacing the lock .......................................................................................................3
Replacing the hood ......................................................................................................4
Operation, Maintenance & Troubleshooting
Filling/re-filling the dispenser ...........................................................................................5
Maintenance, trouble shooting, contacting SCA ..................................................................7
Additional mounting information
Mounting Template......................................................................................................8
Mounting hole dimensions.............................................................................................9
ADAAG Guidelines ....................................................................................................10
Essity Internal
1 of 10
Revision Date: 3-12-18
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tork Elevation T26
Summary of Contents for Tork Elevation T26
-
Page 1: Table Of Contents
Washroom Dispenser Service and Parts Manual T26 Tork Bath Tissue Roll Dispenser Revision Date: 3-12-18 555620 - 555628 Tork Elevation T26 High Capacity Bath Tissue Dispenser Table of Contents General Description & Replacement parts Product Specifications, Part locations/descriptions ..………………………...…………….………….2 Replacing the lock …………………………………………………..……………..………….…………3 Replacing the hood ………..………………………..…………………….…………………….………...4... -
Page 2: Product Specifications, Part Locations/Descriptions
Washroom Dispenser Service and Parts Manual T26 Tork Bath Tissue Roll Dispenser Revision Date: 3-12-18 555620 - 555628 Tork High Capacity Bath Tissue Dispenser: T26 System: 555620 (White), 555628 (Black) Dispenser Dimensions HxWxD Inches (cm): 14.2 x 6.3 x 6.46 (36.07 x 16.00 x 16.41) -
Page 3: Replacing The Lock
Washroom Dispenser Service and Parts Manual T26 Tork Bath Tissue Roll Dispenser Revision Date: 3-12-18 555620 - 555628 Part Description with Replacement Instructions Parts with SKUs listed are available for order as of the revision date on the manual. Contact your sales rep or customer service to order these parts by calling at 1-866-722-8675 and then pressing option 2. -
Page 4: Replacing The Hood
Washroom Dispenser Service and Parts Manual T26 Tork Bath Tissue Roll Dispenser Revision Date: 3-12-18 555620 - 555628 Replacing the Hood Assembly: 1. Remove the “E” clips from hinge pins with pliers or a screw driver. Then remove hinge pins. -
Page 5: Filling/Re-Filling The Dispenser
Washroom Dispenser Service and Parts Manual T26 Tork Bath Tissue Roll Dispenser Revision Date: 3-12-18 555620 - 555628 Filling Instructions 5 of 10 Essity Internal... - Page 6 Washroom Dispenser Service and Parts Manual T26 Tork Bath Tissue Roll Dispenser Revision Date: 3-12-18 555620 - 555628 Re-Filling Instructions 6 of 10 Essity Internal...
-
Page 7: Maintenance, Trouble Shooting, Contacting Sca
Washroom Dispenser Service and Parts Manual T26 Tork Bath Tissue Roll Dispenser Revision Date: 3-12-18 555620 - 555628 Preventive Maintenance The Tork Bath Tissue dispenser should be cleaned any time there is heavy paper dust build-up inside the dispenser. If paper dust is not a problem, approximately every year is a good frequency for cleanings. -
Page 8: Mounting Template
Washroom Dispenser Service and Parts Manual T26 Tork Bath Tissue Roll Dispenser Revision Date: 3-12-18 555620 - 555628 Recommended Mounting Height (standard access) Mount the bottom of the dispenser 27.5” (70cm) above the finished floor for standard access. Mounting Template A full sized 11”... -
Page 9: Mounting Hole Dimensions
Washroom Dispenser Service and Parts Manual T26 Tork Bath Tissue Roll Dispenser Revision Date: November 15, 2012 555620 - 555628 Tork Elevation High Capacity Bath Tissue Roll Dispenser Backplate Dimensions and Mounting Holes (Not shown full size) 1------ -------1 J.\3 1.56... -
Page 10: Adaag Guidelines
Washroom Dispenser Service and Parts Manual T26 Tork Bath Tissue Roll Dispenser Revision Date: November 15, 2012 555620 - 555628 Recommended Mounting Height (ADAAG Guideline) Toilet Paper Dispensers 604.7 Dispensers. Toilet paper dispensers shall comply with 309.4 and shall be 7 inches (180 mm) minimum and 9 inches (230 mm) maximum in front of the water closet measured to the centerline of the dispenser.
