BRADLEY MOWERS EVEN CUT 22DP Owner's Manual

High wheel commercial mower
Hide thumbs

Advertisement

Quick Links

Download this manual
High Wheel Commercial Mower
22DP • 22BP • 24SP
www.BradleyMowers.com
Rev. 11/2018

Advertisement

loading
Need help?

Need help?

Do you have a question about the EVEN CUT 22DP and is the answer not in the manual?

Questions and answers

Rodger Branton
April 10, 2025

Where is the primer bubble located on my self propelled walk behind mower

0

Related Manuals for BRADLEY MOWERS EVEN CUT 22DP

Summary of Contents for BRADLEY MOWERS EVEN CUT 22DP

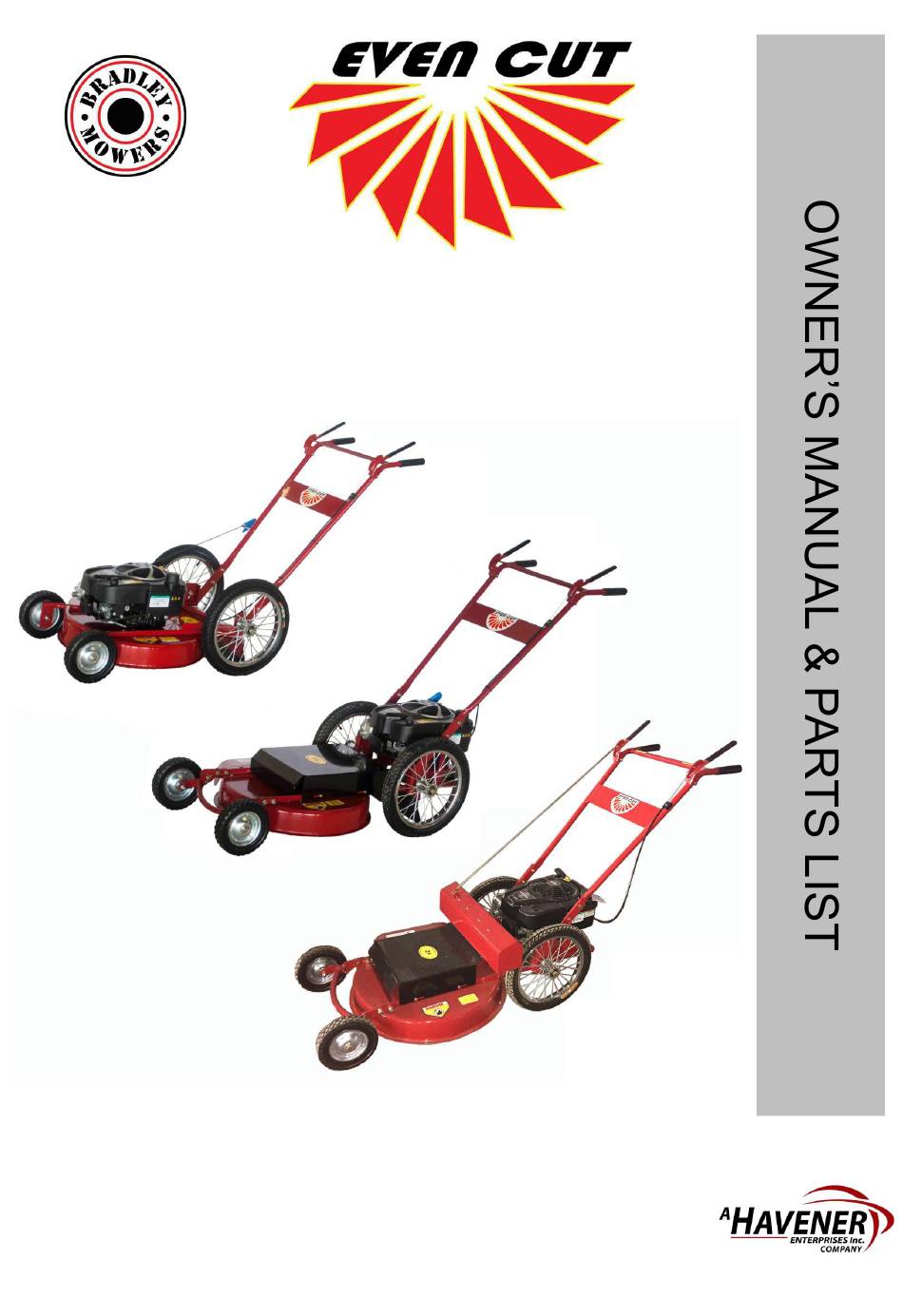

  • Page 1 High Wheel Commercial Mower 22DP • 22BP • 24SP www.BradleyMowers.com Rev. 11/2018...

  • Page 2: Important Message

    IMPORTANT MESSAGE This machine comes with an Owner’s Manual and List. The useful life and good service you receive from this machine depends to a large extent on how well you read and understand this manual . Treat your machine properly, lubricate and adjust it as instructed, and it will give you many years of reliable service.
  • Page 3 IMPORTANT INSTRUCTIONS: Read the owner’s manual and make it readily available for future reference. Be familiar with the operation of the mower. Extreme emphasis should be placed on operator safety and the mower's safety features. Know the correct mower and engine service and maintenance requirements, and be able to perform or have performed the service and recommended lubrication as required.

  • Page 4: Starting And Stopping

    4. Check gas level before starting engine. Do not fill gas tank indoors, when the engine is running, or while the engine is still hot, Wipe off any spilled gasoline before starting engine. 5. Mow only in daylight. 6. Never operate a mower in wet grass. Always be sure of your footing, keep a firm hold on the handle, and walk.NEVER RUN! 7.

  • Page 5: Operation

    OPERATION 1. Do not change the engine governor setting or over speed the engine. 2. Do not put hands or feet near or under rotating parts. Stay clear of discharge area while the engine is running (Figure.5). 3. Stop the mower when crossing gravel drives, walks, roads, or any other area where thrown objects may be a hazard.

  • Page 6: Engine Service

    SPECIAL SERVICE INSTRUCTIONS Check oil level before every mowing. Change Oil every eight to ten hours of operation. Use high quality SAE 30 oil. Use unleaded gasoline. Keep your engine clean. Dirt and grass accumulation can result in serious damage to the precision parts of your engine.
  • Page 7 Unpacking Instructions...
  • Page 8 1.Take out the mower from the carton. 2.Take down the handle bar by using two 13mm wrenches. 3.Assemble the handle bar and tighten the four bolts as shown below:...
  • Page 9 4.Hook up the throttle cable as shown below: 5.Install the front wheel. Take down the pin roll to lower the front wheel and then insert the pin roll back. 6.Install the grass chute and tighten the two blots as shown below marked in yellow.
  • Page 10 7.Install the walking rod as shown below. Please noted only the 24SP mower has this part.
  • Page 11 22DP Assembly...
  • Page 12 22DP Assembly Item No. Part Number Description 400-001 Grip 400-034 Handle Grip 200-327 Hexagon Bolt M6*45 GB5782 400-003 Bail 400-035 Plow Handle 200-021 Plain Washer 8 GB95-85 200-009 Nylon Nut M6 GB889-86 200-013 Nylon Nut M5 GB889-86 200-174 Nut Thin M14 GB6172.1 400-029 Safety Cable 200-173...
  • Page 13 22BP Frame Assembly...
  • Page 14 22BP Frame Assembly Item No. Part Number Description 400-001 Grip 400-034 Handle Grip 200-327 Hexagon Bolt M6*45 GB5782 400-003 Bail 400-035 Plow Handle 200-021 Plain Washer 8 GB95-85 200-009 Nylon Nut M6 GB889-86 200-013 Nylon Nut M5 GB889-86 200-174 Nut Thin M14GB6172.1 400-005 Safety Cable 200-173...
  • Page 15 22BP Gearing Assembly...
  • Page 16 22BP Gearing Assembly Item Part Number Description 200-030 Nylon Nut M8 GB889-86 Engine Assembly 200-106 Key 4*6.5*16 GB1099-79 200-106A Key 6.35*6*22 200-119 Hexagon Bolt M8*25 GB5783 200-021 Plain Washer 8 GB95-85 400-030 Engine Mount 400-030A Engine Mount 200-029 Nut Flange M8 GB6177-86 200-179 Hexagon Bolt M8*50 GB5783-86 400-031...
  • Page 17 24SP Transmission Assembly Item No. Part Number Description 200-135 Hexagon Bolt M5*12 424A-041 Sprocket Cover 424A-062 Bearing PFL203 424A-002a Shaft Mount Weldment 200-030 Nylon Nut M8 GB889-86 200-021 Plain Washer 8 GB95-85 Spring Hanging Plate Welding 424A-060 Element 200-119 Hexagon Bolt M8*25 GB5783 424A-061 Spring 100-120a...
  • Page 18 24SP Transmission Assembly 424A-006 Spring 424A-007 Drive Pin 424A-008 RH Ratcher Block 200-042 Plain Washer 6 GB95-85 200-114 Roll Pin5*30 200-117 Drive Chain#35 424A-040A Cross Shaft 424A-011 LH Ratcher Block 200-083 Screws M8*10 GB79 424A-012 Set Collar 424A-013 SP Tube 424A-014 Sprocket 10 Tooth 200-071...
  • Page 19 24SP Frame Assembly...
  • Page 20 24SP Frame Assembly Part Number Description Item No. 400-001 Grip 400-034 Handle Grip 200-327 Hexagon Bolt M6*45 GB5782 400-028 Bail weldment 400-035 Plow Handle 200-021 Plain Washer 8 GB95-85 200-009 Nylon Nut M6 GB889-86 200-013 Nylon Nut M5 GB889-86 400-005 Safety Cable 200-173 Bolt M5*40 GB818-85...
  • Page 21 24SP Gearing Assembly...
  • Page 22 24SP Gearing Assembly Item No. Part Number Description 200-030 Nylon Nut M8 GB889-86 Engine Assembly 200-106 Woodruff key 4*6.5*16 GB1099-79 200-106A Flat key 6.35*6*22 GB1096-86 200-119 Hexagon Bolt M8*25 GB5783 200-021 Plain Washer 8 GB95-85 400-030 Engine Mount 400-030A Engine Mount 200-029 Nut Flange M8 GB6177-86 200-179...
  • Page 23 24SP Accessories Item No. Part Number Description 410-001 Spacer Sleeve 15005 Bronze Pivot Bushing 410-002 Castor Support 200-026 Grease Fitting M6 GB1152-89 15031 Washer 15023 Lynch Pin Tire 410-003 Castor Yoke 400-008 Front Wheel Axle 200-071 Plain Washer 12 GB95-85 400-009 Front Wheel 200-007...

This manual is also suitable for:

Even cut 24spEven cut 22bp
