User Manual and Installation Guide
K-Band Doppler Speed Sensor
Built Type: DC310-DFT, DC310-OFD
Rev 6, January 2019
DC310 in Weatherproof Enclosure
DC310 Open Frame Version
DC310-DFT
DC310-OFD
Houston Radar LLC
12818 Century Dr. Stafford, TX 77477
Http://www.Houston-Radar.com
Email:
sales@Houston-Radar.com
Contact: 1-888-602-3111
Advertisement
Table of Contents
Related Manuals for Houston Radar DC310
Summary of Contents for Houston Radar DC310

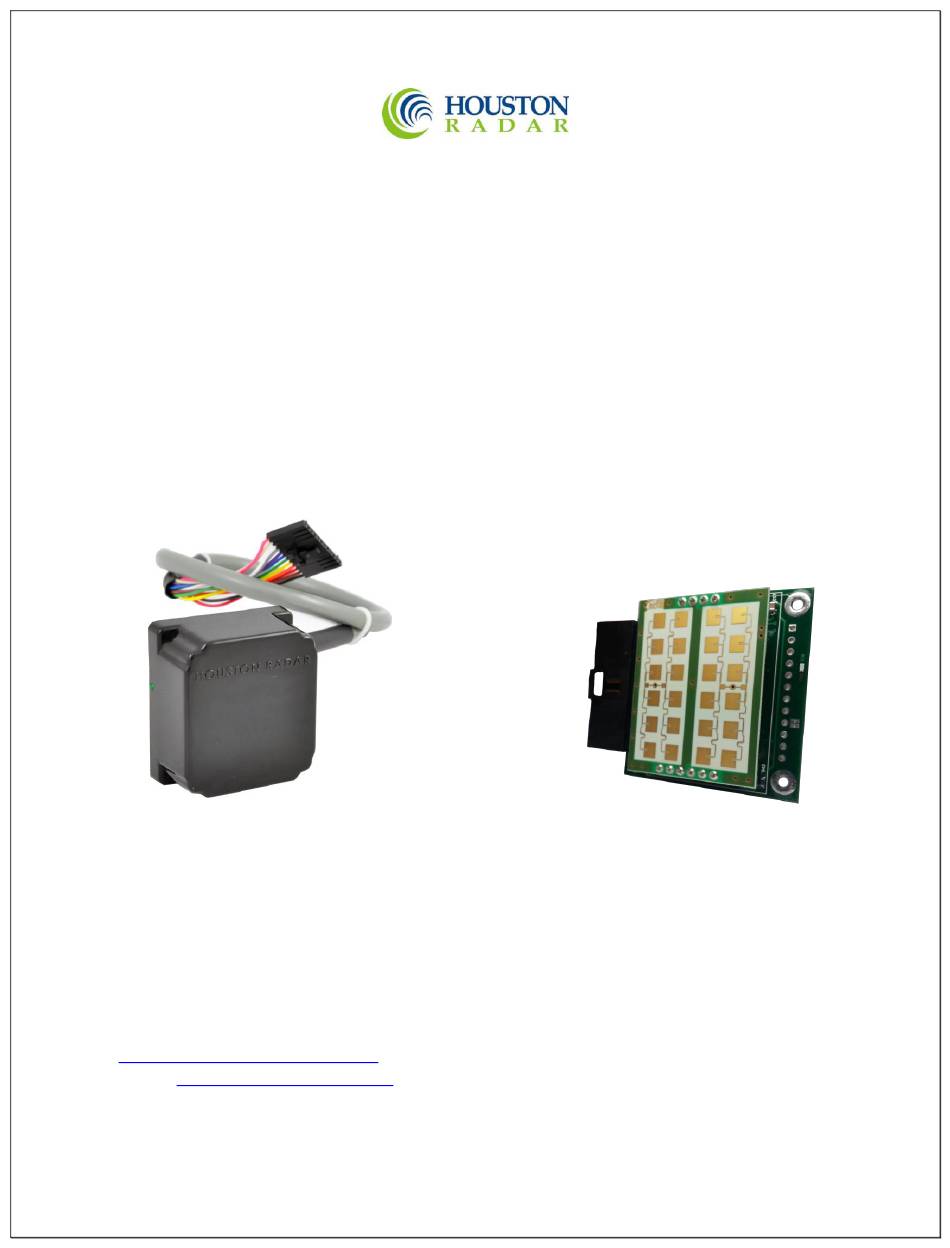

- Page 1 DC310 User Manual and Installation Guide K-Band Doppler Speed Sensor Built Type: DC310-DFT, DC310-OFD Rev 6, January 2019 DC310 in Weatherproof Enclosure DC310 Open Frame Version DC310-DFT DC310-OFD Houston Radar LLC 12818 Century Dr. Stafford, TX 77477 Http://www.Houston-Radar.com Email: sales@Houston-Radar.com...
- Page 2 DC310 module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: TIADC310” or “Contains FCC ID: TIADC310.”...
- Page 3 Safety Critical Application Notice: Warning: The DC310 radar is not a fail-safe device. It should not be used in any application where failure or non-performance of the device will result in a hazardous condition. If used in a “wrong way” application to detect vehicles traveling in the wrong direction on the road, it must not be relied upon to provide 100% performance in all conditions.
-
Page 4: Table Of Contents
Internal Clock: ......................14 Configuring the Unit: ....................14 Configuring the Radar via the provided Houston Radar Configuration Tool GUI: 17 STEP 1: Connect to Radar ..................18 STEP 2: Click on Radar Setup to bring up the configuration GUI ......19 STEP 3: Select the radar units .................. -
Page 5: Introduction
INTRODUCTION Congratulations on your purchase of the Houston Radar directional Tracking Doppler Radar DC310. This state of the art 24GHz K-band microwave Doppler radar is specifically designed for the license free battery operated traffic monitoring, data collection and “wrong way” vehicle detection market. -
Page 6: Installation
Mount in the median of a four lane divided road to measure both directions. Pick a location where the median is no more than 12 (3.6m) feet wide. Mounting on the side of a 4 lane divided road will allow the DC310 to capture only the closest two incoming lanes accurately. -
Page 7: Recommended Enclosure For The Dc310-Ofd
Recommended Enclosure for the DC310-OFD: The DC310-OFD radar needs to be enclosed in a weatherproof enclosure for outside use. The following needs to be observed for optimal performance: 1. The front face of the radar (with the golden pads) is the antenna and is the face that must point into traffic. -
Page 8: Hookup
ON via a bit in the “MD” variable. Average Speed Output: The DC310 can send out the average measured speed via the ASCII interface as a 3 digit speed with a direction indicator. This option is turned off in the default configuration and must be enabled if desired. -
Page 9: Speed Output Event
Speed Output Event The DC310 can send out individually logged vehicle speeds via the ASCII interface as a 3 digit speed with a direction indicator. This option is turned off in the default configuration and must be enabled if desired. The speed format is: [+,-]nnn[.ddd][\r,\n]... - Page 10 Houston Radar DC310 User Manual set: <case sensitive var name> <value>[Enter] e.g. set:LO 5 alt format: set:LO=5 sets the low speed cutoff to 5 etc. Variables are case sensitive. Commands are not. Success is indicated by an "OK". Failure is indicated by either: "ERROR"...
-
Page 11: Wire Signal Descriptions
Houston Radar DC310 User Manual Wire Signal Descriptions: Connector Signal Direction Description Pin # Name (wrt Radar) Radar GND (battery “–“ terminal) 1 (Triangle on connector) Do not connect I/O0 Reserved for future use I/O1 Reserved for future use I/O2... - Page 12 Incorrect hookup may result in output devices being destroyed and will not be covered by the warranty. The DC310 features two low impedance outputs that can trigger/turn on an external display/device to bring it out of power saving mode when a vehicle is detected.
-
Page 13: Use
Houston Radar DC310 User Manual Turn on the power to the DC310 to make it operational. No other action is required. The radar will activate the appropriate OUT 1 and OUT 2 open drain outputs, if enabled, whenever the selected detection trigger condition is satisfied by a vehicle that is above the programmed lower speed limit (the “LO”... -
Page 14: Internal Clock
The radar’s internal parameters may be configured via the radar’s RS232 port after connecting to a PC’s RS232 serial COM port and using the Houston Radar configuration program’s Graphical User Interface (GUI). While this is the most convenient way to configure the radar, customers may also wish to set the configuration variables directly, for example when the radar is part of a system and connected to another microcontroller. - Page 15 Houston Radar DC310 User Manual Bit 10 to 15: Currently reserved in DC310 radar Radar mode bitmask number 2. Bits are as follows: Bit 0: Enable low voltage power down. See Appendix C for details. Bit 1: Enable True Average Speed output Bit 2: Force enable the RS232 interface when set.
- Page 16 Houston Radar DC310 User Manual trigger is materially higher than trigger from logged vehicle. However, if you need an indication that the radar is tracking a vehicle before it passes you may use this trigger mode. For example this may be used to wake up attached equipment or display a local warning in a “Wrong...
-
Page 17: Configuring The Radar Via The Provided Houston Radar Configuration Tool Gui
USB-RS-P1 powered USB dongle (shown above). This device connects to a USB port on a Windows computer and provides a RS232 connection and 12VDC power to all Houston Radar devices. You can be up and taking to the radar within a few minutes of receiving your device. -
Page 18: Step 1: Connect To Radar
Houston Radar DC310 User Manual STEP 1: Connect to Radar Select your COM port (or “AutoDetect Port” option) and then click on “Connect To Radar”. Click “OK” on the next two boxes. The one on the left shows you information about the radar that you have connected to which you may ignore at this time. -
Page 19: Step 2: Click On Radar Setup To Bring Up The Configuration Gui
Houston Radar DC310 User Manual STEP 2: Click on Radar Setup to bring up the configuration GUI Click on “Radar Setup” to bring up the GUI. You must click on “Write To Radar” button for your changes to be saved to the radar. -
Page 20: Step 3: Select The Radar Units
Houston Radar DC310 User Manual STEP 3: Select the radar units Radar units apply to the speed output over the RS232 serial port as well the low limit cutoff and high limit cutoff settings. Additionally, if traffic statistics gathering is enabled, statistics are saved in integer mph boundary speed bins for mph and ft/sec units and in km/h integer boundary speed bins for km/h or m/s units in the radar. -
Page 21: Step 4: Set The Radar Cutoff Speeds (Low And High Speed Cutoff)
Cutoff speeds affect the measurement range for sending speed out over the serial port and activation of the hardware trigger outputs. Cutoff speeds will affect collection of traffic statistics for the DC310. Traffic statistics will not collected outside of the detection limits. -
Page 22: Step 5: Configure The Trigger Outputs
Houston Radar DC310 User Manual STEP 5: Configure the trigger outputs Either of the trigger outputs can be configured to activate based off a variety of detection events. “Vehicle Logged” events fire only after the vehicle is no longer being detected and the vehicle is deemed to be a valid vehicle. -
Page 23: Step 6: Enable Average Speed Output
Houston Radar DC310 User Manual STEP 6: Enable Average Speed Output The radar can internally average the speeds of all logged vehicles over a specified period of time and output it as an ASCII value over the serial port. If you wish to use this feature, please enable the “True Bi-Directional Average Speed Output”... -
Page 24: Step 7: Enable Ascii Speed Output Event
Houston Radar DC310 User Manual STEP 7: Enable ASCII Speed Output Event Select this option to enable individually logged ASCII vehicle speed output for both directions. Page 24 of 33... -
Page 25: Step 8: Input Voltage And Ambient Temperature
Houston Radar DC310 User Manual STEP 8: Input Voltage and Ambient Temperature In this section, you can view the radar’s input voltage and ambient temperature. Click “Read Now” to update these values. Page 25 of 33... -
Page 26: Dc310 Specifications
Data Interfaces Serial Communication RS232 Data Rate Baud Rates from 1200 to 115200 baud DC310-OFD:Molex “C Grid SL” male shrouded 12 pin RA part Data & Pwr Connector #70553-0011 DC310-DFT:Molex “C Grid SL” female 12 pin, part #0050579412 Mechanical Weight approx 33 grams (1.16 oz) -
Page 27: Performance
Houston Radar DC310 User Manual Performance Speed Measurement Range 1.3mph to 100 mph (2.1km/h to 161 kph). 0.006 mph Internal Resolution 0.5% of reading + 0.1mph, over entire temperature range Accuracy Detection Range Typically 75+ m (250+ feet) for compact vehicles on open and level road with radar mounted 1.5 m (5 feet) high and... -
Page 28: Appendix A: Troubleshooting Complicated Installations
Having a live visual indication will provide immediate feedback on whether changes made to the setup are helping or not. The DC310 radar along with our Windows based configuration or Stats Analyzer tool has specific features that can help you troubleshoot many complicated installations. This is usually required only for permanent “Wrong Way”... -
Page 29: Appendix B: Hooking Up A Back-To-Back Confirmation Radar For "Wrong Way" Applications
At least 100 feet of visible travel distance must be allowed before the DC310 radar will flag the wrong way vehicle. A rear facing SS300 radar is mounted behind the DC310 radar. In this setup, the SS300 will be facing the back of the wrong way vehicle as it recedes from the radar after passing it. - Page 30 Houston Radar DC310 User Manual If a local warning light is required, the 2 output on the DC310 radar may be configured to trigger on an incoming vehicle and connected to trigger a flasher or local lights to draw attention to the driver of the wrong way vehicle. This trigger should not be used to initiate a call as the false trigger rate on this output will be higher than “trigger on logged...
-
Page 31: Appendix C: Hooking Up To The Trigger Outputs On The Radar
Appendix C: Hooking up to the trigger outputs on the radar The DC310 radar features two “open drain” outputs. The device used for this purpose is the On Semiconductor relay driver NUD3124. The output configuration of this device is shown below (from the On Semi datasheet). -
Page 32: Appendix D: Optional Breakout Io Board Connections
Houston Radar DC310 User Manual Appendix D: Optional Breakout IO Board Connections: (Non-Isolated Mosfet version with PWM Brightness Control) Connecting the load to the High power and trigger outputs: You may directly connect your high power DC load + & - to J5. The load is activated via fuse F1 when the output is triggered. -
Page 33: Optional Breakout Io Board Connections
Houston Radar DC310 User Manual Optional Breakout IO Board Connections: (Isolated Solid-State Relay version, AC or DC capable) Optional Isolated IO Board. Note: PWM Brightness Control is NOT available with Isolated AC/DC Relay outputs. Page 33 of 33...
