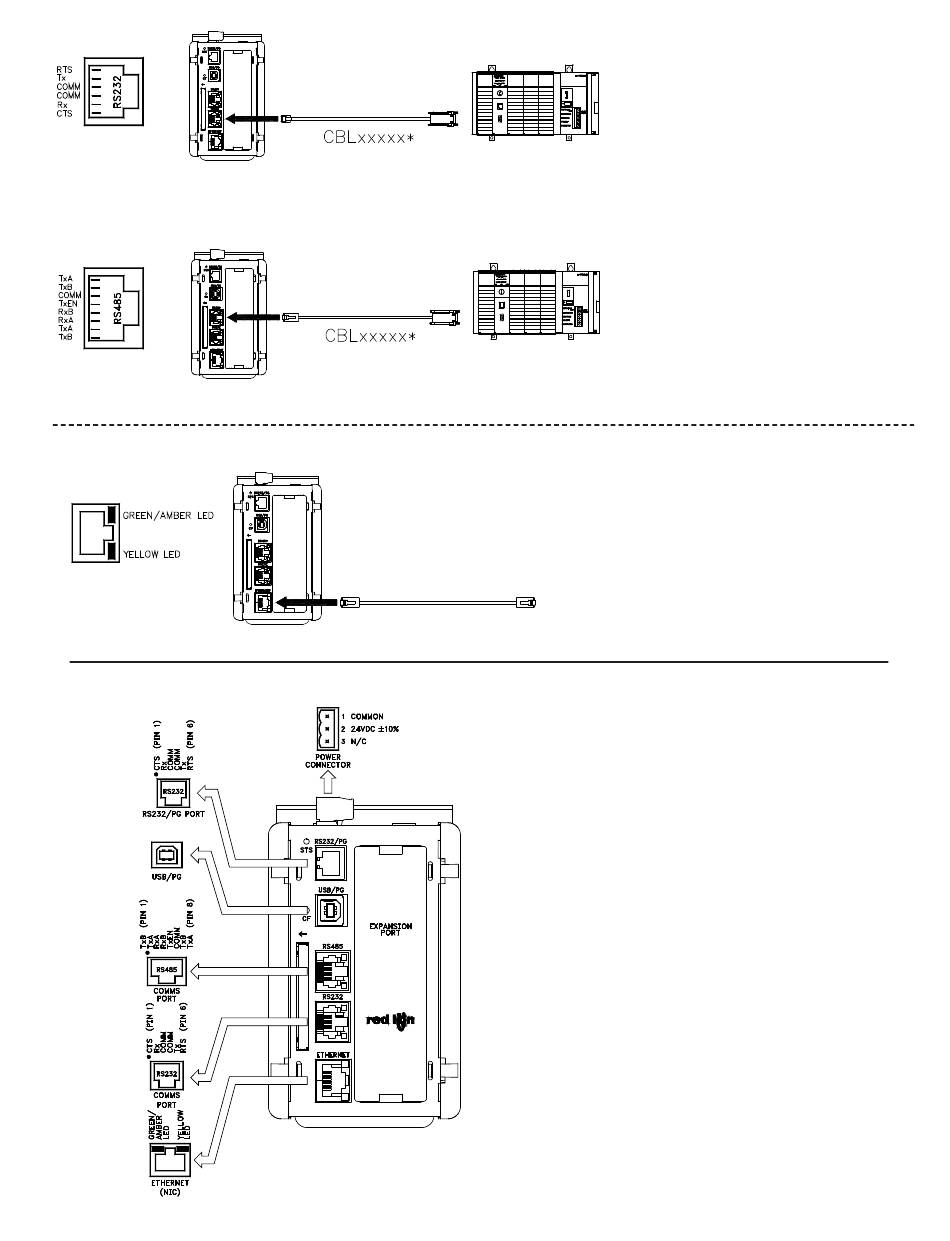

RS232
RS485
PORT 3 - ETHERNET CONNECTION
DATA STATION PORT PIN OUTS
Standard Ethernet cable
5
* Use appropriate communications cable. See Ordering
Information for descriptions of the available cables.
NOT
WARNING: Do use a standard DH-485
cable to connect this port to Allen Bradley
equipment.

TROUBLESHOOTING

If for any reason you have trouble operating,
connecting, or simply have questions concerning your
new Data Station, contact Red Lion's technical support.
For contact information, refer to the back page of this
bulletin for phone and fax numbers.
EMAIL: techsupport@redlion.net
Web Site: http://www.redlion.net
