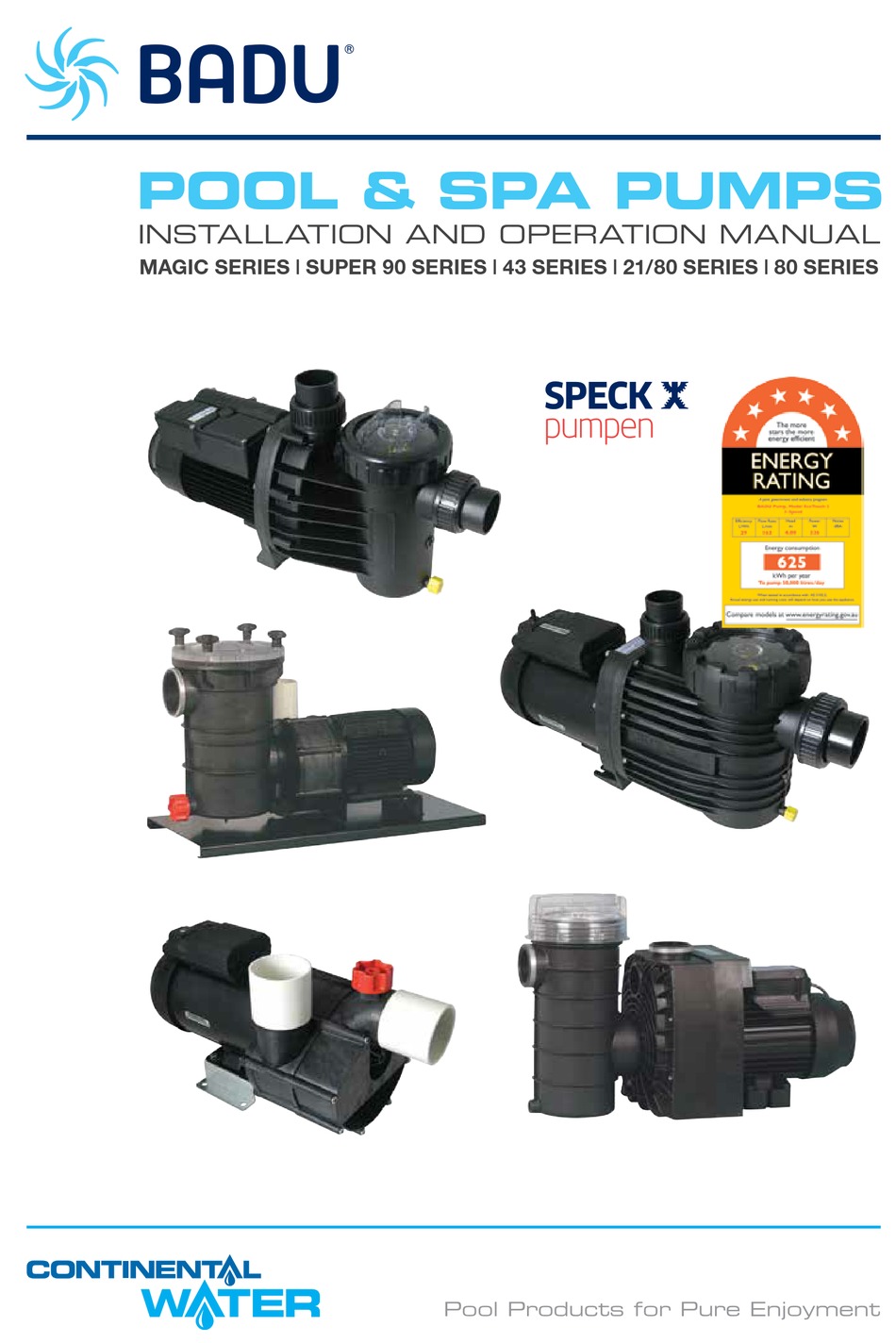

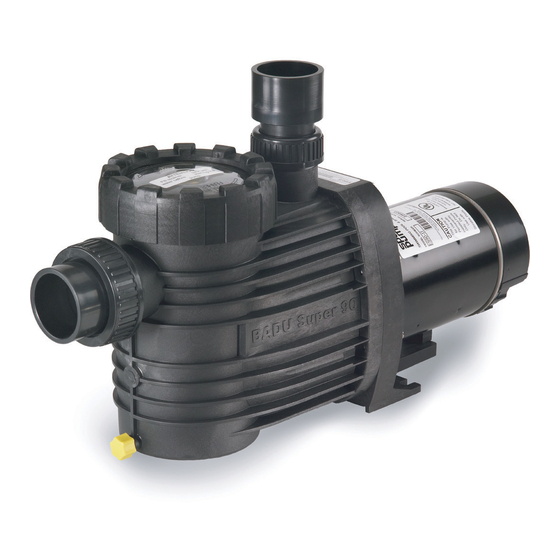

- Page 1 POOL & SPA PUMPS INSTALLATION AND OPERATION MANUAL MAGIC SERIES | SUPER 90 SERIES | 43 SERIES | 21/80 SERIES | 80 SERIES Pool Products for Pure Enjoyment...
-
Page 2: Table Of Contents
POOL & SPA PUMPS INSTALLATION AND OPERATION MANUAL MAGIC SERIES | SUPER 90 SERIES | 43 SERIES | 21/80 SERIES | 80 SERIES INTRODUCTION ............3 SAFETY INFORMATION ..........3 TECHNICAL SPECIFICATIONS ........4 INSTALLATION ............4 OPERATION .............5 5.1 GENERAL OPERATION 5.2 90/500 DS (DUAL SPEED) SERVICE AND MAINTENANCE ........7 TROUBLESHOOTING ..........8 WARRANTY .............9... -
Page 3: Introduction
1 .0 INTRODUCTION 1.1.1 Congratulations on your recent purchase of a Speck Pool and Spa Pump. Please take a moment to read through the entire manual before installing your new pump. Your pump must be installed and operated as specified. -
Page 4: Technical Specifications
3.0 TECHNICAL SPECIFICATIONS Model Rated Max / Min Model Motor Power (Watts) head (m) Magic8 Fasco Motor 806452NTG-A13AC 14/4 Magic 11 Fasco Motor 806452PTG-A13AC 1000 13/4 Aqua maxi 300 Fasco Motor 806452PTG-A13AC 1000 13/4 Aqua maxi 400 Fasco Motor 806452QTG-A30AC 1100 15/4 90/230... -
Page 5: Operation
ELECTRICAL CONNECTION 4.3.1 Speck Pool and Spa pumps are suitable for connection to a nominal 230VAC 50hz power supply. 4.3.2 The motor is equipped with a flexible cable and 3-pin plug. If a power outlet is not available within 2 meters of the pump, a 3-pin power point in a safe dry place will need to be provided by an electrician. -
Page 6: 90/500 Ds (Dual Speed)
The Speck 90/500 DS Dual Speed pump is rated at 1500 Watts and the two speeds operate as follows:... -
Page 7: Service And Maintenance
6.0 SERVICE AND MAINTENANCE 6.1.1 To achieve a maximum potential life expectancy from the pump ensure the following steps are taken: 6.1.2 Empty the skimmer basket regularly. The regularity will vary from pool to pool, for example: a) Where you may have lots of leaves and debris you should empty the basket twice or more for each operating cycle, particularly when using a suction type cleaner. -
Page 8: Troubleshooting
6.1.6 Noisy Pump. As with all mechanical devices, if more noise than usual is heard coming from the pump, notify your pool retailer or your pool service technician. A noise can indicate a fault and the longer this is left unattended the risk of increased damage can occur resulting in an expensive repair or replacement. -
Page 9: Warranty
TERMS OF EXPRESS WARRANTY Your Speck pool pump carries a manufacturer’s warranty of two (2) years on the motor and five (5) years on wet end components including casing, diffuser, gland housing, impellor and mechanical seal subject to the following terms: •... - Page 10 • The product was operated under adverse conditions including, but not limited to, use with water exceeding 35°C, hot operating enclosures with poor ventilation, fluctuating power supplies, water pressure greater than 250kpa, or lack of protection from the weather. • Normal wear and tear or deterioration associated with the age or use of the product.
- Page 11 WARRANTY CLAIMS If you consider that the product which you have purchased is not of acceptable quality, has a latent defect or is otherwise not compliant with the warranties, conditions, undertakings and legal rights you have under Applicable Laws you can make a claim under this warranty by contacting: Continental Water Systems Pty Ltd 5 Anvil Road, SEVEN HILLS NSW 2147 Email: sales@continentalwater.com.au...
- Page 12 1300 166 253 for Sales and Service sales@continentalwater.com.au / accounts@continentalwater.com.au ABN: 71 050 287 735 New South Wales Office Victorian Office Queensland Office New Zealand Office (02) 8814 2800 (03) 8794 3800 (07) 3434 1100 0011 64 9570 9570 (02) 9838 7030 (03) 9702 3941 (07) 3219 2266 0015 64 9527 7641...
