TUSA REGULATORS
TUSA-ATEMREGLER
DETENDEURS TUSA
TUSA ADEMAUTOMATEN
REGULADORES TUSA
EROGATORI TUSA

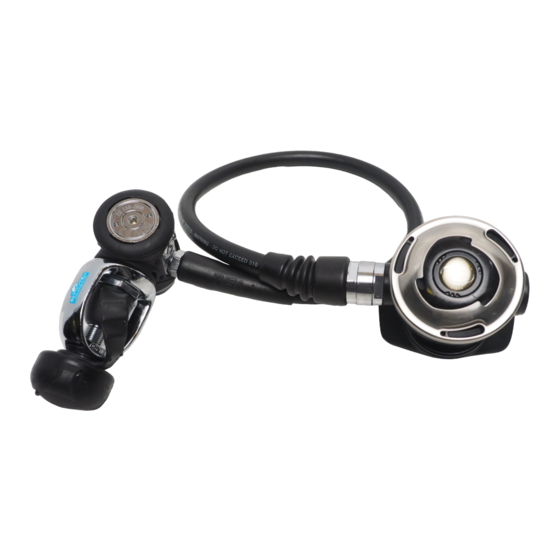

RS-340, RS-350, RS-460II, RS-520, RS-530
RS-560, RS-670, RS-680, RS-760, RS-790
RS-811, RS-812, RS-860
OWNER'S MANUAL
BEDIENUNGSANLEITUNG
MANUEL D'UTILISATEUR
HANDLEIDING
MANUAL DEL PROPIETARIO
LIBRETTO ISTRUZIONI
BEFORE USING ANY TUSA REGULATOR, READ THIS MANUAL COMPLETELY.
VOR GEBRAUCH EINES TUSA-ATEMREGLERS DURCHLESEN.
AVANT D'UTILISER UN DETENDEUR TUSA, VEUILLEZ LIRE CE MANUEL
COMPLETEMENT.
LEES DEZE HANDLEIDING VOLLEDIG VOOR U UW TUSA-ADEMAUTOMAAT GEBRUIKT.
SĺRVASE LEER COMPLETAMENTE ESTE MANUAL ANTES DE UTILIZAR.
CUALQUIER REGULADOR TUSA.
PRIMA DI UTILIZZARE UN EROGATORE TUSA DI QUALSIASI TIPO, SI RACCOMANDA DI
LEGGERE A FONDO IL PRESENTE LIBRETTO ISTRUZIONI.
N 1st
EN250
Advertisement
Chapters
Table of Contents
Related Manuals for Tusa RS-340
Summary of Contents for Tusa RS-340
- Page 1 LEES DEZE HANDLEIDING VOLLEDIG VOOR U UW TUSA-ADEMAUTOMAAT GEBRUIKT. SĺRVASE LEER COMPLETAMENTE ESTE MANUAL ANTES DE UTILIZAR. CUALQUIER REGULADOR TUSA. PRIMA DI UTILIZZARE UN EROGATORE TUSA DI QUALSIASI TIPO, SI RACCOMANDA DI LEGGERE A FONDO IL PRESENTE LIBRETTO ISTRUZIONI. N 1st...
-
Page 2: 300, R-300Din First Stage
Regulators R-300 FIRST STAGE R-300 R-300 ITEM PART NO. DESCRIPTION R300-110 YOKE KNOB R300-090 YOKE O-RING HO-50 RETAINING RING R300-120 FILTER TR-401-38 DUST COVER EN250 R300-130 YOKE RETAINER R300-080 WASHER,YOKE O-RING R300-010 SPRING CONTROLLER R300-020 WASHER,SPRING R300-030 DIAPHRAGM SPRING R300-040 LOCK NUT R300-050 SPRING BASE... -
Page 3: 400, R-400Din First Stage
R-400, R-400DIN FIRST STAGE Regulators R-400, R-400DIN R-400, R-400DIN ITEM NO. PART NO. DESCRIPTION 5,7,8,9,10,11,12 DIN-RS460 DIN CONVERSION KIT R-400-010 DECAL R-400-020 YOKE SCREW 9/16" R-400-030 YOKE R-400-040 FILTER RETAINER R-400-050 FILTER R-400-060 YOKE RETAINER O-RING R-400-080 FILTER RETAINER 300 BAR R-400-090 SPRING R-400-100... -
Page 4: Table Of Contents
Regulators R-500, R-500DIN FIRST STAGE R-500 R-500 ITEM PART NO. DESCRIPTION R300-110 YOKE KNOB /R500-040 YOKE HO-50 RETAINING RING R300-120 FILTER /R500-060 YOKE RETAINER O-RING TR-401-38 DUST COVER /R500-110 SADDLE /R500-050 LP CHAMBER PLUG O-RING /R500-030 PISTON STOPPER O-RING /R500-020 PISTON /R500-090 SPACER... -
Page 5: 600, R-600 Din First Stage
R-600, R-600DIN FIRST STAGE Regulators R-600 R-600 ITEM PART NO. DESCRIPTION /R600-010 BODY R300-060 DIAPHRAGM R300-050 SPRING BASE R300-030 DIAPHRAGM SPRING R300-020 WASHER SPRING /R600-020 LOCK NUT /R600-030 CONTROLLER /R600-070 /R600-040 BUTTON /R600-050 BOB PIN R300-250 LP PLUG O-RING R300-210 HP PLUG O-RING /R500-040... -
Page 6: 700, R-700Din First Stage
Regulators R-700, R-700DIN FIRST STAGE R-700, R-700DIN R-700, R-700DIN ITEM PART NO. DESCRIPTION /R700-010 DECAL /R700-020 YOKE SCREW /R700-030 YOKE /R400-040 RETAINER /R400-050 FILTER /R400-060 YOKE RETAIN /111-PUR85 O-RING /R700-040 FILTER RET. 200 bar /R400-080 FILTER RET. 300 bar /R400-090 SPRING /R700-050 KNOB RET. -
Page 7: 800, R-800Din First Stage
R-800, R-800DIN FIRST STAGE Regulators R-800, R-800DIN R-800, R-800DIN PART NO. ITEM DESCRIPTION R-800 R-800DIN /R700-020 YOKE SCREW /R800-010 DECAL /R700-030 YOKE 9/16" /R400-040 RETAINER /R400-050 /R400-050 FILTER /R400-060 YOKE RETAIN /111-PUR85 O-RING /R400-080 FILTER RET.300bar /R400-090 SPRING /R400-100 KNOB RET.300Bbar /R400-110 KNOB.300bar /014-EP85... -
Page 8: 11/Ss-11Second Stage
Regulators S-11 / SS-11 SECOND STAGE S-11 / SS-11 S-11 / SS-11 ITEM PART NO. DESCRIPTION TR-402-372 PROTECTIVE SLEEVE O-RING S-11-010 L.P. HOSE S-11-240 L.P. HOSE (SS-11) S-11-020 SLEEVE HOSE O-RING S-11-030 NUT. JAM S-11-040 CASE S-11-050 DECAL S-60-040 S-60-060 DIAPHRAGM S-60-070 DISC... -
Page 9: 12 Second Stage
S-12 SECOND STAGE Regulators S-30 S-12 ITEM PART NO. DESCRIPTION TR-402-372 PROTECTIVE SLEEVE O-RING S-12-010 L.P. HOSE cm.75 S-12-020 SLEEVE HOSE O-RING S-12-030 NUT. JAM S-11-040 CASE S-12-040 DECAL S-60-040 S-11-060 DIAPHRAGM S-11-070 DISC S-11-080 DIAPHRAGM ASSY S-11-090 RING S-11-100 PARGE ASSY S-60-120 CLIP... -
Page 10: 20/Ss-20 Second Stage
Regulators S-20 / SS-20 SECOND STAGE S-20 / SS-20 S-20 / SS-20 ITEM PART NO. DESCRIPTION S40-010,/RSU MOUTHPIECE RSU116 MOUTHPIECE CLIP S10-111 CASE S50-050 DIAPHRAGM S50-040 DIAPHRAGM DISC /S20-110 DIAPHRAGM COVER O-RING /S20-120 DIAPHRAGM RETAINER S30-011 EXHAUST TEE S30-271 EXHAUST VALVE /S20-100 PLUG O-RING... -
Page 11: 30 Second Stage
S-30 SECOND STAGE Regulators S-30 S-30 ITEM PART NO. DESCRIPTION S30-052 DIAPHRAGM RETAINER S30-100 PURGE GUARD S30-081 DIAPHRAGM COVER S30-062 DIAPHRAGM S30-221 CASE RSU116 MOUTHPIECE CLIP /RSU196 MOUTHPIECE S30-271 EXHAUST VALVE S30-011 EXHAUST TEE S30-030 SLEEVE S30-260 NUT,DEMAND HOUSING S30-250 SPACER O-RING O-RING... -
Page 12: 40 Second Stage
Regulators S-40 SECOND STAGE S-40 S-30 ITEM PART NO. DESCRIPTION S30-052 DIAPHRAGM RETAINER O-RING S40-030 SAFTY RING S10-030 PURGE BUTTON S10-040 PURGE SPRING S40-041 RETAINER, PURGE BUTTON S40-050 DIAPHRAGM COVER S30-062 DIAPHRAGM S30-221 CASE RSU116 MOUTHPIECE CLIP /RSU196 MOUTHPIECE S30-011 EXHAUST TEE S30-271 EXHAUST VALVE... -
Page 13: 50 Second Stage
S-50 SECOND STAGE Regulators S-30 S-50 ITEM PART NO. DESCRIPTION /S50-241 DECAL /S50-081 PURGE BUTTON S10-040 PURGE SPRING RSU146 METAL DIAPHRAGM RETAINER ASSY O-RING S40-030 SAFETY RING S10-050 WASHER,DIAPHRAGM S50-040 DIAPHRAGM DISC S50-050 DIAPHRAGM S30-221 CASE RSU116 MOUTHPIECE CLIP /RSU196 MOUTHPIECE S30-011 EXHAUST TEE... -
Page 14: 60/Ss-60 Second Stage
Regulators S-60 / SS-60 SECOND STAGE S-60 / SS-60 S-60 / SS-60 ITEM PART NO. DESCRIPTION TR-402-37 HOSE PROTECTOR O-RING S-60-030 L.P.HOSE S-60-040 PIN, CASE S-60-050 ORIFICE S-60-060 BODY, VALVE O-RING S-60-080 EXHAUST VALVE S-60-090 EXHAUST TEE S-60-100 PIN, COVER EXHAUST S-60-110 MOUTHPIECE, BLACK 0108BK... -
Page 15: 70 Second Stage
S-70 SECOND STAGE Regulators S-70 S-70 ITEM PART NO. DESCRIPTION S30-300 DIAPHRAGM RETAINER O-RING S40-030 SAFTY RING /S50-241 DECAL /S50-081 PURGE BUTTON S10-040 PURGE SPRING /S70-010 DIAPHRAGM COVER S30-062 DIAPHRAGM S30-221 CASE RSU116 MOUTHPIECE CLIP /RSU196 MOUTHPIECE S30-011 EXHAUST TEE S30-271 EXHAUST VALVE S40-080... -
Page 16: 80 Second Stage
Regulators S-80 SECOND STAGE S-80 S-80 ITEM PART NO. DESCRIPTION /S80-010 CASE /S80-020 EX TEE /S80-030 EX TEE FRAME /S80-040 UPPER EX TEE /S80-050 UPPER EX VALVE /S80-060 CHECK VALVE /S80-070 FLAP O-RING /S80-080 FLAP RETAINER /S80-100 KNOB RIDGE /S80-090 KNOB /S80-110 DEFLECTEOR... -
Page 17: 90 Second Stage
S-90 SECOND STAGE Regulators S-90 S-90 ITEM PART NO. DESCRIPTION /S90-010 PROTECTIVE SLEEVE /010-EP O-RING /S90-020 L.P. HOSE cm.75 /S90-030 SLEEVE HOSE /S90-040 NUT. JAM UNIF. /014-EP85 O-RING /S90-050 CASE /S90-060 PIN. CASE /S90-070 DECAL V.I.V.A. /S60-080 EXHAUST VALVE /S60-090 COVER EXHAUST /S60-100 /S60-110... -
Page 18: R500
We at TUSA want you to have many years of dependable service from your new equipment and have many memorable and safe dives. Thank you for purchasing one of our high quality products. - Page 19 Notified Body GL (Germanischer Lloyd), entitled for the EC quality control system for the final product according to Art. 11.A of Directive 89/686/EEC.” RS-340, 350, 520, 530, 670, 680 Notice: “The PPE (Personal Protective Equipment) mentioned in this User’s Manual was submitted to tests for validation of the design and certified according to Art.
-
Page 20: R500
Regulators TABLE OF CONTENTS Technical Specification and Performance Page No. 1 R-300, R-300DIN First Stage ..............1 2 R-400, R-400DIN First Stage ..............2 3 R-500, R-500 DIN First Stage ..............3 4 R-600, R-600 DIN First Stage ..............4 5 R-700, R-700 DIN First Stage ..............5 6 R-800, R-800 DIN First Stage ..............6 7 S-11/SS-11Second Stage ................7 8 S-12 Second Stage .................8... -
Page 21: Warning Read Carefully
Notice: Model RS-340, 350, 460, 520, 530, 560, 670, 680, 760, 790, 811, 812, 860 are in- tended to be used up to a 50 meter (164 feet) maximum water depth only. -
Page 22: Description And Operation
R-400 first Stage The TUSA R-400 offers a first stage with the balanced diapraghm method. This method features minimum variation in intermediate pressure in response to changes in residual cylinder pressure and depth. The R-400 is engineerd for cold water diving (EN-250-2000). -
Page 23: Second Stage
Regulators ond stages.The balanced diaphragm method first stage features minimum variation in intermediate pressure in response to changes in residual cylinder pressure and depth. The ports are in left-right symmetry (H.P. × 2, L.P. × 4) for easier attachment to tanks, even for beginners. R-700 first Stage The R-700 is a balanced diaphragm first stage with key design and performance characteristics:... - Page 24 S-80 elliptical case to decrease primary exhaustion resistance. Click Spring Adjustment (RS-670, 680) The click spring adjustment feature is exclusive to TUSA. It is a 5 position adjust- ment knob designed to better control breathing resistance. Adjustable control knob (RS-812) The adjustable knob designed to better control breathing resistance.
-
Page 25: Pre-Dive Procedures
10°C (50°F). Performing this in a cold environment may cause “freeze-up” of the regulator which can render it inoperable. If this occurs, you should contact a TUSA authorized service center. Check the submersible pressure gauge to ensure that it indicates the proper tank pressure. -
Page 26: After Dive Procedures
AFTER DIVE PROCEDURES Providing the best possible preventative and routine maintenance before, after, and between dives will help to ensure the maximum life of your TUSA Regulator. To achieve this goal, there are a number of simple, yet important, routine maintenance procedures that should be followed by the diver after each use of the equipment. -
Page 27: Contaminated Water Diving
Sophisticated diving gear designed for use in contaminated water provides constant positive pressure inside the regulator case and utilizes redundant exhaust valve passages. TUSA regulators are not designed to provide this requirement and therefore are not recommended for use in contaminated water diving. -
Page 28: Vli Scheduled Maintenance
Have your regulator cleaned and adjusted frequently. The frequency will depend upon the amount of use given the regulator and the conditions of use. However, TUSA strongly recommends inspection, overhaul and scheduled parts replacement at least once a year in order to ensure the optimum functioning of the regulator. -
Page 29: Vlii "Air Refresher" Filter Replacement
Do not disassemble your regulator. There are no adjustments which can or need to be carried out by the user. Take the regulator to a qualified TUSA dealer or service facility for service. Ensure that only original parts are used to service your regulator. - Page 30 www.tusa.com...
