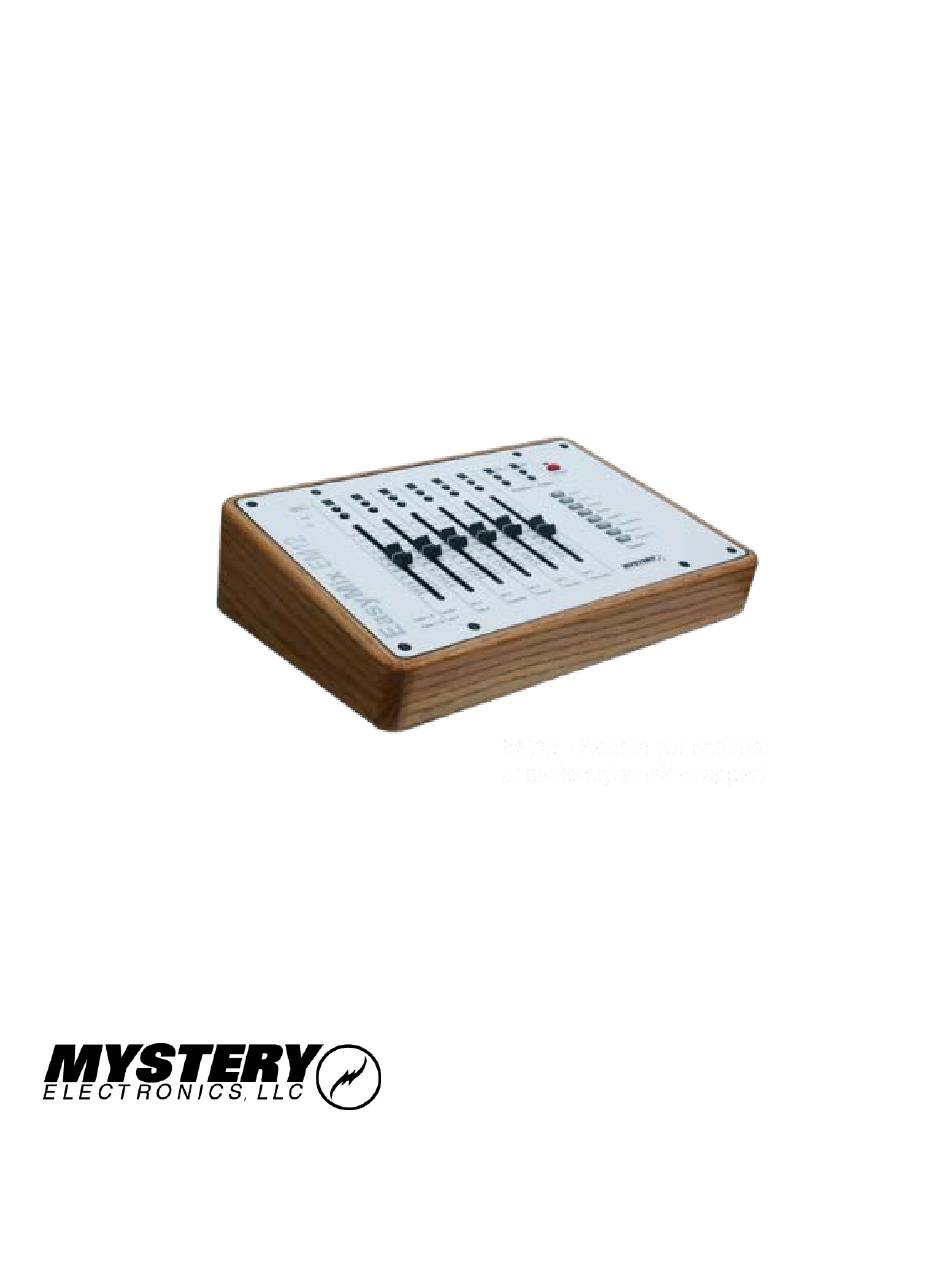

- Page 1 EasyMix DSP Remote Control Model EM12 User Guide The Tactile DSP Remote Control Solution 6438 Morton Road Greenbrier, TN 37073 800 798 2256 sales 615 643 8460 support 615 643 8464 fax...
-
Page 2: Table Of Contents
Contents: How to connect to the EM12 Home Site Setup Site Setup – BSS Soundweb London Site Setup – Rane HAL Site Setup – Symetrix SymNet and Jupiter Site Setup – Biamp Tesira Site Setup – Q-Sys Network EM 12 Setup Fader Cal Update Page | 2... -
Page 3: How To Connect To The Em12
How to connect to the EM12. The EM12 is set to use DHCP by default. The easiest method of locating the EM12 is to connect it to a LAN that has a DHCP server. You can manually assign a static IP after accessing the EM12 setup pages. -
Page 4: Site Setup
Site Setup Page The Site Setup page allows you to link the EM12 controls to the controls in your DSP configuration file. The following controls are available for linking. • Faders 1-24 (Banks A, B, C, and D) • Low Shelf 1-24 (Banks A, B, C, and D) •... - Page 5 Save to EM12 - Saves the current configuration to the EM12. Specify a Site name to name the configuration. Export from EM12 - Saves the current configuration stored in the EM12 to a file for later import. Import to page - Load a configuration file to the user interface for editing. Note: to save a configuration file for later import, configure your device and click Save to EM12.
-
Page 6: Site Setup - Rane Hal
Site Setup Page – Rane HAL Choose Rane to load the default settings for a Rane DSP. The default settings set the DSP port and Communication type (found on the Network page). Note: Refer to the HAL help file for instructions on how use control numbers within your HAL system. -
Page 7: Site Setup - Symetrix Symnet And Jupiter
Options are: • EQ • Level • Toggle Site Setup Page – Symetrix SymNet and Jupiter Choose Symetrix or Jupiter to load the default settings for a Symetrix or Jupiter DSP. The default settings will match the example DSP Supermodule file found on www.easymix.net. The default settings also set the DSP port and Communication type (found on the Network page). -
Page 8: Site Setup - Biamp Tesira
= unknown. Save to EM12 to update the setup. • • = no communication with particular control on the setup file. Check your settings. • = Communication established. Enter the Control Number for the item that you wish control. Set the Scale to match the SymNet control. Options are: •... - Page 9 Export from EM12 - Saves the current configuration stored in the EM12 to a file for later import. Import to page - Load a configuration file to the user interface for editing. Note: to save a configuration file for later import, configure your device and click Save to EM12. This stores the file to the EM12.
-
Page 10: Site Setup - Q-Sys
Site Setup Page – Q-Sys Choose Symetrix to load the default settings for a Q-Sys DSP. The default settings also set the DSP port and Communication type (found on the Network page). Note: Symetrix and Q-Sys are sharing the same external protocol for the EM12. Save to EM12 - Saves the current configuration to the EM12. -
Page 11: Network
Network Page EasyMix Static IP address – Set a static IP address for the EasyMix. DHCP – Select Static IP or DHCP. If DHCP is enabled and a DHCP server is present on your network then the static IP address entered above will be ignored. DSP IP address –... - Page 12 System Buttons This section allows you to map the 12 System button on the EasyMix to a function or control in the Site Setup Page. • Map – Choose from: o Unused o 1-6 (Bank A) o 7-12 (Bank B) o 13-18 (Bank C) o 19-24 (Bank D) o Hi...
- Page 13 Faders This section allows you to configure the 6 faders and the buttons and LEDs above the faders. • Fader – Choose between Fader and Master. A Fader designated as a Master fader will remain available on every layer. • Auto – Enables or disables the upper button above each fader. •...
-
Page 14: Fader Cal
Fader Cal Page Calibrate the faders using the adjustments available on this page. Update Page Upload firmware updated to the EasyMix from this page. You must have a USB drive in the USB slot on your EasyMix for this to work. 1. - Page 15 Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
