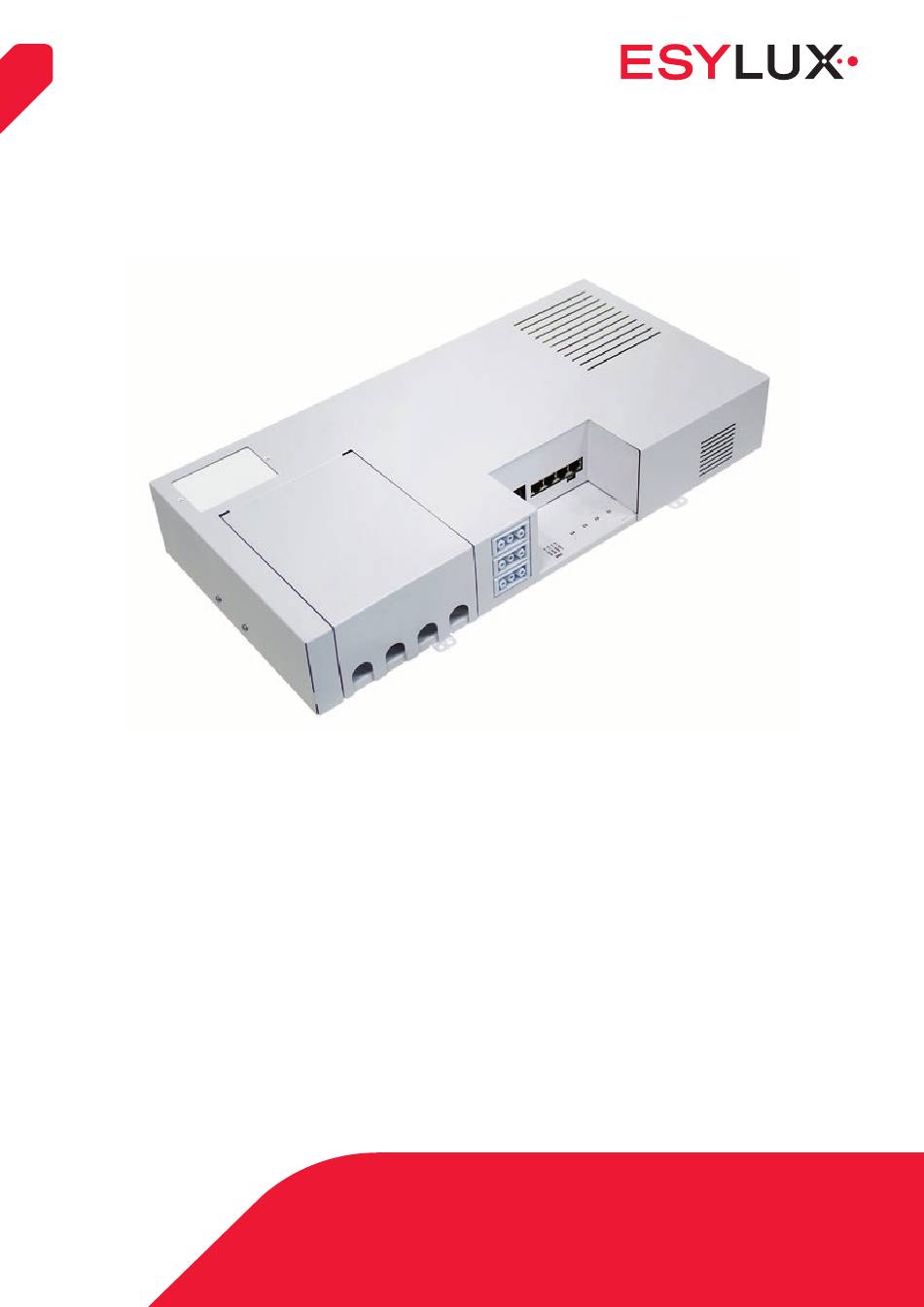

Page 1 ESYLUX Light Control SmartDriver series ELC SmartDriver x4 Ceiling lights with a colour temperature of 3000 K and 4000 K Detailed operating instructions...
Page 2 An der Strusbek 40, 22926 Ahrensburg, Germany Details may be subject to change. Copying is only permitted with the written consent of ESYLUX GmbH. This includes translation into other languages and reuse of content for other purposes. 1 / 107...
Page 3: Table Of Contents
Table of contents Table of contents 1 Information about the document ................6 Introduction..................6 1.2 Highlighted information within the text ..........6 1.3 Manufacturer address ................7 1.4 Product identification ................7 1.5 Structure of these instructions ............... 7 Warnings ..................... 8 2 Basic safety information ..................
Page 4 Table of contents Manually triggered operating modes ............. 33 Operating modes and detected movements ........... 34 6 Setting via remote control ..................36 6.1 Selecting X-Light Control remote control ..........37 6.2 X-Light Control menu layout ..............37 7 The <Functions> remote control menu ..............40 7.1 Channel 1, 2, 3 and 4 ................
Page 5 8.15 Detector Light Factor ................69 9 Operation via Bluetooth App ................... 70 Light Control Box with Bluetooth ............70 The ESYLUX LIGHT CONTROL app ............70 9.2.1 Using the app ................. 71 9.2.2 Differences between the Android and iOS app ......72 Setting up a Bluetooth connection ............
Page 6 15.1 List of DALI commands ..............101 16 Maintenance ....................... 104 16.1 Cleaning ..................104 16.2 Troubleshooting ................104 17 Technical data ....................105 18 Disposal ......................106 19 EC-declaration of conformity ................106 20 ESYLUX MANUFACTURER’S GUARANTEE ............... 107 5 / 107...
Page 7: Information About The Document
This document is also available online at www.esylux.com and can be print- ed in A4 format. When you are reading the document on screen, you can use the following...
Page 8: Manufacturer Address
Each Light Control Box can be operated via remote control and buttons. Remote control makes it much more convenient to choose the settings and many settings are only possible via remote control. An ESYLUX DALI pres- DALI presence ence detector must be connected to the Box to ensure the Light Control Box...
Page 9: Warnings
Users of Bluetooth-capable devices such as smartphones or tablets can control the Light Control Box via the free ESYLUX LIGHT CONTROL app. Operation via app is explained starting from Chapter 9. There is only one situation in which the infrared...
Page 10: Basic Safety Information
Basic safety information Basic safety information 2.1 Intended use The ESYLUX Light Control Box may only be used for the following purposes: • Installation in indoor areas as an operating device for the ESYLUX CELINE Satellite recessed surface-mounted ceiling lights with a...
Page 11: Product Description
Product description 3.1 Equipment The ESYLUX Light Control Box is designed for indoor use as an operating de- vice for the ESYLUX CELINE Satellite and ESYLUX NOVA Slave recessed sur- face-mounted ceiling lights with a colour temperature of 3000 K and 4000 K.
Page 12 Product description view is intended to serve as a decision-making aid for electrical installation technicians and users when configuring the settings at a later point. Most settings can be only be adjusted via remote control or app. Function Benefit Overview of Dimming Adjusts the illumination level. functions Consistent lighting conditions by automatically Constant light adjusting the illumination level to the ambient light control...
Page 13: Dimensions Diagrams
Product description 3.3 Dimensions diagrams 3.3.1 Dimensions 474 mm 3.3.2 Drill hole spacing 245 mm 12 / 107...
Page 14: Type Plate
= 85 °C SEC: Constant Current: DC 4 x 700 mA, max. 48 V DALI GmbH An der Strusbek 40 22926 Ahrensburg/Germany www.esylux.com AG01246700 Only for LED Modules - see instruction manual Designation 2. Item number 3. Technical data Bluetooth model...
Page 15: Installation And Connection
Installation and connection Installation and connection 4.1 Installation The Light Control Box is intended for use in wall or ceiling mounting.  Drill four mounting holes (see page 12 for drill hole spacing).  Screw the Light Control Box securely into place. Ceiling and wall mounting 4.2 Connecting the Light Control Box ...
Page 16 Installation and connection Connection terminal for buttons S1/S2 2. Mains terminal DANGER! Risk of fatal injury from electric shock!  Switch off the power to the cable.  Check that the cable is de-energised. Connection to the power supply:  Connect the Box to the mains terminal and to the earth conductor terminal as shown in the wiring diagram.
Page 17: Connecting Devices To The Light Control Box
Installation and connection 4.3 Connecting devices to the Light Control Box 4.3.1 Overview: Connectable devices The Light Control Box is designed to be connected to lights and DALI devic- es via the following connections: • RJ-45 sockets for connecting up to four CELINE Satellites or NOVA slave lights •...
Page 18: Connections
To enable the Light Control Box to control the lighting according to your DALI preferences, you need to connect a DALI presence detector. The following presence detector ESYLUX DALI ceiling-mounted presence detectors are suitable: • PD-C 360i/8 CU-C Light (order number EP10427602) • PD-C 360i/24 CU-C Light (order number EP10427619) These presence detectors have a 360° field of detection. The detectors also...
Page 19: Connecting Celine/Nova Lights
Installation and connection SENSOR ESYLUX PD-C360i/8 CU-C Light PD-C360i/24 CU-C Light 4.3.4 Connecting CELINE/NOVA lights ESYLUX Light Control Box ESYLUX NOVA Slave / CELINE Satellite CU-ELC Box Dali 3000 K / 4000 K RJ-45 RJ-45 RJ-45 RJ-45 RJ-45 C4 C3 C2 C1...
Page 20: Connecting Dali Lights And Dali Switch Devices
The RJ-45 connection cable must not exceed 10 metres. Connection to be used for ESYLUX lights only! Only the above-mentioned ESYLUX lights may be connected to the RJ-45 interfaces. Other equipment such as Internet routers or lights designed to be powered via a LAN cable (power over Ethernet) could be irreparably damaged by connecting them to the RJ-45 jacks.
Page 21 Installation and connection How to connect DALI lights and DALI switches:  The connection cables belonging to the required DALI channel are labelled on the terminal provided to help you identify them: RJ-45 DALI C4 C3 C2 C1  Use the cables to connect the DALI connections of the device to the push terminal: ...
Page 22: Connecting Dali Buttons
DALI commands. There are two connection options: 1. You can use one of the C0 sockets. Suitable jacks are available from ESYLUX as an accessory. SENSOR You can use the C0 connections on the mains terminal: 1: Mains terminal with DALI C0 connections.
Page 23: Connecting To Knx Bus
Installation and connection 4.3.7 Connecting to KNX bus The CU-ELC Box Dali KNX has a KNX module and can be connected with a KNX bus. NOTE! Reversing the polarity of the connections will lead to a loss of functionality in one or more participants.
Page 24 Installation and connection The bus power can be supplied in two ways: DALI power sources • via the Light Control Boxes • via an external DALI power supply The following section explains which settings to use if you want to connect more than five Light Control Boxes and power the DALI bus using the Light Control Boxes.
Page 25 Installation and connection max. 5 x ON max. 20 The “DALI Power” switch may only be “ON” for a maximum of five devices. NOTE! Connecting more than five Light Control Boxes with an active DALI bus voltage supply can damage the device!  For each additional Box that you want to connect to five Boxes, first deactivate the DALI bus power supply! How to deactivate the internal DALI bus power supply: 230 V ~ 230 V ~ DALI POWER OFF Deactivating the internal DALI bus voltage 24 / 107...
Page 26 Installation and connection  Disconnect the device from the supply voltage.  Unscrew the cover to access the “DALI Power” switch.  Slide the switch to the “OFF” position.  Fasten the cover in place.  Reconnect the device to the supply voltage.  During the initialisation phase that follows, the device reads the switch position.
Page 27 Installation and connection 4.3.8.2 DALI bus voltage supply via an external power supply If you are using an external DALI power supply, the bus voltage supply must All "DALI Power" be deactivated for all Light Control Boxes: switches "OFF"! 230 V ~ 230 V ~ DALI POWER OFF max.
Page 28 Installation and connection Adjusting the switch during operation has no effect on the bus voltage supply, as the Light Control Box only reads the switch po- sition during the initialisation phase. This is why you must always disconnect the device from the supply voltage before you change the switch position.
Page 29: Connecting Light Control Boxes In Parallel
Installation and connection  Disconnect the device from the supply voltage.  Unscrew the cover to access the connection terminals.  Connect the power supply to the mains terminal as shown on the wiring diagram: DALI PS 16 V C0+ C0+ C0- C0- Fasten the cover in place.
Page 30: Warm-Up Phase
LED = presence detected; blue LED = Light Control Box is in programming mode. 4.5 Factory settings The Light Control Boxes are configured with factory settings. These defaults can be changed according to preference. ESYLUX recommends noting down the changed settings in the right-hand column of the table. Settings Default...
Page 31: Initial Steps
Overview of operating modes Settings Default Individual setting Master channel 1 DALI channel 1 map (C1) Slave channel 2 DALI channel 2 map (C2) Slave channel 3 DALI channel 3 map (C3) Slave channel 4 DALI channel 4 map (C4) Active, mode: fully DALI switch DS1 automatic...
Page 32: Sequence Of The Operating Modes
Overview of operating modes • The automatic sequence of the operating modes if the Light Control Box does not detect any presence. • Operating modes that are triggered manually. • The effect of detected presence on the individual operating modes. Changes in the ambient light can cause the lighting to switch on or off automatically depending on the settings.
Page 33 Overview of operating modes Switch-off warning mode Action in switch-off • Illuminates in accordance with the settings warning mode for the orientation light. Trigger for off warning • Expiry of the off delay time in normal oper- mode ation or override mode. •...
Page 34: Manually Triggered Operating Modes
Overview of operating modes 5.2 Manually triggered operating modes Other than these operating modes that the Light Control Box can automat- ically switch between, there are other operating modes that are triggered manually or by certain events: Override mode • Illumination that differs from normal oper- ation mode owing to manual interventions such as changes to brightness or activation...
Page 35: Operating Modes And Detected Movements
Overview of operating modes Test mode • Remote control button for starting test Trigger mode. • All light channels work at 100%, blue Action notification LED flashes following detected movement. • When fully automatic is activated: Energy-saving mode, transition to normal op- Subsequent operating eration mode following presence detection.
Page 36 Overview of operating modes Switch-off warning mode Effect of detected move- • Ends the off warning mode. ment • Switch to the previous operating mode, Subsequent operating which is either normal operation mode or mode override mode. Orientation light mode Effect of detected move- •...
Page 37: Setting Via Remote Control
Simply download the latest software version for one of the implemented remote controls from the ESYLUX website to an SD card. Unscrew the bottom cover on the rear of the remote control to insert the SD card into the universal remote control.
Page 38: Selecting X-Light Control Remote Control
The tables serve as an initial guide and may help you to find a required function more quickly. The remote control does not show the most recently programmed values. Therefore, ESYLUX recommends noting down the settings you make using the template provided on page page 29. 37 / 107...
Page 39 Setting via remote control Layout of the <Functions> menu item Channel 1 Functions Functions Channel 1 Same sub-menu: Channel 2 Channel 3 Dim start Channel 4 Channel 2 All Channels Dim stop Call scene Channel 3 Bat ok LS Light value Channel 4 All Channels Dim start...
Page 40 Setting via remote control Layout of the <Programming> menu item Channel 1 Programming Programming Calibration Channel 2 All Channels Calibration DALI Map Channel 3 DALI Switch Scene editor Channel 4 Calender Bat ok LS Store brightness Light set value Off delay time Off warning time Orientation light Orient.
Page 41: The Remote Control Menu
The <Functions> remote control menu CH1 % Programming CH2 % CH3 % Scene editor CH4 % DS 1 DS 2 Scene Years Months Days Calendar Hours Minutes Seconds Factory reset Reset editor Sensitivity Detector LEDs On Detector LEDs Off Light value on Light value off Detector Fact.
Page 42: On/Off
The <Functions> remote control menu 7.1.1 On/Off The lighting for each channel is temporarily switched on or off using the Channel 1 <On> and <Off> menu items. Dim start Switching a channel on: Dim stop Light value 1. Select the <Functions> menu item and confirm the selection with the Bat ok LS button.
Page 43: Luminous Efficiency
The <Functions> remote control menu Changing the dimming direction:  Press the button to confirm the <Dim start> menu item again during the dimming process.  The lighting is adjusted in a different direction, e.g. from bright to dark. Stopping the dimming process: 1. Select the <Functions> menu item and confirm the selection with the button. 2. Press the button to select the channel to be dimmed and confirm the selection with the button.
Page 44: Call Scene
The <Functions> remote control menu 7.3 Call scene The menu item <Call scene> activates one of the four light scenes. You can Call scene configure each scene according to your preferences. Scene 1 Scene 2 A light scene consists of up to four lighting channels and two DALI switch Scene 3 devices.
Page 45: Dali Switch
The <Functions> remote control menu Chapter “Luminous efficiency” page 42. You can store this setting as a scene for the respective channel. When you save the setting, the previous scene settings for the channel, for example the default factory settings, are deleted. Saving a light scene: 1.
Page 46: Ds1/Ds2 Off
The <Functions> remote control menu The DALI switch can be activated and deactivated for any scene. 7.5.2 DS1/DS2 off The menu items <DS1 off> and <DS2 off> are identical. You can switch on any non-DALI compatible lighting channel individually. How to switch off a lighting channel with DS1 or DS2: 1.
Page 47: Knx Prog. On/Off
The <Functions> remote control menu Activating the test function: 1. Select the <Functions> menu item and confirm the selection with the button. 2. Select the button to choose the menu item <Test start> and con- firm the selection with the button.  The entire lighting is switched on.  The blue LED flashes in the sensor head when motion is detected. Ending the test function: 1.
Page 48: The Remote Control Menu
The remote control menu <Programming> The remote control menu <Programming> In the <Programming> menu item, you can set permanent settings. The settings are retained even when the device is not supplied with power — for example because the power supply in the build- ing is switched off overnight. 8.1 Activate/deactivate programming mode Activating programming mode via the remote control: ...

Page 49 The remote control menu <Programming> For more information on setting the target brightness, see Chapter “Light set value” page 51. 450 Lux 80 cm The light sensor must be calibrated with three measurements at least once Greater precision per lighting channel. We recommend three measurements per channel for through repetition optimum illumination results.
Page 50: All Channels
The remote control menu <Programming> 5. Use a lux meter to measure the current light value at the desired loca- Measurement 1 tion, e.g. at a desk. The reading is 600 lux, for example. 6. Enter the lux value using the button and confirm the entry with button.
Page 51 The remote control menu <Programming> • Light Control Boxes capture the current light value using the connect- ed DALI presence detector. • Lights with an integrated light sensor send the current light value of their channel to the Light Control Box. If a channel does not have a sensor because only one light without a light sensor is working on the channel, the value of the DALI presence detector is used for this channel.
Page 52: Light Set Value
The remote control menu <Programming> 3. Select the <Store brightness> menu item and confirm the selection with the button. 4. Close programming mode with the button.  The reference value is now saved. 8.3.2 Light set value The light set value is the target brightness value and acts as the threshold value for the lighting control.
Page 53: Off Delay Time
The remote control menu <Programming> 8.3.3 Off delay time Off delay time function determines for how long the connected lights remain switched on after the last detected movement. The off delay time applies to normal mode and override mode, which is a temporary change to normal mode.
Page 54: Orientation Light
The remote control menu <Programming> off delay time has elapsed. The off warning time now starts, which is set to 60 seconds. During this time, the lighting uses the brightness that is set for the orientation light. If presence is detected during this time, the Light Control Box returns to override mode.
Page 55: Orient. Time Mode
The remote control menu <Programming> 5. Use the buttons to set the brightness as a percentage of the maximum brightness and confirm the selection with the but- ton. 6. End programming mode by pressing the button.  The brightness for the orientation light is now set. 8.3.6 Orient. time mode The menu item <Orient. time mode> specifies whether the duration for the Mode duration orientation light is set in minutes or with a fixed start and end time. The...
Page 56: Orient. Light In Min
The remote control menu <Programming> confirm the selection with the button. 4. Select the <Orient. time mode> menu item and confirm your selection with the button. 5. Select the button to choose the menu item <Until time> and confirm the selection with the button. 6. End programming mode by pressing the button.  The duration of the orientation light can now be set with the menu items <Orient.
Page 57: Orient. Light From H/Orient. Light To H
The remote control menu <Programming> 8.3.8 Orient. light from h/Orient. light to h The menu items <Orient. light from h> and <Orient. light to h> specify the duration of the orientation light using fixed start and end times. Thanks to the built-in battery, the configured times are also re- tained in the event of a power failure. Prerequisites: Enter times •...
Page 58: Fully Automatic
The remote control menu <Programming> warning time elapse before the orientation light is due to start, the Light Control Box switches to energy-saving mode without illumi- nation. The time-controlled orientation light is then not activated. If you want to be sure that the orientation light remains lit over- night, set the start time to a time when movement will still be detected.
Page 59: Channel Map
The remote control menu <Programming> The lighting automatically switches off if • the ambient light is brighter than the set target brightness • no movement is detected • the preset off delay time for the light has elapsed. Activating semi-automatic: 1.
Page 60: Dali Map
The remote control menu <Programming> 5. Assign the required channel number to the first channel. To do this, press the button to select the channel number and confirm the selection with the button. 6. Return to the channel selection by pressing the button. 7. Use the button to select the next channel and confirm the selec- tion with the button. 8. Assign the required channel number to the channel. To do this, press button to select the channel number and confirm the selec- tion with the button.
Page 61: Dali Switch
The remote control menu <Programming>  The DALI interface is displayed with the current light channel number. 5. Use the button to choose the light channel to which you wish to assign the DALI interface. Confirm the selection with the button. 6. End programming mode by pressing the button.  The DALI interface is now assigned to the desired light channel. 8.6 DALI switch You can configure DALI switches 1 and 2 under the DALI switch menu DALI Switch...
Page 62: Ds1/Ds2 Switch-Off Delay
The remote control menu <Programming> 2. Enable programming mode by pressing the button. 3. Select the button to choose the menu item <DALI switch> and confirm the selection with the button. 4. Press the button to select the DALI switch that you wish to regis- ter as disconnected. Confirm the selection with the button.
Page 63: Scene Editor
The remote control menu <Programming> ed manually if the off delay time in normal operation or override mode has elapsed. Pulse mode k: If this function is enabled, the DALI switch switches devices such as automatic stairwell timers or current impulse relays on with an im- pulse.
Page 64: Calendar
The remote control menu <Programming> button. 4. Change the luminous efficiency value to 60 % using the button. Confirm your selection with the button. 5. Press the button once. 6. To change the switch status of DALI switch 1 or 2, use the button to navigate to the matrix point DSw1 or DSw2 and confirm the selec- tion with the button. 7. Use the buttons to set the required switching status and confirm the selection with the button.
Page 65 The remote control menu <Programming> 3. Select the button to choose the menu item <Calendar> and con- firm the selection with the button. 4. The menu item <Years> is highlighted. Confirm your selection with button. 5. The input mask is configured for values from the year 2000. Use the buttons to set the year and confirm the setting with the button.  The year is now set. 6. Return to the Calendar menu with the button.
Page 66: Factory Reset
The remote control menu <Programming> 5. Use the buttons to set the hour and confirm the setting with the button. 6. Return to the Calendar menu with the button. 7. Select the button to choose the menu item <Minutes> and con- firm the selection with the button. 8. Use the buttons to set the minute and confirm the setting with the button.
Page 67: Reset Editor
The remote control menu <Programming> 8.10 Reset editor If you change settings in the scene editor, you can undo these changes using the Reset editor function. The values in the scene editor are then reset to the default settings. Reset editor function does not change the Light Control Box settings.
Page 68: Detector Led On/Detector Led Off
The remote control menu <Programming> 8.12 Detector LED on/Detector LED off The LEDs in the presence detector sensor head show the status of the pres- ence detector. This function is activated by default. It can be switched on and off via the remote control. The LED signals are: •...
Page 69: Detector Factory Reset
The remote control menu <Programming> If the connected lights do not have a light sensor, the DALI detector can For lights without use the light value measurement. The light value measurement is deactivat- light sensor ed by default. The measurement must be activated with the remote control command <Light value on>.
Page 70: Detector Light Factor
The remote control menu <Programming> Performing a detector factory reset: 1. Select the <Programming> menu item and confirm the selection with button. 2. Enable programming mode by pressing the button. 3. Use the button to select the menu item <Detector Fact. reset> and confirm the selection with the button. 4. End programming mode by pressing the button.
Page 71: Operation Via Bluetooth App
A device that can send via Bluetooth and that supports the “Blue- tooth low energy” standard. This is usually the case for current Smart- phones, Notebooks and tablets. Some manufacturers identify these devices with the logo “Bluetooth Smart Ready”. Devices on which the ESYLUX app can be installed are usually also compatible with this Bluetooth standard. • The free app ESYLUX LIGHT CONTROL must be installed on the Bluetooth device.
Page 72: Using The App
Operation via Bluetooth App • Apple devices with operating system iOS 9 or above • Android devices with Android version 5.0 or above The app is available in the Apple Store and Google Playstore. 9.2.1 Using the app The app is primarily based on traditional operating conventions. Version 1.17.2 is the exception to this rule: If you use this version of the app to open a menu screen on which functions were activated previously, the app resends the last function selection to the Light Control Box as a...
Page 73: Differences Between The Android And Ios App
Operation via Bluetooth App 9.2.2 Differences between the Android and iOS app The app has the same functions under both operating systems. However, the names of the buttons may differ in some cases. For example, the confir- mation button in the Android app is often labelled <OK>, while the button in the Apple app is often labelled <Done>. There may be further minor differences in the form of icons and buttons.
Page 74: Setting Up A Bluetooth Connection
• Bluetooth is activated on the end device • The ID code on the type plate is available. Setting up the Bluetooth connection: 1. Start the ESYLUX LIGHT CONTROL app.  The device selection screen appears: Device selection screen 2. Tap on the button <...
Page 75 Operation via Bluetooth App Once registered, the Light Control Box is always displayed in the device selection screen of the app. Multiple registered Light Control Boxes are displayed in a list, for example: Each time the app is started, it automatically searches for the Bluetooth Scan devices in the list.
Page 76: The App Main Menu
The app main menu 10 The app main menu As soon as you have selected a connected Light Control Box in the device selection screen, the main menu of the app is displayed with the following submenus: • < >: Here you will find functions with which you can deacti- vate the programmed settings for a limited time.
Page 77: The App Menu
The app menu <Manual> 11 The app menu <Manual> The Light Control Box can be controlled directly using the functions found under the menu item < >. Doing so temporarily deactivates the programmed settings. Commands from this menu instruct the Light Con- trol Box to work in override mode.

Page 78 The app menu <Manual> Switching the channels on and off individually:  Activate individual control (  Slide the switch belonging to the required channel to on ( off (  The channels are switched on or off as required. Switching all channels on and off together: ...
Page 79: Adjust Brightness
The app menu <Manual> 11.2 Adjust brightness You can set the brightness for all channels individually or for all channels together. To select between individual or collective control, activate ( or deactivate ( ) the individual control switch. The screen changes according to the selected setting.
Page 80: Back To Normal Operation Mode
The app menu <Manual> Setting the brightness for all channels:  Deactivate individual control (  Slide the brightness slide controller in the required direction.  The brightness changes on all channels; all channels produce the same brightness. 11.3 Back to normal operation mode Below the channel control, you will see the heading Normal operation mode.
Page 81: The App Menu
The app menu <Profiles> Switching the switching channels on and off: Prerequisites: • menu screen is open.  Tap on the <Switching channels> button.  The switching channels screen is displayed.  Turn the switching channels on ( ) or off ) as required.

Page 82 The app menu <Profiles> Changing scene settings: For each scene, the luminous efficiency can be adjusted and switching channels turned on or off. You can adjust the following values: Light power: 0 to 100% Switching channels 1 and 2: on ( ) and off  In the Profile menu, tap on the Edit symbol < > for the scene you wish to change.
Page 83: The App Menu
The app menu <Settings> 13 The app menu <Settings> The Settings menu is used to configure the Light Control Box, for example, by adjusting factory settings to suit your requirements. To prevent unau- thorised persons from altering the programming, this menu requires you to enter a password. The password is the PIN code. You will find this on the Password type plate of the Light Control Box. After you enter the password, the menu symbol changes.

Page 84: The General Submenu
The app menu <Settings> 13.1 The General submenu The screenshots show an overview of settings. 13.1.1 Setting the date and time The time must be set correctly if you want the orientation light to start and end at fixed times. The time should be checked once a year. 83 / 107...
Page 85: Adjusting The Radio Range
The app menu <Settings> Thanks to the built-in battery, the configured times are also re- tained in the event of a power failure. Setting the date and time:  Tap in the field displaying the date.  The date settings appear.  Set the current date and confirm your entry.  Tap in the field containing the time.  The time settings appear.  Set the current time and confirm your entry.  The date and time of the Light Control Box are set. 13.1.2 Adjusting the radio range The Bluetooth Light Control Boxes have a maximum radio range of approx.
Page 86: Adjusting Automatic Mode
The app menu <Settings> Range reduction does not always restrict the connection to the room in which the Light Control Box is located: Persons in the room directly above may sometimes also be able to establish a radio connection to the Light Control Box. Adjusting the radio range: ...
Page 87: Setting The Switch-Off Delay Time
The app menu <Settings> • the detector detects presence. The lighting automatically switches off if • the ambient light is brighter than the set target brightness • no movement is detected The off delay time has expired Behaviour of the Light Control Box when fully automatic is enabled: Semi-automatic...
Page 88: Setting The Off Warning
The app menu <Settings> For more information on operating modes, see “Overview of operating modes” page 30. Setting the delay time:  Tap in the time selection field.  Set the required time and confirm your selection.  The delay time is now set. 13.1.5 Setting the off warning Off warning indicates that the set off delay time has elapsed. In off warning mode, the lighting uses the brightness value that was set for the orientation light.
Page 89: Changing Orientation Light Brightness
The app menu <Settings> 13.1.6 Changing orientation light brightness Orientation light function provides subtle lighting. You can use the slide controller to set orientation light brightness to values between 10% and 50% of the maximum illumination level. The orientation light only switches on once the set off delay time or a set off Prerequisites warning time have elapsed.
Page 90 The app menu <Settings> Setting the afterglow in minutes:  Tap on the button for the menu item Mode for afterglow.  A selection menu appears.  Choose the <Minutes> setting and confirm your selection. Afterglow for  Tap on the button for the menu item  A settings menu appears. ...
Page 91: Resetting The Light Control Box To Factory Settings
The app menu <Settings> 13.1.8 Resetting the Light Control Box to factory settings Factory settings function restores the Light Control Box to its default program settings. For more information on the default factory settings, see Section 4.5. Restoring factory settings: ...
Page 92: Constant Light Management, Light Target Value And Light Measurement
The app menu <Settings> The submenu Manual settings can be used for connected lights with or without light sensors. Both types of setting and their differences are ex- plained in the following chapters. See the background information above for information on the constant light regulation function. 13.2.1 Constant light management, light target value and light measure- ment Constant light management uses the light target value to determine wheth-...
Page 93 The app menu <Settings> The setting is made in two stages: First, calibrate the light sensors. Then set the light target value in lux for each light channel. A lux meter is required for calibration. The light values measured with the Lux meter lux meter can be transferred to the Light Control Box via the app.
Page 94 The app menu <Settings> Calibration is performed individually for each lighting channel. During cali- bration, only the light channel that is being calibrated is active. Calibrating light sensors:  Start the calibration process by tapping on<Configure now> under Configuring via light sensors.  The calibration menu is displayed:  In the selection field, choose the channel for which you wish to cali- brate the light sensors and confirm your selection. ...
Page 95: Manual Settings
Manual settings can be made for lights with and without light sensors. If lights with light sensors are connected to the Light Control Box, ESYLUX recommends making settings after calibration. To set the light target value manually, use the slide controller to set the light value to the required value.
Page 96 The app menu <Settings> Activating light measurement using the DALI presence detector: Only for lights without light Prerequisites: sensor • The universal remote control displays "X-Light Control" in the first display line. If it does not: Set the universal remote control to the remote control X-Light Control. To do this, follow the steps in Chapter “Selecting X-Light Control remote control” page 37.
Page 97 The app menu <Settings>  Position yourself in the area of the room that will be illuminated by the lights assigned to channel 1.  Slide the top slide controller until the required brightness is reached. If you are unsure whether the set brightness is too low, check the brightness using a lux meter.
Page 98: Switching Channels Submenu
The app menu <Settings> 13.3 Switching channels submenu Switching channels control DALI switch devices that are connected to the C1 and C2 DALI interfaces of the Light Control Box. Non-DALI-compatible devices can be connected to the DALI switch devices. For example, you can use the switching channel to switch on non-DALI-compatible blackboard lighting in a classroom. The Light Control Boxes are configured in the fac- tory to enable them to send commands via switching channels to connect-...
Page 99: Switching Channel - Operating Mode
The app menu <Settings> 13.3.2 Switching channel - Operating mode You can choose from the following operating modes: Fully automatic: If this function is active, the DALI switch switches the con- nected device on when a presence is detected. This function can then also be activated if the Light Control Box is operating in semi-automatic mode.
Page 100: Dali Mapping Submenu
The app menu <Settings> 13.4 DALI mapping submenu The two C1 and C2 DALI interfaces of the Light Control Box are initially assigned to the lighting channels numerically. For example, DALI interface C2 corresponds to the lighting channel C2. You can change this assignment in the DALI mapping submenu. You can also assign both DALI interfaces to one lighting channel.
Page 101: Settings Via The 230 V Button
Settings via the 230 V button 14 Settings via the 230 V button Switch actuations are not transmitted to other Light Control Boxes via DALI. If you want to trigger multiple Light Control Boxes connected via DALI with a single switch, you must connect the switch in parallel on the Light Control Boxes.
Page 102: Button S2: Call Up Profiles
Settings via DALI button  The adjustment process starts, for example by increasing the brightness.  Briefly release the S1 button and then press and hold it again.  The adjustment process switches direction, for example, the brightness is reduced. 14.2 Button S2: Call up profiles Tapping the S2 button retrieves the four stored light scenes. The scene that is activated depends on how often you press the button within ten seconds: The number of times you press the button corresponds to the scene num- ber.
Page 103 Operation via Bluetooth App DALI commands (16 bits) Address Description Channel 3 adjusts the brightness upwards. No command to other Group 2 lighting channels or DALI switch- Channel 4 adjusts the brightness upwards. No command to other Group 3 lighting channels or DALI switch- All lighting channels dim the DOWN Broadcast...
Page 104 Operation via Bluetooth App DALI commands (16 bits) Address Description DALI switch semi-automation is switched off. No command to Group 5 other lighting channels or DALI switches with full automation. All lighting channels and DALI RECALL MAX LEVEL Broadcast switches are switched on. Channel 1 is switched on.
Page 105: Maintenance
Maintenance 16 Maintenance The Light Control Box does not contain any components that require main- tenance. The device can only be replaced as a complete unit. 16.1 Cleaning CAUTION! Using the wrong cleaning products will damage the device!  Use a lint-free cloth that is either dry or dampened with water. 16.2 Troubleshooting Fault Cause/solution...
Page 106: Technical Data
Ceiling mounting Terminal 2.5 mm /1.5 mm ESYLUX Light Control, DALI: Interfaces Only models CU- to KNX: ESYLUX Light Control, DALI, KNX) All models: Infrared, connection for button Operating interfaces Models CU-ELC Box DALI BT: Infrared, connection for push button, Bluetooth...
Page 107: Disposal
Disposal Weight 3 kg Protection type IP 20 Protection class Connectable lights: Col- 3000 K, 4000 K our temperature Energy efficiency class A++ to A Conformity CE, RoHS, WEEE Technical and design features may be subject to change. The power output may deviate from the specified value by +/- 10%. 18 Disposal As the owner, you are required by law to correctly dispose of used devices. Contact your local town council for more information.
