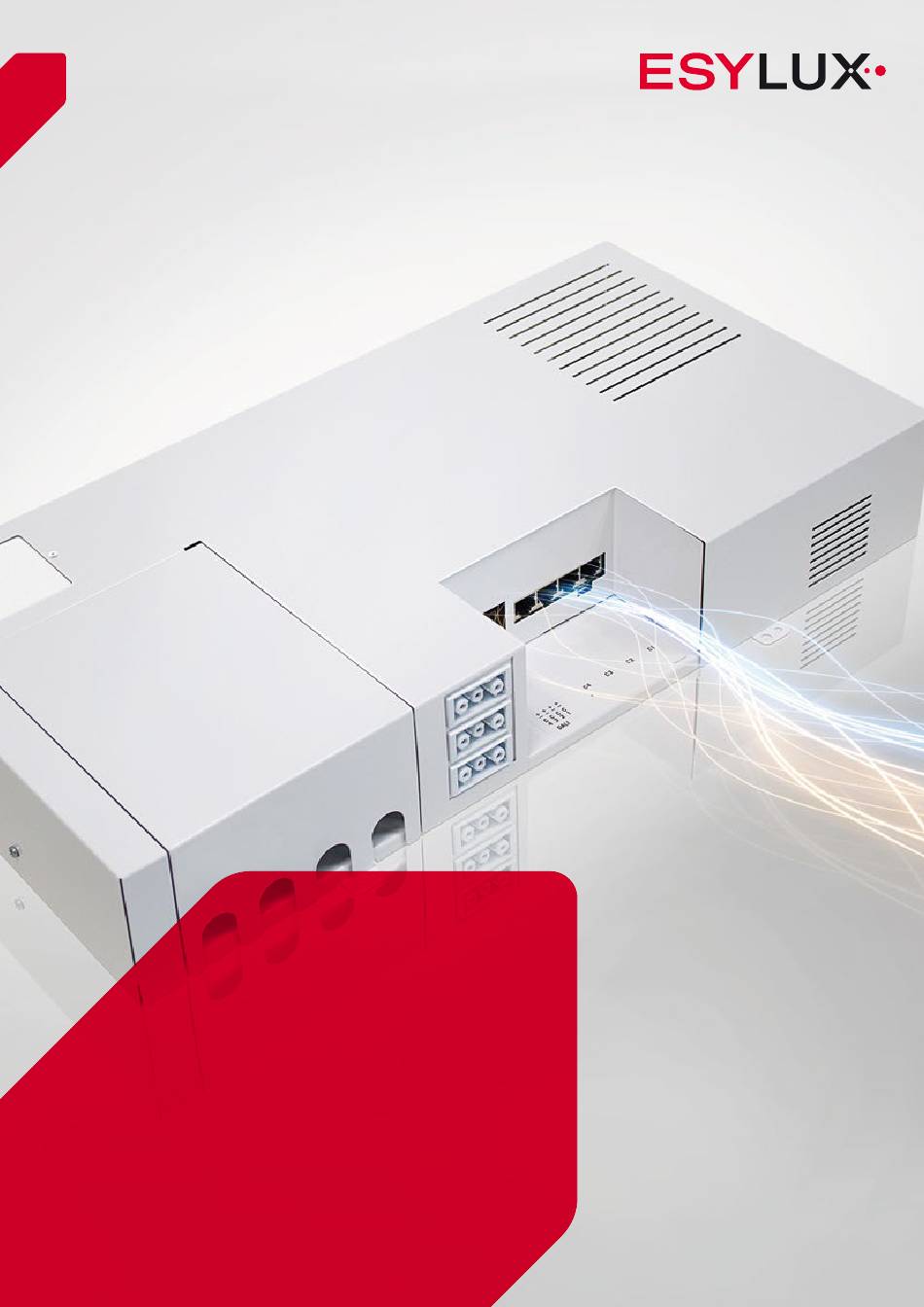

- Page 1 ESYLUX ELC QUICK GUIDE INSTALLATION. ESY! ESYLUX LIGHT CONTROL ELC QUICK GUIDE...
- Page 2 QUICK GUIDE Min. 100 mm 474 mm Min. 50 mm SMARTDRIVER Min. 50 mm SMARTDRIVER...
- Page 3 2. 230 V 3. 4x DALI (broadcast) 4. RJ45 (to luminairs) 5. USB (service) 6. CO (intra group connection + sensor) 7. DALI bus power ON/OFF 8. ELC bus end terminal resistant ON/OFF 9. RJ11 ELC bus (inter group connection)
-
Page 4: Voltage Range
Additional DALI lighting and DALI switch actuators e.g. ESYLUX downlights or third-party DALI luminaires ELC bus: enables connection of multiple groups by plug-and-play (SymbiLogic up to 10, otherwise up to 20 ELC control units) 230 V 230 V mains connection and standard 230 V push button... - Page 5 ESYLUX PD-C 360i/8 ELC ESYLUX PD-C 360i/24 ELC Max. 5 SMARTDRIVER „ON” DALI bus power ON/OFF...
- Page 6 QUICK GUIDE C4 C3 C2 C1 RJ45 ESYLUX NOVA Slave / CELINE Satellite Max. cable lenght 50 m 3000 K / 4000 K RJ45 CW WW CW WW CW WW CW WW RJ45 ESYLUX NOVA Slave / CELINE Satellite...
- Page 7 RJ11 ELC bus (inter group connection) ELC bus end terminal resistant ON/OFF ESYLUX ESYLUX PD-C 360i/... ELC PD-C 360i/... ELC DALI DALI RJ45 PUSH BUTTON PUSH BUTTON ESYLUX PD-C 360i/... ELC DALI DALI PUSH BUTTON PUSH BUTTON RJ11 ELC BUS...
-
Page 8: Push Button
PUSH BUTTON AUTOMATION INDOOR I PUSH BUTTONS Product group / product name Item no. PUSH BUTTON x8 TW ELC EC10430930 DIM Up DIM Down Light colour warm white Light colour cold white Presence and daylight 1x Scene 1 dependent adaptive... - Page 9 Product group / product name Item no. PUSH BUTTON x4 PATIENT ROOM ELC EC10431258 Presence and daylight Examination dependent adaptive HCL light control Product group / product name Item no. PUSH BUTTON x8 PATIENT ROOM ELC EC10431265 DIM Up DIM Down...
-
Page 10: Factory Settings
Factory Settings Betriebsmodus Operation mode Mode de fonctionnement Bedrijfsmodus Driftsmodus Driftsmodus Driftsmod Valeur de consigne Helligkeitssollwert Level of brightness Helderheidswaarde Lysstyrkeværdi Nominell lysverdi Ljusnivåvärde de luminosité Nachlaufzeit der Lighting switch-off Durée d'activation Nalooptijd van de Efterløbstid for Belysningens tidsforsinkede Belysningens Beleuchtung delay time de l'éclairageg... - Page 11 Settings AUTO ON Käyttötila Modo de operação Modo operativo Modalità di esercizio Режим работы Valor nominal de Valore nominale Заданный уровень Kirkkauden ohjearvo Valor de intensidad 500 lx luminosidade luminosità освещенности Valaistuksen Temporização da Tiempo de alumbrado Tempo di ritardo Время...
- Page 12 ESYLUX Deutschland GmbH ESYLUX Belgium nv An der Strusbek 40 Vlamstraat 7 bus 2 22926 Ahrensburg I Deutschland 9450 Denderhoutem-Haaltert I België t: +49 4102 489 0 t: +32 53 850 570 info@esylux.de info@esylux.be www.esylux.de www.esylux.be ESYLUX Danmark ApS ESYLUX France SARL...
