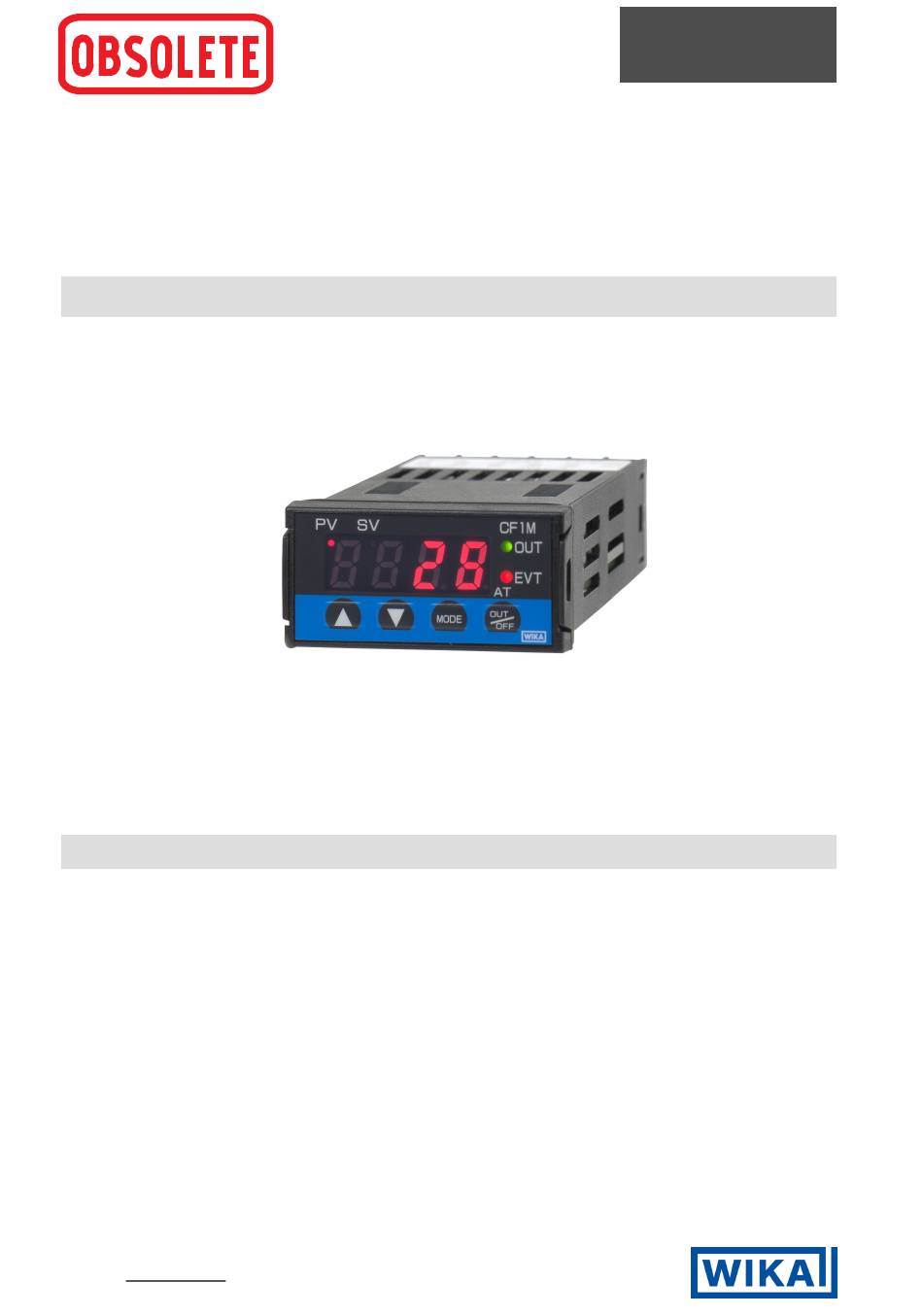

- Page 1 Operating Instructions Temperature Indicating Controller, Model CF1M WIKA Operating Instructions CF1M V1.1 03/2005 • WIKA Alexander Wiegand GmbH & Co. KG Alexander-Wiegand-Straße 30 63911 Klingenberg/Germany Phone (+49) 93 72/132-0 (+49) 93 72/132-406 E-Mail info@wika.de www.wika.de...
-
Page 2: Model Names
Operating Instructions Temperature Indicating Controller CF1M To prevent accidents arising from the use of this controller, please ensure the operator using it receives this manual. Warning Turn the power supply to the instrument OFF before wiring or checking. Working or touching the terminal with the power switched ON may result in Electric Shock, which can cause severe injury or death. - Page 3 Operating Instructions Temperature Indicating Controller CF1M 2. Name and functions of the section (2) (3) (4) : Increases the numeric value. : Decreases the numeric value. MODE key : Selects the setting mode. : Turns the control output ON or OFF. (1) PV indicator : The red LED lights up while Process variable is being indicated on the PV/SV display.
- Page 4 Operating Instructions Temperature Indicating Controller CF1M 3.1 Operation flow chart Control output OFF function PV/SV display mode Output manipulating value display (Approx. 1s) (Approx. 3s) (Approx. 3s) (Approx. 3s) [Main setting mode] [Sub setting mode] [Auxiliary function setting mode 1] [Auxiliary function setting mode 2] Main setting 1 AT Perform/Cancel or...
- Page 5 Operating Instructions Temperature Indicating Controller CF1M 3.2 Main setting mode Character Name, Description, Setting range Initial Main setting 1 0°C (°F) • Sets Main setting value 1 of the main control. • Main setting low limit value to Main setting high limit value Main setting 2 0°C (°F) •...
- Page 6 Operating Instructions Temperature Indicating Controller CF1M Loop break alarm action time setting 0 min. • Sets the time it takes to assess the Loop break alarm. • This setting item is available only when the “Loop break alarm” is selected in “Event output function selection”. •...
- Page 7 Operating Instructions Temperature Indicating Controller CF1M Sensor correction setting 0.0°C (°F) • Sets sensor correction value. • -100.0 to 100.0°C (°F) Instrument number setting • Sets the Instrument number individually to each instrument when communicating by connecting multiple instruments in serial communication. •...
- Page 8 Operating Instructions Temperature Indicating Controller CF1M Output ON/OFF action hysteresis setting 1.0°C • Sets the ON/OFF action hysteresis of control output. • This setting item is available only for the ON/OFF action. • 0.1 to 100.0°C Event output function selection •...
-
Page 9: Setting Value Memory Function
Operating Instructions Temperature Indicating Controller CF1M Output Direct/Reverse change Reverse • Changes the output action Reverse (Heating) or Direct (Cooling). (Heating) action • Reverse (Heating) action: Direct (Cooling) action Auto-tuning bias setting 20°C • Sets PID auto-tuning bias value. (40°F) •... - Page 10 Operating Instructions Temperature Indicating Controller CF1M 3.6 Control output OFF function Character Name, Descriptions Control output OFF function • This is the function to switch the control output OFF even if power is supplied to the instrument. The function is used when required to halt the control action or the CF1M is not used in multiple controllers.
-
Page 11: Self-Diagnostic Function
Operating Instructions Temperature Indicating Controller CF1M (2) Self-diagnostic function The CPU is monitored by a watchdog timer, and when any abnormal status is found on the CPU, the controller is switched to warm-up status. (3) Automatic cold junction temperature compensation (thermocouple input type) Detects the temperature at the connection terminal between thermocouple and instrument, and always keeps it on the same status as when the reference junction is located at 0°C (32°F). - Page 12 Operating Instructions Temperature Indicating Controller CF1M 6.2 ON/OFF action drawing Action Heating (reverse) action Cooling (direct) action Hysteresis Hysteresis Control action Setting Setting Relay contact output Non-contact 12Vdc 0Vdc 0Vdc 12Vdc voltage output Current output 20mAdc 4mAdc 4mAdc 20mAdc Indicator (OUT) Green Unlit Unlit...
- Page 13 Operating Instructions Temperature Indicating Controller CF1M 6.3 Alarm action drawings Low limit alarm action High/Low limits alarm action High limit alarm action Hysteresis Hysteresis Hysteresis Alarm action Main setting Main setting Main setting value value value Output Indicator Unlit Unlit Unlit High/Low limit range alarm action Process high alarm action...
- Page 14 Operating Instructions Temperature Indicating Controller CF1M 6.4 Heater burnout alarm drawing Setting Unlit Small Load current Large 7. PID auto-tuning of the CF1M In order to decide each value of P, I, D and ARW automatically, this system forcibly fluctuates the object being controlled.
-
Page 15: External Dimension Drawing
Operating Instructions Temperature Indicating Controller CF1M h When the difference between setting value and processing temperature is large when the temperature falls. Fluctuation is given at the temperature 20°C (°F) or higher than the setting value. Temperature 20 ) higher than the setting value Temperature PID parameter measuring PID parameter calculated point... - Page 16 Operating Instructions Temperature Indicating Controller CF1M 8.3 Panel cutout drawing +0.6 [Fig. 8.3-1] 8.4 CT (current transformer) dimension drawing CTL-6-S (5A, 10A, 20A) CTL-12-S36-10L1 (50A) 8.5 Mounting Mounting panel thickness is from 1 to 10mm. Insert the CF1M from the front of the panel. Insert the mounting frame as shown in [Fig.
- Page 17 Operating Instructions Temperature Indicating Controller CF1M 9. Terminal arrangement Warning Turn the power supply to the instrument OFF before wiring or checking. Working or touching the terminal with the power switched ON may result in an Electric Shock which could cause severe injury or death. Event Option W1X (CT input) : Relay contact output...
- Page 18 Operating Instructions Temperature Indicating Controller CF1M Option: Heater burnout alarm output CT input (1) This alarm is not available for terminal detecting current under phase control. (2) Use the current transformer (CT) supplied Power source and pass one lead wire of heater circuit into the hole of the CT.
-
Page 19: Event Output
Operating Instructions Temperature Indicating Controller CF1M Temperature alarm output The alarm action point is set by ± deviation to the main setting (except Process value alarm). [When the alarm action is set as energized] When the input exceeds the range, the output turns ON or OFF (in the case of High/Low limit range alarm). -
Page 20: Dielectric Strength
Operating Instructions Temperature Indicating Controller CF1M Insulation resistance 10MΩ or greater at 500Vdc In the case of the above Circuit insulation configuration (*), because the communication and output terminals are not isolated from one another, the insulation resistance test must not be carried out. Dielectric strength Between input terminal and ground ---------------- 1.5kVac for 1 minute Between input terminal and power terminal ------ .1.5kVac for 1 minute... -
Page 21: Troubleshooting
Operating Instructions Temperature Indicating Controller CF1M Heater burnout alarm [Option code: W1X] Watches the heater current with CT (current transformer), and detects the burnout. This option cannot be applied to the type current output. When the option [SV2] or [CR5] is applied, the option [W1X] cannot be applied together. Rating : 5A [Option W10], 10A [Option W11], 20A [Option W12] or 50A [Option W15]... - Page 22 Operating Instructions Temperature Indicating Controller CF1M <Key operation> Phenomenon Presumed cause and the action • Setting value lock (mode 1 or 2) is designated. If it is impossible to set. Release the lock designation. If the value does • During PID auto-tuning or auto-reset. not change by the In the case of PID auto-tuning, cancel the tuning if necessary.
