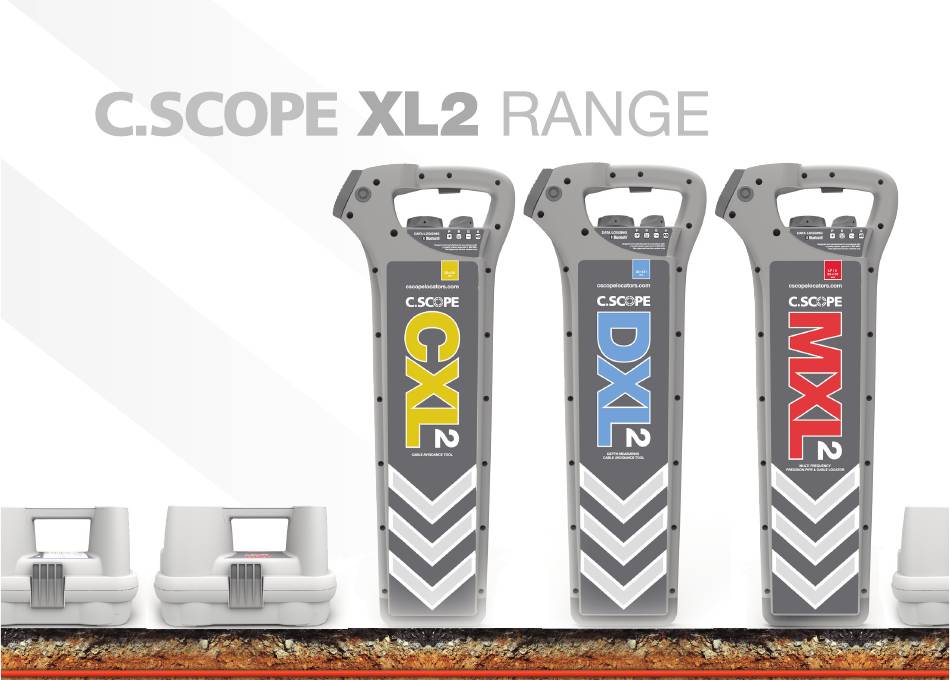

- Page 1 INSTRUCTION MANUAL CXL2 LOCATOR DXL2 LOCATOR MXL2 LOCATOR SGA2 SIGNAL GENERATOR SGV2 SIGNAL GENERATOR MXT2 TRANSMITTER...
-
Page 2: Warnings
C.Scope Locators alone will not always locate every service. Use a Generator or Transmitter wherever possible. Do not touch the metal of the C.Scope Generator/ Transmitter Crocodile Clips or of the Plastic Pipe Tracer terminals when in use. The C.Scope Generator/ Transmitter leads MUST NOT be connected directly to a live service. -
Page 3: Table Of Contents
Contents Warnings Using the Generator/ Transmitter Depth Measurement Output Power Line 44-45 Features Frequency Sonde/ Plastic Pipe Tracer CXL2, DXL2 and MXL2 Batteries Alkaline and Rechargeable SGA2, SGV2 and MXT2 6-7-8-9 Signal Current Measurement 47-50 Direct Connection 25-26 Street Lighting/ Furniture 27-28 Locator Operating Modes Data Logging... - Page 4 CXL2 DXL2 MXL2 Locator Features The C.Scope CXL2, DXL2 and MXL2 Locators are Pipe and Cable Locators that can provide precise information about the position and depth (DXL2 and MXL2 only) of buried services. The combination of locating modes ensures buried services are detected quickly and reliably.
-
Page 5: Cxl2, Dxl2 And Mxl2
CXL2 DXL2 and MXL2 Locator Features Power Mode Indicator Radio Mode Indicator Generator/ Transmitter Mode Indicator AllScan Mode Indicator Sonde Depth Mode Indicator (DXL2 and MXL2 only) Signal Strength Bar Graph Self Test Indicator Battery Condition Indicator Depth (DXL2 and MXL2 only) or Signal Current Measurement (MXL2 only) Signal Current Button... - Page 6 SGA2/ SGV2 Signal Generator and MXT2 Transmitter Features The C.Scope SGA2 and SGV2 Signal Generators are an The C.Scope MXT2 Transmitter is an ideal accompaniment ideal accompaniment to the CXL2 and DXL2 Locators. to the MXL2 Locator. The SGA2 has the facility of high and low output power and The range of operating frequencies and adjustable can operate with a pulsed or continuous output signal.
- Page 7 SGA2 Signal Generator Features Output Power Increase Control Pulsed/ Continuous Output Power Output Control Decrease Control On/ Off Loud/ Mute Control Control...
- Page 8 SGV2 Signal Generator Features Output Frequency Indicator Connected Mode Indicator Signal Strength Induced Mode Indicator Indicator Battery Condition Indicator Output Power Level Indicator Loud/ Mute Setting Indicator Loud/ Mute Control On/ Off Control Output Power Pulsed/ Continuous Decrease Control Output Control Output Power Increase Control...
- Page 9 MXT2 Transmitter Features Output Frequency Indicator Connected Mode Indicator Signal Strength Induced Mode Indicator Indicator Battery Condition Indicator Output Power Level Indicator Loud/ Mute Setting Indicator Loud/ Mute Control On/ Off Control Output Power Pulsed/ Continuous Level Control Output Control Frequency Control...
- Page 10 Locator Operating Modes: Power Mode In Power Mode the Locator detects power signals. Limitations of Power Mode These power signals are present on all current carrying Not all electricity cables can be found using the Power electricity cables although not all are detectable. Power Mode.
-
Page 11: Radio
Locator Operating Modes: Radio Mode In Radio Mode, the Locator detects signals from various Limitations of Radio Mode radio transmitters. These signals flow through the Not all services will be detectable in Radio Mode. ground and will tend to follow the line of least resistance A strong radio signal present on one service may such as a buried metallic service. -
Page 12: Locator Operating Modes
Locator Operating Modes: All Scan Mode In All Scan Mode, the Locator detects at ALL frequencies in a wide band. Sometimes a signal that is outside of the frequency range of the other search modes (Power, Radio, and Generator/ Transmitter) will be present on a buried metallic service. - Page 13 Locator Operating Modes: All Scan Mode Limitations of All Scan Mode All Scan Mode has exactly the same limitations as those listed for the Power and Radio Modes: Street lighting cables when the lights are switched off, supply cables to buildings or plant using little or no electricity, pot-ended or capped cables, well balanced high voltage cables and direct current cables may all be missed on the All Scan Mode.
-
Page 14: Generator/ Transmitter
Locator Operating Modes: Generator/ Transmitter Mode In Generator/ Transmitter Mode the Locator detects conductors Direct Connection radiating a signal applied by the Generator/ Transmitter or detects a signal radiated by a sonde. The Generator/ Transmitter provides a means of applying a known signal to buried metallic services which can then be detected using the Locator. -
Page 15: Alkaline And Rechargeable
Using the Locator: Batteries Alkaline and Rechargeable C.Scope Locators can be powered by either eight standard alkaline or by eight standard Nickel-Metal Hydride rechargeable (NiMH) AA (LR6) size batteries. Locator Battery Check Switch the Locator on by pulling up on the On/Off trigger positioned on the underside of the handle. -
Page 16: Automatic Daily Self Test
Using the Locator: Automatic Daily Self Test The CXL2, DXL2 AND MXL2 Locators have an in-built automatic Daily Self Test function. This tests the Locator’s circuits and receiving aerials for correct performance. The Self Test is automatically performed the first time the Locator is switched on each day and takes approximately four seconds. - Page 17 If the Locator continues to fail it’s Self Test then this is indicating that there is a fault and the Locator should be withdrawn from service. Contact C.Scope or a C.Scope Authorised Service Centre for advice.
-
Page 18: Holding The Locator
Using the Locator: Holding the Locator Your middle or little finger should be used to squeeze, When in use the Locator should always be held upright. and hold on, the On/Off trigger. NEVER swing the Locator such that it moves away from the vertical. -
Page 19: Searching
Using the Locator: Searching There are three stages to the locating process; searching, pinpointing and tracing 1. Turn the Mode Switch to the appropriate mode. 2. Hold in the On/Off trigger. The Locator should emit the audible battery test tone and the digital display should come on. Check the battery level indicator to confirm the batteries are usable. -
Page 20: Pinpointing
Using the Locator: Pinpointing Having found a signal the next step is to pinpoint the source. The closer the Locator is to the signal source the stronger the response. To Pinpoint a Signal 1. Keeping the Locator vertical, walk through the area of the signal response. -
Page 21: Tracing
Using the Locator: Tracing Having pinpointed a service it should now be possible to trace its route. 1. Carefully follow the direction of the signal holding the Locator at right angles to the line of the signal. It is necessary to constantly ‘slice’ the Locator from side to side in order to be sure of still being over the peak signal response. -
Page 22: Using The Generator/ Transmitter Output Power
Using the Generator/ Transmitter: Output Power Level and Pulse/ Continuous Output Output Power Level The SGV2 Generator and the MXT2 Transmitter have four, selectable output power levels. The SGA2 Generator has two selectable output power levels. For long distance tracing or for detecting deep services it is always best to use the highest power setting of the Generator/ Transmitter. -
Page 23: Frequency
Using the Transmitter: Which Frequency Signal to use (MXT2 Transmitter only) Generally, Combined Frequency is the best frequency setting to use as it performs well in all applications. The lower frequency signals (8kHz and 640/512Hz) should travel further along a metallic service than the higher frequency signals although they may be more difficult to successfully apply in the first place. -
Page 24: Batteries
Using the Generator/ Transmitter: Batteries Alkaline and Rechargeable C.Scope Generators/ Transmitters can be powered Changing the Batteries by either four standard alkaline or by four standard Remove the Accessory Tray. rechargeable Nickel-Metal Hydride (NiMH) D (LR20) Undo the two round, knurled retaining screws situated size batteries. -
Page 25: Direct Connection
Using the Generator/ Transmitter: Direct Connection WARNING Never connect directly to electrical services. WARNING You may need to seek permission from the service owners before connecting on to some buried services. The Direct Connection Leads and Earth Stake that are supplied with the Generator/ Transmitter are used to apply a signal to any metal pipe at a suitable access point such as a valve, hydrant point, stop cock or exposed pipe length. - Page 26 Using the Generator/ Transmitter: Direct Connection 5. Connect the black Earth Lead to the Earth Stake (or the alternative earth point). If your earth point is too far away from the pipe access point for the black Earth Lead to reach then use the yellow 10 metre Auxiliary Earth Lead instead.
-
Page 27: Street Lighting/ Furniture
Using the Generator/ Transmitter: Direct Connection Direct Connection to a Street Lighting Column or other street furniture The best method to determine the position and route of street lighting, car park lighting cables or any other item of street furniture with a power supply is by using a Generator/ Transmitter and the pipe connection method. - Page 28 Using the Generator/ Transmitter: Signal Hopping Signal Hopping using Direct Connection Leads If it is difficult or inconvenient to use the Direct Connection method of signal application then an alternative technique called Signal Hopping can be utilised to successfully energise a street lighting or car park lighting cable with the Generator/ Transmitter signal.
-
Page 29: Signal Clamp/ Injector
Using the Generator/ Transmitter: Signal Clamp/ Injector Signal Clamp 1. Plug the Signal Clamp into the connection socket on the Generator/ Transmitter. 2. Turn the Generator/ Transmitter on (and select either CF or 8kHz on the Transmitter). 3. Check that the jaws of the Signal Clamp are clean. Place the Signal Clamp AROUND the cable making sure that the jaws are able to fully close. -
Page 30: Searching
Generator/ Transmitter: Searching for the Direct Connected Signal The search pattern used to find the Generator/ Transmitter signal when applied by a direct connection method (Direct Connection Leads, Signal Clamp or Signal Injector) is different to the normal search pattern used on Power, Radio or All Scan Modes. 1. -
Page 31: Tracing
Generator/ Transmitter: Tracing the Direct Connected Signal The tracing technique used to follow the Generator/ Transmitter signal when applied by a direct connection method (Direct Connection Leads, Signal Clamp or Signal Injector) is almost exactly the same as the normal tracing technique used on Power, Radio or All Scan Modes but with the following differences: The signal that the Locator is detecting will get weaker... -
Page 32: Induction
Generator/ Transmitter: Induction This is the standard method for inducing signals onto buried metallic services. It produces a strong signal directly below the Generator/ Transmitter but the signal strength drops off quite quickly either side of the Generator/ Transmitter. 1. Check that there are no accessories plugged into the Connection Socket. -
Page 33: Searching
Generator/ Transmitter: Searching for an Induced Signal The search pattern used to find the Generator/ Transmitter signal when applied by Induction Mode is slightly different to the search pattern used on other modes. 1. Move AT LEAST 10 metres away from the Generator/ Transmitter position with your Locator. - Page 34 Generator/ Transmitter: Searching for an Induced Signal 5. Walk in a straight line across the end line of the Generator/ Transmitter. When a signal is detected ‘pinpoint’ that signal as shown in the ‘Using the Locator’ section. If no signal is found move the Generator/ Transmitter 5 metres and try again.
-
Page 35: Multiple Services
Generator/ Transmitter: Induction; Multiple Services It is important to check for the presence of adjacent services running close, or parallel, to the service that you have already located. 1. Check that there are no accessories plugged into the Connection Socket. 2. -
Page 36: Inductive Sweep
Generator/ Transmitter: Using an Inductive Sweep If a large area needs to be searched for buried services 5. Immediately tell your colleague to stop and place the then an ‘Inductive Sweep’ could be used. It is an ideal Generator/ Transmitter on the ground at that point. method for detecting the position of buried services as Now you can pinpoint the service and trace out it’s route. -
Page 37: Pipe Tracing Using A Sonde
50mm in diameter and up to 2 metres deep. C.Scope are continually developing Sondes for specific If access can be gained into these pipes then a C.Scope applications. Keep abreast of our latest products via Sonde or Plastic Pipe Tracer should make it possible to our website www.cscopelocators.com or your local... - Page 38 Pipe Tracing using a Sonde: Batteries Alkaline and Rechargeable General Purpose Sonde The General Purpose Sonde is supplied in two frequencies; 1. To turn the Sonde on, separate the two halves of the 33kHz (orange casing) or 8kHz (green casing) and is Sonde casing.
-
Page 39: Sonde Batteries
Pipe Tracing using a Sonde: Batteries Duct Sonde The Duct Sonde is supplied at 33kHz only (yellow casing) and is powered by a single AAA (LR03) size alkaline battery. Rechargeable batteries are not recommended for this product. 1. To turn the Duct Sonde on, use a large flat bladed screwdriver to unscrew the battery cover located within the hollow end of the Sonde casing. - Page 40 Pipe Tracing using a Sonde: Tracing a Sonde The technique used to determine the position of a Sonde is always the same irrespective of which Sonde is being used. Before inserting the Sonde into the pipe it is best to set up the Locator so that the sensitivity is correctly adjusted to suit the pipe depth.
- Page 41 Pipe Tracing using a Sonde: Tracing a Sonde 3. Keeping the blade of the Locator in line with the Sonde, 3./ 4. move the Locator backwards and forwards over the length of the Sonde. Adjust the sensitivity until a clear peak response is shown on the display as the Locator passes directly over the position of the Sonde.
-
Page 42: Tracing
Non-Metallic Pipe Tracing: Plastic Pipe Tracer Line Tracing The Plastic Pipe Tracers can be used in services up to 3 metres deep (Locator dependent) on line tracing mode but cannot transmit through metal pipes or ducts. The Plastic Pipe Tracer needs to be inserted into the pipe before a signal from the Generator/ Transmitter is applied to the length of the Tracer. - Page 43 Non-Metallic Pipe Tracing: Plastic Pipe Tracer End Tracing The very tip of the Plastic Pipe Tracer can be energised with the signal from a Generator/ Transmitter. It is acting much like a Sonde and offers a very reliable way of pinpointing the position of the tip. A CF Generator/ Transmitter signal is applied by connecting the red Direct Connection Lead to one of the terminals on the Tracer and the black Earth Lead to the other terminal.
-
Page 44: Depth Measurement
Depth Measurement (DXL2 and MXL2 Locators only) The DXL2 and MXL2 Locator can be used in conjunction with the Generator/ Transmitter or Sonde to indicate the depth of a buried service. Depth cannot be measured on the Power, Radio or All Scan Modes. On the MXL2 Locator depth measurements can be taken from a CF, 8kHz or 640/512Hz signal. - Page 45 Depth Measurement (DXL2 and MXL2 Locators only) 4. Press and hold down the depth button. The depth will be shown on the display, measured in metres. 5. The depth can be verified by lifting up the Locator whilst keeping the depth button depressed.
-
Page 46: Sonde/ Plastic Pipe Tracer
Depth Measurement using Sonde/ Plastic Pipe Tracer (end tracing only) (DXL2 and MXL2 Locators only) NOTE The following instructions apply equally to the Plastic Pipe Tracer in End Tracing Mode, the Duct Sonde and the General Purpose Sondes. 1. Pinpoint the exact position of the Sonde as shown in the ‘Pipe Tracing using a Sonde’ section. Take care to ensure that you are over the top of the Sonde and not over one of the two ‘ghost’... - Page 47 Signal Current Measurement (MXL2 Locator only) MXL2 Locator only: Signal Current Measurement is a feature by which it is possible to measure the TRUE strength of the Generator/ Transmitter signal on a buried metal pipe or cable irrespective of its depth. This is a useful aid for the correct identification of specific pipes and cables and may also help to determine the layout and condition of a pipe or cable network.
- Page 48 Signal Current Measurement (MXL2 Locator only) Signal Current Measurement can also help to identify the layout of pipe and cable networks as the main line after a ‘T’ will have most of the Signal Current remaining on it whereas the shorter connection will have correspondingly less.
- Page 49 Signal Current Measurement (MXL2 Locator only) To ensure reliable Signal Current readings it is vital to adhere to the same best practises as are used to give accurate Depth Measurement readings. 1. Only apply the signal by a Connection method (Direct Connection, Signal Clamp or Signal Injector) to the target service.
-
Page 50: Signal Current Measurement
Signal Current Measurement Limitations of Signal Current Measurement There are some situations where it may not be possible to gain an accurate Signal Current Measurement reading: At a sharp curve or bend in the route of the service. At a T junction in the service. At the very end point of the service. -
Page 51: Data Logging
PC Toolkit. A USB 2.0A male to mini B or tablet using Google™ Maps. cable is required. This can be purchased from C.Scope. The C.Scope RELAY Android APP is free to download via The CXL2-B, DXL2-B and MXL2-B Locators also have the C.Scope website: www.support.cscopelocators.com additional Bluetooth™... -
Page 52: Function Checks
The C.Scope Function Checker product allows further functionality checks to be made of any C.Scope Locators at any time. It will also check the functionality of C.Scope Generators/Transmitters. If a Function Checker is not available then the following procedures below can be used. - Page 53 C.Scope Locator: Function Checks Generator Mode/ Transmitter Mode Locate an outdoor test area that is free from extraneous fields resulting from overhead and underground cables. The area should also not be near fences, steel framed buildings, or on reinforced concrete. Place the Generator/ Transmitter on the ground in the normal orientation and switch on - a tone should be heard.
-
Page 54: Generator/ Transmitter
Locator in Generator Mode/ Transmitter Mode when pointed closely at the loop. NOTE These checks DO NOT guarantee full system performance. If a deterioration in performance is suspected, the equipment should not be used. It should be returned to C.Scope or a C.Scope Authorised Service Centre. -
Page 55: Depth
Depth Measurement An area clear of services and metal structures should be chosen (beware of reinforced concrete car parks). A search with the C.Scope Locator in all 4 modes will help confirm the absence of other services. An insulated cable or wire over twenty metres long (not supplied) is laid out on the ground surface and the far end connected to a ground stake and earthed. -
Page 56: Maintenance/ General Symbols
Maintenance /General Symbols Maintenance General Symbols Handling - C.Scope Locators and Generators/ Transmitters Warning - Refer to manual. are rugged instruments designed for the rigours of every day use. However, to ensure that the specified accuracy Waste electrical products should not be disposed is maintained, it is essential to treat the instruments of with household waste. -
Page 57: Specifications
Data Logging: Internal capacity for 12 months of data logged once per second. All C.Scope Locators are in compliance with the essential requirements Data logged includes Time/Date, Mode, Sensitivity Level, Received Signal Level, and other relevant provisions of Council Directive 89/336/EEC. Compliance Frequency, Depth, Self Test Result, Swing Indicator. -
Page 58: Generators/ Transmitter
Gives indications of the following: - Output Frequency All C.Scope Generators / Transmitters are in compliance with the essential - Pulse Mode requirements and other relevant provisions of Council Directive 1999/5/EC. - Continuous Mode... -
Page 59: Support Services
Copyright © 2013 C.Scope International Ltd. All Rights Reserved. C.Scope International Ltd make every effort to ensure that the information we provide about our products and their use is correct. We do not accept responsibility for injury, damage, or consequential loss arising from the use of our products. Local, national and international requirements and regulations must take preference. - Page 60 C.Scope International Ltd Kingsnorth Technology Park Wotton Road Ashford Kent TN23 6LN United Kingdom Telephone. +44(0)1233 629181 Fax. +44(0)1233 645897 email. info@cscope.co.uk website. www.cscopelocators.com Part no. B1087E Issue 2...
