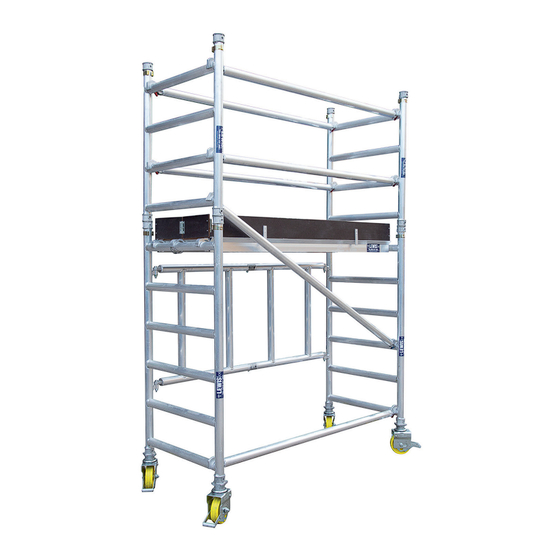

- Page 1 Miniscaff Trade Folding Tower Product Information and Assembly Guide...
-
Page 2: Product Information
Product Information Miniscaff Trade Folding Tower Assembly Guide This document is a complete guide for the LEWIS Miniscaff Towers The user should read the entire contents of this document The tower must be climbed from within the structure, on before commencing assembly and pay particular attention no occasions should the tower be scaled from the outside. - Page 3 - i.e. when working between buildings, or close to the corner of a building and at open ends. Never use tarpaulins or similar covers without seeking the correct advice. Miniscaff Trade Folding Tower Production Information and Assembly Guide...
-
Page 4: Assembly Procedure
Assembly Procedure Miniscaff Trade Folding Tower Assembly Instructions Move frame to work position and unfold. Push on rear hinged section until the two elbows have click locked. Miniscaff Trade Folding Tower Production Information and Assembly Guide... - Page 5 Lock all castor brakes by moving the foot lever down towards the floor. Place hatch deck on the second rung. Secure Hatch Deck with the wind lock on the hook. Miniscaff Trade Folding Tower Production Information and Assembly Guide...
- Page 6 Clip one guard rail midway between deck and top of the base unit. Also clip a second guard rail at the top of base unit. Fit toe board set on top of the deck. (Picture shown is 0.6m platform height) Miniscaff Trade Folding Tower Production Information and Assembly Guide...
- Page 7 For 1.6m Platform height & above, secure hatch platform on the top rung of the base unit. 1.10 Secure the hatch deck with the wind lock. 1.11 Place additional frame into base unit and clip in place. Miniscaff Trade Folding Tower Production Information and Assembly Guide...
- Page 8 1.13 Climb through the hatch platform and place the adjacent second addition frame. 1.14 Fit the toe boards into place, then the erection of the LEWIS 1.6m platform height Miniscaff is complete. Miniscaff Trade Folding Tower Production Information and Assembly Guide...
- Page 9 Add additional frames by climbing through the hatch then place hatch deck at required platform height. Secure hatch platform with locking braces, repeat steps 1.11,1.12, 1.13 & 1.15 Miniscaff Folding Tower – Increasing the Height Miniscaff Trade Folding Tower Production Information and Assembly Guide...
-
Page 10: Additional Information
Outriggers should always be fitted when specified. Fixing the Toe boards The Lewis Miniscaff toe board set is a one-piece hinged set. Guide pins are fitted to hold the toe board set tightly around the platform. Toe boards must be fitted on all working platforms if there is a hazard of tools or equipment falling 2m or over. -
Page 12: Further Information
Further Information For further information and support please contact us on: 0800 043 2222 info@scaffold-tower.co.uk www.scaffold-tower.co.uk Unit 1 Bellingham Trading Estate Franthorne Way London SE6 3BX...
