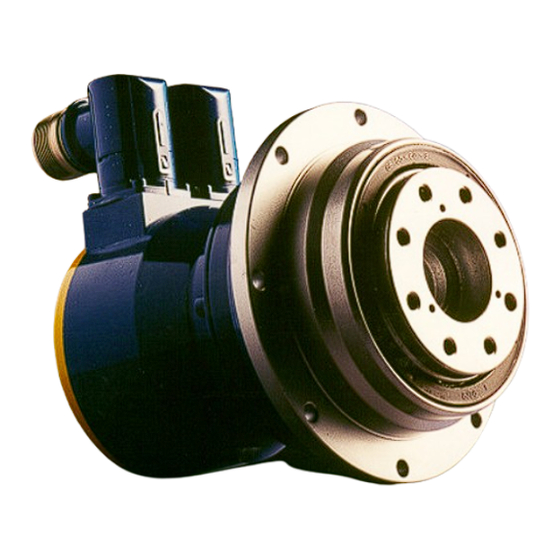

- Page 1 Quick Startup Guide TPM(A) 004 – 110 Version Date 07. September 2006 SEIDEL File 4091_D006391_02.doc Doc.No. 4091-D006391-02 SERVOSTAR 600 Technical changes reserved!
-
Page 2: Table Of Contents
Date Note 4091_D006391_1.doc 06.06.2003 First edition 4091_D006391_02.doc 07.09.2006 TPM004, TPMA added Contact address: WITTENSTEIN motion control GmbH Walter-Wittenstein-Strasse 1 97 999 Igersheim Tel. : 07931 / 493-0 : 07931 / 493-200 info@w-m-c.de Email : Document-No.: 4091-D006391-02 Date: 07. September 2006... -
Page 3: General Information And Safety Instructions
Please be sure to carefully read through this document before starting up the TPM and also be sure to read the documentation provided by the manufacturer of the servo amplifier. WITTENSTEIN motion control will not be held liable for the consequences of the im- proper, negligent, or incorrect installation or setting of the servo amplifier's operating parameters. -
Page 4: Name Plate Data Details
Quick Startup Guide Seidel Servostar 600 2 Name plate data details Please select the input parameters corresponding to the nameplate values of your TPM. TPM 010–091 M–600 K–BP 1–015 IF STD Size Plug form TPM 004 / 010 / 025 / 050 / 110 STD = angle TPMA 025 / 050 / 110 SEG = straight... -
Page 5: Parameter List Tpm ⇔ ⇔ ⇔ ⇔ Servostar 600
The following table contains all of the parameters that are required for the initial start-up of a TPM motor- gear unit from WITTENSTEIN motion control together with a Seidel Servostar 600. When the TPM and the servo amplifier are properly connected, these parameters guarantee that the TPM can be operated without load in speed control. -
Page 6: Tpm With 320 V Dc-Bus
Quick Startup Guide Seidel Servostar 600 3.2 TPM with 320 V DC-bus Screen Page Parameter TPM004 TPM010 TPM025 TPM050 TPM110 DC-Bus Voltage 320 V Feedback Feedback Type Resolver No. of Poles Offset Bandwith Feedback Type EnDat Offset Feedback Type HIPERFACE Offset Speed Speed Limit [rpm]... -
Page 7: Tpm With 600 V Dc-Bus
Quick Startup Guide Seidel Servostar 600 3.3 TPM with 600 V DC-bus Screen Page Parameter TPM004 TPM010 TPM025 TPM050 TPM110 DC-Bus Voltage 600 V Feedback Feedback Type Resolver No. of Poles Offset Bandwith Feedback Type EnDat Offset Feedback Type HIPERFACE Offset Speed Speed Limit [rpm]... -
Page 8: Tpma With 320 V Dc-Bus
Quick Startup Guide Seidel Servostar 600 3.4 TPMA with 320 V DC-bus Screen Page Parameter TPMA025 TPMA050 TPMA110 DC-Bus Voltage Feedback Feedback Type Resolver No. of Poles Offset Bandwith Feedback Type EnDat Offset Feedback Type HIPERFACE Offset Speed Speed Limit [rpm] 6000 5000 4500... -
Page 9: Tpma With 600 V Dc-Bus
Quick Startup Guide Seidel Servostar 600 3.5 TPMA with 600 V DC-bus Screen Page Parameter TPMA025 TPMA050 TPMA110 DC-Bus Voltage 600 V Feedback Feedback Type Resolver No. of Poles Offset Bandwith Feedback Type EnDat Offset Feedback Type HIPERFACE Offset Speed Speed Limit [rpm] 6000 5000... -
Page 10: Connection Schematic Tpm ⇔ ⇔ Servostar 600
Quick Startup Guide Seidel Servostar 600 4 Connection schematic TPM ⇔ ⇔ Servostar 600 ⇔ ⇔ 4.1 TPM with Resolver-Feedback Power Plug Power Terminal Block (X9) Seidel Servostar Br + Brake optional Br - Resolver Plug Signal Plug (X2) Temp Temp Ref + + Reference... -
Page 11: Tpm With Absolute Rotary Encoder Stegmann Srs / Srm 050
Quick Startup Guide Seidel Servostar 600 4.3 TPM with absolute rotary encoder Stegmann SRS / SRM 050 Power Plug Power Terminal Block (X9) Seidel Servostar Br + Brake optional Br - Encoder (X1) Signal Plug Temp Temp REFCOS Ref Cos + COS REFSIN Ref Sin... -
Page 12: Assignment Tpm ⇔ ⇔ ⇔ ⇔ Servo Amplifier
Quick Startup Guide Seidel Servostar 600 5 Assignment TPM ⇔ ⇔ servo amplifier ⇔ ⇔ cable set ⇔ ⇔ ⇔ ⇔ 5.1 TPM with Resolver-Feedback TPM type Controller Code of power- (L) and signal cable (S) Size Feed- WMC recommendation back 320V 600V... -
Page 13: Tpm With Absolute Rotary Encoder Heidenhain Ecn 1313 / Eqn 1325
Quick Startup Guide Seidel Servostar 600 5.2 TPM with absolute rotary encoder Heidenhain ECN 1313 / EQN 1325 TPM type Controller Code of power- (L) and signal cable (S) Feed- Size WMC recommendation 320V 600V back Servostar 603 Servostar 601 Servostar 603 Servostar 601 TPM004... -
Page 14: Tpm With Absolute Rotary Encoder Stegmann Srs 050 / Srm 050
Quick Startup Guide Seidel Servostar 600 5.3 TPM with absolute rotary encoder Stegmann SRS 050 / SRM 050 TPM type Controller Code of power- (L) and signal cable (S) Feed- Size WMC recommendation back 320V 600V Servostar 603 Servostar 601 Servostar 603 Servostar 601 TPM 004...
