Ditec MD1-MD2
Installation manual for display module for diagnostics and advanced controls.
MD1
VALOR
MD2
QIK80EH
www.entrematic.com
IP1938EN
Fig. 1
Fig. 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ditec MD1 and is the answer not in the manual?

Questions and answers

Related Manuals for Entrematic Ditec MD1

Summary of Contents for Entrematic Ditec MD1

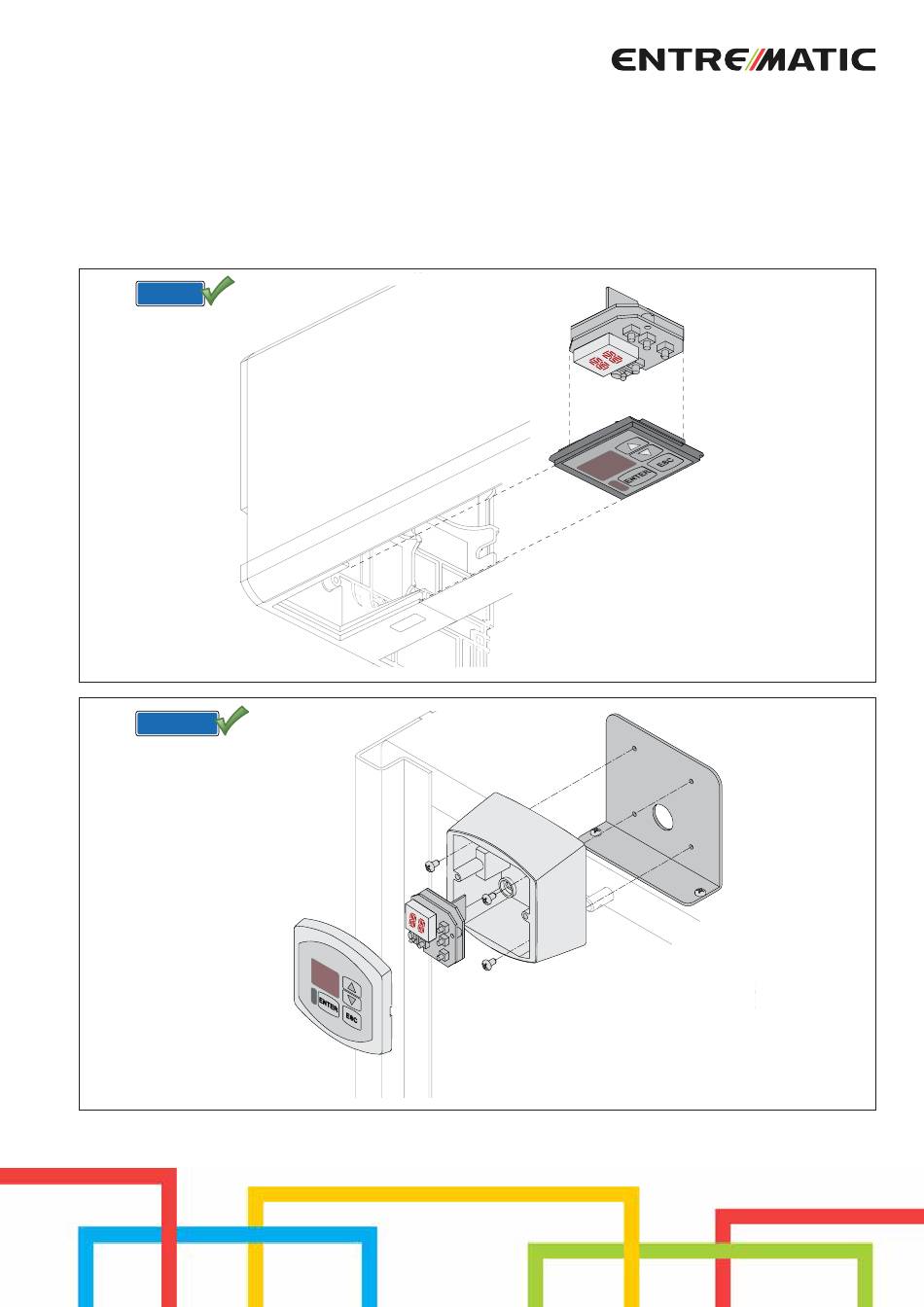

  • Page 1 IP1938EN Ditec MD1-MD2 Installation manual for display module for diagnostics and advanced controls. VALOR Fig. 1 QIK80EH Fig. 2 www.entrematic.com...

  • Page 3: Table Of Contents

    Index Subject Page General safety precautions Technical data Installation Electrical connections Use method selection Commands Switching on and off Key combinations Menu Main menu Second level menu - BC (Basic Configurations) Second level menu - BA (Basic Adjustments) Second level menu - RO (Radio Operations) Second level menu - SF (Special Functions) Second level menu - CC (Cycles Counter) Second level menu - EM (Energy Management)

  • Page 4: General Safety Precautions

    1. General safety precautions This installation manual is intended for qualified personnel only. Installation, electrical connections and adjustments must be performed in accordance with Good Working Methods and in compliance with applicable regulations. Before installing the product, carefully read the instructions. Bad installation could be hazardous. The packaging materials (plastic, polystyrene, etc.) should not be discarded in the environment or left within reach of chil- dren, as these are a potential source of hazard.

  • Page 5: Electrical Connections

    4. Electrical connections BIXMR2 max 50 m (shielded cable) Green GOLR Yellow Brown White CONTROL PANEL DOWN ENTER Make the electrical connections as shown in the figure. WARNING: after having connected the display module to the control panel, turn on the power and wait 30 s for autocon- figuration of the display module and recognition of the automation.

  • Page 6: Commands

    5. Commands NOTE: the pressure on the keys can be quick (less than 2 s) or prolonged (longer than 2 s). Unless specified otherwise, quick pressure is intended. To confirm the setting of a parameter, prolonged pressure is necessary. 5.1 Switching on and off The procedure to switch on the display is as follows: press the ENTER key start of display functioning check...

  • Page 7: Menu

    6. Menu 6.1 Main menu use the keys to select the required function press the ENTER key to confirm Display Description BC - Basic Configurations. The menu allows to visualize and modify the main settings of the control panel. BA - Basic Adjustments. The menu allows to visualize and modify the main adjustments of the control panel.

  • Page 8: Second Level Menu - Bc (Basic Configurations)

    6.2 Second level menu - BC (Basic Configurations) use the keys to select the required function press the ENTER key to confirm Display Application Description AC - Enabling of automatic closing. OF - Disabled ON - Enabled C5 - Step-by-step/opening command operation. 1-5 - Step-by-step 1-3 - Opening RM - Radio receiver operation.

  • Page 9: Second Level Menu - Ba (Basic Adjustments)

    6.3 Second level menu - BA (Basic Adjustment) use the keys to select the required function press the ENTER key to confirm Display Application Description RF - Force adjustment. [%] 00 - Minimum 99 - Maximum R1 - Thrust on obstacles adjustment. [%] The control panel is equipped with a safety device that stops motion if an ob- stacle is encountered during an opening operation and either stops or reverses motion during a closing operation.
  • Page 10 Display Application Description TO - Setting the secondary automation opening time with interlocked bar- riers. [s] 00 - Minimum 30 - Maximum TS - Setting renewal of automatic closing time after safety release. [%] 00 - Minimum 99 - Maximum WO - Setting opening preflashing time.
  • Page 11 Display Application Description RT - Setting the escape route mode test execution period [h] 0,5 - Minimum 24 - Maximum EL21 TE - Setting the escape route mode temporary reinstatement time. [min] 01 - Minimum 05 - Maximum EL21 DA - Setting the bi-directional mode duration time with delayed STOP. [s] 05 - Minimum 60 - Maximum FF - Setting function of 0-14 exit.

  • Page 12: Second Level Menu - Ro (Radio Operations)

    6.4 Second level menu - RO (Radio Operation) use the keys to select the required function press the ENTER key to confirm Display Application Description SR - Transmitter storage..x2, x3... GOLR It is possible to directly access the Transmitter storage menu even with the display turned off, but only with the option Setting of display viewing mode set at 00 or 03: - for transmitting a remote control not present in the memory;...
  • Page 13 Display Application Description RE - Setting memory opening from remote control. OF - Disabled ON - Enabled When enabled (ON) remote programming is activated. To memorize new trans- mitters without using the control panel, press and hold down the PRG key of an GOLR already-memorized GOL4 transmitter for 5 s until the LED switches on (within the capacity of the receiver) and press any CH key of the new transmitter.
  • Page 14 Display Application Description RK - Menu navigation via transmitter keyboard. OF - Disabled ON - Enabled 3 3 2 4 1 With the display switched off, quickly type the sequence of keys using the desired memorized transmitter. NOTE: it is recommended to use a single dedicated transmitter. NOTE: it is recommended to use a single dedicated transmitter.

  • Page 15: Second Level Menu - Sf (Special Functions)

    6.5 Second level menu - SF (Special Functions) use the keys to select the required function press the ENTER key to confirm Display Application Description SP - Setting the password. (EXAMPLE) NOTE: this setting is only possible when the password is not set. NOTE: this setting is only possible when the password is not set.
  • Page 16 Display Application Description RL - Carica ultima configurazione impostata. GOLR The MD1-MD2 display module automatically saves the last configuration set, and keeps it stored in The MD1-MD2 display module automatically saves the last configuration set, and keeps it stored in the integrated memory.

  • Page 17: Second Level Menu - Cc (Cycles Counter)

    6.6 Second level menu - CC (Cycles Counter) use the keys to select the required function press the ENTER key to confirm Display Application Description CV - View of the total manoeuvres counter. ► 7.341.625 manoeuvres (EXAMPLE) CA - Setting maintenance alarm. It is possible to set the required number of operations (regarding the partial manoeuvres counter) for signalling the maintenance alarm.

  • Page 18: Second Level Menu - Em (Energy Management)

    6.7 Second level menu - EM (Energy Management) use the keys to select the required function press the ENTER key to confirm Display Application Description BE - Advanced battery test enabling. OF - Disabled ON - Enabled The advanced battery test checks correct operation of the battery kit installed on the automation.

  • Page 19: Second Level Menu - Ap (Advanced Parameters)

    6.8 Second level menu - AP (Advanced Parameters) use the keys to select the required function press the ENTER key to confirm Display Application Description AA - Activation of AP (Advanced Parameters) menu. OF - Disabled ON - Enabled NOTE: activation is necessary before being able to scroll through the AP NOTE: activation is necessary before being able to scroll through the AP (Advanced Parameters) menu.
  • Page 20 Display Application Description OB - Setting opening deceleration. [°] 20 - Minimum 40 - Maximum CB - Setting closing deceleration. [°] 20 - Minimum 45 - Maximum DS - Setting of display viewing mode. 00 - No display 01 - Selector settings (see paragraph 7.1) 02 - Automation status (see paragraph 7.2) 03 - Commands and safeties (see paragraph 7.3) 04 - Working temperature (DO NOT USE)
  • Page 21 Display Application Description EF - Setting the escape route mode. OF - Disabled ON - Enabled NOTE: The escape route mode can be set only with contacts 1-KO and 1-KC NOTE: The escape route mode can be set only with contacts 1-KO and 1-KC EL21 closed.

  • Page 22: Display Viewing Mode

    7. Display viewing mode NOTE: it is possible that, owing to the type of automation and control panel, certain menus are not available. 7.1 Viewing of Selector settings To enable the display mode Selector settings, select Display Application Description Automation closed. Automation open.
  • Page 23 Display Application Description Automation closing. Automation opening. Automation closed. Automation open from left side. Automation open from right side. Automation in intermediate position from left side. Automation in intermediate position from right side. Automation closing from left side. Automation closing from right side. Automation opening from left side.

  • Page 24: Viewing Of Commands And Safeties

    7.3 Viewing of Commands and safeties To enable the display mode Commands and safeties, select Display Description Automatic closing activation command. Opening command. Closing command. Step-by-step command. Safety with slowed opening. Safety with closing reversal. STOP command. Block activation command. Inner side opening command.
  • Page 25 Display Description AUX1 coupling board command reception. AUX2 coupling board command reception. Enabling opening from inner side. Enabling opening from outer side. EMERGENCY OPEN command for emergency opening. Automatic opening repositioning command. Enabling opening (regardless of the opening direction) limit switch. Enabling closing ( (regardless of the opening direction) limit switch.

  • Page 26: Viewing Of Alarms And Faults

    Display Description Microswitch 1 command. Microswitch 2 command. 7.4 Viewing of alarms and faults NOTE: the signaling of alarm messages takes priority over all other displays. Type of Display Description Remedy alarm Test of safety sensor installed on terminal 6 failed. Check the wiring and correct operation of the safety sensor.
  • Page 27 Type of Display Description Remedy alarm Encoder fault. If the alarm continues, contact Technical Assistance. Reversal of the motor leads. Check the motor leads. Encoder disconnected, false encoder contacts, encoder Check that the encoder is connected correctly, clean the fault. contacts by connecting and disconnecting the encoder plug on the contacts, replace encoder.
  • Page 28 Type of Display Description Remedy alarm Door wings release failed. Check the wiring of the blocking device and microswitch. Check microswitch operation. Check blocking device movement. Door wings locking failed. Check the wiring of the blocking device and microswitch. Check microswitch operation. Check blocking device movement.
  • Page 29 Type of Display Description Remedy alarm Insertion of a memory module containing more than 100 To save the set configurations in the memory module, memorized transmitters. cancel a few memorized transmitters to bring the total WARNING: the setting is automatic. lower than 100.
