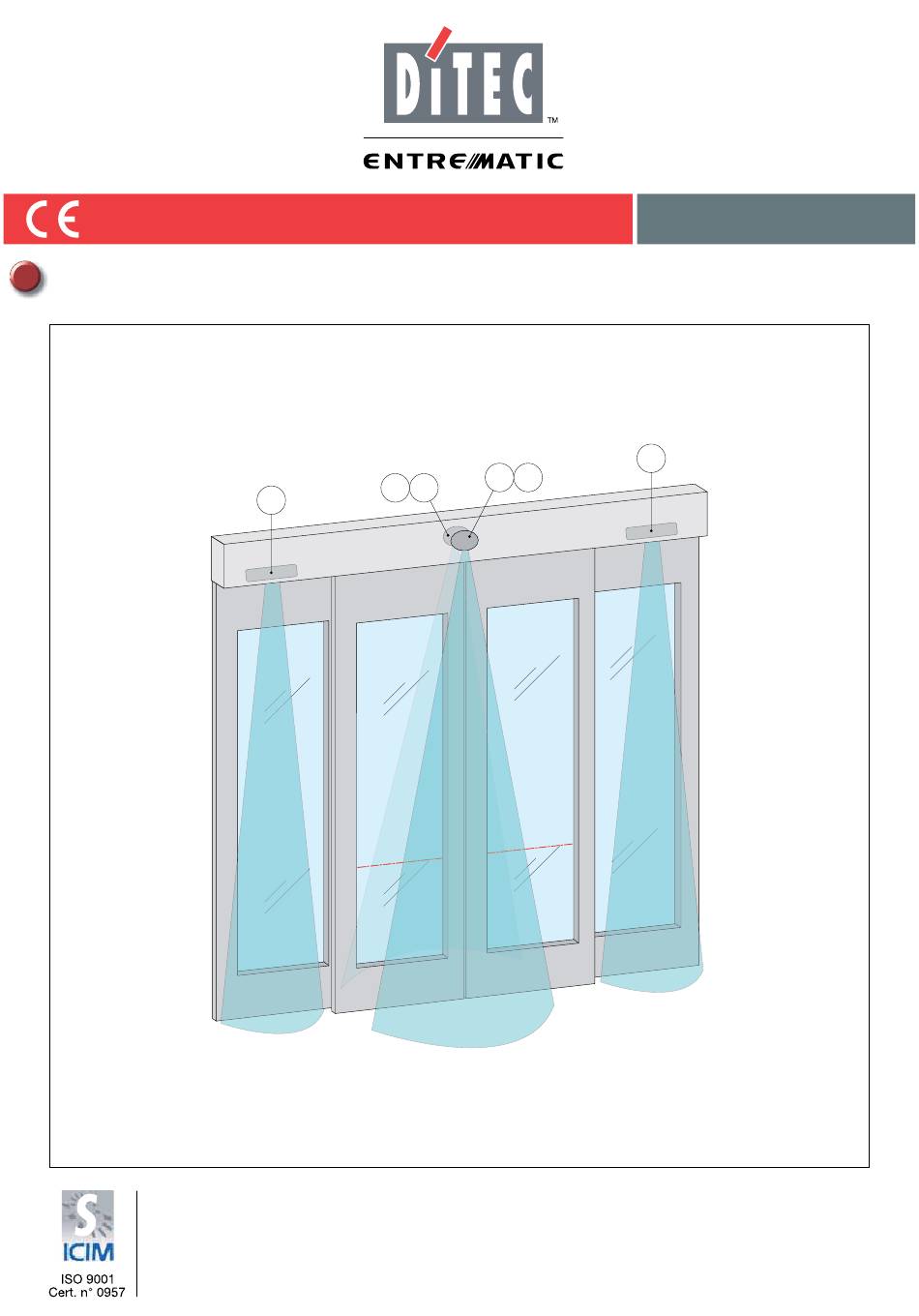

- Page 1 IP1960EN rev. 2012-01-23 Installation manual for accessories connection module for EL20 control panel. DITEC S.p.A. Via Mons. Banfi, 3 - 21042 Caronno Pertusella (VA) - ITALY Tel. +39 02 963911 - Fax +39 02 9650314 www.ditec.it - ditec@ditecva.com...
-
Page 2: Mechanical Installation
MECHANICAL INSTALLATION... - Page 3 VALOR VALORHH VALORHS...
-
Page 4: General Safety Warnings
GENERAL SAFETY WARNINGS This installation manual is intended for professionally competent personnel only. Installation, electri- cal connections and adjustments must be performed in accordance with Good Working Methods and in compliance with the present standards. Read the instructions carefully before installing the product. Bad installation could be dangerous. - Page 5 Command Function Connection Connection of opening safety sensor, left Connect the device to terminals 0-1-6A-41, side. as described on page 8-9-10-11. The opening of the contact decreases the NOTE: make a jumper for terminals 6A-41 if opening speed in the last 500 mm of the door the sensor is not used.
- Page 6 Command Function Connection Voltage-free contact for door lighting or other Use the contact for activation of lights or interface functions. other loads in series to the C-NO terminals NONC C as described on page 8-9-10-11 (max 24 V / 0.5 A). 1.2 Adjustments Description DIP1 Advanced battery test.
-
Page 7: Fire Mode
FIRE MODE Command Function Connection The opening of contact 1-G2, or the lack of 1-G2. mains voltage, causes the immediate and slow start of the operation set via J5 and the 1 G1 G2 closing of the contact C-NO (DOOR LIGHTS). All the inputs are deactivated. - Page 8 EXAMPLE OF APPLICATION WITHOUT SELECTOR The automation opens with commands 1-3A, 1-3B of the RADARs (or opens partially with the 27-3A, 27-3B commands), and automatically closes with jumper 1-2. Makes the safety on the passage opening with CELPR photocells. If the automation has no blocking device, make connection 1-28 as shown in the figure. WARNING: do not use the terminal board of the control panel;...
- Page 9 EXAMPLE OF APPLICATION WITH COMH-COMK SELECTOR The automation opens with commands 1-3A, 1-3B of the RADARs (or opens partially with the 27-3A, 27-3B commands), and automatically closes according to the operation chosen on the selector. Makes the safety on the passage opening with the CELPR photocells. WARNING: do not use the terminal board of the control panel;...
- Page 10 EXAMPLE OF APPLICATION WITH COME SELECTOR The automation opens with commands 1-3A, 1-3B of the RADARs (or opens partially with the 27-3A, 27-3B commands), and automatically closes according to the operation chosen on the selector. Makes the safety on the passage opening with the CELPR photocells. WARNING: do not use the terminal board of the control panel;...
- Page 11 EXAMPLE OF APPLICATION FOR HOSPITAL DOORS The automation opens with commands 27-3A and 27-3B, and automatically closes with jumper 1-2. Makes the safety on the passage opening with the CELPR photocells. WARNING: do not use the terminal board of the control panel; make the connections shown in the figure.
