Operating Instructions
Calibrating can be first undertaken after successfully installing the MIG-AST to your drive unit.

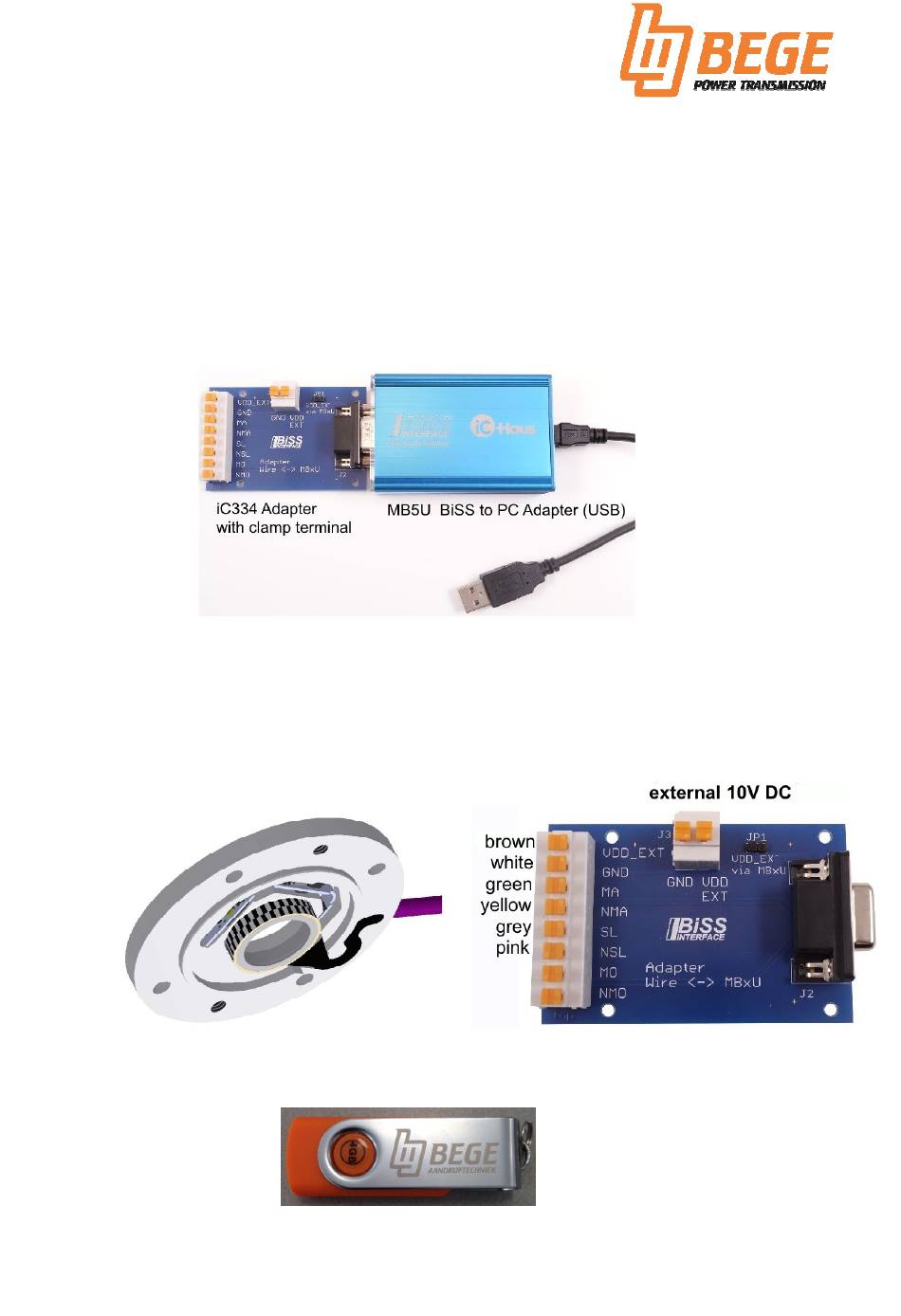

To calibrate the MIG-AST the following parts accessories are necessary.
-
Software : MIG-AST_Absolute_Encoder_1.0.zip
-
Hardware : iC334 Adaptor and MB5U
System :
Microsoft Windows 7 or higher
Processor : 1 GHz or higher and 32-Bit (x86) – or 64-Bit (x64)
2GB RAM with 32-Bit -Version, 2 GB with 64- Bit -Version
Min. 500 MB free memory
One free USB Port
When delivering a calibration module you will receive a USB stick or a "link" to the
software download of the calibration program.
/ Calibrating the MIG-AST.
1 / 8
Version1.0
Advertisement
Table of Contents
Related Manuals for BEGE MIG-AST
Summary of Contents for BEGE MIG-AST
-
Page 1: Operating Instructions
Version1.0 Operating Instructions / Calibrating the MIG-AST. Calibrating can be first undertaken after successfully installing the MIG-AST to your drive unit. To calibrate the MIG-AST the following parts accessories are necessary. Software : MIG-AST_Absolute_Encoder_1.0.zip Hardware : iC334 Adaptor and MB5U... - Page 2 Installing the software Installing the software File : MIG-AST_Absolute_Encoder_1.0.zip AST_Absolute_Encoder_1.0.zip With Program 7.zip for example, unzip the file and copy it to a directory. With Program 7.zip for example, unzip the file and copy it to a directory. Click Setup.exe and follow the instructions. Click Setup.exe and follow the instructions.
- Page 3 Re-start the computer (Restart) computer (Restart) After the resulting re-start click on once again the directory start click on once again the directory USB_MB5U_driver_IC31200.exe USB_MB5U_driver_IC31200.exe 3 / 8...
- Page 4 Further 4 / 8...
- Page 5 Further Click to complete Exit Setup and disconnect the MB5U from the Computer and re Exit Setup and disconnect the MB5U from the Computer and re-connect. 5 / 8...
- Page 6 Calibration Step 1 By clicking the button "Disconnected„ the software connects itself with the By clicking the button "Disconnected„ the software connects itself with the By clicking the button "Disconnected„ the software connects itself with the interface and the encoder. T interface and the encoder.
- Page 7 Position / Status Position / Status Direction CW / CCW CW / CCW „Direction“ you can change the direction of rotation between clockwise (CW) and “ you can change the direction of rotation between clockwise (CW) and “ you can change the direction of rotation between clockwise (CW) and counter clockwise (CCW).
- Page 8 Step 3 Store the calibration results in the encoder by Store the calibration results in the encoder by clicking “Store Setup”. clicking “Store Setup”. Failing to store the calibration will cause the results to be lost. Failing to store the calibration will cause the results to be lost. 8 / 8...
