Wired M-Bus Interfaces And Pulse I/O Interfaces - Apator ELF Technical Description

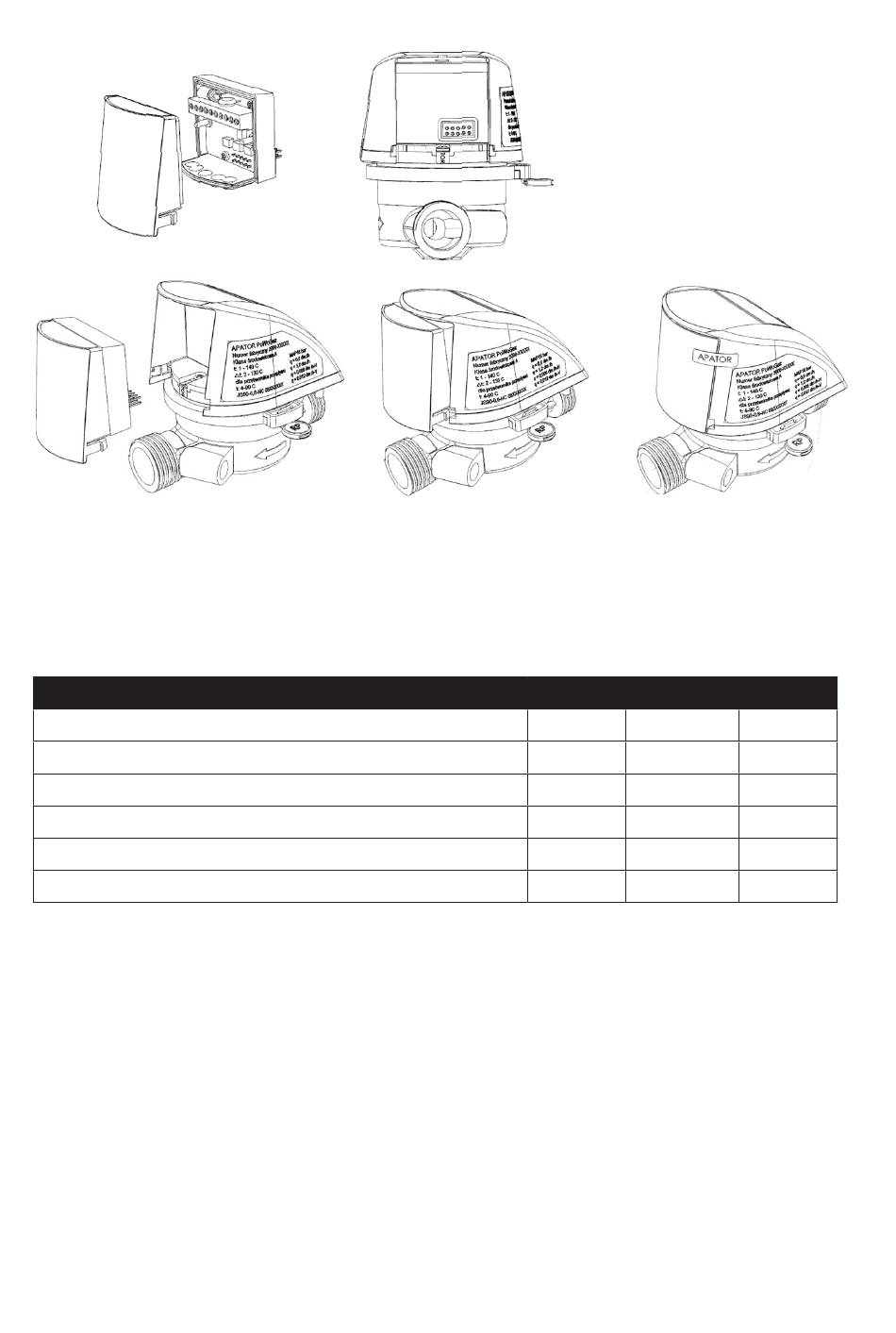

Wired M-Bus interfaces are available for connecting of up to four additional pulse inputs and with one
pulse output, the pulse I/O interfaces with a maximum of four auxiliary pulse inputs and one pulse
output, a Wireless M-Bus interface, and an USB interface.
Interface
M-Bus + 4 pulse inputs
M-Bus + 2 pulse inputs + 1 pulse output
4 pulse inputs
3 pulse inputs + 1 pulse output
Wireless M-Bus
USB

7.1. Wired M-Bus interfaces and pulse I/O interfaces

Data reading with the M-Bus communication interface is based on the transmission protocol compliant
with PN-EN 13757-3:2005 and PN-EN 1434-3:2009. The implemented protocol enables primary ad-
dressing with 1-byte network addresses, secondary addressing with the 8-digit customer identifier and
extended secondary addressing with the serial number.
The following is the list of data read over M-Bus:
• heat meter serial number
• customer/user number
• current date
• heat consumption
M-Bus
+
+
–
–
–
–
- 17 -
Pulse OUT Pulse IN
– 4
1 2
– 4
1 3
– –
– –
