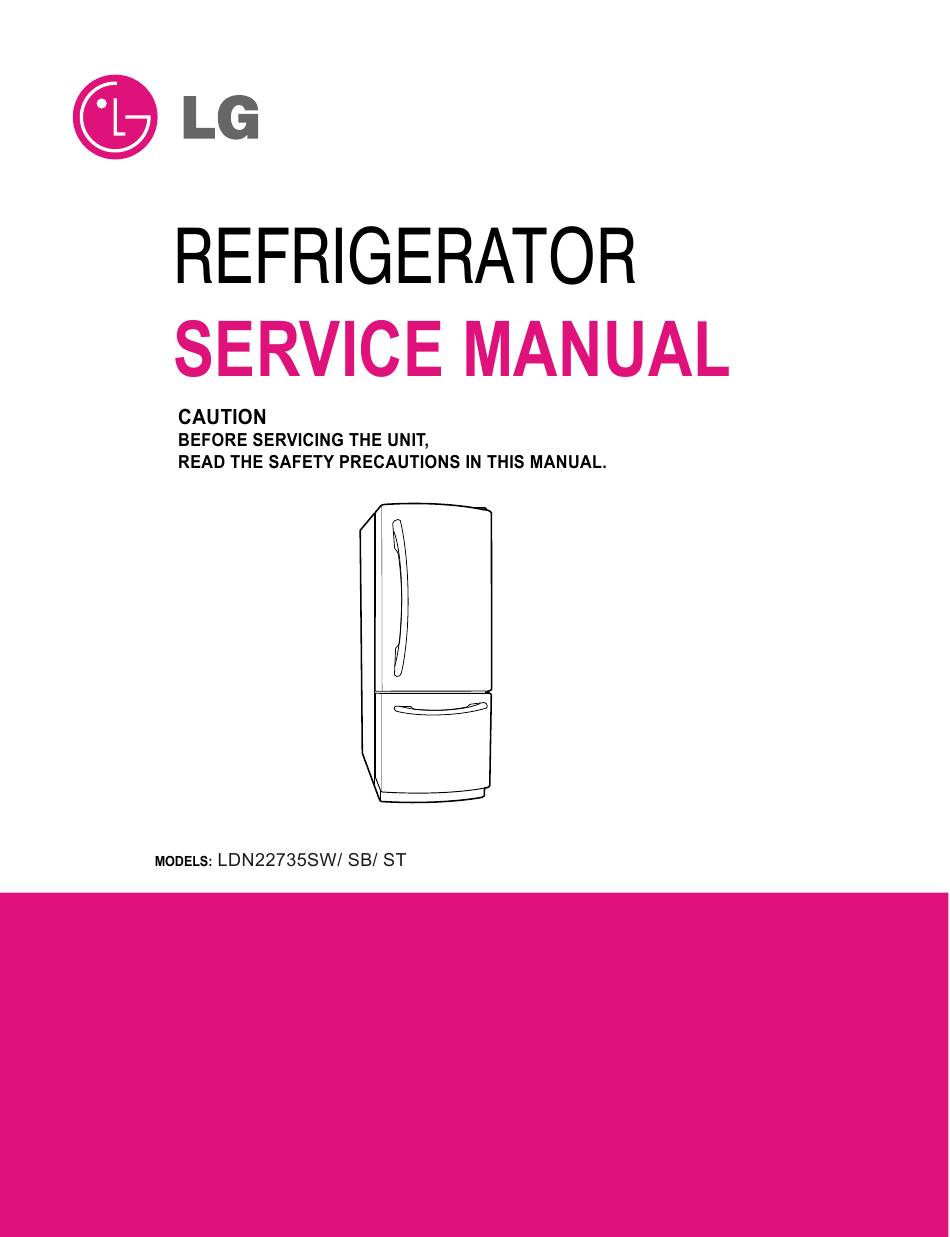

LG LDN22735SW Service Manual
Hide thumbs
Also See for LDN22735SW:
- Service manual (45 pages) ,
- Owner's manual (37 pages) ,
- Manual de usuario (34 pages)
Related Manuals for LG LDN22735SW
Summary of Contents for LG LDN22735SW
-
Page 37: Exploded View
#EV# EXPLODED VIEW CASE PARTS CAUTION: Use the part number to order part, not the position number. 103B 281A 281B 103A 410A 409D 406B 503G 501F 282E 503F 903D 503D 610A 282F 503C 501A 503E 623H 409B 120B 411A 145A 304A 125D 619B... - Page 38 #EV# FREEZER PARTS CAUTION: Use the part number to order part, not the position number. 125A 282X 136B 131A 145C 248E 248F 237C 145F 136A -38-...
-
Page 39: Refrigerator Parts
#EV# REFRIGERATOR PARTS CAUTION: Use the part number to order part, not the position number. 147C 147A 141D 141A 149C 146A 149E 141B 141A 141E 141C 141B 142A 142D 141C 142B 142E 103E 128A 103E 128M 170A 128G 278C 128C 103E 167B 168A... -
Page 40: Door Parts
#EV# DOOR PARTS CAUTION: Use the part number to order part, not the position number. 286A 230A 212G 241A 233A 231A 241B 244E 241E 241C 237A 244A 212J 286A 243A 241D 249C 250B 249J 249E 313A 249L 281H 410C 281D 281G 250B 249K... - Page 41 LDN22735SB #EV# Loc No. Part No. Description Loc No. Part No. Description 103A 3650JJ2003M Handle,Rear 249M MCK30136702 Cover,Connector 103B 3650JJ2003L Handle,Rear 250A 4270JJ3001E Bar 103C 3551JJ1015F Cover Assembly,Lower 250B 4403JJ3001A Connector Assembly 103E 5218JJ3001A Rail,Slide 278C 4510JJ2003A LEVER,SHUTTER 105A 5251JA3003B Tube Assembly,Drain 281A 3550JJ2013C Cover,Hinge 105F...
- Page 42 LDN22735ST #EV# Loc No. Part No. Description Loc No. Part No. Description 103A 3650JJ2003M Handle,Rear 249M MCK30136702 Cover,Connector 103B 3650JJ2003L Handle,Rear 250A 4270JJ3001E Bar 103C 3551JJ1015F Cover Assembly,Lower 250B 4403JJ3001A Connector Assembly 103E 5218JJ3001A Rail,Slide 278C 4510JJ2003A LEVER,SHUTTER 105A 5251JA3003B Tube Assembly,Drain 281A 3550JJ2013C Cover,Hinge 105F...
- Page 43 LDN22735SW #EV# Loc No. Part No. Description Loc No. Part No. Description 103A 3650JJ2003E Handle,Rear 249M MCK30136702 Cover,Connector 103B 3650JJ2003A Handle,Rear 250A 4270JJ3001E 103C 3551JJ1015B Cover Assembly,Lower 250B 4403JJ3001A Connector Assembly 103E 5218JJ3001A Rail,Slide 278C 4510JJ2003A LEVER,SHUTTER 105A 5251JA3003B Tube Assembly,Drain...
- Page 44 May 19, 2008 MFL31442401 Rev.01...
