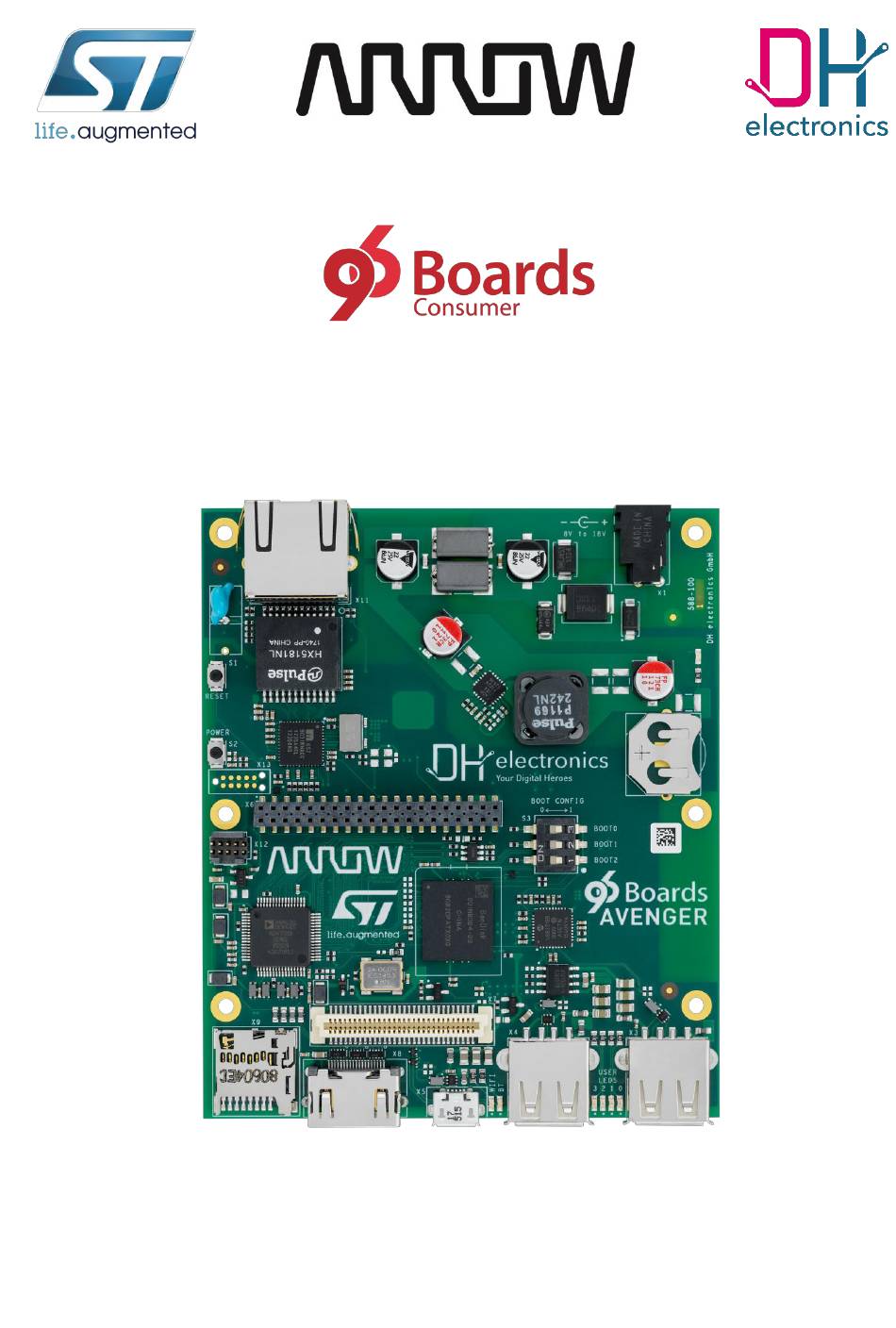

- Page 1 96Boards Avenger96 - Getting Started DH electronics GmbH ▪ Am Anger 8 ▪ 83346 Bergen ▪ Germany YOUR DIGITAL HEROES.
- Page 2 Avenger96 – Getting Started DH electronics GmbH History Revision Date Description / Change Name 21.02.2019 First release MH, AG 25.02.2019 Some corrections 05.03.2019 Replaced wrong minus character at chapter 1.2.4.2 29.03.2019 Add new demo image version v1.1 Add GPU demo information 31.03.2019 Add new demo image version v1.2...
-
Page 3: Table Of Contents
Avenger96 – Getting Started DH electronics GmbH Summary Getting Started with the 96Boards Avenger96 ...................... 4 Overview ................................5 1.1.1 Product Features ............................. 5 1.1.2 Block diagram ............................6 1.1.3 Key components ............................7 1.1.4 Expansion Connectors ..........................9 1.1.5 Low Speed Expansion Connector ...................... -
Page 4: Getting Started With The 96Boards Avenger96
DH electronics GmbH 1 Getting Started with the 96Boards Avenger96 CAUTION! THIS DOCUMENT IS DESIGNED FOR THE 96Boards Avenger96 FS00009 (PCB number 588-100) ONLY! The PCB number of the board can be found on the top right corner of the board next to the power jack. -
Page 5: Overview
Avenger96 – Getting Started DH electronics GmbH 1.1 Overview This chapter describes all features and key components of the Avenger96 board. 1.1.1 Product Features TECHNICAL DETAILS Processors STM32MP157AAC 2x ARM Cortex-A7 up to 650 MHz ® 1x ARM Cortex-M4 up to 200 MHz ®... -
Page 6: Block Diagram
Avenger96 – Getting Started DH electronics GmbH 1.1.2 Block diagram DOC_Getting-Started-588-100.docx Page 6 / 14... -
Page 7: Key Components
Avenger96 – Getting Started DH electronics GmbH 1.1.3 Key components Gigabit Power Ethernet Jack Power On Reset Button Power Battery connector Button CR1216, CR1220 or CR1225 JTAG Boot Switch Low Speed 8 GB Expansion Connector eMMC High Speed Expansion Connector USB 2.0... - Page 8 Avenger96 – Getting Started DH electronics GmbH DHCOR STM32MP15x WiFi 5 GHz & 2.4 GHz IEEE 802.11a/b/g/n/ac PMIC ® Bluetooth v4.2 STPMIC1A (BR/DER/BLE) STM32MP15x PCB-Antenna 2 MB Boot 2x 512 MB Flash DDR3L RAM DOC_Getting-Started-588-100.docx Page 8 / 14...
-
Page 9: Expansion Connectors
Avenger96 – Getting Started DH electronics GmbH 1.1.4 Expansion Connectors The Avenger96 has two expansion connectors which enables connection to a variety of Mezzanine boards. These boards allows to expand the interfaces of your Avenger96. 1.1.5 Low Speed Expansion Connector... -
Page 10: High Speed Expansion Connector
Avenger96 – Getting Started DH electronics GmbH 1.1.6 High Speed Expansion Connector TECHNICAL DETAILS MMC/SD 4bit mode, v3.01 interface (only available if WiFi is not used) MIPI CSI-2 2x Rx lanes MIPI DSI 2x Tx lanes @ 1Gbit/s I2C 0... -
Page 11: Set Up Guide
Avenger96 – Getting Started DH electronics GmbH 1.2 Set Up Guide This short guide leads you through the first steps to start exploring your Avenger96. In the Box you can find the Avenger96 as well as a microSD card which comes with a pre-installed linux. -
Page 12: Power Supply
Avenger96 – Getting Started DH electronics GmbH 1.2.3 Power Supply The Avenger96 is equipped with a 1.65 mm centre pin positive DC jack connector. This connector supports an input voltage between 8 V to 18 V with a power consumption of up to 24 W. The recommended power supply pro- vides 12 V at a maximum output current of 2 A. -
Page 13: Configuring Ethernet
Avenger96 – Getting Started DH electronics GmbH 1.2.4.1 Configuring ethernet When an ethernet cable is plugged into the RJ45 connector, autonegotiation will start automatically and the net- work service will try to get IP address over DHCP. The progress of network card configuration can be checked... -
Page 14: Ssh Server
Avenger96 – Getting Started DH electronics GmbH The last command will list the WiFi hot spots in range. If a WiFi network uses WPA authentication the following commands will connect to it: # cd # cp /etc/wpa_supplicant.conf . # wpa_passphrase [SSID] [passphrase] >> ./wpa_supplicant.conf Please insert the name of the WiFi network and the passphrase in the command above without quotes or the brackets.
