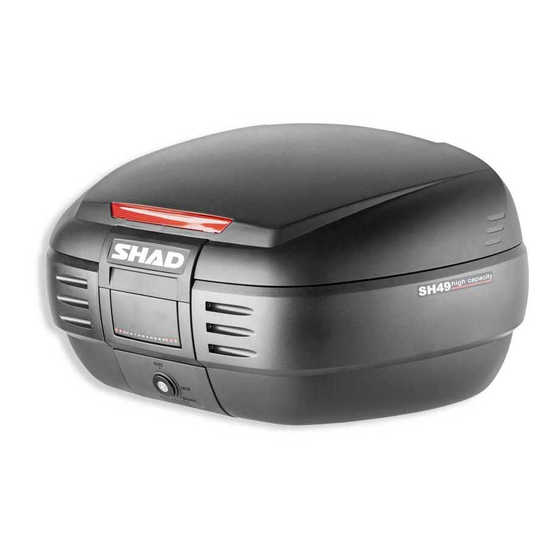

Shad SH49 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
User's guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the SH49 and is the answer not in the manual?

Questions and answers

Related Manuals for Shad SH49

Summary of Contents for Shad SH49

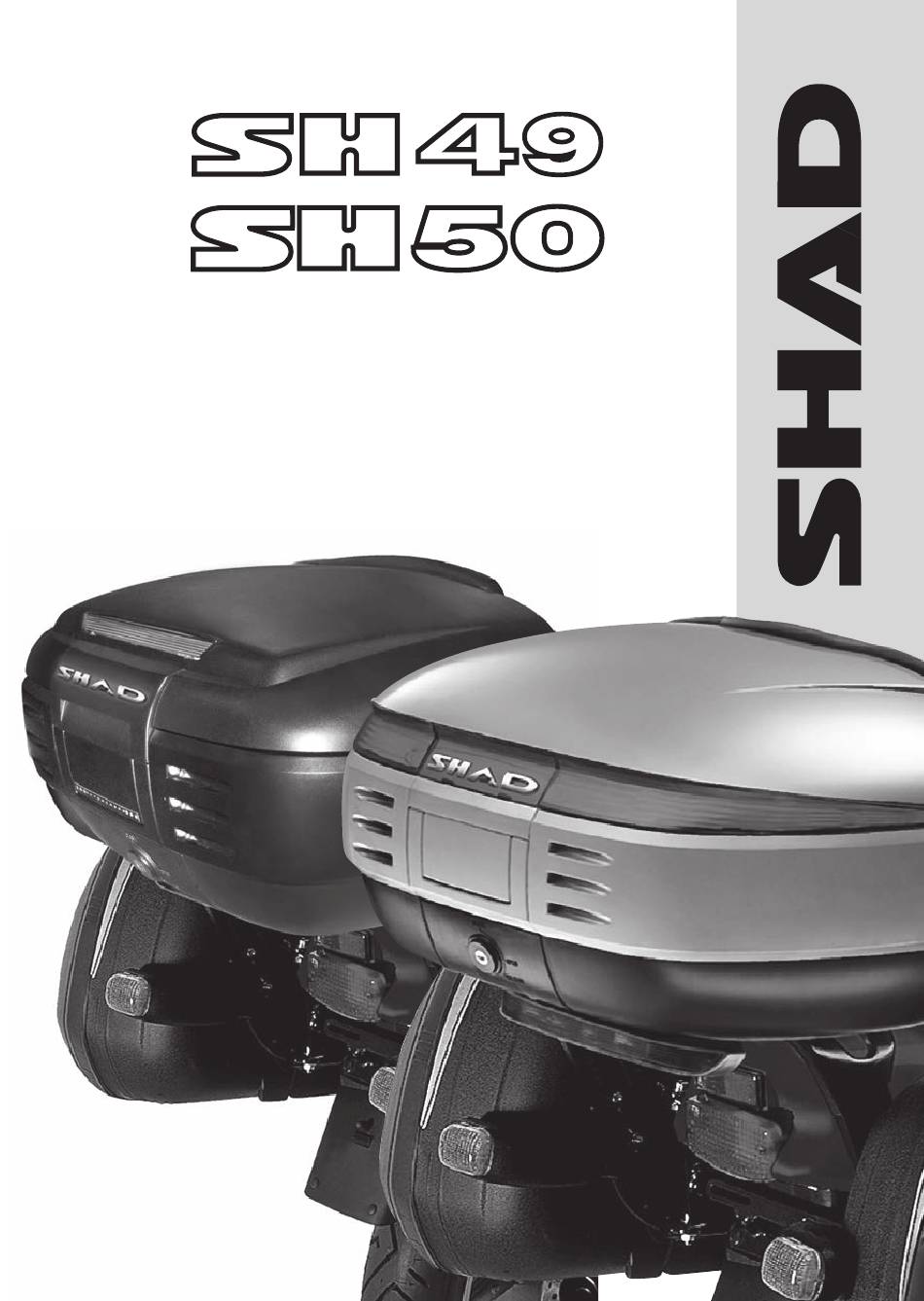

  • Page 1 User’s guide...
  • Page 2 • When cleaning the case use water with neutral soap, always avoid using solvents or chemical products. • For a long lasting use of the case, SHAD recommends the use of its spare parts. • When using the top case SH49-SH50, SHAD recommends using side cases, SH36 SH43 or SH42.

  • Page 3: Open The Case

    OPEN THE CASE (OPEN): Turn the key 90º clockwise from the position CLOSE towards the position OPEN. In this position, push the button, the handle will tilt forward automatically. Use the lever to open the case. 90º OPEN...
  • Page 4 The handle should be in the upright position in order to close the Top Case. PLACING THE CASE ON THE RACK (RELEASE): Turn the key 135º clockwise from the position CLOSE towards the position 135º RELEASE...
  • Page 5 RELEASE. Push the button, the handle will tilt forward automatically. Pull the lower lever to release the case from the bottom rack.
  • Page 6 INSTALLING THE COLOR PLATE SH50: Using a Ø3 mm drill bit, drill 4 holes on the inner side of the case. Next, fasten the color plate using the screws.
  • Page 7 INSTALLING THE BACKREST SH50: Position the backrest over the top case as illustrated and fasten with 3 screws on the inner side of the case. Accessories On Top case SH49 it’s possible to put the backrest DORI60.

  • Page 8: Light Kit

    LIGHT KIT Verify that breaklight does not interfere with the light system of the motocycle. The Light Kit has to be assembled according to the current European directive. BRAKE GROUND TAIL BRAKE GROUND TAIL Number Reference Quantity 200890 (KIT LIGHT) 304127 (Screw M3’5x13 DIN7982) 200851 (Plastic bridles) 304017 (Screw M5x16 DIN7985)
  • Page 9 Note: Consult accessories with your distributor. (*) It can only be used on the Top or Full master. (**) Included in the specific support.
  • Page 10 Number Reference Quantity 201834 (Support piece) 201049 (Bridle) 304144 (Screw M6x40 DIN 965) 200713/2 (Plastic bridle) 303000 (Ø6 Washer fs M6 DIN 125 A) 302021 (M6 Nut M6 DIN 985) 304058 (Screw M6x30 DIN 965) 201835 (Cover support piece) 304127 (Screw Ø3’5x13 DIN 7982) 201504 (Metal piece) * 304074 (Screw M8x20 DIN 912) ** 303020 (Ø8 Washer fs M8 DIN 125 A) **...

This manual is also suitable for:

Sh50
