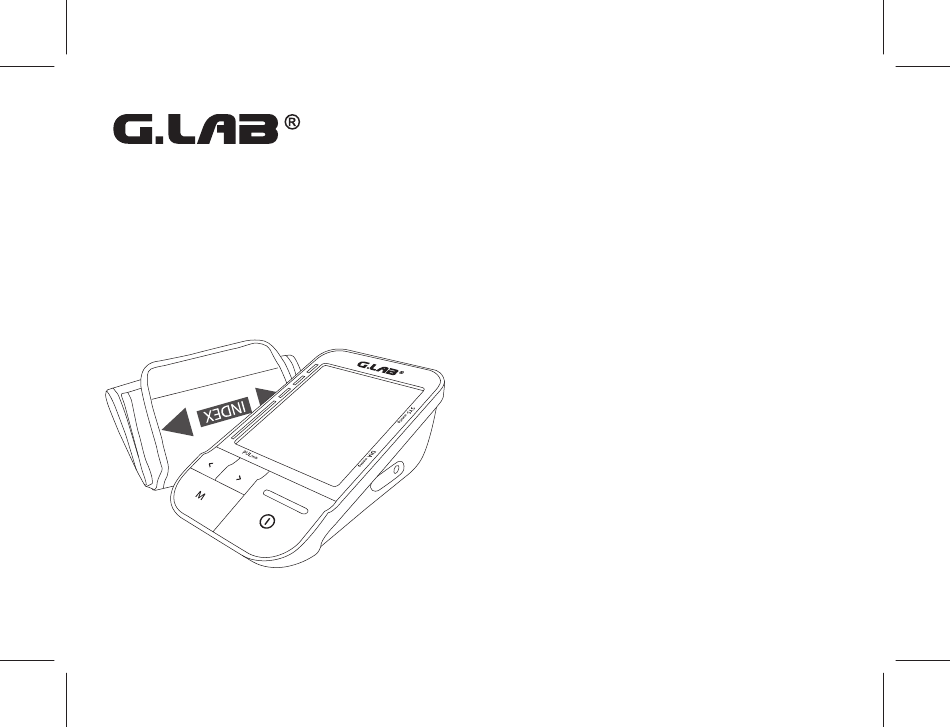

DIGITAL AUTOMATIC
BLOOD PRESSURE MONITOR
INSTRUCTION MANUAL
MODEL No.: MD4120/MD4140/MD4180
Version: 1
TABLE OF CONTENTS
INTRODUCTION...............................................................................1
COMPLIANCE...................................................................................1
SYMBOLS........................................................................................2
IMPORTANT NOTES.....................................................................2-4
DEVICE DESCRIPTION................................................................. 5-6
BATTERY INSTALLATION.................................................................7
USE THE OPTIONAL AC ADAPTER ................................................. 8
SETTING DATE AND TIME................................................................9
SETTING ALARM CLOCK.................................................................10
BEFORE TAKING A MEASUREMENT...............................................11
APPLYING ARM CUFF.....................................................................11
PERFORMING BLOOD PRESSURE MEASUREMENT...................... 12
RECALL AVERAGE AND PREVIOUS MEASUREMENT DATA...........13
DELETE MEASUREMENT DATA......................................................13
PRESSURE BAR INDICATOR..........................................................14
WHO CLASSIFICATION INDICATOR............................................... 14
ABOUT IRREGULAR HEARTBEAT ................................................... 1 5
ABOUT BLOOD PRESSURE............................................................15
TROUBLESHOOTING......................................................................16
TECHNICAL SPECIFICATION.......................................................... 17
APPENDIX I...............................................................................18-19
APPENDIX II..............................................................................20-21
APPENDIX III..................................................................................22
APPENDIX IV..................................................................................23
Advertisement
Table of Contents
Related Manuals for G-Lab MD4140
Summary of Contents for G-Lab MD4140
-
Page 1: Table Of Contents
BLOOD PRESSURE MONITOR SYMBOLS..................2 INSTRUCTION MANUAL IMPORTANT NOTES..............2-4 DEVICE DESCRIPTION..............5-6 BATTERY INSTALLATION..............7 MODEL No.: MD4120/MD4140/MD4180 USE THE OPTIONAL AC ADAPTER ..........8 SETTING DATE AND TIME..............9 SETTING ALARM CLOCK..............10 BEFORE TAKING A MEASUREMENT..........11 APPLYING ARM CUFF..............11 PERFORMING BLOOD PRESSURE MEASUREMENT...... 12 RECALL AVERAGE AND PREVIOUS MEASUREMENT DATA...13... -
Page 2: Introduction
INTRODUCTION COMPLIANCE Thank you for purchasing the G.LAB MD4120/MD4140/MD4180 This device conforms to European Medical Device Directive Blood Pressure Monitor. 93/42/EEC. The device is easy-to-use and good for home users and healthcare professionals. It applies non-invasive oscillometric method which This device complies with: can measure your blood pressure and pulse rate quickly and easily, •... -
Page 3: Symbols
SYMBOLS IMPORTANT NOTES The following symbols are used in this instruction manual, or DO NOT use this device on newborns, infants, children, appear on the device, accessories and packaging. toddlers or persons who cannot express their intentions. The To assure correct use of the device, basic safety measures should device is designed for use on adults only. - Page 4 IMPORTANT NOTES IMPORTANT NOTES If you have any of the following medical conditions, you may Do not use the device where flammable gases (e.g. anesthetics get an inaccurate reading with the device. Please consult your gas, oxygen and hydrogen) or flammable liquids (e.g. alcohol) physician before using the device.
- Page 5 IMPORTANT NOTES IMPORTANT NOTES Do not wrap the cuff around body parts other than your upper Do not place the arm cuff over heavy clothing (e.g. a jacket or left arm. Misuse represents a risk to your health. sweater sleeve) as the blood pressure monitor will not be able to take a proper measurement and there is an elevated danger of Packaging materials are a deadly hazard for children and can acquiring hematoma or skin marks during the course of the...
-
Page 6: Device Description
DEVICE DESCRIPTION Main Unit Display DC Jack Air Jack Start/Stop Key Left Key Right Key Memory Key Arm Cuff Air Plug Battery Cover Air Tube - 5 -... - Page 7 DEVICE DESCRIPTION Information on the Display : Alarm 1 Alarm 2 Severe Hypertension Systolic Pressure Moderate Hypertension Battery Indicator Date Mild Hypertension User Time High Normal Average Data Pressurizing Memory Record Normal Number and Data Releasing Air Optimal Diastolic Pressure Irregular Heartbeat Pressure Bar Pulse Rate...
-
Page 8: Battery Installation
BATTERY INSTALLATION 1. Remove the battery cover. NOTE: 2. Remove the used batteries and insert new batteries. Use LR03 / AAA alkaline batteries. Batteries may cause a choking hazard to children. Store the Make sure the battery polarities (+) and (-) match the markings batteries out of the reach of children. -
Page 9: Use The Optional Ac Adapter
USE THE OPTIONAL AC ADAPTER (The AC Adapter 6VDC@600mA is an optional accessory and is NOTE: sold separately) Use AC adapter which complies with the requirement of IEC (A) Connecting the AC adapter to the device 60601-1 standard. 1. Insert the AC adapter output plug into the DC jack on the right side of the main unit. -
Page 10: Setting Date And Time
SETTING DATE AND TIME (A) When new batteries are installed 1. “YEAR” will blink on the display. 2. Press key to set the current Year. 3. Press key to confirm and then "MONTH" will start to blink. 4. Press key to set the current Month. 5. -
Page 11: Setting Alarm Clock
SETTING ALARM CLOCK 6. To turn off the alarm, enter the alarm clock setting mode and select 1. To enter the alarm clock setting mode, press and hold the desired alarm icon. Press key to confirm your selection. until Alarm 1 icon “ ”... -
Page 12: Before Taking A Measurement
BEFORE TAKING A MEASUREMENT APPLYING ARM CUFF • Before using the device, check your upper arm circumference and 1. Bare your left upper arm. Make make sure it matches the cuff circumference range. sure that the blood circulation in • Keep record of your blood pressure and pulse rate. A single your arm in not constricted by any measurement does not provide an accurate indication of your true clothing that is too tight. -
Page 13: Performing Blood Pressure Measurement
PERFORMING BLOOD PRESSURE MEASUREMENT Press Press 1. Press key to turn the device from Clock Mode to Standby Mode. 2. Press key again to start the blood pressure measurement. OR Press key to select User 1,2,3 or 4. blinks on the display. -
Page 14: Recall Average And Previous Measurement Data
RECALL AVERAGE AND PREVIOUS MEASUREMENT DATA DELETE MEASUREMENT DATA The device has a memory capability to store the measurement data 1. While you are viewing the average Average Measurement Data for 4 users – User 1,2,3 and 4. Every time you complete the or previous measurement data measurement, the device automatically stores the measurement of the selected user. -
Page 15: Pressure Bar Indicator
PRESSURE BAR INDICATOR WHO CLASSIFICATION INDICATOR During the blood pressure and pulse rate measurement, the The World Health Organization (WHO) has established the following Pressure Bar Indicator illustrates the cuff pressure condition. chart as a standard to assess high blood pressure, regardless of the age. Reference Material: Journal of Hypertension 1999, Vol 17 No.2 Pressurizing Releasing Air... -
Page 16: About Irregular Heartbeat
ABOUT IRREGULAR HEARTBEAT [IHB] ABOUT BLOOD PRESSURE An irregular heartbeat is defined as a heartbeat that varies by 25% What Is Blood Pressure? from the average of all heartbeats during the blood pressure Blood pressure is the force exerted by blood against the walls of the measurement. -
Page 17: Troubleshooting
TROUBLESHOOTING Problem Probable Cause Correction Batteries are drained. Replace all used batteries with new batteries. Nothing appears on the display, even when the Batteries are not installed in correct Re-install the batteries with their polarities (“+” and “-“) match the power is turned on. -
Page 18: Technical Specification
Pulse Rate : 1 beat / minute Memory : 480 (120 x 4 users) - MD4120 960 (240 x 4 users) - MD4140/MD4180 Dimensions : Approx. 3.9” x 6.5” x 1.8” (99 x 164 x 46mm) Cuff Size / Arm Circumference Range : Standard: 9”-14”... - Page 19 APPENDIX I The Sphygmomanometer ( MD4120/MD4140/MD4180 ) is intended for use in the electromagnetic environment specified below. The customer or the user of the Sphygmomanometer ( MD4120/MD4140/MD4180 ) should assure that it is used in such an environment. Conducted and...
- Page 20 The Sphygmomanometer ( MD4120/MD4140/MD4180 ) is intended for use in the electromagnetic environment specified below. The customer of the user of Sphygmomanometer ( MD4120/MD4140/MD4180 ) should assure that it is used in such an environment. Floors should be wood, concrete or Electrostatic discharge ceramic tile.
- Page 21 APPENDIX II The Sphygmomanometer ( MD4120/MD4140/MD4180 ) is intended for use in the electromagnetic environment specified below. The customer of the user of Sphygmomanometer ( MD4120/MD4140/MD4180 ) should assure that it is used in such an environment. IEC 60601 Immunity test...
- Page 22 NOTE These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. r.m.s., before modulation is applied. The ISM (industrial, scientific and medical) bands between 0,15 MHz and 80 MHz are 6,765 MHz to 6,795 MHz;...
- Page 23 APPENDIX III Recommended separation distances between portable and mobile RF communications equipment and the Sphygmomanometer ( MD4120/MD4140/MD4180 ) MD4120/MD4140/MD4180 The Sphygmomanometer ( ) is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the Sphygmomanometer...
- Page 24 APPENDIX IV This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 25 5-YEAR LIMITED WARRANTY usage. Please follow Local Ordinances or Regulations for disposal. Thank you for your recent purchase of the G.LAB® Blood Pressure Replacement products under this warranty are warrantied only Monitor. It is our goal to provide you with a high quality product for the remainder of the original warranty period.
