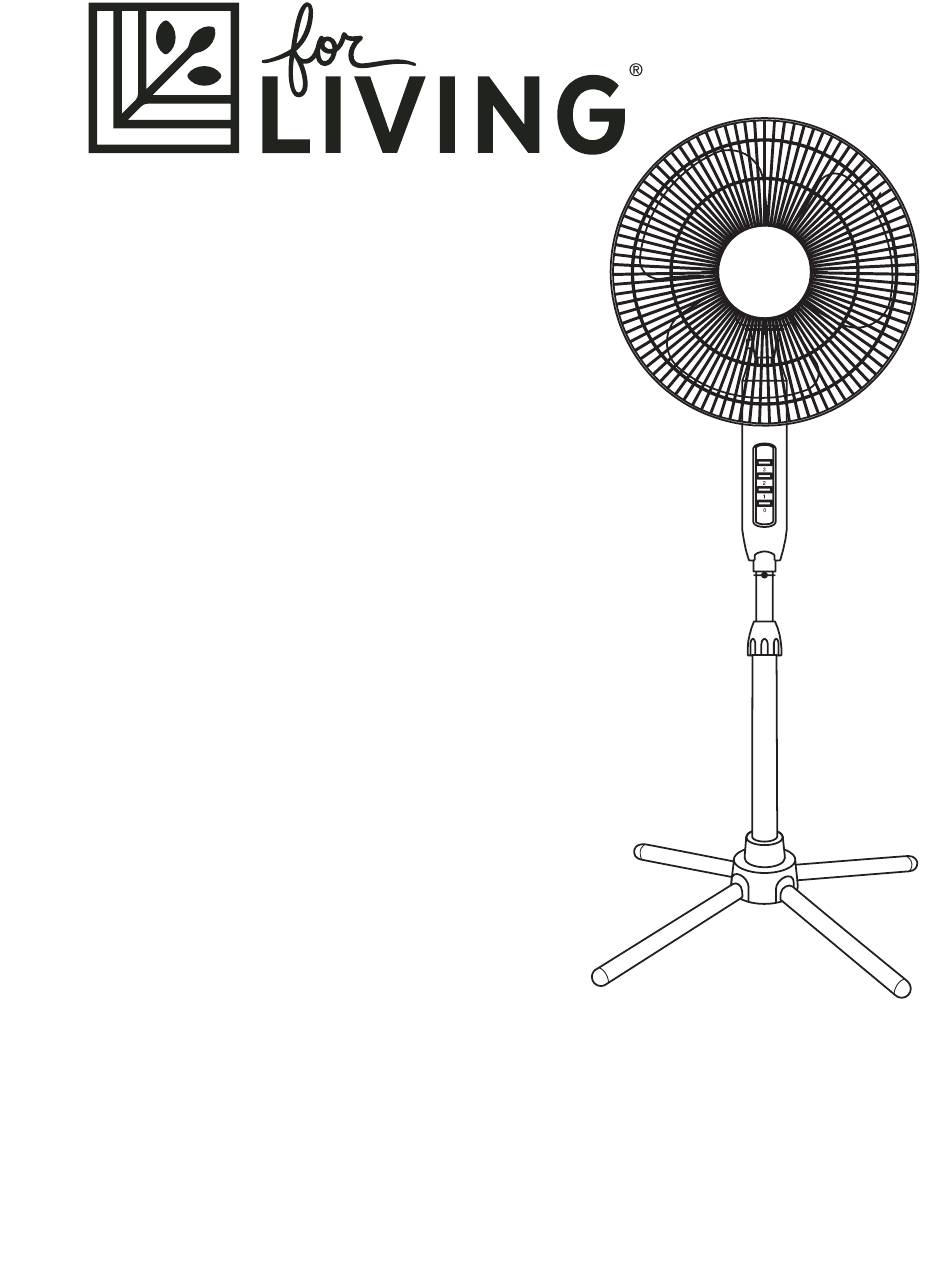

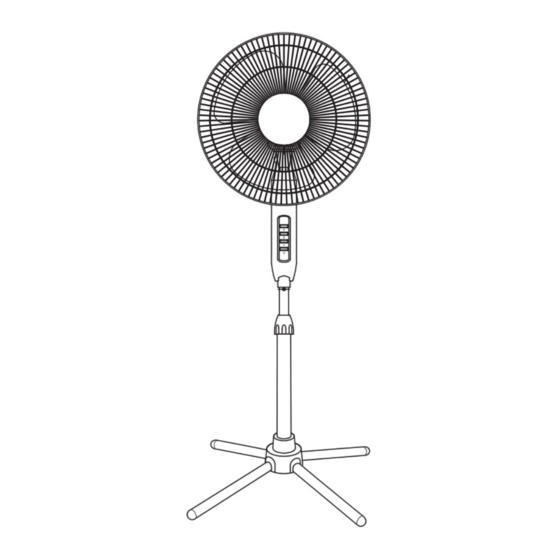

16" (40.6 CM)
Oscillating
Pedestal Fan
with Folding Base
Product No. 043-5649-6
Installation and User Manual
IMPORTANT: Please read this manual carefully before beginning assembly of this product.
Before beginning assembly of product, make sure all parts are present.
Questions? If you have any questions or need replacement parts, please call our toll-free helpline at
1-866-788-7389.
Keep this manual for future reference.
Advertisement
Table of Contents
Related Manuals for for Living 043-5649-6
Summary of Contents for for Living 043-5649-6
- Page 1 16" (40.6 CM) Oscillating Pedestal Fan with Folding Base Product No. 043-5649-6 Installation and User Manual IMPORTANT: Please read this manual carefully before beginning assembly of this product. Before beginning assembly of product, make sure all parts are present. Questions? If you have any questions or need replacement parts, please call our toll-free helpline at 1-866-788-7389.
- Page 2 Product No. 043-5649-6 Table of Contents Technical Data Important Safety Instructions Fan Assembly Important Information Operation Care and Maintenance Warranty Operating voltage 120 V Operating frequency 60 Hz Power 50 W Maximum current 0.43 A Imported for Trileaf Distribution Trifeuil Toronto, Canada M4S 2B8...
- Page 3 Warning! • To avoid possible electric shock, switch off the power supply at the main fuse or circuit breaker box before installing, servicing, or cleaning. Warning! • When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: •...
- Page 4 Product No. 043-5649-6 Warning! SHOCK HAZARD • Use your fan only in dry environments. • Do not use with damaged cord or plug. Use with adequate electrical system that is up to code. • Unplug the fan when not in use.
- Page 5 Simple assembly is required to use this fan. Thumb Screw Unfold base legs Assemble fan Control Panel/Motor assembly onto Chrome Extension and tighten thumbscrew. Place decorative Plastic Flange over Extension Pole to cover the base. Slide pedestal pole into base receptacle. Tighten nut to secure in place.
- Page 6 Product No. 043-5649-6 Locknut Slot Assemble Rear Grille onto Motor Housing. Rear Grille Thread Blade Cap onto threaded end of Motor Shaft. should fit into pins on fan motor housing as shown. Note: Threads are reversed. Tighten = Counter-clockwise. Thread Locknut onto Motor Housing to lock Rear Grille in place.
-
Page 7: Fan Operation
1. Features • 3 Speeds • Large blades provide superior air flow • Wide Oscillation • Adjustable tilt & Height • Perfect for Home or Office 1. Fan Operation • Always operate the fan in the upright position following all instructions and recommendations listed in this manual. -
Page 8: Maintenance
Product No. 043-5649-6 Warning! • Before cleaning the fan, be sure to disconnect power cord from the plug. • Do not use the fan without the grille in place. Periodic grille cleaning with a vacuum will prevent dust build-up. •... -
Page 9: Additional Limitations
This product is guaranteed for 12 months from the date of original retail purchase against defects in materials and workmanship. Subject to the conditions and limitations described below, this product, if returned to us with proof of purchase within the stated warranty period and if covered under this warranty, will be repaired or replaced (with the same model, or one of equal value or specification), at our option.
