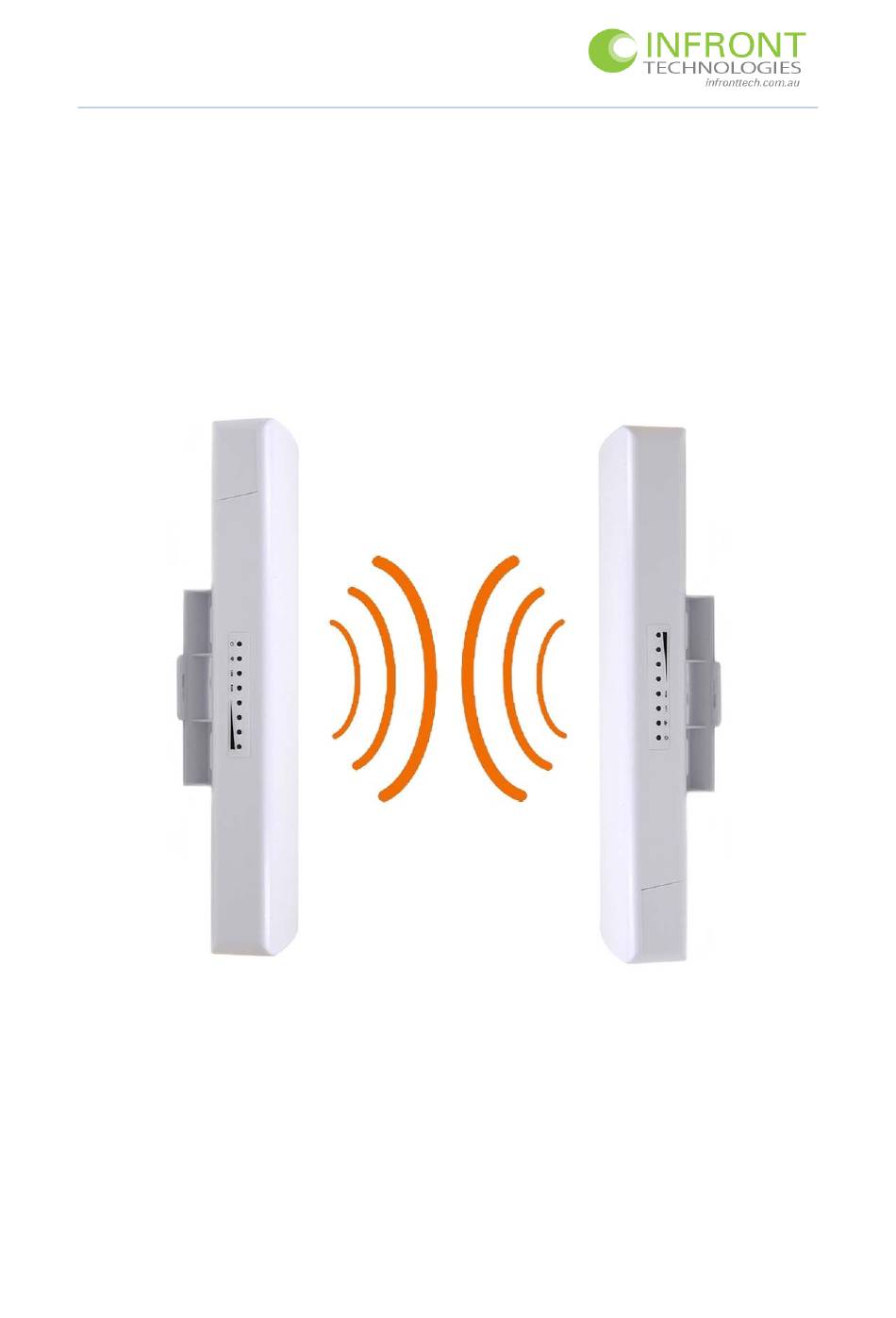

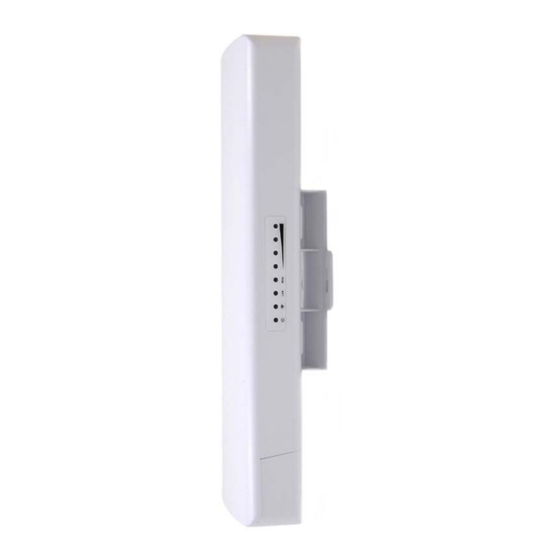

- Page 1 Comfast Quick Start Guide – COMFAST CFE312A Comfast High Speed Wireless Bridge For IP Security Cameras 5.8GHZ @ 300Mbps to 1KM QUICK START GUIDE Page | 1 V1.0 ...
- Page 2 Comfast Quick Start Guide – COMFAST CFE312A Congratulations on your purchase of the Comfast High Speed Long Range Antennas. Using these antennas will allow transmission of your IP cameras or PC to operate up to 1KM at 300Mbps. This quick start guide focuses on using these Antennas with IP Security Cameras and configuring to create a Wireless Network Bridge. We will not be covering all options in the menus in reference to Routers, Access Points and Repeaters as these are not necessary for our intended use. Let’s first understand the basic principals. Access points, Bridges, Repeater and Routers are technologies that allow a wireless signal to be sent over a long distance and can be configured for specific Wireless Network requirements. Let’s look at some examples: Router Use this for connection directly to a modem for internet connection AP (Access Point) Gives Wireless Connection to a Wired Network Repeater This is used to extend the range of a wireless network, it connects to other wireless devices and re‐transmits the signal to a Network Access Point. Bridge Creates a long range network wirelessly. This removes the need for running wires between locations. Imagine having to run a long network cable to another building, shed or your neighbours house ‐ ‐ these antennas remove this cable and makes a seamless network connection. Bridge is the mode we use for IP Cameras when you want to position a camera up to 1KM from the recorder. IMPORTANT: DO NOT mount your antenna until you have configured them – they need to be able to communicate with each other forming a bridge connection before you take to the tools and mounting them. HE PROCESS IS NOT TOO HARD REQUIRES A MEDIUM LEVEL OF UNDERSTANDING OF NETWORKING SHOULD TAKE ABOUT – MINUTES TO COMPLETE Page | 2 V1.0 ...
- Page 3 Comfast Quick Start Guide – COMFAST CFE312A Lets Get Started creating a Bridge Connection…… Overview – What are trying to achieve? The Antennas are supplied with default settings from the factory, we need to log into each antenna and adjust the settings to work for our requirement. They all have a standard IP address of 192.168.10.1 and are not configured to any mode. Let’s outline the basic steps we will be completing: Connecting the hardware using Cat5e or Cat6 Ethernet / Network Cables – see image next page. Configuring 1 antenna at a time. Logging into each antenna, change the IP Addresses and setup the mode for Bridging. Then roll out the antennas to your camera and Recorder… FINISHED. Wow sounds easy.. there is a bit to do get to this point so lets start! Let’s gather some information before we start: You need a PC connected to a router or network with a spare network port – see image next page. You need to know how to change the IP address of your Home Computer (PC) – see appendix A if unsure. We are going to use your Home Computer to configure the settings in each of the Antennas. Step: Setup – Hardware Starting with 1 Antenna only, get it out of the box, mark it as “Master Antenna”, open the back flap and connect Power, Router, PC and Cable as per the image on the next page. Turn on the little switch on the antenna (do this for both Master and Slave Antenna) ...
- Page 4 Comfast Quick Start Guide – COMFAST CFE312A Your connection should look like this END OF STEP 1 – Hardware Page | 4 V1.0 ...
- Page 5 Comfast Quick Start Guide – COMFAST CFE312A Step: Software Configuration: Now that you have properly wired up the devices – turn everything on, wait for a few minutes. It is time to configure the software that is found inside the antennas. Each antenna has it own little operating software, it is just a matter of logging in and configuring. 1. It is important we do ONLY 1 to start with, lets call is the Master Antenna, this is going to be the Antenna located at your CCTV Recorder – take a texta and mark the unit as Master otherwise you will forget which is which. 2. You should see lights on the side of the Antenna and your PC and Router are all working now. 3. The first problem we face is your PC will not be on the same IP range as the Antenna.. Your PC will be something like 192.168.0.X or 10.0.0.X, this is dependant on which router you own and how your network is setup... For us to communicate with the Antenna your PC must be in the same range as the Antenna. The default setting for the Antenna is 192.168.10.1 4. So we need to change the IP address of your Computer a. Change it to 192.168.10.10 (Subnet 255.255.255.0) 5. See Appendix B on how to change your IP Address of your Computer if you don’t know how. 6. Once you have changed your IP address of your computer open an internet explorer window and type.. 7. http://192.168.10.1 – up should pop this below.. If it does not, then you need to check the IP address of you computer.. and that everything is wired up.. failing that there is a mobile phone option see appendix D. Page | 5 V1.0 ...
- Page 6 Comfast Quick Start Guide – COMFAST CFE312A Once you have logged in, we need to change the Network IP Address a. Select Network from the Left b. Change the IP address to something like 192.168.10.100 (we will do the same for the other antenna however we will give that Antenna an IP address of 192.168.10.101) c. Make sure you REMEMBER the IP Address you Assign to Each.. it is important. d. Change the DHCP to disabled (if troubleshooting mobile phone option this is the last step..see appendix D) e. Press Modify g. This should save and reload the page ‐ ‐ take note, the IP address in the search bar is now 192.168.10.100 …. if this has not reloaded, in the search bar type http://192.168.10.100 h. If this does not load, something has gone wrong, press and hold the reset button for 10 seconds and try again. 9. Next step is to go through the Wizard – select Wizard from Left menu. a. Option 1 – Bridge b. Option 2 – Access Point c. Option 3 – Do not change leave IP Address as 192.168.10.100 ‐ Next d. Option 4 – Wireless Settings i. You can change the SSID Name or leave it.. (this will appear when searching for WIFI Hotspots) ii. Create Password (remember it, you need it to configure the next antenna) iii. Country to USA (this is also rest of world) ...
- Page 7 Comfast Quick Start Guide – COMFAST CFE312A ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ MASTER Antenna Completed ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ Configure the Slave Antenna – this is positioned at the Camera 1. Connect the Next Antenna in the same method as the Master ‐ ‐ remember the default IP address for this Slave Antenna and all new antennas is 192.168.10.1 2. Follow steps 1‐5, we need to change the IP Address 3. We will set this unit to 192.168.10.101 ‐ ‐ follow same options as Option 6 above however set IP address to 192.168.10.101 4. Next Step is go through the Wizard – Wizard is different setup to Master Antenna. a. Option 1 – Bridge b. Option 2 – Station c. Option 3 – Secondary Site i. Leave IP Address as 192.168.10.101 ii. It will ask for a gateway ‐ ‐ this is not used for our purpose ‐ ‐ set it at 192.168.10.1 iii. Next d. Now we need to search the airways and look for the Master antenna, the Master should still be powered on… press “Scan” e. All Wireless Devices will respond including wireless printers, access points, the neighbours WIFI etc, you are looking for the name you gave the Master Antenna when assigning the SSID Code. Select “Operate” option next to your Master Antenna, the SSID will fill in to the STA SSID box. g. Put the password you created into the password box h. Press next ‐‐‐ leave options and next again + Finished The unit will restart and you will see a graph indicating the 2 antenna are talking to each other ...
- Page 8 Comfast Quick Start Guide – COMFAST CFE312A GREAT, the hard work is Completed. Wiring Diagram for the complete Setup after Configuration Page | 8 V1.0 ...
- Page 9 Comfast Quick Start Guide – COMFAST CFE312A Good things to know: These units are POE (Power Over Ethernet). If you have an Security Recorder with POE or POE Switch then you only need to connect them with the blue cable and they will power up. Units are directional however have a 120° angle.. Therefore you can run several antennas back to the one master. Creating a Bridge Network is like running a massively long cable between 2 or more points. Running Wireless Connections removes the requirement to dig holes and run cable. You will need 240V Power where the Camera is located. You can position the POE Power Supply up to 100mtrs from the Camera – simply run a Network Cable between the Power Supply and Camera. If you require more than 1 camera at a distance from the recorder, simply install a POE Switch. So many options. Page | 9 V1.0 ...
- Page 10 Comfast Quick Start Guide – COMFAST CFE312A Appendix B ‐ Changing the IP Address of your Computer Because ALL the Comfast Antennas come with a default IP Address of 192.168.10.1, we need to change the IP addresses so they each have their own IP address. All device in the same network must have a unique IP address in order to operate. AND – for you log in and change these IP addresses, your computer must be on the same range of IP addresses. Therefore we must change your Computers IP address to be within the same range. We are going to set the Antennas with the following IP addresses Master Antenna 1 – 192.168.10.100 Slave Antenna 2 – 192.168.10.101 Slave Antenna 3 – 192.168.10.102 and so on – you can have many more if required. Currently all antenna are 192.168.10.1 – lets change your IP Address of your computer to 192.168.10.10. There are several websites available in the internet – we found this one that explains it well PC / MAC https://www.howtogeek.com/howto/19249/how‐to‐assign‐a‐static‐ip‐address‐in‐xp‐vista‐or‐windows‐7/ https://support.apple.com/kb/PH18459?locale=en_US OR here is our version. Page | 10 V1.0 ...
- Page 11 Comfast Quick Start Guide – COMFAST CFE312A Your Original Settings Page | 11 V1.0 ...
- Page 12 Comfast Quick Start Guide – COMFAST CFE312A Remember your original settings, you need to change it back at the completion of the configuration. Change your setting to the below and press ok. ‐ ‐ your PC is now set to log into the cameras. Once you have finished configuring the cameras, please follow the process again and restore your original IP settings.. Your PC will not be connected to the internet when settings are changed. END OF IP ADDRESS CHANGE Page | 12 V1.0 ...
- Page 13 Comfast Quick Start Guide – COMFAST CFE312A Appendix D – Mobile Phone Connection If you cannot connect using your PC, there is an option for connection via your Mobile Phone. Turn on the Antenna, and search for WIFI devices on your mobile phone.. You will see CPE_xxxx appear in the list of WIFI Hotspots. Connect to this and then open an internet browser and type: http://192.168.10.1 You will see a log in, follow the earlier configuration (Point 8 in Step 2) information however DO NOT change DHCP to disabled until you have completed the Wizard. Page | 13 V1.0 ...
