Summary of Contents for Physio Logic ProScan 016-660
- Page 1 016-660...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Features ................2 Introduction ................3 Advantages of temporal artery (T.A.) temperature ....4 Safety precautions ..............5 Important notes..............6 Appearance, configuration and menu functions ....7 • Choosing the temperature unit of measure • Audio alert set-up •... -
Page 4: Features
FEATURES • Non-contact thermometer • Instant readings (1 second) • Professional accuracy and reliability • Easy to use • Multi-usage: body, surface and air • Programmable alerts • 3 languages + silent mode for taking temperature when child is sleeping •... -
Page 5: Introduction
INTRODUCTION Congratulations, you now own the ProScan Non-Contact Infrared Thermometer, our latest infrared technology. This innovative technology allows temporal artery (T.A.) tem- perature to be taken at a distance of about 3 cm - 5 cm away from the forehead. It has been demonstrated that this method of T.A. -
Page 6: Advantages Of Temporal Artery (T.a.) Temperature
ADVANTAGES OF TEMPORAL ARTERY (T.A.) TEMPERATURE The ProScan Non-Contact thermometer has been designed to produce an instant forehead temperature reading without any contact with the temporal artery. As this artery is quite close to the surface of the forehead skin, it allows precise reading of temperature. -
Page 7: Safety Precautions
SAFETY PRECAUTIONS • This device may be used for professional purposes or for personal home use. It must only be used for the purposes described in this instruction manual. • This device must only be used in an ambient temperature range of between 10°C and 40°C. -
Page 8: Important Notes
IMPORTANT NOTES • This thermometer is calibrated and ready to use. • The reliability of the reading cannot be guaranteed if the body temperature is measured over any part of the body that is not the forehead temporal region. • Body temperature increases by 0.5°C between 6:00 AM and 3:00 PM. -

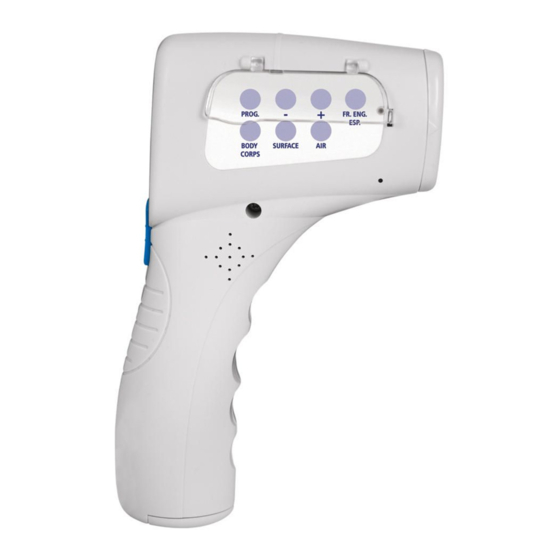

Page 9: Appearance, Configuration And Menu Functions
APPEARANCE, CONFIGURATION AND MENU FUNCTIONS Choosing the Temperature Unit of Measure Note: ProScan Non-Contact default is °C. 1. Press on the ‟ PROG. ” button for 3 seconds, the screen displays F1. 2. Select ‟ - ” for °C or ‟ + ” for °F. 3. -
Page 10: Audio Alert Set-Up
Audio Alert Set-up Note: The audio alert threshold default value is 38°C (100.4°F) and is for body and surface temperature only. If the audio alerts threshold default settings are changed, only the audio alerts will be pertinent, not the colour alerts. 1. -
Page 11: Choice Of Default Display Mode: Body Or Surface Temperature
Choice of Default Display Mode: Body or Surface Temperature Note: The ProScan Non-Contact default is set to BODY mode. 1. Press on the ‟ PROG. ” button for 3 seconds, the screen displays F1. 2. Press on the ‟ PROG. ” button twice to get F3. -
Page 12: How To Calibrate The Thermometer
How to Calibrate the Thermometer Note: The Non-Contact ProScan default is 0.0°C as the thermometer is already calibrated at the factory. You can calibrate your thermometer, but we recommend not to modify this setting. 1. Press on the ‟ PROG. ” button for 3 seconds, the screen displays F1. -
Page 13: Audio On/Off
Audio ON/OFF Note: ProScan Non-Contact default is set to 1 (ON). 1. Press on the ‟ PROG. ” button for 3 seconds, the screen displays F1. 2. Press four times on the ‟ PROG. ” button to get F5. 3. Select 0 by pressing on the ‟ - ” button to power off the default audio feature. -
Page 14: Data Memory
DATA MEMORY 1. To display the last temperature reading, press simultaneously on the ‟ - ” and ‟ + ” button. 2. To switch to the previous reading, press on the ‟ + ” button. 3. Press on the button ‟ - ” for review. -
Page 15: Direct Selection Buttons
DIRECT SELECTION BUTTONS 1. The ProScan Non-Contact has been specially designed to take the body temperature of a human being by using the ‟ BODY/CORPS ” function. 2. You can also use the ProScan Non-Contact to measure the temperature of an object, food (baby food, etc.) or liquid (bath water, milk bottle, etc.) by selecting the ‟... -
Page 16: How To Measure Temperature
HOW TO MEASURE TEMPERATURE Note: If the thermometer has been stored at a very low or very high temperature, allow the unit to adjust to room temperature for at least 15 minutes before using the device. Wait at least 5 seconds between consecutive readings. 1. -
Page 17: Specifications
SPECIFICATIONS Normal • Ambient temperature: 10°C-40°C(50°F-104°F) using condition • Relative humidity: ≤ 85% Batteries 2 x AA alkaline batteries Unit size 16 cm x 10 cm x 4 cm (6.3” x 4” x 1.6”) Unit weight 131 g (without batteries) Measuring range Note: In body mode, there are 3 backlight colours: - Green: ≤... -
Page 18: Troubleshooting
TROUBLESHOOTING Note: If you have one of the following problems while using your thermometer, please refer to this guide to help resolve the problem. If the problem persists and the product is still under warranty, please contact A.M.G. Medical’s Customer Service Team at 1-800-363-2381 between 8:30 AM and 5:00 PM EST. - Page 20 Manufactured and printed in China for: Fabriqué et imprimé en Chine pour : A.M.G. Medical Inc. Montreal, QC H4T 1V5 – 1-800-363-2381 Distributed in the USA by: Distribué aux É.-U. par : AMG Medical, Inc. West Chazy, NY 12992 – 1-888-412-4994 www.amgphysiologic.com Rev2 0718 P/N 911-016660...
Need help?
Do you have a question about the ProScan 016-660 and is the answer not in the manual?
Questions and answers
je suis incable de me débarrasser des lectures et du charabia vocal qui s'en suit
To stop the audio feature on the Physio Logic ProScan 016-660, follow these steps:
1. Press and hold the "PROG." button for 3 seconds until the screen displays "F1."
2. Press the "PROG." button four times to navigate to "F5."
3. Press the "-" button to select "0" and turn off the audio feature.
4. Press the "PROG." button to confirm.
5. To exit the setting mode, hold the "PROG." button until the screen turns off.
This will disable the audio feature, stopping the vocal alerts.
This answer is automatically generated
My feet are always cold. I'd like to know the temperature of my feet, but the Physo Logic only verbally says "LOW". How can I get a low measurement in degrees?
