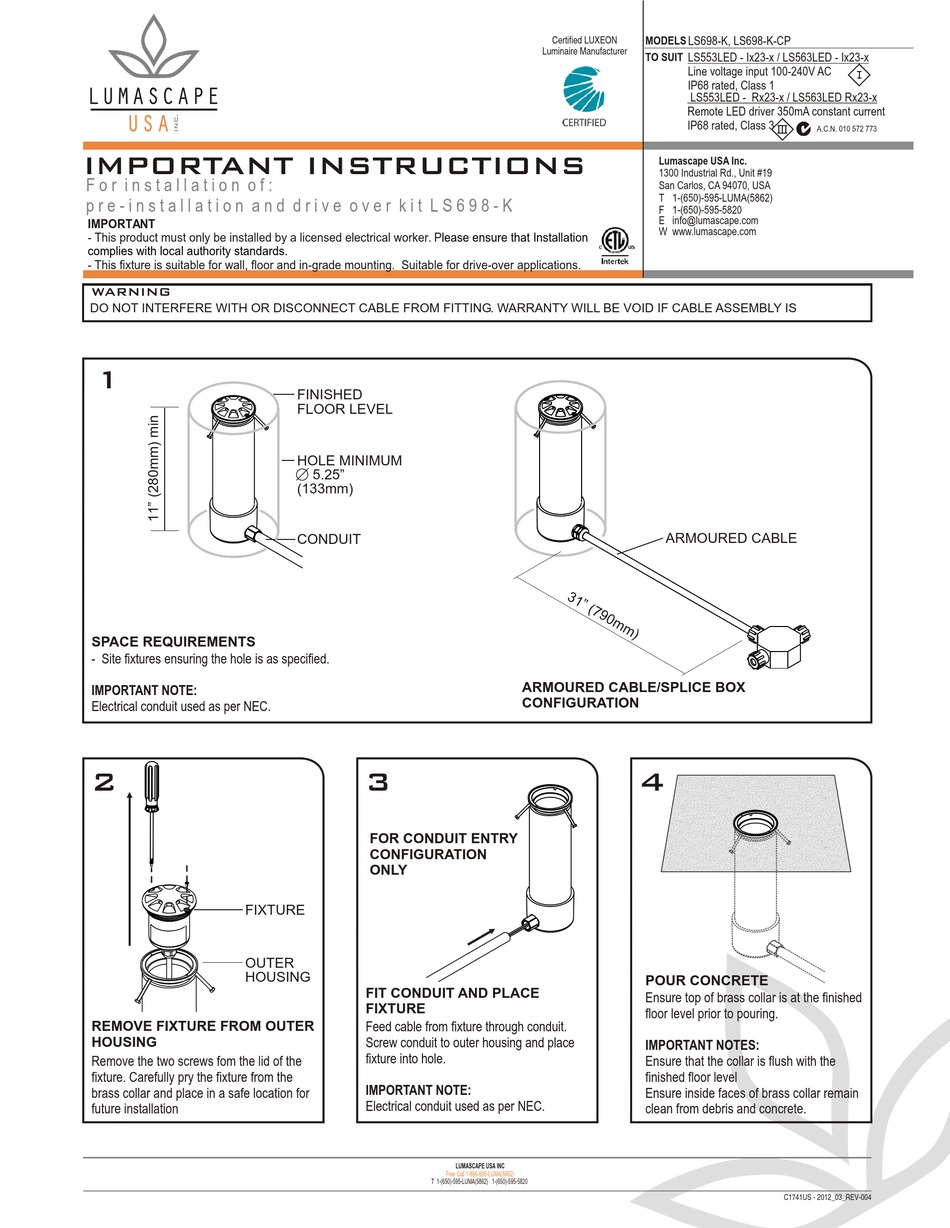

Lumascape LS698-K Important Instructions

IMPORTANT INSTRUCTIONS
F o r i n s t a l l a t i o n o f :
p r e - i n s t a l l a t i o n a n d d r i v e o v e r k i t L S 6 9 8 - K
IMPORTANT
- This product must only be installed by a licensed electrical worker. P
complies with local authority standards.
- This fixture is suitable for wall, floor and in-grade mounting. Suitable for drive-over applications.
WARNING
DO NOT INTERFERE WITH OR DISCONNECT CABLE FROM FITTING. WARRANTY WILL BE VOID IF CABLE ASSEMBLY IS
1
SPACE REQUIREMENTS
- Site fixtures ensuring the hole is as specified.
IMPORTANT NOTE:
Electrical conduit used as per NEC.
2
FIXTURE
OUTER
HOUSING
REMOVE FIXTURE FROM OUTER
HOUSING
Remove the two screws fom the lid of the
fixture. Carefully pry the fixture from the
brass collar and place in a safe location for
future installation
lease ensure that Installation
FINISHED
FLOOR LEVEL
HOLE MINIMUM
5.25"
(133mm)
CONDUIT
3
FOR CONDUIT ENTRY
CONFIGURATION
ONLY
FIT CONDUIT AND PLACE
FIXTURE
Feed cable from fixture through conduit.
Screw conduit to outer housing and place
fixture into hole.
IMPORTANT NOTE:
Electrical conduit used as per NEC.
LUMASCAPE USA INC
Free Call 1-866-695-LUMA(5862)
T 1-(650)-595-LUMA(5862) 1-(650)-595-5820
Certified LUXEON MODELS LS698-K, LS698-K-CP
Luminaire Manufacturer
TO SUIT LS553LED - Ix23-x / LS563LED - Ix23-x
Line voltage input 100-240V AC
IP68 rated, Class 1
LS553LED -
Remote LED driver 350mA constant current
IP68 rated, Class 3
Lumascape USA Inc.
1300 Industrial Rd., Unit #19
San Carlos, CA 94070, USA
T 1-(650)-595-LUMA(5862)
F 1-(650)-595-5820
E info@lumascape.com
W www.lumascape.com
ARMOURED CABLE
ARMOURED CABLE/SPLICE BOX
CONFIGURATION
4
POUR CONCRETE
Ensure top of brass collar is at the finished
floor level prior to pouring.
IMPORTANT NOTES:
Ensure that the collar is flush with the
finished floor level
Ensure inside faces of brass collar remain
clean from debris and concrete.
Rx23-x / LS563LED Rx23-x
A.C.N. 010 572 773
C1741US - 2012_03_REV-004
