For additional information on Trapzilla or other Thermaco products,
please visit www.trapzilla.com or call at 1-800-633-4204.
4

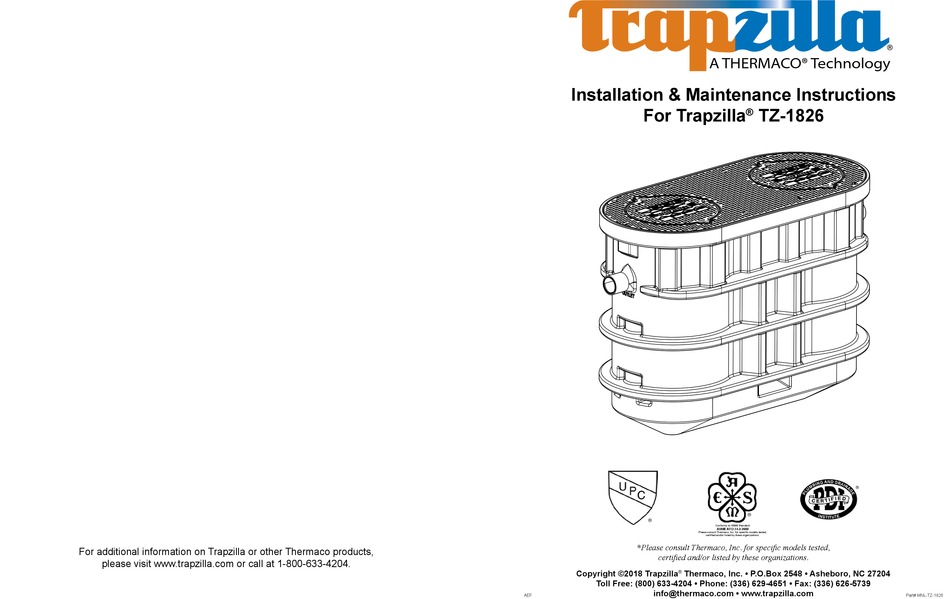

Installation & Maintenance Instructions
D
C
B
A
THIS DRAWING CONTAINS PROPRIETARY AND PATENTED MATERIAL. THIS DRAWING MAY NOT BE REPRODUCED IN WHOLE OR PART WITHOUT
WRITTEN CONSENT FROM THERMACO, INC. POSSESSION OF THIS DRAWING DOES NOT CONSTITUTE THE RIGHT TO MANUFACTURE.
POSSESSION OF THIS DRAWING DOES CONSTITUTE AN IMPLIED NONDISCLOSURE AGREEMENT BETWEEN THERMACO, INC. AND THE HOLDER OF
*Please consult Thermaco, Inc. for specific models tested,
THIS DRAWING. DO NOT DESTROY THIS DRAWING, IT IS THE SOLE PROPERTY OF THERMACO, INC. AND MUST BE RETURNED UPON REQUEST.
4
Copyright ©2018 Trapzilla
Toll Free: (800) 633-4204 • Phone: (336) 629-4651 • Fax: (336) 626-5739
AEF
A THERMACO® Technology
3
For Trapzilla
TZ-1826
®
646 GREENSBORO STREET
®
PO BOX 2548, ASHEBORO, NC 27203
®
VOICE 336-629-4651 FAX 336-626-5739
Conforms to ASME Standard
ASME A112.14.3-2000
Please consult Thermaco, Inc. for specific models tested,
certified and/or listed by these organizations.
3
certified and/or listed by these organizations.
Thermaco, Inc. • P.O.Box 2548 • Asheboro, NC 27204
®
info@thermaco.com • www.trapzilla.com
2
Unless otherwise specified
DRAWN
DATE
Dimensions are in inches
Tolerances
Decimals
Angular
ENGINEERING
.XX +/- .03
+/- 1°
.XXX +/- .015
MATERIAL (UNLESS NOTED)
CHECKED
SIZE
REV. NO.
DWG
C
FINISH (UNLESS NOTED)
PART NO.
SCALE
RELEASE DAT
2
Part# MNL-TZ-1826
Advertisement
Table of Contents
Related Manuals for Thermaco Trapzilla TZ-1826
Summary of Contents for Thermaco Trapzilla TZ-1826
- Page 1 FINISH (UNLESS NOTED) PART NO. *Please consult Thermaco, Inc. for specific models tested, THIS DRAWING. DO NOT DESTROY THIS DRAWING, IT IS THE SOLE PROPERTY OF THERMACO, INC. AND MUST BE RETURNED UPON REQUEST. SCALE RELEASE DAT For additional information on Trapzilla or other Thermaco products, certified and/or listed by these organizations.
-
Page 2: Table Of Contents
6.2 Pumping/Servicing Unit ........................21 7. Limited Warranty and Remedy ....................... 22 ©2018 Thermaco, Inc. All rights reserved • Patented/Patents Pending • Specifications subject to change without notice Thermaco, Inc. • 646 Greensboro St. • Asheboro, N. C. 27204-2548 • (336) 629-4651... -
Page 3: Models And Options
POSSESSION OF THIS DRAWING DOES CONSTITUTE AN IMPLIED NONDISCLOSURE AGREEMENT BETWEEN THERMACO, INC. AND THE HOLDER OF FINISH (UNLESS NOTED) PART NO. THIS DRAWING. DO NOT DESTROY THIS DRAWING, IT IS THE SOLE PROPERTY OF THERMACO, INC. AND MUST BE RETURNED UPON REQUEST. THIRD ANGLE PROJECTION at 100 gpm. Equipped with 4” inlet/outlet, 2” vessel vent Support Stand for TZ-1826 for Above-Ground Optional 22”... -
Page 4: Plumbing Installation
POSSESSION OF THIS DRAWING DOES CONSTITUTE AN IMPLIED NONDISCLOSURE AGREEMENT BETWEEN THERMACO, INC. AND THE HOLDER OF FINISH (UNLESS NOTED) THIS DRAWING. DO NOT DESTROY THIS DRAWING, IT IS THE SOLE PROPERTY OF THERMACO, INC. AND MUST BE RETURNED UPON REQUEST. -
Page 5: Plumbing Configurations
POSSESSION OF THIS DRAWING DOES CONSTITUTE AN IMPLIED NONDISCLOSURE AGREEMENT BETWEEN THERMACO, INC. AND THE HOLDER OF FINISH (UNLESS NOTED) PART NO. THIRD ANGLE PROJECTION THIS DRAWING. DO NOT DESTROY THIS DRAWING, IT IS THE SOLE PROPERTY OF THERMACO, INC. AND MUST BE RETURNED UPON REQUEST. SCALE RELEASE DATE SHEET... -
Page 6: Above-Ground Installation
POSSESSION OF THIS DRAWING DOES CONSTITUTE AN IMPLIED NONDISCLOSURE AGREEMENT BETWEEN THERMACO, INC. AND THE HOLDER OF FINISH (UNLESS NOTED) PART NO. THIRD ANGLE PROJECTION THIS DRAWING. DO NOT DESTROY THIS DRAWING, IT IS THE SOLE PROPERTY OF THERMACO, INC. AND MUST BE RETURNED UPON REQUEST. SCALE RELEASE DATE SHEET The SSA-1826 Support Stand is a one-piece assembly with a conical center that sits on the floor. -
Page 7: Instructions For Assembling And Attaching External Brace
FINISH (UNLESS NOTED) PART NO. END OF THE TZ-1826. ALIGN THIRD ANGLE PROJECTION THIS DRAWING. DO NOT DESTROY THIS DRAWING, IT IS THE SOLE PROPERTY OF THERMACO, INC. AND MUST BE RETURNED UPON REQUEST. SCALE RELEASE DATE SHEET HOLES IN THE PLATES AND RAILS. -
Page 8: Installation Of Pipe Hangers With Above-Ground Units
Installation should be performed by a qualified plumber. ©2018 Thermaco, Inc. All rights reserved • Patented/Patents Pending • Specifications subject to change without notice Thermaco, Inc. • 646 Greensboro St. • Asheboro, N. C. 27204-2548 • (336) 629-4651... -
Page 9: Tz-1826 With Optional Eca-Tz-29 Extension Collars
In order to offset the effects of buoyancy caused by groundwater (high water tables), strengthen the sideload of the unit, and prevent movement of the unit in the event of shifting earth, Thermaco, Inc. recommends concrete be poured around the entirety of Trapzilla units installed in-ground in the amounts ®... -
Page 10: Trimming And Setting The Eca-Tz-18 Single-Piece Extension Collar
Installation should be performed by a qualified plumber. ©2018 Thermaco, Inc. All rights reserved • Patented/Patents Pending • Specifications subject to change without notice Thermaco, Inc. • 646 Greensboro St. • Asheboro, N. C. 27204-2548 • (336) 629-4651... -
Page 11: Unit Maintenance
Note: Drawing for reference only. Equipment must be installed in compliance with all applicable laws, regulations and codes, including plumbing codes. Installation should be performed by a qualified plumber. ©2018 Thermaco, Inc. All rights reserved • Patented/Patents Pending • Specifications subject to change without notice ... -
Page 12: Limited Warranty And Remedy
Product is initially installed. Any claim under this warranty must be made in writing to Thermaco at 646 Greensboro Street, Asheboro, NC 27203 promptly after discovery of the defect and the Product must be delivered, prepaid, to Thermaco, together with proof of purchase and a return authorization number issued by Thermaco.
