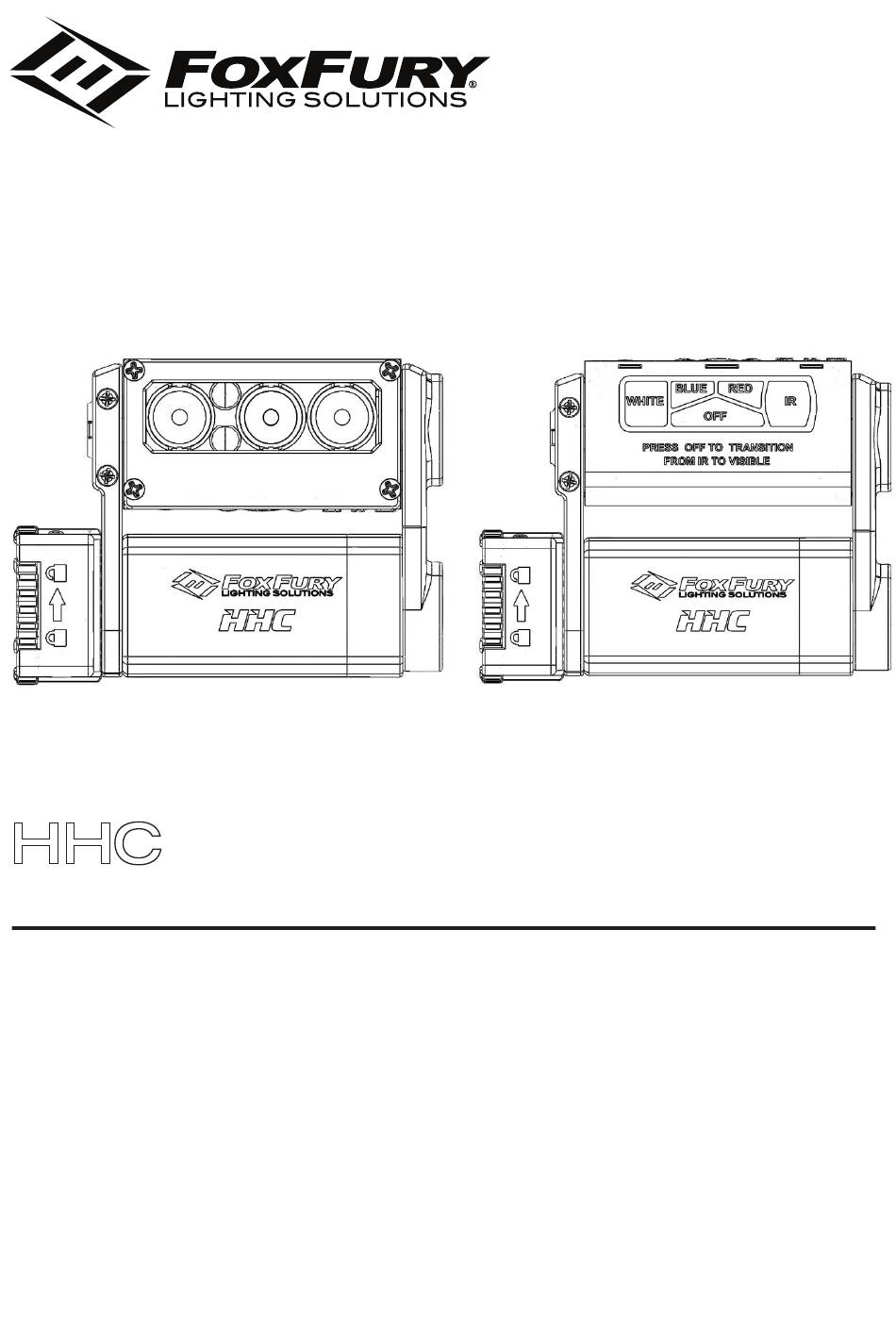

- Page 1 HELMET , HEAD & CHEST LIGHT 199-200 | 199-201 PRODUCT MANUAL...
- Page 2 HHC REFERENCE GUIDE SWIVELING LIGHT HEAD LED WINDOW BATTERY KNOB MAIN BODY SWITCH PANEL LED WINDOW • Blue = left most window • White = second from left window • IR = (2) LEDs on top of each other, barely visible, between white and red •...
-
Page 3: Physical Characteristics
It can be worn with a c-clamp mount, molle mount, headlamp mount, or elastic strap. The HHC has 1 white, 1 blue, 1 red, and 2 IR LED lights with 4 intensity modes. Each color has its own switch, and each color retains the mode in memory . - Page 4 BATTERIES The HHC accepts either (1) AA or (1) CR123A battery . Approximate battery life is as follows: MODE WHITE RED & BLUE 4 hours 4 hours 6 hours 6 hours 6 hours 9 hours 9 hours 9 hours 15 hours...
-
Page 5: Operational Modes
OPERATIONAL MODES The markings over the switches indicate the following: • W = White Light • B = Blue Light • R = Red Light • I = Infrared Light • Off = Off Starting with the unit in OFF position, any switch can be activated. •... - Page 6 RED & BLUE LIGHT LUMENS MODE CR123 38 lumens 28 lumens 20 lumens 10 lumens 38 lumens 38 lumens INFRARED LIGHT LUMENS MODE MW FOR AA AND CR123 110 mW 90 mW 60 mW 25 mW 110 mW 110 mW •...
- Page 7 MOUNTS 360° rotating coupling adaptor: • First, ensure the coupling adaptor is on the correct side for use with mounts. Note the HHC logo orientation. • For the C-Clamp and Picatinny mounts: • For headlamp mounts: Installing all mounts that use the 360° rotating coupling adaptor:...
- Page 8 MOUNTS C-Clamp Mount Loosen set screws. Align the C-Clamp on the lip of the helmet. While holding the C-Clamp, tighten the set screws on using the Hex Key provided. Set screws: Picatinny Mount Use provided Hex Key to remove screw from Picatinny Mount. Align mount with the channels on the Picatinny rail.
- Page 9 Molle Mount Unscrew 360° adaptor screws to remove adaptor from HHC. Attach the Molle Mount, with respect to HHC positioning in picture. Insert screws in appropriate holes then torque down with screw driver. Ensure to switch from counter sunk screws to the button screws provided.
-
Page 10: Warranty And Other Information
Any FoxFury product should 1971–8.6 (2013). be operated at speeds safe CARE/CLEANING enough to maneuver around Your HHC is a professional tool, but surrounding obstacles. regular maintenance and care of Do not use under the influence your light will maximize performance of drugs or alcohol. - Page 11 Foxfury and/or alteration/removal of the serial number). To expedite warranty concerns, we encourage the end user to register their FoxFury Product at www.foxfury .com/pages/ warranty-registration. THIS IS THE ONL Y WARRANTY ,...
