montpellier CHG913MSS Installation And Operation Instructions Manual

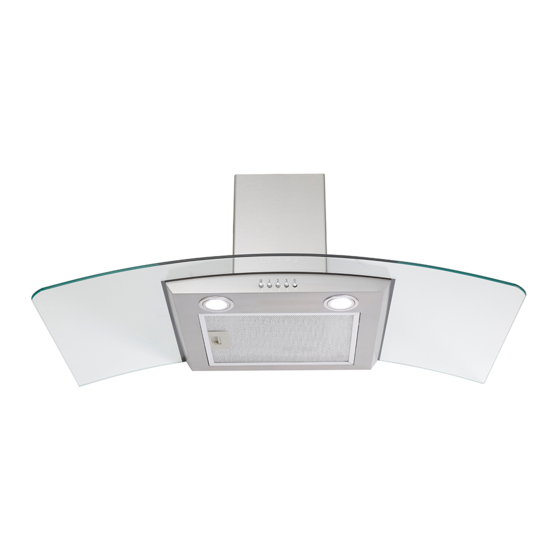

90cm curved glass cooker hood stainless steel
Hide thumbs Also See for CHG913MSS:
Table of Contents

Advertisement

Quick Links

Download this manual
90cm Curved Glass Cooker Hood
CHG913MSS - Stainless Steel
Cod:0103086060

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CHG913MSS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for montpellier CHG913MSS

Summary of Contents for montpellier CHG913MSS

  • Page 1 90cm Curved Glass Cooker Hood CHG913MSS - Stainless Steel Cod:0103086060...
  • Page 2 Welcome Thank you for choosing this Montpellier been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your to ensure you get the most from your purchase.

  • Page 4: Using Your Extractor

    Using your Extractor For best performance, you should switch on the extractor 15 minutes before starting to cook and leave it to run for approximately 15 minutes after the end of cooking. Control Panel B – C – Fig. 1 Press button C.

  • Page 5: Care And Maintenance

    Care and Maintenance IMPORTANT : DO NOT PERFORM MAINTENANCE OR CLEANING OF THE EXTRACTOR WITHOUT FIRST SWITCHING OFF THE ELECTRICITY SUPPLY. Cleaning se a non abrasive cleaner. Any abrasive cleaner (including Cif) will scratch the surface and could erase the control panel markings. solution of water and mild detergent and drying to a shine with a clean cloth.
  • Page 6 In recirculating mode, air is vented back into the kitchen through the opening in the cooker hood. This method is advised if you are not using your hob intensively. Recirculated air requires the use of charcoal filters to remove odours. Fig.
  • Page 7 NOTE: eplacement of the LED lamp must be carried out by a qualified electrician. IMPORTANT: DO NOT PERFORM MAINTENANCE OR CLEANING OF THE EXTRACTOR WITHOUT FIRST SWITCHING OFF THE ELECTRICITY SUPPLY. Please note that the LED lamp is not covered by the guarantee. Remove the lamp using a flat-head screwdriver(Fig.4-I).

  • Page 8: Mains Electricity Connection

    Mains Electricity Connection THIS APPLIANCE MUST BE CONNECTED TO THE MAINS SUPPLY BY DOUBLE POLE SWITCHED A COMPETENT PERSON, USING FIXED WIRING VIA A DOUBLE POLE FUSE SPUR OUTLET SWITCHED FUSE SPUR OUTLET AND PROTECTED BY A 3A FUSE. Warning! This appliance must be earthed. We recommend that the appliance is connected by a qualified electrician who is a member of the N.I.C.E.I.C.
  • Page 9 RIDDOR (the height should be measured from Centre Gas: 750mm recommend Electric: 650mm recommend extractor installed above it. For best performance and lowest noise output, we recommend CPLE use of 1 mm ducting for models. CHG913MSS Height dependent 86.5...

  • Page 10: Installation

    INSTALLATION l l a l i r t i F l l a x fi x fi you use are appropriate for the wall type. 10mm . g i . g i l l a . g i IMPORTANT SAFETY WARNING: ONLY USE THE SCREWS PROVIDED WITH THE EXTRACTOR TO MOUNT THE DUCTING ADAPTOR.
  • Page 11 n i t i o j ) t n Fig. 12 Fig. 13 . g i . g i The metal casing of this appliance has been coated with a preservative to protect it during transport and storage. This should be removed during installation by using a non-abrasive stainless steel cleaner. Always follow the instructions given with the cleaner being used.
  • Page 12 Attribute Symbol Value Units Model Identification CHG913MSS Annual Energy Consumption 18.4 Hood Time Increase factor Hood 59.6 Hood Measured Airflow at Best 122.1 Measured Pressure at Best Maximum Airflow 282.6 Measured Electric Power at Best 26.3 Nominal Lighting Power Average Illumination of the...

  • Page 13: After-Sales Assistance

    THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such of claim.
  • Page 14 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
