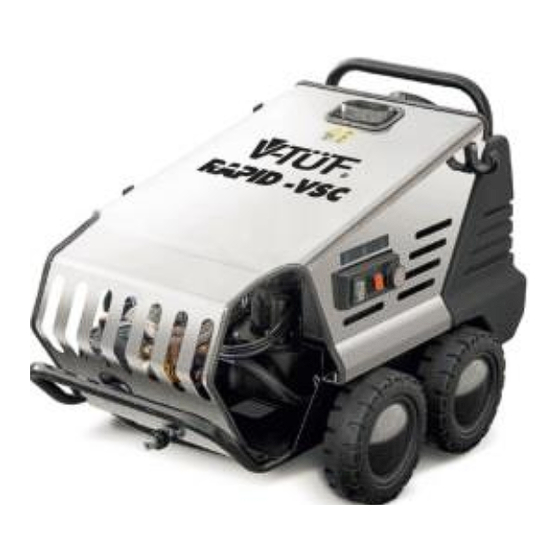

- Page 1 RAPID -VSC ELECTRIC INDUSTRIAL MOBILE STAINLESS STEEL HOT WATER PRESURE WASHER User Operating Manual English Operators Manual © V-TUF...
-
Page 2: Table Of Contents
Contents Contents Page Important Safety Instructions General Points & Information Safety Norms & Usage 8-10 Technical Data Identification Data Installation Cold & Hot Water Use Important Advice Transport / Lifting / Storing 17-18 Regulation of Start Electrodes Troubleshooting 20-23 Electric Diagrams 25-27 Functionality 27-28... - Page 3 High pressure cleaners must not be used by children or untrained personnel. High pressure hoses, fittings and couplings are important for the safety of the appliance. Use only hoses, fittings and couplings recommended by the V-TUF. Always wear suitable eye, face and body protection.
-
Page 4: General Points & Information
Conservation of the Manual This manual should be retained for the full working life of the machine. In case of loss or damage, please request a copy from V-TUF, quoting type of machine, matriculation number and the year of manufacture. Trial before shipment The machine has been tested at the manufacturer’s factory to check that all of the components are... - Page 5 Prior to use, please carefully read the instructions, paying particular attention to "IMPORTANT RECOMMENDATIONS", "SECURITY NORMS" and "PRECAUTIONS". It is forbidden to remove or tamper with the protective parts of the machine. It is forbidden to use inflammable, explosive or toxic substances. It is obligatory to use appropriate protective equipment.
- Page 6 lead and the power lead is secure stable conforms standard safety norms. The plug and the socket should be waterproof. Do not use the electric plug to turn the machine on or off. Always use the appropriate switches the machine. Keep the machine out of reach children...
-
Page 7: Safety Norms & Usage
oil separator is installed. Re-filling of petrol should only be undertaken when the machine is turned off Do not use combustible materials other than those advised constructor. Once you have finished working, after machine stopped, release residual pressure in the tube and pump by squeezing the pistol lever. - Page 8 ERRONEOUS USE By erroneous use, we mean the use of our machine without respect for the guidelines contained in the instruction and maintenance manual. Lack of respect for these guidelines can represent a risk of injury to both the operator and those persons nearby as well as a risk of serious damage to the machine itself. Erroneous use, therefore, can constitute: unsecured connections (including those of accessories supplied as optional extras), not using original spare parts, repairs undertaken by unauthorised or unqualified personnel, use of the machine for purposes it was not designed for (see improper use), lack of proper...
-
Page 9: Technical Data
For matters of repair, maintenance and tuning, we always recommend that you refer to a re-seller or authorised technician. ATTENTION: Never under-estimate these warnings, use of the machine in an inappropriate manner, can lead to serious damage and injury to the operator and any surrounding personal. Don’t take risks! ATTENTION: The manufacturer cannot be held responsible for any eventual damage or injury to people, animals or property resulting from improper or unreasonable use, or usage in any way not conforming to the... -
Page 10: Identification Data
1) Identification of the machine according to EU directives. ATTENTION: Check that your RAPID-VSC high pressure washer has been provided with these identification details, if they have not been provided please inform your local dealer immediately. Machines which have not been provided with these details MUST NOT BE USED, and should be considered anonymous and potentially dangerous. -
Page 11: Installation
INSTALLATION Attach the lance to the high pressure hose (1) and the other end to the output connection (2). Fit the sheath (B) in order to protect the hydraulic connection and to avoid the risk of scalding by contact. The high pressure pump is supplied already full of lubricating oil. -
Page 12: Cold & Hot Water Use
COLD WATER USE 1. Check that the warning light ( c ) is lit, indicating that there is electric current within the machine. 2. Open the water source tap (2), then start the motor and pump by pressing the appropriate switch (in) on the control board. - Page 13 ATTENTION Release pressure out of system once finished using the machine. This will prolong the life of the machine. USE WITH CHEMICAL PRODUCTS With the machine shut down, act the device (adjustable head) placed on the lance end to obtain the suction and the distribution of the product;...
-
Page 14: Important Advice
Practical Advice Avoid soaking with water the surface you then wish to treat with detergent because, in doing so, you can place a film of water over the area you wish to treat, resulting in poor cleaning results. Instead, whilst holding the nozzle pointing towards the ground, wait until the detergent exits the nozzle. - Page 15 TRANSPORT – LIFTING – SHIFTING ATTENTION: Whenever the machine needs to be transported, it should be securely fixed with straps, cables or other suitable equipment in order to avoid accidental movement which could cause damage to people or property as well as to the machine itself. ATTENTION: Should the machine need to be lifted, it should be hooked or coupled by means of strips, or suitable lifting equipment which will safeguard the machine’s integrity.
- Page 16 STORAGE Park the machine on a flat surface. If the machine is not going to be used for an extended period of time, empty the water circuits and the fuel tank then cover the machine and store it in a place protected from atmospheric extremes.
-
Page 17: Troubleshooting
Troubleshooting PROBLEMS CAUSES SOLUTIONS The machine turns itself off Lack of diesel. Refill the fuel tank and warning light D The plastic joint between the Replace fuel pump joint, fuel pump illuminates pump and the burner motor is or burner motor, reset machine worn out. - Page 18 Worn out gaskets Replace the gaskets Drop on pressure Worn out suction and/or delivery Replace the valves valves Presence of foreign bodies in the Check and clean valves which can affect their performance Air being sucked in Check the piping Worn out gaskets Replace the gaskets Pressure in order on gauge,...
- Page 19 High percentage of humidity on Change the oil twice as often as is the air. normally prescribed. Gaskets are completely worn out. Replace the gaskets. Excessive noise Air is being sucked in. Check the seals in the tubing. Dirty water filter Clean the water filter.
- Page 20 Insufficient water Thermostat not positioned to Position the thermostat to the temperature. required temperature. required temperature. The thermostat is broken. Replace the thermostat. Crust build-up on the hydraulic Clean. circuit. Soot build-up may be partially Clean. blocking the boiler. The water nozzle is worn out. Replace the water nozzle.
- Page 21 HYDRAULIC DIAGRAM Water Tap T.a. Water Suction Tube Filter Detergent Filter T.a.d. Detergent Suction Tube Water Pump t.m. Delivery Tube Boiler t.a.p. High Pressure Water Outlet Tube Lance...
-
Page 22: Electric Diagrams
ELECTRIC DIAGRAM - SINGLE PHASE 230V... -
Page 23: Electric Diagrams
ELECTRIC DIAGRAM – THREE PHASE 230V... -
Page 24: Functionality
ELECTRIC DIAGRAM - THREE PHASE 400V Functionality: The high pressure water cleaner has an input for an On/Off switch for the machine, a switch to select between hot or cold water operation, a “diesel pressure switch” input to manage the lack of diesel, and an input for the water temperature thermostat and 2 inputs for the pressure switches PTP and PDV. - Page 25 S_LIN = Electric current light S_TSI = TSI LIGHT (Total Stop) S_H20 = Lack of water light S_GAS = Lack of fuel light Running Connecting to the electric current, the current light illuminates. Pressing the ON/OFF button to On will start the machine which will run accordingly: STATE1 PTP->NO (0 Bar) PDV ->NC (0 Bar)
- Page 26 PUMP-MOTOR-VALVE PARTS DIAGRAM & LIST Item Code Description Item Code Description XHDM150 XHDM150PUMP 6000198 BY-PASS CONTROL SET W3 (for W Pump) P60076500 VB75 VALVE (for XM PUMP) 1000224 3/8 MxM BSP ADAPTOR 14/T 6125010 080 HOSE 3280029 BRASS CUBE BLOCK 1000502 TE 8x30 SCREW 1000223...
- Page 27 FRAME ASSEMBLY PARTS DIAGRAM & LIST ITEM CODE DESCRIPTION 5210000 CHASSIS 5116010 ELECTRIC BOX 4400115CPL HEAVY DUTY WHEEL 5116011 STAINLESS STEEL COVER 4000085 LANCE HOLDER 4000080 RUBBER EDGEING 4100010 FUEL TANK 4100011 FUEL LID / CAP 1000540/1 5x10 SREW 1300200 M20 WASHER 1300440 4x40 SPLIT PIN...
- Page 28 BOILER PARTS DIAGRAM...
- Page 29 BOILER PARTS LIST ITEM CODE DESCRIPTION 2600395 IGNITION CABLE 1000521 M4 x 8 SCREW 2000007 ELECTRODE 1000740 M4 NUT 1000230 1/8MF EXTENSION 3000040 ELECTRODE HOLDER 1000220 FUEL INJECTOR HOLDER 1000100 FUEL INJECTOR 3000030 UPPER TOP COVER 3000050 DEFLECTOR 4000280 Refractory cement dust Kg 5 1000050 LEVER...
