TCS HE360A Product Data

TCS HE360A Product Data

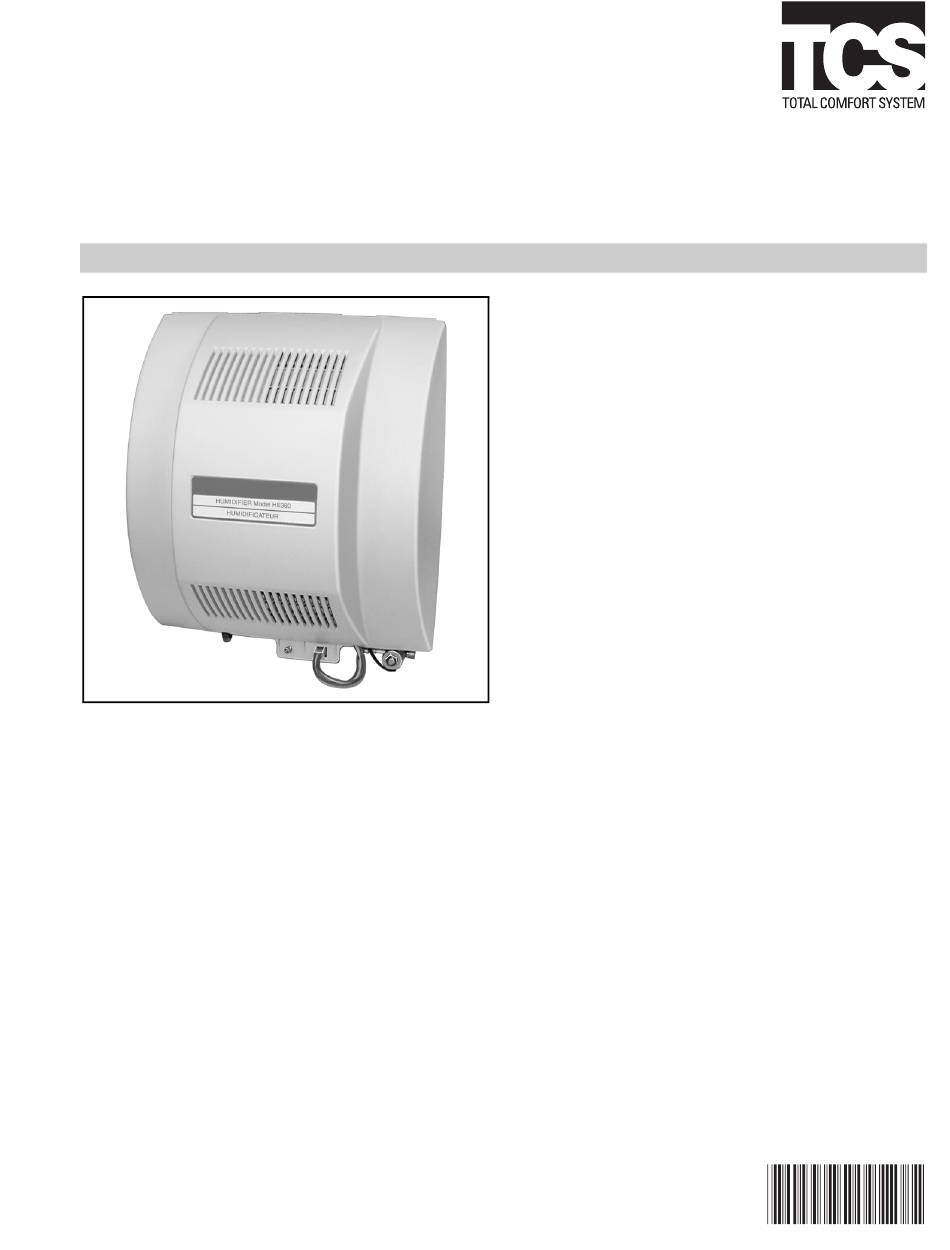

Powered flow-through humidifier
Hide thumbs Also See for HE360A:
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
APPLICATION
The HE360A Powered Flow-Through Humidifiers work with
the warm air furnace blower to provide humidification for the
whole house.
® U.S. Registered Trademark
Copyright © 2002
• All Rights Reserved
Powered Flow-Through Humidifier
FEATURES
• Capable of humidifying the largest areaup to
4200 sq ft (390 sq m)of any flow-through humidifier.
• Includes the PerfectFlo™ water distribution tray for
optimal efficiency and water usage.
• Proven technology used for high performance
humidification.
• Narrower footprint than popular compatible model
while maintaining a common humidifier pad and
comparable humidification performance.
• Interior components designed for quick maintenance
and service.
• Continuous flushing reduces the maintenance
frequency.
Application ........................................................................
Features ...........................................................................
Specifications ...................................................................
Ordering Information ........................................................
Installation ........................................................................
Wiring Humidifier ..............................................................
Checking Installation ........................................................
Operating Humidifier ........................................................
Operation ..........................................................................
Maintenance .....................................................................
Checkout Procedure .........................................................
Troubleshooting ................................................................
Replacement Parts ...........................................................
HE360A
PRODUCT DATA
Contents
1
1
2
2
3
4
5
5
5
5
6
7
7
68-0273

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HE360A and is the answer not in the manual?

Questions and answers

Related Manuals for TCS HE360A

Summary of Contents for TCS HE360A

  • Page 1: Table Of Contents

    • Interior components designed for quick maintenance and service. • Continuous flushing reduces the maintenance frequency. APPLICATION The HE360A Powered Flow-Through Humidifiers work with the warm air furnace blower to provide humidification for the whole house. Contents Application ................ Features ................

  • Page 2: Specifications

    House Air Changes Description Per Hour Sq ft Sq m M20810 Loose 1,900 Fig. 1. HE360A dimensions in in. (mm). Average 2,700 Tight One-half 4,200 Approvals: Underwriters Laboratories Inc.: Listing Pending. Electrical Ratings: 120 Vac, 60 Hz, 0.7A. Canadian Underwriters laboratories Inc.: Listing Pending.

  • Page 3: Installation

    HE360A POWERED FLOW-THROUGH HUMIDIFIER INSTALLATION When Installing this Product... 2. Tape the template in position and trace around the tem- plate. 1. Read these instructions carefully. Failure to follow them 3. Remove the template and carefully cut the rectangular could damage the product or cause a hazardous opening.

  • Page 4: Wiring Humidifier

    HE360A POWERED FLOW-THROUGH HUMIDIFIER WIRING HUMIDIFIER FEED TUBE NOZZLE WATER WARNING DISTRIBUTION TRAY HUMIDIFIER Serious Personal Injury or Equipment Hazard. PAD ASSEMBLY Moving parts can cause electrical shock and injury. • Disconnect power supply before installation or servicing. • This device contains a moving fan blade; do not operate the humidifier without the cover securely attached.

  • Page 5: Checking Installation

    Above +20°F (-7°C) OPERATING HUMIDIFIER MAINTENANCE The Total Comfort System HE360A Humidifier is controlled by the H8908 Humidistat. The humidistat is installed either on an interior wall in the living area, or on the return air duct. Choose A regular maintenance program prolongs the life of the the humidity control setting using the combination relative humidifier and provides a more comfortable environment.

  • Page 6: Checkout Procedure

    HE360A POWERED FLOW-THROUGH HUMIDIFIER Every 1 To 3 Months IMPORTANT For proper performance, ensure the marked end of (Depending on Water Quality) the humidifier pad is upward facing. 1. Disconnect the power and turn off the humidifier water 15. Reattach the tray to the frame.

  • Page 7: Troubleshooting

    HE360A POWERED FLOW-THROUGH HUMIDIFIER TROUBLESHOOTING Refer to Table 2 for troubleshooting procedures. Table 2. Troubleshooting Procedures. Problem What To Look For What To Do Furnace blower not • Reset circuit breaker or check for blown fuse. humidity operating. • Check that the furnace power is on.
  • Page 8 HE360A POWERED FLOW-THROUGH HUMIDIFIER 1 THE HE360A INCLUDES THE H8908B HUMIDISTAT. M20812A Fig. 7. Exploded view of humidifier parts. Automation and Control Solutions Honeywell Honeywell Limited-Honeywell Limitée 1985 Douglas Drive North 35 Dynamic Drive Golden Valley, MN 55422 Scarboroug, Ontario MiV 4V9 Printed in U.S.A.
