The M
M lifting jack serves for lifting or lowering components
and loads with assembly works on building sites. Only vertical
loads (in the plumb line) must be carried.
With the lifting jack e.g. steel girders or wood purlins can be millimeter-exactly
aligned. The weight is turned up or down by means of crank within selflocking
spindle transmission. The lifting jack is equipped with swivel rollers, so that it
can be easily moved to the load bearing position when not carrying a load.
When loaded, it must (only) be moved in longitudinal direction, which enables
precise alignment of components.
General note
Only components in perfect status and original equipment may be used.
This must be checked before use. The lifting jack must not be used until
it has been repaired appropriately.
The lifting jack is to be used only according to the intended purpose.
Any other improper use is prohibited.
The rules for the prevention of accidents are to be observed.
Technical data
lifting height....................................1.10 - 2.75 m
with adapter ..................................1.36 - 3.00 m
light mass heading fork ..........36 x 21 x 11.5 cm
dimensions folded ..............1.59 x 0.81 x 0.60 m
load-bearing capacity ..............................600 kg
(In case of paired operation 2 x 450 kg = 900 kg)
weight ........................................................86 kg
crank, adjustable...... ..............Order no. 12361
adapter ....................................Order no. 12374
height 1.10 m - 2.75 m
heading fork
stand
crank
18.08.2014

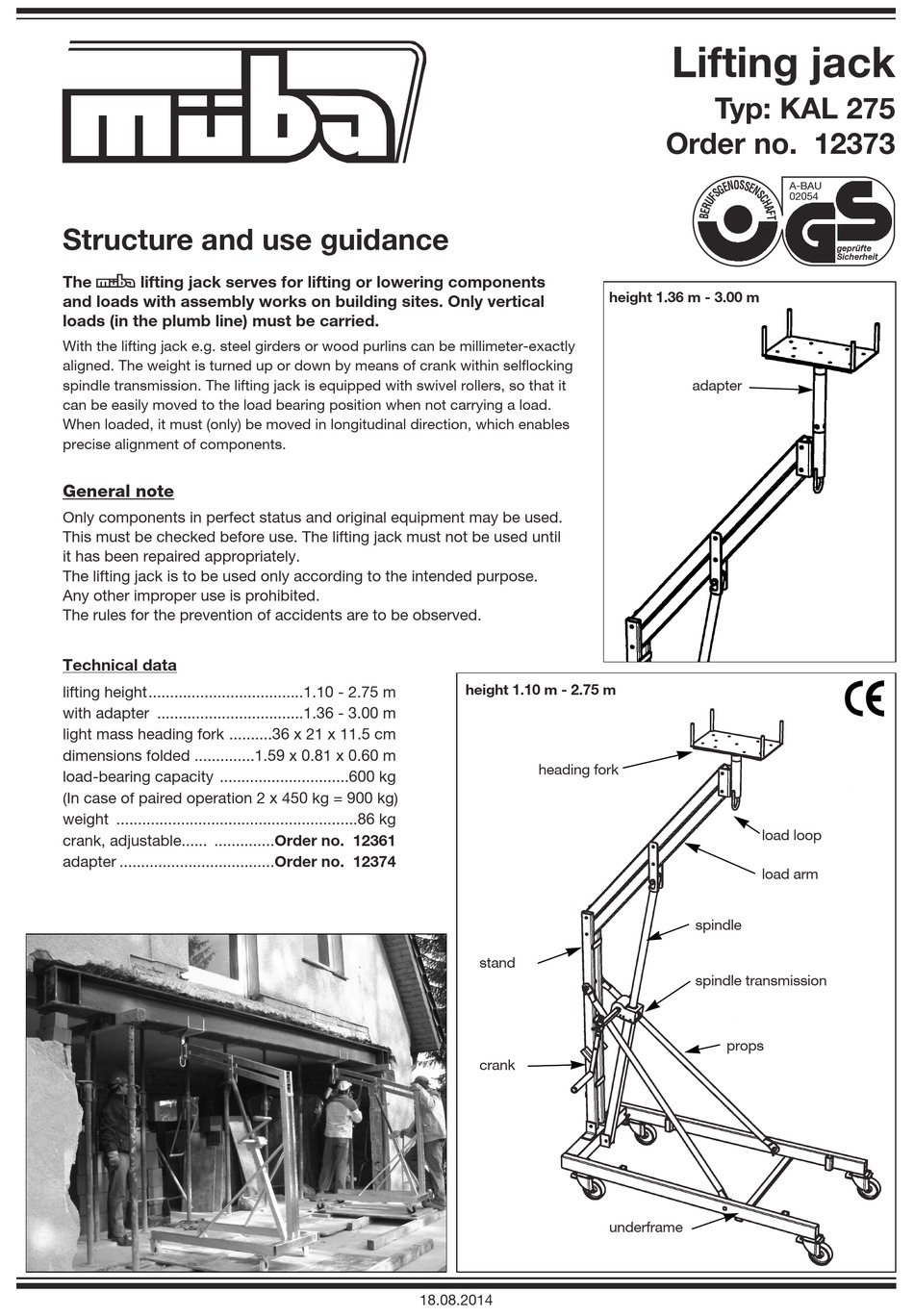

Lifting jack
Typ: KAL 275
Order no. 12373
height 1.36 m - 3.00 m
adapter
load loop
load arm
spindle
spindle transmission
props
underframe
A-BAU
02054
geprüfte
Sicherheit
