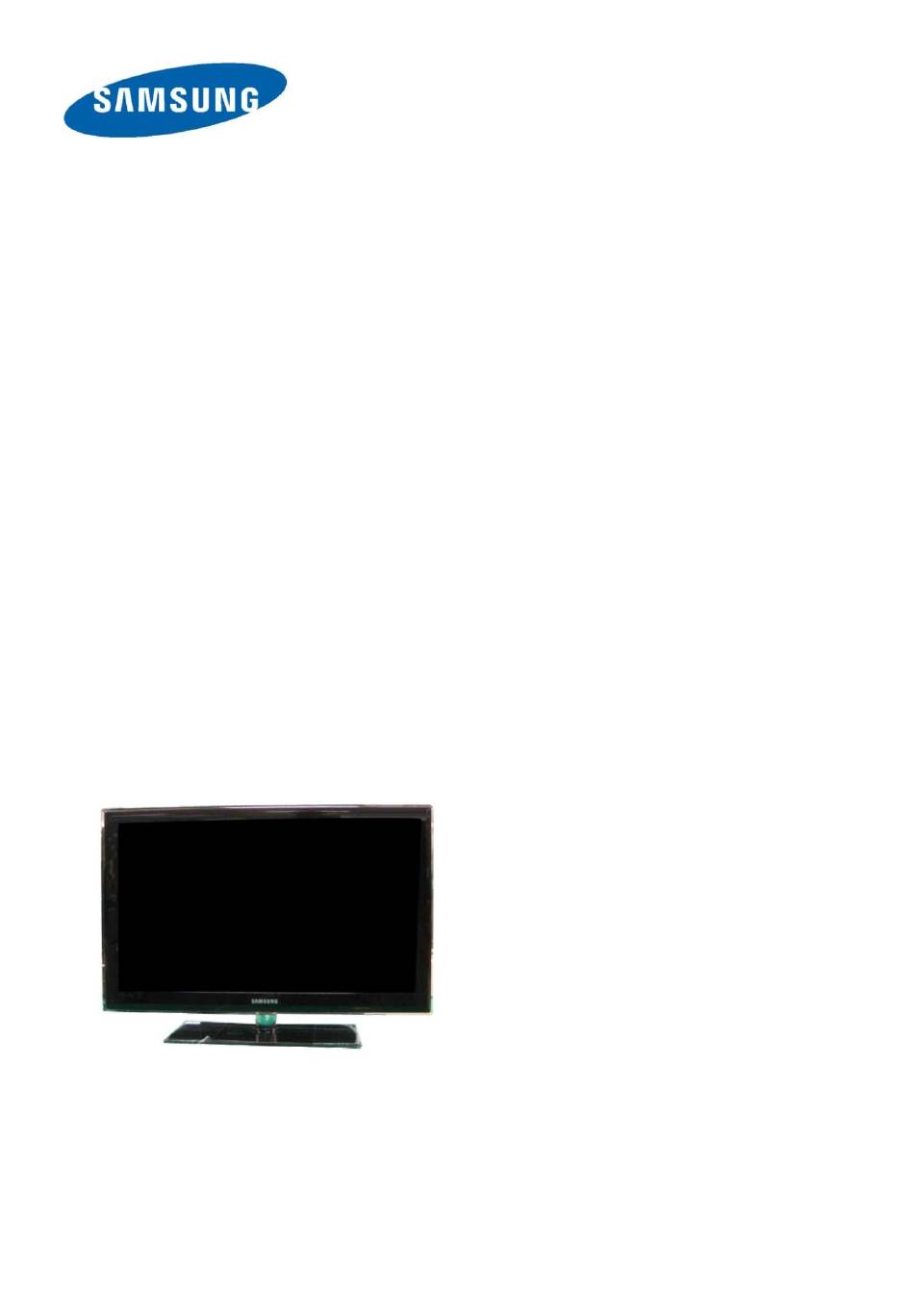

SERVICE
www.electronicsrepair.net
Chassis : N91A
Model
TFT-LC D TV
UN40C5000QF
LED-TV
: UN32C5000QF UN32C4000PD
UN37C5000QF
UN40C5000QF
UN46C5000QF
HD-Ready
UN32C5000QR UN32C4000PX
UN37C5000QR
UN40C5000QR
UN46C5000QR
1. Precautions
4. Troubleshootin g
5. Exploded View & Part List
Manual
Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UN32C4000PD and is the answer not in the manual?

Questions and answers

Related Manuals for Samsung UN32C4000PD

Summary of Contents for Samsung UN32C4000PD

  • Page 1 LED-TV Chassis : N91A Model : UN32C5000QF UN32C4000PD UN37C5000QF UN40C5000QF UN46C5000QF HD-Ready UN32C5000QR UN32C4000PX UN37C5000QR UN40C5000QR UN46C5000QR SERVICE Manual TFT-LC D TV Contents 1. Precautions 2. Product specifications 3. Disassembly and Reassembly 4. Troubleshootin g 5. Exploded View & Part List 6.

  • Page 2: Table Of Contents

    Contents 1. Precautions ......................1-1 1-1. Safety Precautions ......................1-1 1-2. Servicing Precautions ..................... 1-2 1-3. Electrostatically Sensitive Devices (ESD) Precautions ..........1-2 1-4. Installation Precautions ....................1-3 2. Product specifications .................... 2-1 2-1. Feature & Specifications ....................2-1 2-2. New Features explanation .................... 2-13 2-3.

  • Page 3: Precautions

    1. Precautions 1. Precautions 1-1. Safety Precautions Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as electrical shock. 1-1-1. Warnings For continued safety, do not attempt to modify the circuit board. Disconnect the AC power and DC power jack before servicing.

  • Page 4: Servicing Precautions

    1. Precautions 1-2. Servicing Precautions WARNING: An electrolytic capacitor installed with the wrong polarity might explode. Caution: Before servicing units covered by this service manual, read and follow the Safety Precautions section of this manual. Note: If unforeseen circumstances create conflict between the following servicing precautions and any of the safety precautions, always follow the safety precautions.

  • Page 5: Installation Precautions

    1. Precautions 1-4. Installation Precautions For safety reasons, more than a people are required for carrying the product. Keep the power cord away from any heat emitting devices, as a melted covering may cause fire or electric shock. Do not place the product in areas with poor ventilation such as a bookshelf or closet. The increased internal temperature may cause fire.

  • Page 6: Product Specifications

    2. Product specifications 2. Product specifications 2-1. Feature & Specifications Model UN32C5000QF Feature Digital-TV, RF, 4-HDMI, 1-Component, 1-A/V, 2-USB2.0, D-SUB ሪ Brightness : 450 cd/m (MARKETING SPEC : 500cd/m ሪ High Contrast Ratio : 50,000:1 (MARKETING SPEC : 3,000,000:1) ሪ Response Time : 4.5ms (MARKETING SPEC : 8ms) ሪ...
  • Page 7 2. Product specifications Model UN37C5000QF Feature Digital-TV, RF, 4-HDMI, 1-Component, 1-A/V, 2-USB2.0, D-SUB ሪ Brightness : 400 cd/m (MARKETING SPEC : 500cd/m ሪ High Contrast Ratio : 50,000:1 (MARKETING SPEC : 3,000,000:1) ሪ Response Time : 4.2 ms (MARKETING SPEC : 8ms) ሪ...
  • Page 8 2. Product specifications Model UN40C5000QF Feature Digital-TV, RF, 4-HDMI, 1-Component, 1-A/V, 2-USB2.0, D-SUB ሪ Brightness : 400 cd/m (MARKETING SPEC : 500cd/m ሪ High Contrast Ratio : 50,000:1 (MARKETING SPEC : 3,000,000:1) ሪ Response Time : 4.5 ms (MARKETING SPEC : 8ms) ሪ...
  • Page 9 2. Product specifications Model UN46C5000QF Feature Digital-TV, RF, 2-HDMI, 1-Component, 1-A/V, 1-USB2.0, D-SUB ሪ Brightness : 400 cd/m (MARKETING SPEC : 500cd/m ሪ High Contrast Ratio : 50,000:1 (MARKETING SPEC : 3,000,000:1) ሪ Response Time : 4.5 ms (MARKETING SPEC : 8ms) ሪ...
  • Page 10 2. Product specifications Model UC32C4000PD Feature Digital-TV, RF, 2-HDMI, 1-Component, 1-A/V, 1-USB2.0, D-SUB ሪ Brightness : 400 cd/m (MARKETING SPEC : 500cd/m ሪ High Contrast Ratio : 40,000:1 (MARKETING SPEC : 2,000,000:1) ሪ Response Time : 4.5ms (MARKETING SPEC : 8ms) ሪ...
  • Page 11 2. Product specifications Model UN32C5000QR(HD-Ready) Feature Digital-TV, RF, 4-HDMI, 1-Component, 1-A/V, 2-USB2.0, D-SUB ሪ Brightness : 450 cd/m2 ሪ High Contrast Ratio : 50,000:1 ሪ Response Time : 4.5ms ሪ Specifications Item Description LCD Panel 32inch FHD 60Hz Scanning Frequency Horizontal : 60 kHz ~ 73 kHz (Automatic) Vertical : 47 Hz ~ 63 Hz (Automatic) Display Colors...
  • Page 12 2. Product specifications Model UN37C5000QR(HD-Ready) Feature Digital-TV, RF, 4-HDMI, 1-Component, 1-A/V, 2-USB2.0, D-SUB ሪ Brightness : 400 cd/m ሪ High Contrast Ratio : 50,000:1 ሪ Response Time : 4.2 ms ሪ Specifications Item Description LCD Panel 37inch FHD 60Hz Scanning Frequency Horizontal : 60 kHz ~ 73 kHz (Automatic) Vertical : 47 Hz ~ 63 Hz (Automatic) Display Colors...
  • Page 13 2. Product specifications Model UN40C5000QR(HD-Ready) Feature Digital-TV, RF, 4-HDMI, 1-Component, 1-A/V, 2-USB2.0, D-SUB ሪ Brightness : 400 cd/m ሪ High Contrast Ratio : 50,000:1 ሪ Response Time : 4.5 ms ሪ Specifications Item Description LCD Panel 40inch FHD 60Hz Scanning Frequency Horizontal : 60 kHz ~ 73 kHz (Automatic) Vertical : 47 Hz ~ 63 Hz (Automatic) Display Colors...
  • Page 14 2. Product specifications Model UN46C5000QR(HD-Ready) Feature Digital-TV, RF, 2-HDMI, 1-Component, 1-A/V, 1-USB2.0, D-SUB ሪ Brightness : 400 cd/m2 ሪ High Contrast Ratio : 50,000:1 ሪ Response Time : 4.5ms ሪ Specifications Item Description LCD Panel 46inch FHD 60Hz Scanning Frequency Horizontal : 60 kHz ~ 73 kHz (Automatic) Vertical : 47 Hz ~ 63 Hz (Automatic) Display Colors...
  • Page 15 2. Product specifications Model UN32C4000PX(HD-Ready) Feature Digital-TV, RF, 2-HDMI, 1-Component, 1-A/V, 1-USB2.0, D-SUB ሪ Brightness : 400 cd/m2 ሪ High Contrast Ratio : 40,000:1 ሪ Response Time : 4.5ms ሪ Specifications Item Description LCD Panel 32inch HD 60Hz Scanning Frequency Horizontal : 60 kHz ~ 73 kHz (Automatic) Vertical : 47 Hz ~ 63 Hz (Automatic) Display Colors...
  • Page 16 2. Product specifications CHANNEL FREQUENCY TABLE „ 1. OUTPUT FREQUENCY : ANALOG fv:45.75MHz, fs:41.25MHz DIGITAL Fc:44MHz 2. TUNING STEP SIZE : FIRST PLL 250KHz SECOND PLL 62.5KHz OSD CH NO CH NO CH NO CH NO Air-DTV Air-NTSC BAND Cable STD BAND Cable HRC Cable IRC 72.
  • Page 17 2. Product specifications OSD CH NO CH NO CH NO CH NO Air-DTV Air-NTSC BAND Cable STD BAND Cable HRC Cable IRC 499.25 ULTRA 498.00 499.25 505.25 ULTRA 504.00 505.25 511.25 ULTRA 510.00 511.25 517.25 ULTRA 516.00 517.25 523.25 ULTRA 522.00 523.25 529.25...

  • Page 18: New Features Explanation

    Anynet+ is a function that enables you to control all connected Samsung devices that support Anynet+ with your Samsung TV’s remote. The Anynet+ system can be used only with Samsung devices that have the Anynet+ feature. To be sure your Samsung device has this feature, check if there is an Anynet+ logo on it.

  • Page 19: Accessories

    C4000 : BN59-01018A C5000 : BN59-01030A Power Cord 3903-00467 32" BN63-06542A 37" BN63-06543A 40" BN63-06543A Cover-Bottom 46" BN63-06543A 32" BN63-06542B Samsung Electronics Service center C5000 32" BN96-12930B 37" BN96-12931B Stand 40" BN96-12931B 46" BN96-12932B C4000 32" BN96-13157A Screw 6003-000133 (for the stand - M4, L6) C5000 : BN68-02625A Owner’s Instructions...

  • Page 20: Disassembly And Reassembly

    3. Disassembly and Reassembly 3. Disassembly and Reassembly This section of the service manual describes the disassembly and reassembly procedures for the UN37C5000QF LCD TV. WARNING: This LCD TV contains electrostatically sensitive devices. Use caution when handling these components. 3-1. Disassembly and Reassembly Cautions: 1.
  • Page 21 3. Disassembly and Reassembly Description Picture Description Screws 2. 32"/37" C5000 : Remove the 18 screws of rear-cover. 40"/46" C5000 : Remove the 19 screws of rear-cover. Remove the screws of rear-cover. 32"_37" 6003-000133 6003-001003 40"_46" 3. Lift up the rear-cover. 4.
  • Page 22 3. Disassembly and Reassembly Description Picture Description Screws 5. Lift up the stand link. Remove the 4 screws of bracket stand link. 6003-00133 6. Remove the 5 screws of main board and 5 screws of IP board. 6001-002283 6001-000115 7. Lift up the panel. Reassembly procedures are in the reverse order of disassembly procedures.

  • Page 23: Troubleshooting

    4. Troubleshooting 4. Troubleshooting 4-1. Troubleshooting 4-1-1. Previous check Check the various cable connections first. • Check to see if any cables are damaged or burnt. • Check to see if there is a disconnected or loose cable connection. • Check to see if the cables are connected according to the connection diagram. Check the power input to the Main Board.
  • Page 24 4. Troubleshooting Differential Point View „ Bottom Type Type...
  • Page 25 4. Troubleshooting 4-1-2. No Power (A Type) The LEDs on the front panel do not work when connecting the power cord. Symptom The SMPS relay does not work when connecting the power cord. The units appears to be dead. The IP relay or the LEDs on the front panel does not work when connecting the power cord if the cables are improperly connected or the Main Board or SMPS is not functioning.
  • Page 26 4. Troubleshooting 4. Troubleshooting Location (Main) - TOP BD213 BD219 Location (Main) - BOTTOM B13V A3.3V SPI_3.3V Location (T-CON) Pin #1~5 40” T-Con...
  • Page 27 4. Troubleshooting 4-1-3. No Video_Analog PC signal (A Type) Symptom Audio is normal but no picture is displayed on the screen. Check the PC source Major Check the Arsenal, Check the Chelsea. checkpoints This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected. Power indicator LED is off.
  • Page 28 4. Troubleshooting Location (Main) - BOTTOM...
  • Page 29 4. Troubleshooting WAVEFORMS „ PC input (V-sink , H-sink , R/G/B) LVDS output...
  • Page 30 4. Troubleshooting 4-1-4. No video_HDMI 1, 2, 3, 4 - Digital signal (A Type) Symptom Audio is normal but no picture is displayed on the screen. Check the HDMI source. Major Check the HDMI switch, Check the Chelsea. checkpoints This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected. Power indicator LED is off.
  • Page 31 4. Troubleshooting Location (Main) - TOP Location (Main) - BOTTOM...
  • Page 32 4. Troubleshooting WAVEFORMS „ HDMI input (RX_Data, RX_Clk) LVDS output 4-10...
  • Page 33 4. Troubleshooting 4-1-5. No Video_Tuner CVBS (A Type) Symptom Audio is normal but no picture is displayed on the screen. Check the Tuner CVBS source. Major Check the Tuner, Check the Chelsea. checkpoints This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected. Power indicator LED is off.
  • Page 34 4. Troubleshooting Location (Main) - BOTTOM 4-12...
  • Page 35 4. Troubleshooting WAVEFORMS „ LVDS output 4-13...
  • Page 36 4. Troubleshooting 4-1-6. No Video_Tuner DTV (A Type) Symptom Audio is normal but no picture is displayed on the screen. Check the DTV source. Major Check the Tuner, Check the Chelsea. checkpoints This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected. Power indicator LED is off.
  • Page 37 4. Troubleshooting Location (Main) - BOTTOM 4-15...
  • Page 38 4. Troubleshooting WAVEFORMS „ LVDS output 4-16...
  • Page 39 4. Troubleshooting 4-1-7. No Video_Video CVBS (A Type) Symptom Audio is normal but no picture is displayed on the screen. Check the Video CVBS source Major Check the Chelsea. checkpoints This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected. Power indicator LED is off.
  • Page 40 4. Troubleshooting Location (Main) - BOTTOM 4-18...
  • Page 41 4. Troubleshooting WAVEFORMS „ CVBS OUT (Grey Bar) LVDS output 4-19...
  • Page 42 4. Troubleshooting 4-1-8. No Video_Component (A Type) Symptom Audio is normal but no picture is displayed on the screen. Check the Component source Major Check the chelsea. checkpoints This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected. Power indicator LED is off.
  • Page 43 4. Troubleshooting Location (Main) - BOTTOM 4-21...
  • Page 44 4. Troubleshooting WAVEFORMS „ Compnent_Y (Gray scale) / Pb / Pr (Color bar) LVDS output 4-22...
  • Page 45 4. Troubleshooting 4-1-9. No Sound (A Type) Symptom Video is normal but there is no sound.. When the speaker connectors are disconnected or damaged. Major When the sound processing part of the Main Board is not functioning. checkpoints Speaker defect.. Check the source and check the connection of sound cable Input the sound source properly.
  • Page 46 4. Troubleshooting Location (Main) - TOP Location (Main) - BOTTOM 4-24...
  • Page 47 4. Troubleshooting WAVEFORMS „ Speaker out 4-25...
  • Page 48 4. Troubleshooting 4-1-2. No Power (B Type) The LEDs on the front panel do not work when connecting the power cord. Symptom The SMPS relay does not work when connecting the power cord. The units appears to be dead. The IP relay or the LEDs on the front panel does not work when connecting the power cord if the cables are improperly connected or the Main Board or SMPS is not functioning.
  • Page 49 4. Troubleshooting 4. Troubleshooting Location (Main) - TOP BD213 BD219 Location (Main) - BOTTOM B13V A3.3V SPI_3.3V Location (T-CON) Pin #1~5 40” T-Con 4-27...
  • Page 50 4. Troubleshooting 4-1-3. No Video_Analog PC signal (B Type) Symptom Audio is normal but no picture is displayed on the screen. Check the PC source Major Check the Arsenal, Check the Chelsea. checkpoints This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected. Power indicator LED is off.
  • Page 51 4. Troubleshooting Location (Main) - BOTTOM 4-29...
  • Page 52 4. Troubleshooting WAVEFORMS „ PC input (V-sink , H-sink , R/G/B) LVDS output 4-30...
  • Page 53 4. Troubleshooting 4-1-4. No video_HDMI 1, 2, 3, 4 - Digital signal (B Type) Symptom Audio is normal but no picture is displayed on the screen. Check the HDMI source. Major Check the HDMI switch, Check the Chelsea. checkpoints This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected. Power indicator LED is off.
  • Page 54 4. Troubleshooting Location (Main) - TOP Location (Main) - BOTTOM 4-32...
  • Page 55 4. Troubleshooting WAVEFORMS „ HDMI input (RX_Data, RX_Clk) LVDS output 4-33...
  • Page 56 4. Troubleshooting 4-1-5. No Video_Tuner CVBS (B Type) Symptom Audio is normal but no picture is displayed on the screen. Check the Tuner CVBS source. Major Check the Tuner, Check the Chelsea. checkpoints This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected. Power indicator LED is off.
  • Page 57 4. Troubleshooting Location (Main) - BOTTOM 4-35...
  • Page 58 4. Troubleshooting WAVEFORMS „ LVDS output 4-36...
  • Page 59 4. Troubleshooting 4-1-6. No Video_Tuner DTV (B Type) Symptom Audio is normal but no picture is displayed on the screen. Check the DTV source. Major Check the Tuner, Check the Chelsea. checkpoints This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected. Power indicator LED is off.
  • Page 60 4. Troubleshooting Location (Main) - BOTTOM 4-38...
  • Page 61 4. Troubleshooting WAVEFORMS „ LVDS output 4-39...
  • Page 62 4. Troubleshooting 4-1-7. No Video_Video CVBS (B Type) Symptom Audio is normal but no picture is displayed on the screen. Check the Video CVBS source Major Check the Chelsea. checkpoints This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected. Power indicator LED is off.
  • Page 63 4. Troubleshooting Location (Main) - BOTTOM 4-41...
  • Page 64 4. Troubleshooting WAVEFORMS „ CVBS OUT (Grey Bar) LVDS output 4-42...
  • Page 65 4. Troubleshooting 4-1-8. No Video_Component (B Type) Symptom Audio is normal but no picture is displayed on the screen. Check the Component source Major Check the chelsea. checkpoints This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected. Power indicator LED is off.
  • Page 66 4. Troubleshooting Location (Main) - BOTTOM 4-44...
  • Page 67 4. Troubleshooting WAVEFORMS „ Compnent_Y (Gray scale) / Pb / Pr (Color bar) LVDS output 4-45...
  • Page 68 4. Troubleshooting 4-1-9. No Sound (B Type) Symptom Video is normal but there is no sound.. When the speaker connectors are disconnected or damaged. Major When the sound processing part of the Main Board is not functioning. checkpoints Speaker defect.. Check the source and check the connection of sound cable Input the sound source properly.
  • Page 69 4. Troubleshooting Location (Main) - TOP Location (Main) - BOTTOM 4-47...
  • Page 70 4. Troubleshooting WAVEFORMS „ Speaker out 4-48...

  • Page 71: Alignments And Adjustments

    4. Troubleshooting 4-2. Alignments and Adjustments 4-2-1. General Alignment Instuction Usually, a color LCD-TV needs only slight touch-up adjustment upon installation. Check the basic characteristics such as height, horizontal and vertical sync. Use the specified test equipment or its equivalent. Correct impedance matching is essential.

  • Page 72: Factory Mode Adjustments

    4. Troubleshooting 4-3. Factory Mode Adjustments 4-3-1. Entering Factory Mode To enter ‘Service Mode’ Press the remote -control keys in this sequence : - If you do not have Factory remote - control Power OFF MUTE Power On 4-3-2. How to Access Service Mode 1.

  • Page 73: Detail Factory Option

    4-3-3. Detail Factory Option If you replace the main board with new one, please change the factory option as well. ※ The options you must change are “Type”. Model Name UN32C5000QF UN37C5000QF UN40C5000QF UN46C5000QF UN32C4000PD Vendor CMO(C) AUO(C) CMO(C) CMO(C)
  • Page 74 4. Troubleshooting 4-3-4. Factory Data (A Type) Option „ Option Factory Name Data RANGE REMARK Factory Reset NONE/19O6TH0C/19A6TH0C/22I6TH0C/22A6TH 0C/22D6TH0C/22P6TH0C/26A6AH0C/26D6AH0C/ 26L6AH0C/26P6AH0C/32A6AH0C/32D6AH0C/32L 6AH0C/32P6AH0C/32A6AF0C/32L6AF0C/32A1AF 0C/32L1AF0C/37L6AF0C/37L1AF0C/40A6AF0C/4 0D6AF0C/40L6AF0C/40A1AF0C/40L1AF0C/40A1 32P6AH0E UF0C/40D1UF0C/40L1UF0C/46A6AF0C/46D6AF0 32P6UF0E C/46L6AF0C/46A1AF0C/46L1AF0C/46A1UF0C/46 Type 37P6UF0E D1UF0C/46L1UF0C/55A1UF0C/55L1UF0C/65L1U 40P6UF0E F0C/19O6TH0E/22P6TH0E/26P6AH0E/32P6AH0 46P6UF0E E/32P6UF0E/32A1UF0E/32P1UF0E/37P6UF0E/37 P1UF0E/37P1UF1E/40P6UF0E/40A1UF0E/40P1U F0E/46P6UF0E/46L6UF0E/46A1UF0E/46P1UF0E/ 46L1UF0E/55A1UF0E/55P1UF0E/55L1UF0E/65L1 UF0E/42HHcD3/50HHcD450FArN4/50FArV458FAr N1/58FArV163FArN1/ Local Set …...
  • Page 75 4. Troubleshooting Control „ Factory Name RANGE REMARK Control EDID SUB MENU Sub Option SUB MENU PDP Option Hotel Option SUB MENU Shop Option SUB MENU Asia Option SUB MENU INFO+FACTORY Sound SUB MENU Config Option SUB MENU INFO+FACTORY SUB MENU INFO+FACTORY Factory Name Data...
  • Page 76 4. Troubleshooting Sub Option Factory Name Data RANGE REMARK RF Mute Time 600ms 0ms~1000ms RS-232 Jack UART Debug/Login/UART Watchdog ON/OFF WD Count 0~255 Dimm Type fixed Lvds Format JEIDA JEIDA/VESA/19INCH Language_Arbic … fixed INFO+FACTORY TOOLS Support 0~255 INFO+FACTORY LNA Support 0~255 INFO+FACTORY MediaPlay DB...
  • Page 77 4. Troubleshooting Eeprom Reset SUB MENU INFO+FACTORY Spread Spectrum SUB MENU INFO+FACTORY DDR Margin SUB MENU INFO+FACTORY H.264 Margin 0~2000 MPEG Margin 0~2001 Tuner Margin 0~2002 SUB MENU SST_Th SUB MENU 2nd mips ON/OFF 2nd mips count 0~255 Region fixed PnP Language …...
  • Page 78 4. Troubleshooting Factory Name Data RANGE REMARK Y0 Ref 0~255 Y1 Ref 0~255 Y2 Ref 0~255 Y3 Ref 0~255 Y4 Ref 0~255 Y5 Ref 0~255 Y6 Ref 0~255 Y7 Ref 0~255 Cb0 Ref 0~255 Cb1 Ref 0~255 Cb2 Ref 0~255 Cb3 Ref 0~255 Cb4 Ref...
  • Page 79 Cr5 TH 0~255 Cr6 TH 0~255 Cr7 TH 0~255 Hotel Factory Name Data RANGE REMARK Option Hotel Mode ON/OFF Samsung/2M/Locatel/VDA/VDA-S/Acentic/ Premiere/Sustinere/Quadriga/ETV/Ibahn/ SI Vender Samsung Magilink/Otrum/PeninsulaSiemens/OCC/ MTI/MstreamsDAWNXTV/Enseo/Cardinal/ Guestek/OFF/Movielink/Swisscom Power On Channel 1~135 Channel Type ATV/DTV/CATV/CDTV Power On Volume 0~100 Min Volume...
  • Page 80 4. Troubleshooting Factory Name Data Range Shop Option Shop Mode … … Exhibition Mode ON/OFF Asia Factory Name Data RANGE REMARK Option ON/OFF INFO+FACTORY China HD ON/OFF INFO+FACTORY NT Conversion ON/OFF INFO+FACTORY Sepco 120Hz ON/OFF INFO+FACTORY Unbalance ON/OFF INFO+FACTORY FMTransmitter Support ON/OFF INFO+FACTORY FMTransmitter Carrier...
  • Page 81 4. Troubleshooting Config Factory Name Data RANGE REMARK Option Num of ATV INFO+FACTORY Num of DTV INFO+FACTORY Num of AV INFO+FACTORY Num of SVIDEO INFO+FACTORY Num of Comp INFO+FACTORY Num of HDMI INFO+FACTORY Num of PC INFO+FACTORY Num of SCART INFO+FACTORY Num of DVI INFO+FACTORY...
  • Page 82 4. Troubleshooting HDMI Write Type Combine Combine/Separate INFO+FACTORY HDMI Switch SIL9287 NONE/SIL9287/TMDS461 INFO+FACTORY DVI SET TIME 300ms 0~1000ms INFO+FACTORY Type Of PANEL KEY Horizontal Horzontal/Vertical/PDPVertical/Nne INFO+FACTORY EcoSensor Support ON/OFF INFO+FACTORY LEDMotionPlus Support ON/OFF INFO+FACTORY Natural Mode Support ON/OFF INFO+FACTORY All Share Support ON/OFF INFO+FACTORY Relax Mode Support...
  • Page 83 4. Troubleshooting „ Factory Name Data RANGE REMARK Test Pattern SUB MENU Panel Auto Setting Failure fixed INFO+FACTORY Panel Display Time fixed Logic Usb D/L fixed INFO+FACTORY Tuner Status Factory Name Data Range Test Pattern Pattern Sel OFF/ White/Grey/Black/Red/Green/Blue RFC PC Mode …...
  • Page 84 4. Troubleshooting Factory Name Data Range ISDB-T FFT Size_1 fixed Guard Interval_1 fixed Freq. Offset_1 fixed SNR_1 fixed IF AGC_1 fixed TMCC Lock_1 fixed TS Packet_1 fixed Master Lock_1 fixed A_Modulation_1 fixed A_Code Rate_1 fixed A_Timer InterLeave_1 fixed A_Segments Num_1 fixed A_Ber_1 fixed...
  • Page 85 4. Troubleshooting Expert „ Factory Name Data Range Expert N / D ADJ Off / On / FIX SOURCE fixed ADC/WB „ Factory Name ADC/WB ADC Target ADC RESULT Factory Name Data Range AV Calibration Success Success / Failure Comp Calibration Success Success / Failure PC Calibration...
  • Page 86 4. Troubleshooting 2nd_AV_B_High fixed 2nd_AV_Delta 2nd_COMP_R_Low fixed 2nd_COMP_G_Low fixed 2nd_COMP_B_Low fixed 2nd_COMP_R_High fixed 2nd_COMP_G_High fixed 2nd_COMP_B_High fixed 2nd_COMP_Delta 2nd_PC_R_Low fixed 2nd_PC_G_Low fixed 2nd_PC_B_Low fixed 2nd_PC_R_High fixed 2nd_PC_G_High fixed 2nd_PC_B_High fixed 2nd_PC_Delta 2nd_HDMI_R_Low fixed 2nd_HDMI_G_Low fixed 2nd_HDMI_B_Low fixed 2nd_HDMI_R_High fixed 2nd_HDMI_G_High fixed 2nd_HDMI_B_High fixed...
  • Page 87 4. Troubleshooting Factory Name data Range ADC RESULT 1st_Y_GH fixed 1st_Y_GL fixed 1st_Cb_BH fixed 1st_Cb_BL fixed 1st_Cr_RH fixed 1st_Cr_RL fixed 2nd_R_L 0 ~ 255 2nd_G_L 0 ~ 255 2nd_B_L 0 ~ 255 2nd_R_H 0 ~ 255 2nd_G_H 0 ~ 255 2nd_B_H 0 ~ 255 Factory Name...
  • Page 88 4. Troubleshooting 4-3-5. Factory Data (B Type) Option „ OPTION Factory Data Range Remark Name Factory Reset NONE/19O6TH0C/19A6TH0C/22I6TH0C/22A6TH0C/22 D6TH0C/22P6TH0C/26A6AH0C/26D6AH0C/26L6AH0C/ 26P6AH0C/32A6AH0C/32D6AH0C/32L6AH0C/32P6AH0 C/32A6AF0C/32L6AF0C/32A1AF0C/32L1AF0C/37L6AF0 C/37L1AF0C/40A6AF0C/40D6AF0C/40L6AF0C/40A1AF 32P6AH0E 0C/40L1AF0C/40A1UF0C/40D1UF0C/40L1UF0C/46A6A 32P6UF0E F0C/46D6AF0C/46L6AF0C/46A1AF0C/46L1AF0C/46A1 Type 37P6UF0E UF0C/46D1UF0C/46L1UF0C/55A1UF0C/55L1UF0C/65L 40P6UF0E 1UF0C/19O6TH0E/22P6TH0E/26P6AH0E/32P6AH0E/32 46P6UF0E P6UF0E/32A1UF0E/32P1UF0E/37P6UF0E/37P1UF0E/3 7P1UF1E/40P6UF0E/40A1UF0E/40P1UF0E/46P6UF0E/ 46L6UF0E/46A1UF0E/46P1UF0E/46L1UF0E/55A1UF0E /55P1UF0E/55L1UF0E/65L1UF0E/42HHcD3/50HHcD45 0FArN4/50FArV458FArN1/58FArV163FArN1/ Local Set … LC350/LC450/LC450H/LC451LC452/LC457HLC459H/ LC480/LC530/LC530H/LC539H/LC540/LC550/LC560/ LC580/LC570/LC610/LC620/LC630/LC631/LC632/...
  • Page 89 4. Troubleshooting Control „ Control Factory Name Range Remark EDID SUB MENU Sub Option SUB MENU PDP Option Hotel Option SUB MENU Shop Option SUB MENU Asia Option SUB MENU INFO+FACTORY Sound SUB MENU Config Option SUB MENU INFO+FACTORY SUB MENU INFO+FACTORY EDID Factory Name...
  • Page 90 4. Troubleshooting Alternate Del ON/OFF INFO+FACTORY OTN Server Type operation/development operationg OTN Test Server OFF/ A/B/C/D/E Zone OTN Support ON/OFF OTN Reset OTN Duration ON/OFF OTN Fail Test ON/OFF IIC Bus Stop ON/OFF INFO+FACTORY Visual Test fixed Disable INFO+FACTORY T-CON USB Download fixed Failure Emergency Log Copy...
  • Page 91 4. Troubleshooting Tuner Margin 0~2002 SUB MENU Factory Name Data Range Remark Y0 Ref 0~255 Y1 Ref 0~255 Y2 Ref 0~255 Y3 Ref 0~255 Y4 Ref 0~255 Y5 Ref 0~255 Y6 Ref 0~255 Y7 Ref 0~255 Cb0 Ref 0~255 Cb1 Ref 0~255 Cb2 Ref 0~255...
  • Page 92 … INFO+FACTORY PC Auto Ident Auto/Enable Enable Hotel Factory Name Data Range Remark Option ON/OFF Hotel Mode Samsung/2M/Locatel/VDA/VDA-S/Acentic/ Premiere/Sustinere/Quadriga/ETV/Ibahn/ SI Vender Samsung Magilink/Otrum/PeninsulaSiemens/OCC/MTI/ MstreamsDAWNXTV/Enseo/Cardinal/Guestek/OFF/ Movielink/Swisscom Power On Channel 1~135 Channel Type ATV/DTV/CATV/CDTV Power On Volume 0~100 Min Volume 0~100...
  • Page 93 4. Troubleshooting Sound Factory Name Data Range Remark High Devi ON/OFF Carrier_Mute ON/OFF Volume Curve Type2 Type1/Type2/error INFO+FACTORY Speaker Delay Normal 0~255 Pilot Level High Thld 0x08h 0x00~0xff Pilot Level Low Thld 0x05h 0x00~0xff FM Prescale 0~255 INFO+FACTORY AM Prescale 0~255 INFO+FACTORY NICAM Prescale...
  • Page 94 4. Troubleshooting Select LCD/PDP LCD/PDP INFO+FACTORY HDMI/DVI SEL INFO+FACTORY Indicator Led ON/OFF INFO+FACTORY Wall Mount ON/OFF INFO+FACTORY HV Flip ON/OFF INFO+FACTORY Num of Display INFO+FACTORY DVI/HDMI SOUND Auto Auto/DVI INFO+FACTORY HDMI HOT PLUG Disable Enable/Disable INFO+FACTORY HOTPLUG SWITCHING Boot Disable/Boot/Source INFO+FACTORY HOTPLUG DURATION 1200ms...
  • Page 95 4. Troubleshooting sSCC Const SUB MENU INFO+FACTORY Factory Name Data Range Remark sSCC Hx 0~1024 INFO+FACTORY sSCC Hy 0~1024 INFO+FACTORY sSCC Lx 0~1024 INFO+FACTORY sSCC Ly 0~1024 INFO+FACTORY pSCC Const SUB MENU INFO+FACTORY Factory Name Data Range Remark 0~512 INFO+FACTORY 0~512 INFO+FACTORY 0~512...
  • Page 96 4. Troubleshooting Code Rate fixed fixed Hier Modulation fixed Frequency Offset fixed Timing Offset fixed fixed fixed PLL Type fixed DEMOD Type fixed TPS LOCK fixed RS Lock fixed fixed fixed ISDB-T SUB MENU Factory Name Data Range Remark FFT Size_1 fixed Guard Interval_1 fixed...
  • Page 97 4. Troubleshooting ADC/WB „ ADC/WB Factory Name Data Range Remark SUB MENU Factory Name Data Range Remark AV Calibration Success Success / Failure Comp Calibration Success Success / Failure PC Calibration Success Success / Failure HDMI Calibration Success Success / Failure ADC Target SUB MENU Factory Name...
  • Page 98 4. Troubleshooting 2nd_PC_G_High fixed 2nd_PC_B_High fixed 2nd_PC_Delta 2nd_HDMI_R_Low fixed 2nd_HDMI_G_Low fixed 2nd_HDMI_B_Low fixed 2nd_HDMI_R_High fixed 2nd_HDMI_G_High fixed 2nd_HDMI_B_High fixed 2nd_HDMI_Delta ADC RESULT SUB MENU Factory Name Data Range Remark 1st_Y_GH fixed 1st_Y_GL fixed 1st_Cb_BH fixed 1st_Cb_BL fixed 1st_Cr_RH fixed 1st_Cr_RL fixed 2nd_R_L 0 ~ 255...

  • Page 99: White Balance - Calibration

    4. Troubleshooting 4-4. White Balance - Calibration 4-4-1 White Balance -Calibration 1. Calibration AV Calibration Comp Calibration PC Calibration HDMI Calibration 4-4-2 White Balance - Adjustment (low light) (hight light) Sub Bright Sub Contrast 3. W/B R offset R gain G offset G gain B offset...
  • Page 100 4. Troubleshooting • 32C5000 Adjustment Coordinate CA-210 P-Mode Y (Luminance) T(K) + MPCD 63.0 fL [ Dynamic Cool1 ] 12,000 (±0) (Sub_CT:134 Fix) HDMI Comp 1.7 fL 12,000 (±0) CVBS (Sub-Brt:128 Fix) [ Movie Warm2 ] 6,500 (+6) (Sub_CT:Unadjusted) HDMI Comp 6,500 (+6) CVBS...

  • Page 101: Servicing Information

    Installing the latest version is recommended. By USB : Insert a USB drive containing the firmware upgrade file downloaded from samsung.com into the TV. Please ሪ be careful not to disconnect the power or remove the USB drive until upgrades is complete. The TV will turn off and on automatically after completing the firmware upgrade.

  • Page 102: Exploded View & Part List

    5. Exploded View & Part List 5. Exploded View & Part List 5-1. UN32C4000PD Exploded View M0013 BA001 M0014 T0175 M0215 SB05A M0525 M0027 T0003 P001A T0176 T0176...

  • Page 103: Parts List

    5. Exploded View & Part List 5-1-1. UN32C4000PD Parts List Location No. Code No. Description & Specification Q’ty S.A/S.N.A Remark BA001 BN61-04923P BRACKET-AV;UC5000 40",PCM,T0.5,BKN-P824, M0013 BN96-13155A ASSY COVER P-REAR;UC4000 32,PCM,BKN-P824 M0014 BN94-03399T ASSY PCB MAIN;UN32C4000PDXZA C M0027 BN96-13157A ASSY STAND P-BASE;UC4000 32,PMMA+ABS,HB,...
  • Page 104 5. Exploded View & Part List 5-2. UN32C4000PD Parts List Service Bom (SA: SERVICE AVAILABLE, SNA: SERVICE NOT AVAILABLE) Level Location No. Code No. Description & Specification Q’ty SA/SNA Remark BN90-02598A ASSY COVER FRONT;UC4000 32 T0003 BN96-13152A ASSY COVER P-FRONT;UC4000 32,UO,PMMA+PMM ...3...
  • Page 105 5. Exploded View & Part List Level Location No. Code No. Description & Specification Q’ty SA/SNA Remark ..4 BN69-04419K PACKING-BAG PE;UC5000,LDPE,70,90,4X12, 5 M0017 BN91-04983D ASSY CHASSIS;UN32C4000PDXZA M0014 BN94-03399T ASSY PCB MAIN;UN32C4000PDXZA C ...3 0202-001608 SOLDER-WIRE FLUX;LFC7-107,D0.8,99.3Sn/0. 0.25 ...3 3701-001698 CONNECTOR-DSUB;15P,3ROW,FEMALE,ANGLE,NI ...3 3711-007302 HEADER-BOARD TO BOARD;BOX,18P,2R,2mm,ANG...
  • Page 106 5. Exploded View & Part List Level Location No. Code No. Description & Specification Q’ty SA/SNA Remark ..4 MR306 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 ..4 R319 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 ..4 2007-000146 R-CHIP;6.8Kohm,5%,1/16W,TP,1005 ..4 R102 2007-000149 R-CHIP;12Kohm,5%,1/16W,TP,1005 ..4 HDR9 2007-000152 R-CHIP;20Kohm,5%,1/16W,TP,1005 ..4 MR36 2007-000153 R-CHIP;22Kohm,5%,1/16W,TP,1005 ..4 AR43 2007-000155...
  • Page 107 5. Exploded View & Part List Level Location No. Code No. Description & Specification Q’ty SA/SNA Remark ..4 CK40B 2203-000838 C-CER,CHIP;0.39NF,5%,50V,C0G,TP,1608 ..4 KFC6 2203-000872 C-CER,CHIP;0.0030nF,0.25pF,50V,C0G,1608 ..4 DC87 2203-001153 C-CER,CHIP;.068nF,5%,50V,NP0,1005 ..4 AD480 2203-001412 C-CER,CHIP;0.03nF,5%,50V,NP0,TP,1005 ..4 AD480 2203-001428 C-CER,CHIP;470nF,10%,50V,X7R,TP,2012 ..4 AD480 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 ..4 AD480...
  • Page 108 BAG PE;LDPE,T0.05,W250,L400,TRP,28,2,9.2 ...3 AA68-03242L MANUAL FLYER-07,SAFETY GUIDE;comm,Samsun ...3 T0527 BN68-00513A LABEL-E,PASS;ALL MODEL,YUPO(110G),50X15, ...3 T0059 BN68-02178A MANUAL FLYER-CARD;COMM,SAMSUNG,eng/spa/c ...3 BN68-02186A MANUAL FLYER-TOC GUIDE;COMM,SAMSUNG,11 L ...3 T0511 BN68-02651A MANUAL USERS-02;U4000(32"),SAMSUNG,Eng,U ...3 BN68-02662A MANUAL FLYER-QSG;U4000(32"),SAMSUNG,Eng, ...3 BP68-00263E MANUAL FLYER-WARRANTY CARD;comm,Samsung, ACCE2 BN96-13158S ASSY ACCESSORY-CABEL;UN32C4000PDXZA ...3...
  • Page 109 5. Exploded View & Part List Level Location No. Code No. Description & Specification Q’ty SA/SNA Remark ...3 BN96-10788B ASSY ACCESSORY-PREVENT;B6000,nylon66 + W ...3 EH02A BN96-10810A ASSY HOLDER P;09 LEDTV MODEL,NYRON ..4 6902-000031 BAG ZIPPER;LDPE,T0.05,W80,L160,TRP,0,0,4 ..4 M0114 BN61-05373A HOLDER-WIRE;LB7000 46,NYRON ..4 BN61-05491A HOLDER-WIRE STAND;UB7000 46inch,NYRON...

  • Page 110: Wiring Diagram

    6. Wiring Diagram 6. Wiring Diagram 6-1. Wiring Diagram 32"/37" „...
  • Page 111 6. Wiring Diagram 40"/46" „...

  • Page 112: Connector

    6. Wiring Diagram 6-2. Connector CN1303_HD (to Panel) C4000 CN501(LAN) C5000 FCN1302_FHD (to Panel) C5000 Panel_VCC ODD[CLK]+ LAN_TX+ EVEN[0]- Panel_VCC ODD[CLK]- LAN_TX- Panel_VCC LAN_RX+ B3.3V ODD[4]+ Panel_VCC ODD[2]+ PHY_LED_ADDR1 ODD[4]- Panel_VCC ODD[2]- B3.3V ODD[3]+ LAN_RX- PHY_LED_ADDR0 ODD[3]- ODD[1]+ CN901(PC) FORMAT ODD[1]- PC_RED PC_5V...
  • Page 113 6. Wiring Diagram CN1003 (HDMI2) CN1201 (MONITOR OUT) CN701(COMP1 JACK) HDMI2_RX2+ COMP2_PR HDMI2_ OUT_R COM2_SL RXCLK- OUT_R HDMI2_RX2- HDMI_CEC COM2_SR COMP2_PB HDMI2_RX1+ COMP2_PB COMP2_SR HDMI2_RX1- COMP2_SL IDENT_COMP2 HDMI2_RX0+ COMP2_Y COMP2_PR HDMI2_RX0- CN1202 (SPEAKER) HDMI2_RXCLK+ CN1004 (HDMI3) HDMI3_RX2+ CN702 (USB 1) HDMI3_ RXCLK- USB_VCC...

  • Page 114: Connector Functions

    6. Wiring Diagram 6-3. Connector Functions Connector Functions CN201   IP CNM802 Supply main power and dimming signal from IP board to Main Board. CN1302/CN1303_HD   T-CON CNF1 The LVDS signal transfered from Main Board to Panel. 6-4. Cables LEAD (Main-IP 18P) LVDS (Main - TCON) 32"...
