Stepless LP7 Manual

Lifting platform
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
GB/US . . . . LP7 & LP7+ Lifting platform
Vers . 1 .00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LP7 and is the answer not in the manual?

Questions and answers

Related Manuals for Stepless LP7

Summary of Contents for Stepless LP7

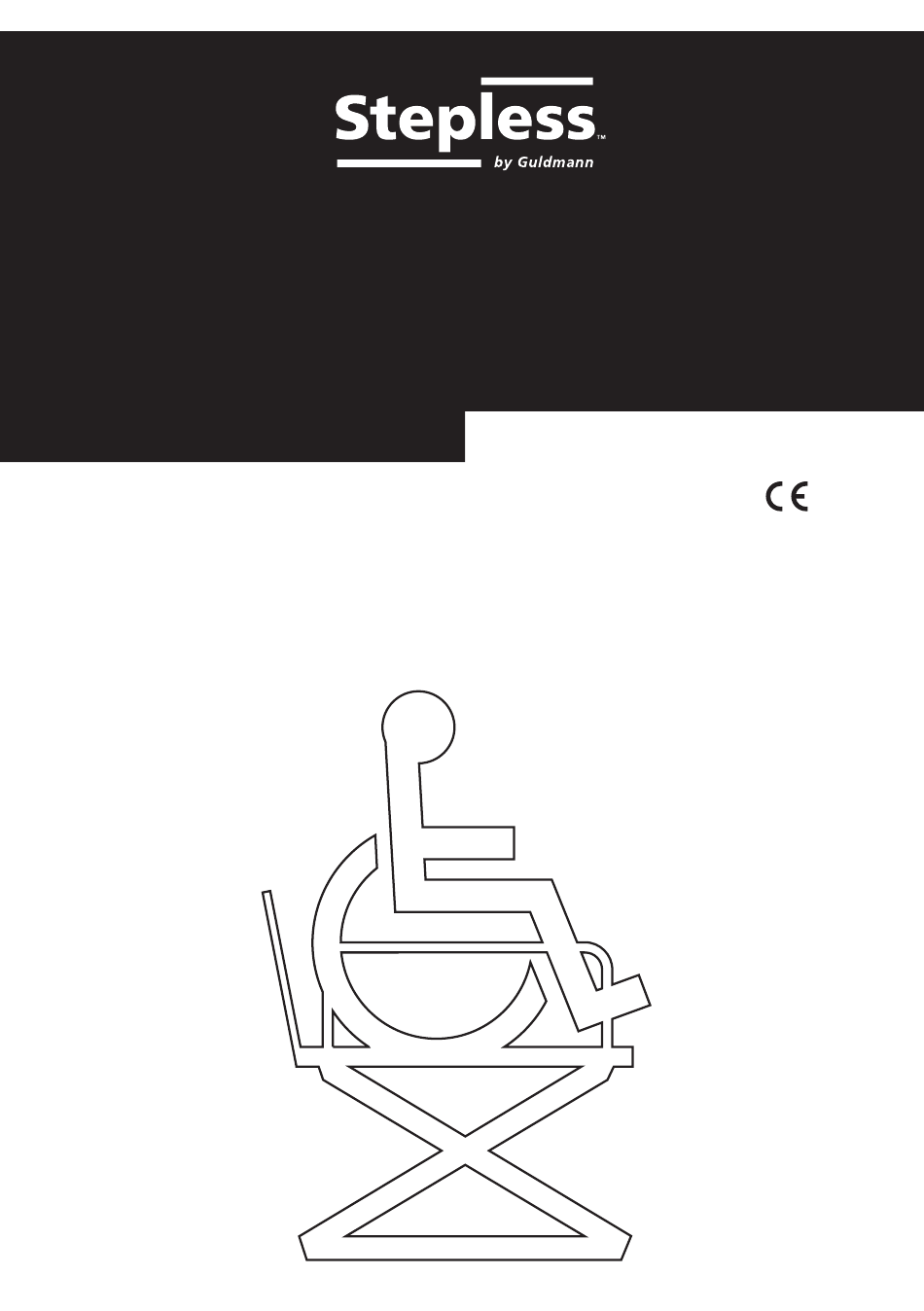

  • Page 1 GB/US . . . . LP7 & LP7+ Lifting platform Vers . 1 .00...

  • Page 2: Table Of Contents

    LP7 & LP7+ Item numbers: LP7: 5582-xx LP7+: 5583-xx 1 .00 . . . . . . . . Purpose and use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 1.01 .

  • Page 3: Purpose And Use

    LP7 can lift up to 800 mm. LP7+ can lift up to 1500 mm. The lifting interval of the LP7 and the LP7+ can be adjusted between heights of 50-1500 mm. The lifting platform may be used in temperatures from -10 to +40 degrees.

  • Page 4: Important/Warnings

    Unpacking and preparation Visual check If the packaging is damaged on receipt, the parts of the LP7 & LP7+ must be carefully examined for visible deficiencies, defects, or faults. If damage is suspected, the LP7 & LP7+ must not be used until qualified service personnel or the Guldmann Service Team have approved this.

  • Page 5: Safety Rules

    2. Access ramp 3. Railing 4. Door 5. Operation panel Safety door (optional) LP7+ 1 .05 Safety rules When working beneath the platform, there is a risk of becoming trapped between the moving parts of the platform. The following safety rules must therefore be observed: 1.

  • Page 6: Assembly

    1 .06 Assembly The LP7 & LP7+ must be assembled by the Guldmann Service Team or an engineer approved by Guldmann according to Guldmann’s instructions. 1 .07 Electrical connection • Input: 100-240V AC, 50-60 Hz • Maximum consumption: 0.35 A Connect the platform to the mains network via the fitted rubber cable.

  • Page 7: The Operating Panel

    2 .02 The operating panel The lifting platform is operated by means of the operating panel. The lifting platform is logical and unproblematic to operate and use, even with no prior knowledge. When the platform is parked at the lower level, the ramp/doors can be opened by pressing and holding the DOWN button.

  • Page 8: Safety Functions

    It stops all movement when activated. Important! The emergency stop button must be pulled out, and the LP7/LP7+ can be restarted by pressing the control buttons. Activate the emergency stop button for 5 seconds and then release it to...
  • Page 9 The emergency lowering must be used in emergencies only. This requires qualified assistance. You must contact the dealer before using the LP7 & the LP7+ again. Remove the key after installation and keep it with the manual. The electric emergency lowering device is activated by turning the key switch to the left for 10 seconds.

  • Page 10: Accessories

    Safety cut-out function If anyone or anything gets caught beneath the platform when it is lowered, the descent will stop as soon as the safety safety llist is activated. The safety function is reset by pressing ”Raise” (1), which will raise the platform.

  • Page 11: Dismantling And Transport

    Maintenance and storage 4 .01 Cleaning The LP7 & LP7+ are cleaned with a sponge or brush and soapy water. The LP7 & LP7+ can be sprayed or rinsed at ordinary water pressure; they must not be rinsed under high pressure.

  • Page 12: How Is Corrosion Avoided

    Attention: Please note that there can be specific demands if there is public access to the lifting platform. • The LP7 & LP7+ have an expected life span of 15 years with regular daily use. • The lifting actuator must be replaced after 10 000 lifts.

  • Page 13: Troubleshooting

    5 .02 Troubleshooting Fault Possible cause Solution None of the electrical functions The emergency stop button Turn the emergency stop works. has been pressed. button to the right. The platform is off. Turn on the platform using the key switch. The key must be vertical to turn the platform on.

  • Page 14: Technical Specifications

    LP7 and LP7+ ........

  • Page 15: Usa And Countries Outside The Eu

    USA and countries outside the EU Users guide Before using the product, read the entire operation manual including warranty. WARRANTY Guldmann warrants its equipment is free from material defects under normal use, and will perform substantially in accordance with the specifications set forth in documentation provided with the equipment.
  • Page 16 V . Guldmann A/S Corporate Office: Tel. +45 8741 3100 +45 8741 3131 E-mail info@guldmann.com www.stepless.com Guldmann Inc . Tel. 800 664 8834 Tel. 813 880 0619 813 880 9558 info@guldmann.net www.stepless.net...

This manual is also suitable for:

Lp7+
