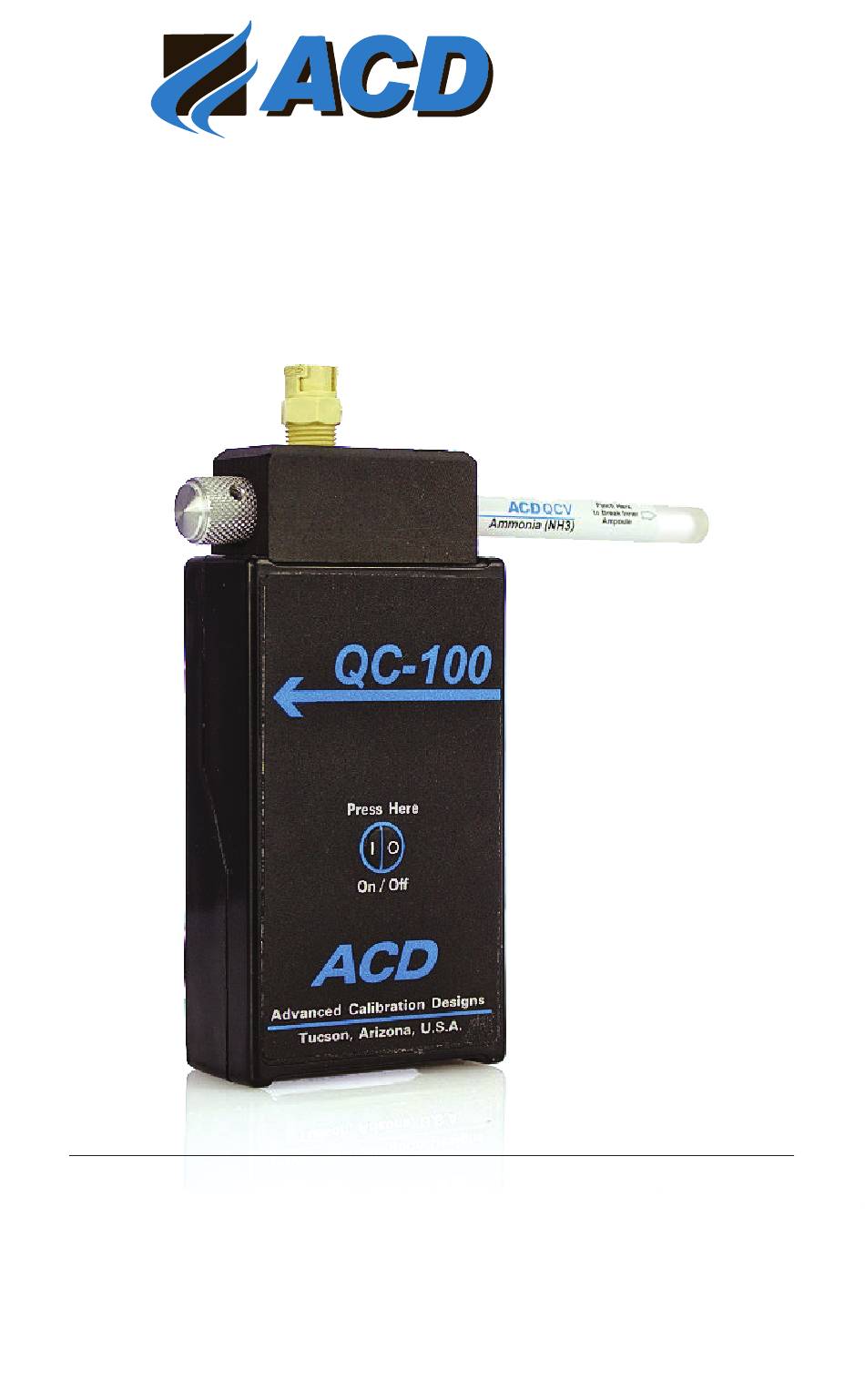

Advanced Calibration Designs, Inc. QC-100 Calibration Gas Bump Tester Instruction Manual...
Page 2
Instruction Manual QC-100 QuickCheck System TABLE OF CONTENTS I. QC-100 Operating Instructions ........Page 2 II. Accessory Items / Parts List ........Page 4 III. Specifications ............Page 5 910-1050-00...
Page 3
If inappropriate tubing or adapters are used the chemical may be lost in the sample system without reaching the sensor to be tested. 7. Place the end of the QC-100, tubing or calibration adapter at the sensor to be tested.
Page 4
10. Turn off the QC-100 by pressing the On/Off switch. Remove and discard the used QCV. 11. Note: Once the inner ampoule is broken the QCV should be quickly inserted into the QC-100. Opened QCV deplete quickly without being installed. Once testing is finished please remove and discard the QCV before storing the QC-100.
Page 5
II. ACCESSORY ITEMS / PARTS LIST The following items and spare parts are available for the QC-50: Description 525-0001-12 NH3 (Ammonia) - 12 Pack 525-0002-12 HCl (Hydrogen Chloride) - 12 Pack 525-0003-12 C7H8 (Toluene) - 12 Pack 525-0004-12 C6H14 (Hexane) - 12 Pack 715-0405-0X Hose, with Quick Connect, 5’...
Page 6
Vial Life ........up to 8+ hours per vial Warranty ................One year Dimensions (QC-100) ........6.0 x 2.3 x 1.2” (15.2 x 5.8 x 3.0) Dimensions (QCV) ..........0.4 x 1.3” (1.1 x 3.4cm) Weight (QC-100) ..........8oz (220gm) Weight (QCV) .............
