Summary of Contents for Atlona OmniStream AT-OMNI-232

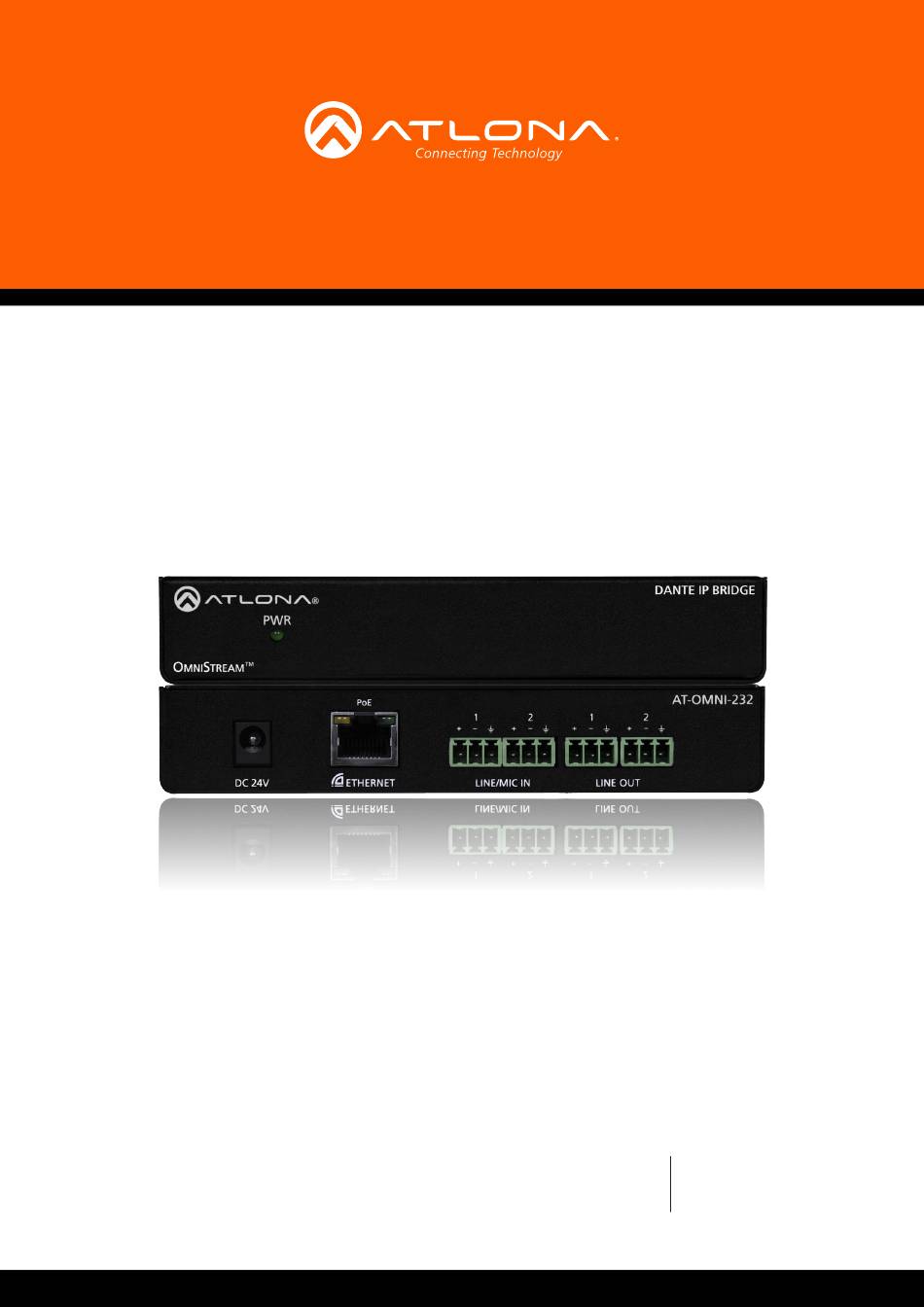

  • Page 1 Atlona Manuals AT-OMNI-232 Dante IP Bridge...
  • Page 2 Version Information Version Release Date Notes 04/28 Initial release AT-OMNI-232...
  • Page 3 Welcome to Atlona! Thank you for purchasing this Atlona product. We hope you enjoy it and will take a extra few moments to register your new purchase. Registration only takes a few minutes and protects this product against theft or loss. In addition, you will receive notifications of product updates and firmware.
  • Page 4 Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com.
  • Page 5 Damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Atlona to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product.
  • Page 6 The information bubble is intended to alert the user to helpful or optional opera- product. tional instructions in the literature accompanying the product. 11. Only use attachments/accessories specified by Atlona. 1. Read these instructions. 12. To reduce the risk of electric shock and/or damage 2. Keep these instructions.

  • Page 7: Table Of Contents

    Table of Contents Introduction Features Package Contents Panel Description Installation Audio Connector Connection Instructions Connection Diagram Mounting Instructions Configuration DHCP mode Auto IP mode Static IP mode Dante Controller System Info Channel Settings General Settings Commands Unit Audio Appendix Specifications Index AT-OMNI-232...

  • Page 8: Introduction

    Introduction The Atlona OmniStream™ AT-OMNI-232 is a Dante™ networked audio interface that transmits and receives two channels of audio over a network. OmniStream is designed for distributing AV over Gigabit Ethernet in enterprises and other large-scale installations. AT-OMNI-232 devices are ideal for integrating microphones and other audio sources with a Dante-equipped DSP and OmniStream AV decoders.

  • Page 9: Panel Description

    Panel Description DANTE IP BRIDGE TREAM AT-OMNI-232 DC 24V ETHERNET LINE/MIC IN LINE OUT 1. PWR LINE/MIC IN This LED indicator is green when the unit is Connect to MICs or other audio sources. powered. LINE OUT 2. DC 24V Connect to an audio DSP, amplifier, or other audio Connect optional power supply (AT-PS-24250-L) for players/distribution devices.

  • Page 10: Installation

    2. Connect an Ethernet cable to the ETHERNET port. NOTE: Connect to a PoE enabled switch, if one is not available, a power supply (AT-PS-24250-L) is purchasable through Atlona for local power. NOTE: To ensure stable connection, disable 802.3 Energy Efficient Ethernet (EEE) on connected Ethernet switches.

  • Page 11: Connection Diagram

    Installation Connection Diagram AT-PA100-G2 23 2 N I- A T- LI N E/ M LI N N ET ET H Laptop AT-OMNI-232 24 V DI GI DI O DI O O OU VI DE RI AL RI AL C TO RE SE TU S 48 V...

  • Page 12: Mounting Instructions

    Installation Mounting Instructions The AT-OMNI-232 includes two mounting brackets and four mounting screws, which can be used to attach the unit to any flat surface. 1. Using a small Philips screwdriver, remove the two screws from the left side of the enclosure. 1.

  • Page 13: Configuration

    Configuration DHCP mode By default, the OmniStream 232 is set to DHCP mode. In this mode, each encoder that is connected to the Local Area Network (LAN), will automatically be assigned an IP address by the DHCP server. Auto IP mode If no DHCP server is detected after 30 seconds, then the encoder will be placed in Auto IP mode and will be assigned a link-local IP address of 169.254.XXX.XXX.

  • Page 14: Ams

    AMS is used for adjusting device settings such as: input volume, output volume, phantom power, and updating. 1. Download AMS software from http://atlona.com/products/AT-SW-AMS/ 2. Launch the Atlona Management System from the Windows desktop or from the Start Menu. 3. After the AMS server starts, click the OK button to dismiss the dialog.

  • Page 15: System Info

    If no OMNI 232 is found: • Make sure that both OMNI-232 and AMS are on the same network. IMPORTANT: OmniStream uses mDNS as the discovery mechanism. In order for mDNS to function properly, there must not be restrictions applied to the network. VPN can be used to connect to a computer that is running AMS, on the same network.

  • Page 16: Channel Settings

    Channel Settings Adjust audio and line settings Input Volume Adjusts the audio gain on the input side • Selections = -16.9, -1.9, 0.0, 15.0, 13.1, 30.0, 28.1, and 45.0 MIC Phantom power Select to pass power to a Phantom Power MIC •...

  • Page 17: Commands

    Commands Unit Commands are sent using UDP on port 49494 Each command is case sensitive, do not change: capitalization, spacing, or lettering Each command is terminated with a carriage return If the command fails or is incorrect the feedback should be “NACK command” Command Description Blink...
  • Page 18 Commands Blink Blinks the power LED on the unit’s front panel Syntax Blink X Parameter Description Range State 0 (off), 1 (on) Example Feedback Blink 1 ACK Blink 1 Blink ms Sets how long the front panel power LED blinks Syntax Blink Xms Parameter...
  • Page 19 Commands Mreset Sets the unit back to factory default Syntax Mreset Example Feedback Mreset ACK Mreset Query Displays the settings of the unit Syntax Query Example Feedback Query ACK Query VIN1=# VIN2=# VOUT1=# VOUT2=# VOUTMute1=# VOUTMute2=# MicPP1=# # MicPP2= # # Blink=# AT-OMNI-232...

  • Page 20: Audio

    Commands Audio Commands are sent using UDP on port 49494 Each command is case sensitive, do not change: capitalization, spacing, or lettering Each command is terminated with a carriage return If the command fails or is incorrect the feedback should be “NACK command” Command Description MicPP...
  • Page 21 Commands MicPP Turns phantom power on/off for each input Syntax MicPP X Y Parameter Description Range Channel 0 (both), 1, 2 State 0 (off), 1 (on) Example Feedback MicPP 1 1 ACK MicPP 1 1 Recall Loads the previously saved settings Syntax Recall X Parameter...
  • Page 22 Commands Adjust the gain of the audio input channels Syntax VIN X Y Parameter Description Range Channel 0 (both), 1, 2 Level -16.9, -1.9, 0.0, 13.1, 15.0, 28.1, 30.0, 45.0 Example Feedback VIN 1 15.0 ACK VIN 1 15.0 VOUT Adjusts the volume level of the output channels Syntax VOUT X Y...

  • Page 23: Appendix

    Appendix Specifications Audio In/Out Dante two channel Input Level +4 dBu nominal, +24 dBu no clipping Output Level +4 dBu nominal, +24 dBu no clipping Frequency Response 20 Hz to 20 kHz ±5dB Input Impedance >1.8 kΩ Phantom Power +24V Noise THD+N <...
  • Page 24 Appendix Dimensions Inches Millimeters H x W x D 1.06 x 6.46 x 3.46 27 x 164 x 88 Weight Pounds Kilograms Device 0.82 0.37 Certification Power Supply CE, FCC, cULus, RoHS, CCC, RCM Product CE, FCC AT-OMNI-232...

  • Page 25: Index

    Index FCC statement Safety information discovery Features Save set up & login Feedback command Audio command 17, 20 Settings commands Firmware displaying gain 16, 22 version recalling mute 16, 22 Software output level 16, 22 settings Dante recall Specifications Installation save auto DHCP...
  • Page 26 • 408.962.0515 • 877.536.3976 © 2017 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners. Pricing, specifications and availability...
