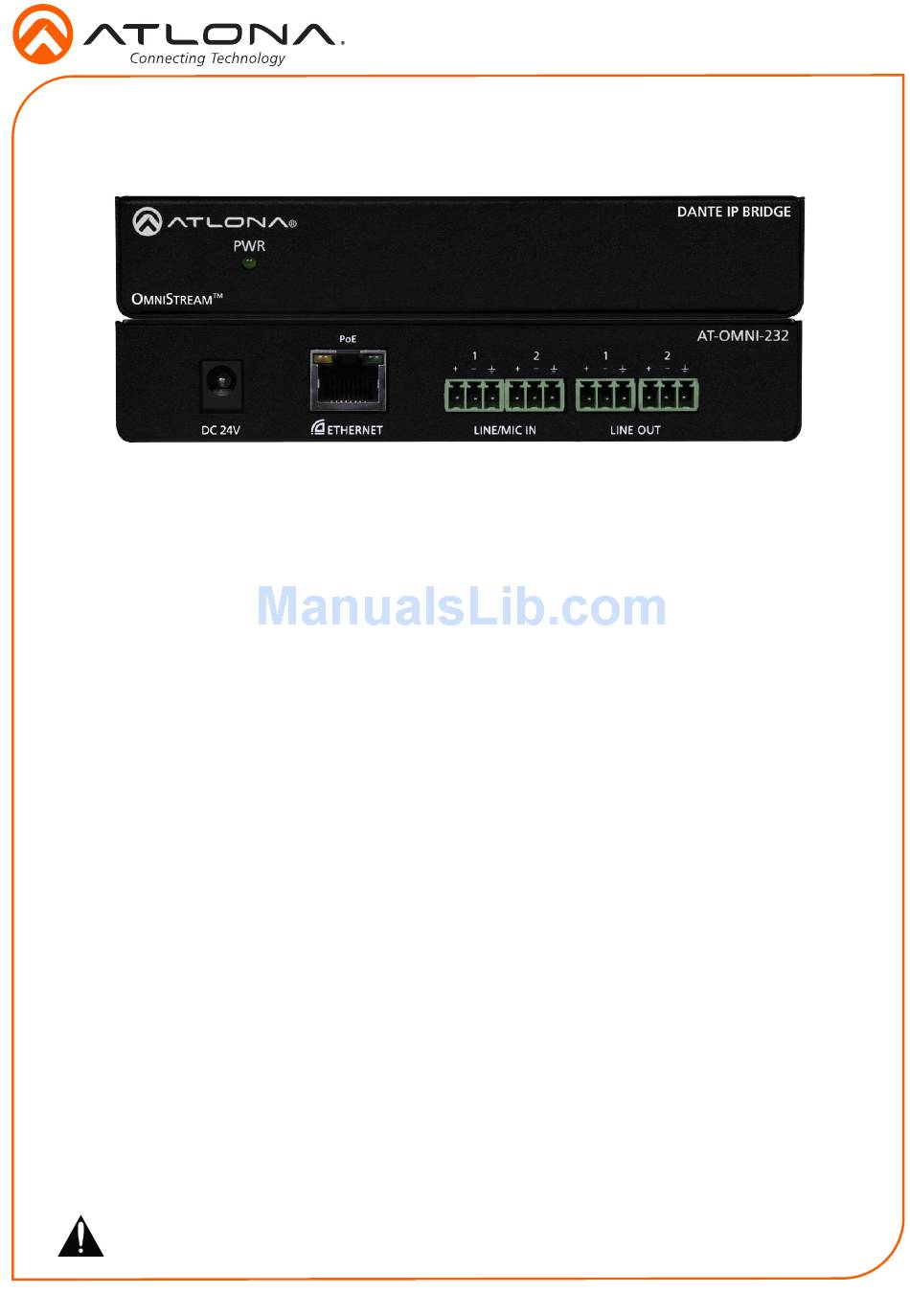

OmniStream Dual-Channel Dante Networked Audio Interface
AT-OMNI-232
The Atlona OmniStream™ AT-OMNI-232 is a Dante™ networked audio interface that transmits
and receives two channels of audio over a network. OmniStream is designed for distributing AV
over Gigabit Ethernet in enterprises and other large-scale installations. AT-OMNI-232 devices
are ideal for integrating microphones and other audio sources with a Dante-equipped DSP and
OmniStream AV decoders. The AT-OMNI-232 features two balanced mic/line audio inputs with
selectable 24 volt phantom power, as well as two balanced line level outputs. It can be powered
over the network though Power over Ethernet (PoE), as well as from local AC power. The AT-
OMNI-232 extends the power and flexibility of the OmniStream networked AV platform, by
enabling facility-wide system designs that include complete audio system integration with Dante-
based professional audio devices.

Package Contents

1 x OmniStream 232
4 x Phoenix connector (3 pin)
Operating Notes
•
To ensure stable connection, disable 802.3 Energy Efficient Ethernet (EEE) on connected
Ethernet switches.
•
OmniStream requires the Atlona Management System (AMS) which provides discovery, and
management. AMS is a free application that can be downloaded from the Atlona web site at
http://atlona.com/product/at-sw-ams/.
•
Connection issues may occur if control software is used over VPN. Ensure the software and
OMNI-232 are on the same network
IMPORTANT: Visit http://www.atlona.com/product/AT-OMNI-232 for the latest firmware
updates and documentation.
1 x Wall/table mounting brackets
1 x Installation Guide
1
Installation Guide
AT-OMNI-232

Advertisement

Table of Contents
loading

Related Manuals for Atlona AT-OMNI-232

Summary of Contents for Atlona AT-OMNI-232

  • Page 1: Package Contents

    Ethernet switches. • OmniStream requires the Atlona Management System (AMS) which provides discovery, and management. AMS is a free application that can be downloaded from the Atlona web site at http://atlona.com/product/at-sw-ams/. • Connection issues may occur if control software is used over VPN. Ensure the software and OMNI-232 are on the same network IMPORTANT: Visit http://www.atlona.com/product/AT-OMNI-232 for the latest firmware...

  • Page 2: Installation

    Connect captive screw audio connectors to LINE/MIC IN ports from audio sources. e.g. MICs Connect an Ethernet capable to the Dante compatible ETHERNET port. Note: Connect to a PoE enabled switch, if one is not available, a power supply (AT-PS- 24250-L) is purchasable through Atlona for local power.

  • Page 3: Mounting Instructions

    See page 4 for software instructions Mounting Instructions Mount the unit using the oval-shaped The AT-OMNI-232 includes two mounting holes, on each rack ear. If using a brackets and four mounting screws, which can drywall surface, a #6 drywall screw is be used to attach the unit to any flat surface.
  • Page 4 > software > Dante Controller. The download button is found on the right side of the page. Follow the instructions for downloading. Once downloaded and installed, the AT-OMNI-232 will be automatically detected as long as the PC running Dante Controller and OmniStream 232 are on the same network.

  • Page 5: Connection Diagram

    Installation Guide AT-OMNI-232 Connection Diagram AT-PA100-G2 23 2 N I- A T- LI N E/ M LI N N ET ET H Laptop AT-OMNI-232 24 V DI GI DI O M PO DI O O OU VI DE RI AL...

  • Page 6: Troubleshooting

    • Connect the optional 24V DC power supply (AT-PS- 24250-L is available from Atlona.com). When using an external power supply, the PWR indicator will be red. OmniStream not displayed Unable to locate DHCP • Verify that the encoder is in AMS.
  • Page 7 Installation Guide AT-OMNI-232 Notes...
  • Page 8 • © 2016 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners. Pricing, specifications and availability subject to change without notice. Actual products, product images, and online product...
