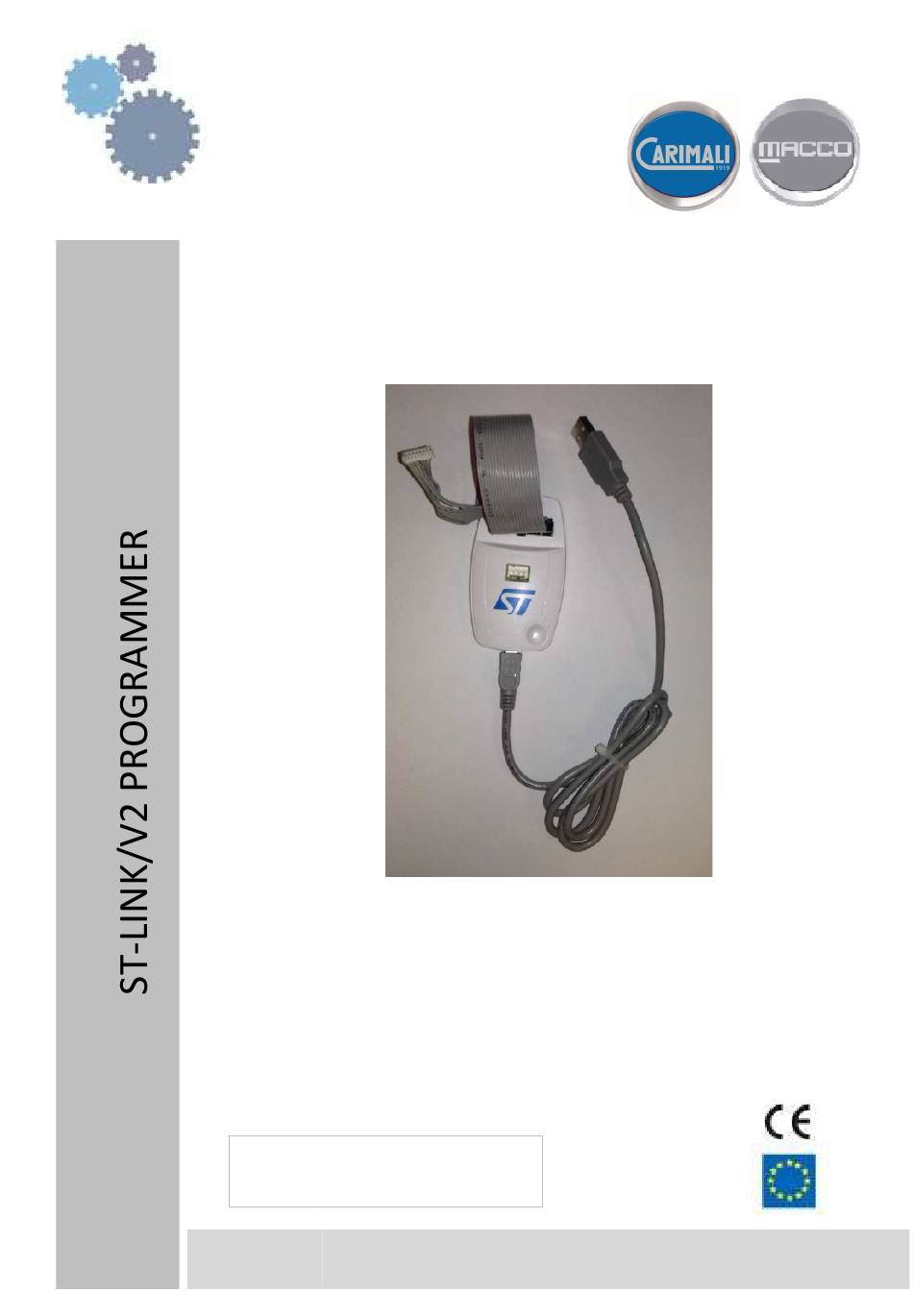

- Page 1 TECHNICAL TECHNICAL INSTRUCTIONS INSTRUCTIONS ENGLISH ENGLISH LB-05104.00 EDITION EDITION NOVEMBER 2015 NOVEMBER 2015 LB.05104.00 www.carimali.com...
- Page 2 LB.05104.00...
-
Page 3: Introduction And General Instructions
The KIT code 04.05093 includes: a. USB pen drive containing the installation software on PC: STM32 ST-LINK Utility_v3.5 b. ST-LINK/V2 programmer board c. Flat cable to connect the programmer to the display-PCB d. USB cable to connect the programmer to the laptop e. - Page 4 ST-LINK programmer installation 1. Insert the USB pen drive in the PC USB port and open the folder 2. Carry out the STM32 ST-LINK Utility_v3.5 install by clicking twice the icon 3. Confirm the first security advice 4. Wait until the Preparing to Install ends, then click Next LB.05104.00...
- Page 5 5. Wait until License Agreement page appears, then click Yes 6. Wait until Choose Destination Location page appears, then click Next 7. Wait the instalaltion untill the complete procedure ends, then click Finish LB.05104.00...
- Page 6 8. Wait Welcome to the Device Driver installation Wizard page appears, then click Next 9. Wait the procedure ends, then click End to exit 1. You will have a new icon on your desktop LB.05104.00...
- Page 7 START ST-LINK/V2 programmer 1. Power the machine OFF 2. Remove the front part of the cup tray on top of the machine (3 screws) LB.05104.00...
- Page 8 3. Remove the display-PCB protection (8 screws) 4. Connect the programmer to display-PCB connector as shown by the picture LB.05104.00...
- Page 9 8. On the main pull down menu select File end then Open file 9. Select the firmware to be uploaded on display-PCB, file must be in BIN format, then click Open Updated software releases can be downloaded directly from the reserved area of our website: http://www.carimali.com/en/reserved_area/documents LB.05104.00...
- Page 10 10. On the main pull down menu click Target and then Option Bytes Select the following User configuration option byte, then confirm by clicking Apply: WDG_SW nRST_STOP nRST_STDBY 11. On the main pull down menu click Target and then Automatic Mode LB.05104.00...
- Page 11 12. Once appears the Automatic Mode window, verify Flash programming have been selected, then select Verify while programming, finally confirm with Start 13. You may verify the following windows appears: Full chip erase in progress… Flash memory programming… 14. Once the procedure ends the following window appears. Disconnect the flat cable from display-PCB and reassemble machine, which is now ready to operate with new software LB.05104.00...
- Page 12 The Carimali product you have purchased is subject to Directive 2002/96/EC of the European Parliament and the Council of the European Union on waste electrical and electronic equipment (WEEE) and, in jurisdictions adopting that Directive, is marked as being put on the market after August 13, 2005, and should not be disposed of as unsorted municipal waste.
