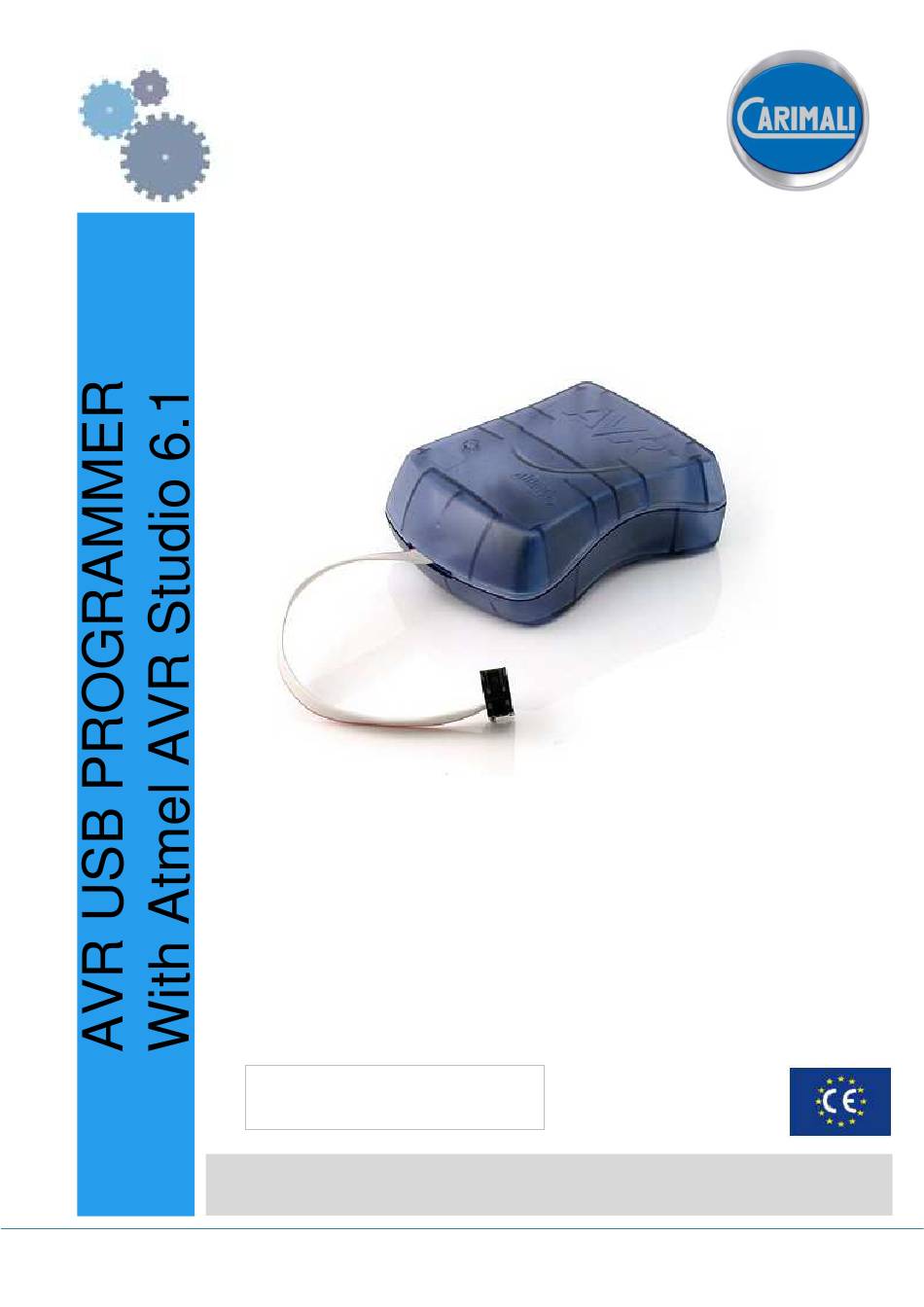

- Page 1 TECHNICAL INSTRUCTIONS TECHNICAL INSTRUCTIONS EN - ENGLISH LB-00145-55 EDITION MARCH 2016 www.carimali.com LB-00145-55 Pag. 1...
-
Page 2: Table Of Contents
INTRODUCTION AND GENERAL INSTRUCTIONS ..............3 AVR STUDIO 6.1 AND SUB-PROGRAM INSTALLATION ............5 FIRMWARE AVRISPmkII UPGRADE ..................10 MANUAL FIRMWARE UPDATE OF AVRISP mkII ..............11 CARIMALI MAIN BOARD ......................12 AVRISPmkII – MAIN BOARD CONNECTION ................. 16 FIRMWARE UPDATE PC TO MACHINE MAINBOARD ........... -
Page 3: Introduction And General Instructions
INTRODUCTION AND GENERAL INSTRUCTIONS The AVR USB programmer allows to carry out the following operation: 1. program the microprocessor on the machine master board with the machine software, file.hex; 2. transfer to the laptop the machine settings file (dose settings, counters...); 3. -
Page 4: Picture
1x cable 6 PINs to be connected in series to the cable 03.05036 (ref. f.), used to connect the interface board ref. d. and the machine master board with microprocessor ATmega2560. code 03.05036 code 03.05201 NOTE: AVR Studio 6.1 and the USB driver must be installed before AVRISP mkII is connected to the pc. LB-00145-55 Pag. 4... -
Page 5: Avr Studio 6.1 And Sub-Program Installation
AVR STUDIO 6.1 AND SUB-PROGRAM INSTALLATION Insert the CD-ROM / USB pen drive in the reader and open the folder CD-1.09 (or later version). Picture 1.1 Picture 1.2 Open the folder Studio 6.1: Carry out the AStudio61sp2net [or later version] by clicking twice the icon [Picture 1.3] Click Install [Picture 1.4] Picture 1.3 Picture 1.4... -
Page 6: Picture
Select the Full feature and the path in which the setup will install the Visual Studio 2010 Shell [Picture 1.7]. Press Install to start the installation.[Picture 1.8]. Picture 1.7 Picture 1.8 Press “Finish” to end the Visual Studio 2010 installation [Picture 1.9 Picture 1.9 LB-00145-55 Pag. - Page 7 Press Next to start the Avr Jungo Usb installation [Picture 2.2] Accept the terms licence agreement and click Next [Picture 2.3 ] Picture 2.2 Picture 2.3 Click next then install to begin the installation[Picture 2.4 ] wait for the completion of the installation then press finish [Picture 2.5 ] Picture 2.4 Picture 2.5...
-
Page 8: Picture
Specify the folder where Avr Studio 6.1 will be installed [ Picture 2.8 ]. Picture 2.8 Setup has enough information to start copying the files, if you are not sure about the setting press Back.If you are satisfied with the setting click Next.[ Picture 2.9 ] wait for the completion of the installation [ Picture 3.0 ] Picture 2.9 Picture 3.0 Remove the checkmark in the Associate files box then press Finish to end the Avr Studio 6.1 installation [ Picture 3.1 ]... -
Page 9: Picture
Remove the checkmark from “Close page after project load” and “Show page at start-up”, then close the Start Page [Picture 3.3] Picture 3.3 Connect the AVRISPmkII to PC USB port through the supplied cable. The PC will automatically start the hardware installation procedure of the AVRISP mkII. LB-00145-55 Pag. 9... -
Page 10: Firmware Avrispmkii Upgrade
FIRMWARE AVRISPmkII UPGRADE AVR Studio 6.1 will contain the latest firmware available from Atmel. AVR Studio after connecting the AVR, system may require an firmware update. Press “Yes” [ Picture 3.4 ], then “upgrade” to start the upgrade procedure[ Picture 3.5 ]. Picture 3.4 Picture 3.5 Wait until the progress bar fills up [ Picture 3.6 ].Press “close”... -
Page 11: Manual Firmware Update Of Avrisp Mkii
3. Open the Avr Isp MKII by moving the 4 plastic clips that holds the top and the bottom parts of the enclosure togethr. 4. Short-circuit the Pin 1 e Pin 3 on the pinholes next to the AVRISP mkII silk print on the PCB as shown in [ Picture 4.5 ] 5. -
Page 12: Carimali Main Board
CARIMALI MAIN BOARD The master boards used by Carimali which can be programmed with the AVRISP are the following: The arrow shows where to connect the programmer AVRISP. Atmega 2560 Mega – Sirio series Atmega2560 Armonia – MX-3 series LB-00145-55... - Page 13 Atmega2560 Armonia smart – MX-2 Atmega2560 Multi smart - Mya Atmega128 Armonia - MX-3 series Atmega128 Armonia smart – MX-2 - Mya [Display] [Display] LB-00145-55 Pag. 13...
- Page 14 Atmega128 F V2 and V3 series Atmega128 Multi V2 series ATmega 32 – Atmega 644 ATmega 168P Kicco, Eta BetaV2, Tema Style, Espresso9 Fridge Plus LB-00145-55 Pag. 14...
- Page 15 ATmega2560 Diva LB-00145-55 Pag. 15...
-
Page 16: Avrispmkii - Main Board Connection
USB port and master board connector. Inside a Avrisp mkII there are two leds, one next to the USB connector that indicates a USB traffic, the other a 3 color led, this indicates the status of the Avrisp mkII. -
Page 17: Firmware Update Pc To Machine Mainboard
FIRMWARE UPDATE PC TO MACHINE MAINBOARD Select from drop-down menu the AVRISP mkII platform [ Picture 4.9 ] Tool: Avr ISP mkII ( parameter available if connected to PC USB port ). Picture 4.9 Device: Select the type of microprocessor to program in according with the type of main board ,( see paragraph CARIMALI MAIN BOARD )then press Apply [Picture 5.0]... -
Page 18: Machine Set-Up Data Reading
To transfer to laptop the machine settings file (dose setting, counters….) Select from drop-down menu the AVRISP mkII platform [ Picture 5.3 ]: Tool: AVRISP mkII ( parameter available if connected to PC USB port ) Picture 5.3 Device: Select the type of microprocessor to program in according with the type of main board ,( see paragraph CARIMALI MAIN BOARD [Picture 5.4]) then press Apply... -
Page 19: Machine Set-Up Data Write
To transfer the machine settings file from one machine to another. Select from drop-down menu the AVRISP mkII platform [ Picture 5.7 ]: Tool: AVRISP mkII ( parameter available if connected to PC USB port ) Picture 5.7 Device: Select the type of microprocessor to program in according with the type of main board ,( see paragraph CARIMALI MAIN BOARD ) then press Apply [ Picture 5.8 ]... -
Page 20: Machine Main Board Erase
Select from drop-down menu the AVRISP mkII platform [ Picture 6.1 ]:: Tool: AVRISP mkII ( parameter available if connected to PC USB port ) Picture 6.1 Device: Select the type of microprocessor to program in according with the type of main board , ( see paragraph CARIMALI MAIN BOARD ) then press Apply [Picture 6.2]... -
Page 21: Troubleshooting
(max. 500 kHz ) Technical Support For technical support please contact service@carimali.com . When requesting technical support for AVRISP mkII and Studio 6.1 please include the following information: • Version number of AVR Studio. This can be found in AVR studio menu “ Help” – “About Atmel Studio”... - Page 22 The Carimali product you have purchased is subject to Directive 2002/96/EC of the European Parliament and the Council of the European Union on waste electrical and electronic equipment (WEEE) and, in jurisdictions adopting that Directive, is marked as being put on the market after August 13, 2005, and should not be disposed of as unsorted municipal waste.
